Zhejiang, China
SAINTBOND
AM601
PRESSURE SENSOR
Resistance Sensor
Analog SENSOR
Standard
12 b
Digital
Capacitive
Latch
Industrial Automation
Not Applicable
Load Cell
Good quality and low price
OEM&ODM
5~40Days
30% advance payment, the rest payment before delivery
Carton
Recommended Platform size: 250×350(mm)
Dimensions:
Size: 130x22x30(mm) Thread hole: 4-M6
It uses 4-core shielded cable (φ4×420mm). The length of the cable can be adjusted according to clients' request, but we suggest to use this standard length to ensure the output precision
Technical Parameter:
Rated Load: | 3/5/6/10/15/20/30/40/50/60/100/120kg | ||
Comprehensive Error: | 0.017%F.S & 0.02%F.S | Insulation Resistance: | ≥5000MΩ(100VDC) |
Rated Output: | 1±0.1 & 2±0.1mV/V | Excitation Voltage: | 9VDC~12VDC |
Non-Linearity: | 0.017%F.S & 0.02%F.S | Compensated Temp. Range: | -10℃~+40℃ |
Hysteresis: | 0.017%F.S & 0.02%F.S | Use Temp. Range: | -20℃~+60℃ |
Repeatability: | 0.01%F.S & 0.02%F.S | Temp. Effect On Zero: | 0.017%F.S/10℃ & 0.03%F.S/10℃ |
Creep: | 0.017%F.S/30min & 0.02%F.S/10min | Temp. Effect On Span: | 0.014%F.S/10℃ & 0.02%F.S/10℃ |
Zero Balance: | ±1%F.S | Safe Overload: | 120% |
Input Resistance: | 405±10Ω | Ultimate Overload: | 150% |
Output Resistance: | 350±3Ω | Defense Class: | IP65 |

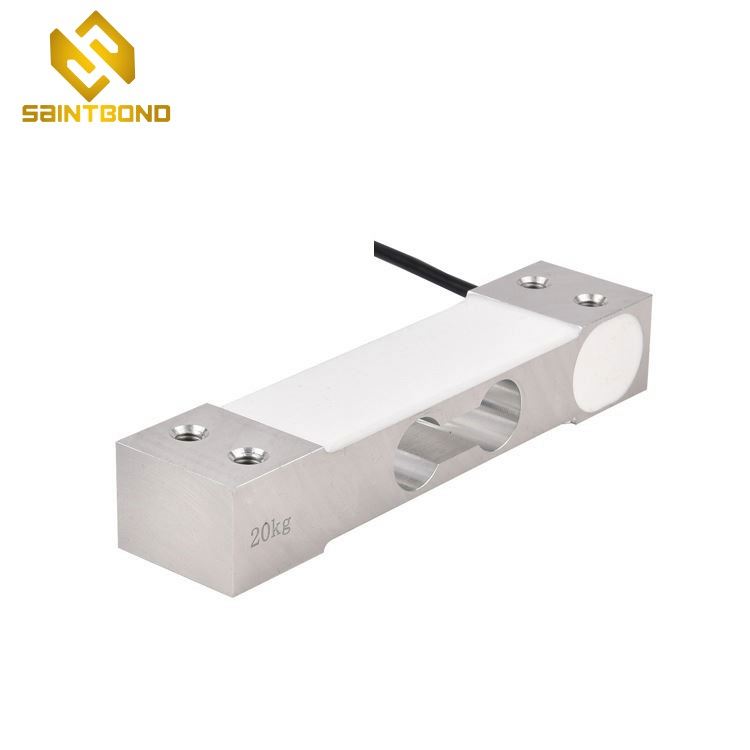

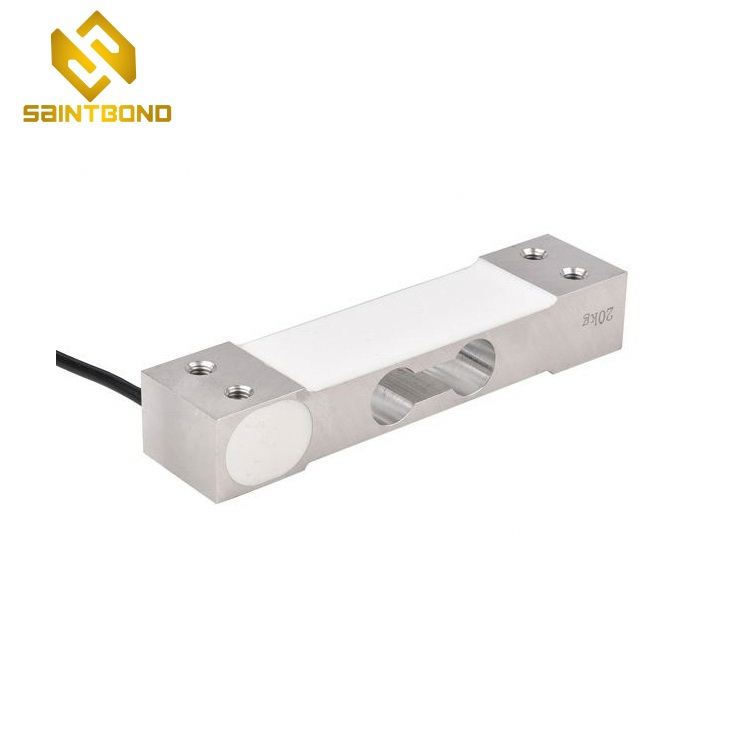

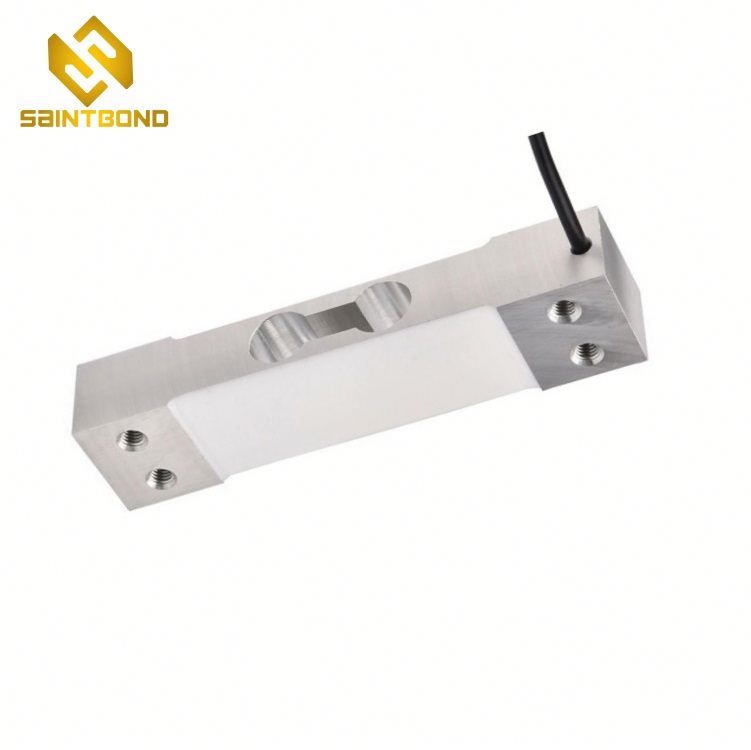

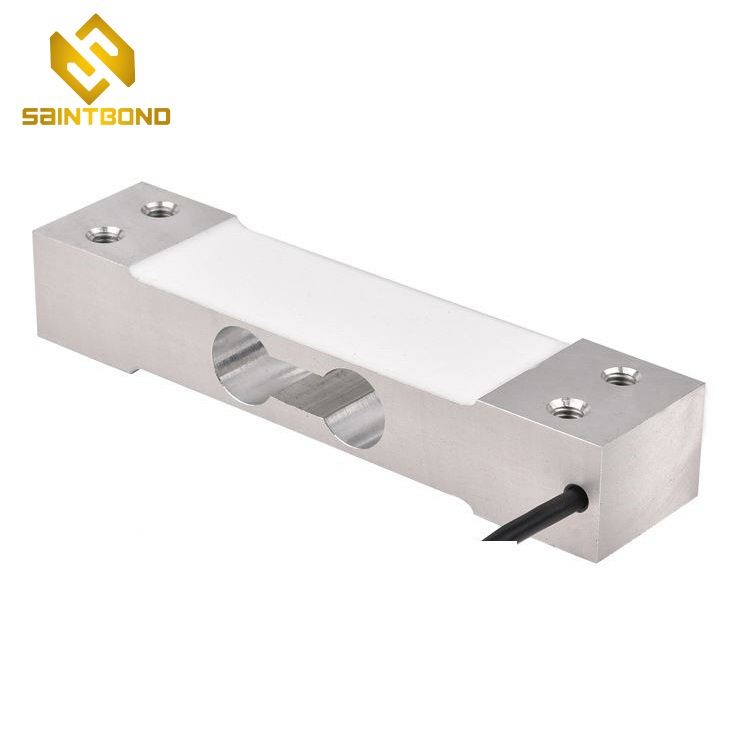

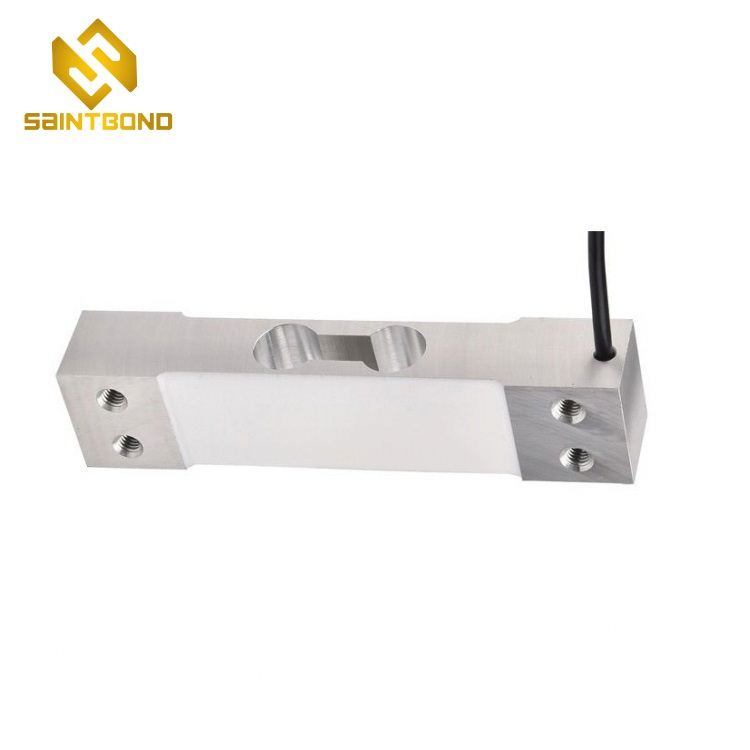

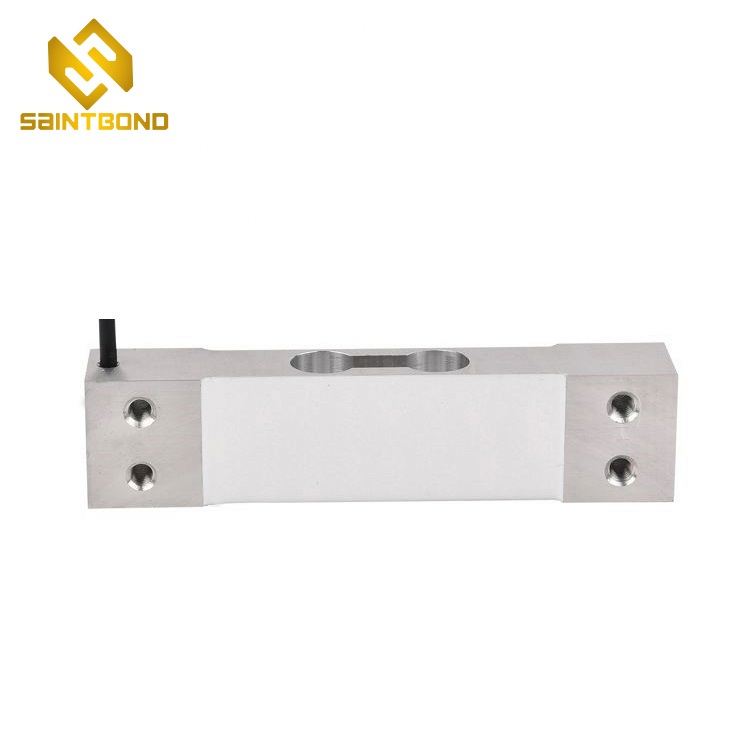

AM601 IP66 Aluminum Alloy Load Cell 400kg Powerful High Precision 1000kg Platform Scales Single Point Load Cell
| Product Name | AM601 IP66 Aluminum Alloy Load Cell 400kg Powerful High Precision 1000kg Platform Scales Single Point Load Cell |
| Features | Good quality and low price |
| Service | OEM&ODM |
| Custom Design | Welcome |
| Sample Lead Time | 5~40Days |
| Payment Terms | 30% advance payment, the rest payment before delivery |
| Market | all over the world |
| Form of sale | Factory supply |
Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they
will take photos and shoot video for you.
Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you
to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our
workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique
IDs will be created.It will save labor cost for you.
Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.
Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the
goods by your logo after getting your authorization letters.
Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the
market share.
Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.
Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance
to the standards.
Recommended Platform size: 250×350(mm)
Dimensions:
Size: 130x22x30(mm) Thread hole: 4-M6
It uses 4-core shielded cable (φ4×420mm). The length of the cable can be adjusted according to clients' request, but we suggest to use this standard length to ensure the output precision
Technical Parameter:
Rated Load: | 3/5/6/10/15/20/30/40/50/60/100/120kg | ||
Comprehensive Error: | 0.017%F.S & 0.02%F.S | Insulation Resistance: | ≥5000MΩ(100VDC) |
Rated Output: | 1±0.1 & 2±0.1mV/V | Excitation Voltage: | 9VDC~12VDC |
Non-Linearity: | 0.017%F.S & 0.02%F.S | Compensated Temp. Range: | -10℃~+40℃ |
Hysteresis: | 0.017%F.S & 0.02%F.S | Use Temp. Range: | -20℃~+60℃ |
Repeatability: | 0.01%F.S & 0.02%F.S | Temp. Effect On Zero: | 0.017%F.S/10℃ & 0.03%F.S/10℃ |
Creep: | 0.017%F.S/30min & 0.02%F.S/10min | Temp. Effect On Span: | 0.014%F.S/10℃ & 0.02%F.S/10℃ |
Zero Balance: | ±1%F.S | Safe Overload: | 120% |
Input Resistance: | 405±10Ω | Ultimate Overload: | 150% |
Output Resistance: | 350±3Ω | Defense Class: | IP65 |
AM601 IP66 Aluminum Alloy Load Cell 400kg Powerful High Precision 1000kg Platform Scales Single Point Load Cell
| Product Name | AM601 IP66 Aluminum Alloy Load Cell 400kg Powerful High Precision 1000kg Platform Scales Single Point Load Cell |
| Features | Good quality and low price |
| Service | OEM&ODM |
| Custom Design | Welcome |
| Sample Lead Time | 5~40Days |
| Payment Terms | 30% advance payment, the rest payment before delivery |
| Market | all over the world |
| Form of sale | Factory supply |
Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they
will take photos and shoot video for you.
Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you
to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our
workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique
IDs will be created.It will save labor cost for you.
Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.
Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the
goods by your logo after getting your authorization letters.
Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the
market share.
Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.
Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance
to the standards.
