Zhejiang, China
SAINTBOND
LC104B-18
PRESSURE SENSOR
Analog SENSOR
tension force load cell
Good quality and low price
Welcome
OEM&ODM
5~40Days
30% advance payment, the rest payment before delivery
Carton
Dimension: in mm
Products specification:
This mechanical load cell has been designed to provide a trip point for lifting systems which have a dead end wire rope. The trip point provides a signal that the user may employ depending on his requirements, e.g.
For load limiting in lifting systems
To limit the speed as a function of the load on traversing
To limit the effort applied for pulling
This universal load cell is recommended for its simplicity and quick lifting capability.
Technical Parameter:
Wire Rope Size: | 6~40mm | Operating Temperature Range: | -30~+70℃ |
Sensitivity: | (1.0±0.1%) mV/V | Maximum Safe Over Load: | 150%F.S |
Combined Error: | ±0.1% F.S | Ultimate Over Load: | 300%F.S |
Creep Error(30min): | ±0.02% F.S | Recommend Excitation Vol.: | 10~12V DC |
Zero Balance: | ±1% F.S | Maximum Excitation Voltage: | 15V DC |
Temp. Effect On Zero: | ±0.02% F.S/10℃ | Sealing Class: | IP67 |
Temp. Effect On Span: | ±0.02% F.S/10℃ | Element Material: | Alloy Steel, Stainless Steel |
Input Resistance: | 750±5Ω | Cable: | Length=1m |
Output Resistance: | 700±2Ω | Citation: | GB/T7551-2008/ OIML R60 |
Insulation Resistance: | ≥5000MΩ | Mode Of Connection: | Red(Input+),Green(Output+), Black(Input-),White(Output-) |

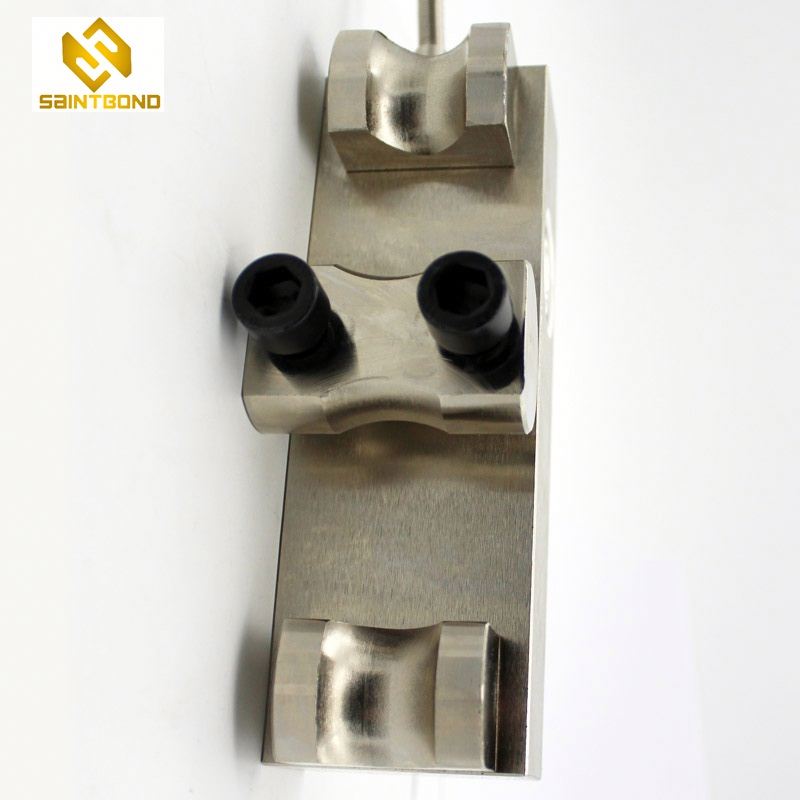

LC104B 3Ton wire rope tension force measurements load cell for crane scale
| Product Name | LC104B 3Ton wire rope tension force measurements load cell for crane scale |
| Features | Good quality and low price |
| Service | OEM&ODM |
| Custom Design | Welcome |
| Sample Lead Time | 5~40Days |
| Payment Terms | 30% advance payment, the rest payment before delivery |
| Market | all over the world |
| Form of sale | Factory supply |
Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they
will take photos and shoot video for you.
Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you
to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our
workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique
IDs will be created.It will save labor cost for you.
Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.
Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the
goods by your logo after getting your authorization letters.
Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the
market share.
Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.
Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance
to the standards.
Dimension: in mm
Products specification:
This mechanical load cell has been designed to provide a trip point for lifting systems which have a dead end wire rope. The trip point provides a signal that the user may employ depending on his requirements, e.g.
For load limiting in lifting systems
To limit the speed as a function of the load on traversing
To limit the effort applied for pulling
This universal load cell is recommended for its simplicity and quick lifting capability.
Technical Parameter:
Wire Rope Size: | 6~40mm | Operating Temperature Range: | -30~+70℃ |
Sensitivity: | (1.0±0.1%) mV/V | Maximum Safe Over Load: | 150%F.S |
Combined Error: | ±0.1% F.S | Ultimate Over Load: | 300%F.S |
Creep Error(30min): | ±0.02% F.S | Recommend Excitation Vol.: | 10~12V DC |
Zero Balance: | ±1% F.S | Maximum Excitation Voltage: | 15V DC |
Temp. Effect On Zero: | ±0.02% F.S/10℃ | Sealing Class: | IP67 |
Temp. Effect On Span: | ±0.02% F.S/10℃ | Element Material: | Alloy Steel, Stainless Steel |
Input Resistance: | 750±5Ω | Cable: | Length=1m |
Output Resistance: | 700±2Ω | Citation: | GB/T7551-2008/ OIML R60 |
Insulation Resistance: | ≥5000MΩ | Mode Of Connection: | Red(Input+),Green(Output+), Black(Input-),White(Output-) |
LC104B 3Ton wire rope tension force measurements load cell for crane scale
| Product Name | LC104B 3Ton wire rope tension force measurements load cell for crane scale |
| Features | Good quality and low price |
| Service | OEM&ODM |
| Custom Design | Welcome |
| Sample Lead Time | 5~40Days |
| Payment Terms | 30% advance payment, the rest payment before delivery |
| Market | all over the world |
| Form of sale | Factory supply |
Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they
will take photos and shoot video for you.
Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you
to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our
workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique
IDs will be created.It will save labor cost for you.
Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.
Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the
goods by your logo after getting your authorization letters.
Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the
market share.
Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.
Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance
to the standards.
