Zhejiang, China
SAINTBOND
Mini106
PRESSURE SENSOR
Resistance Sensor
Analog SENSOR
Standard
3~12Vdc
mV
no
-20~50
Easy
thin and flat, Good quality and low price
Alloy steel
34x34mm
10kg 20kg 30kg 50kg
700
Not Applicable
1.0±0.005mV/V
1000OHMS
SN: 202072088
TAL107H
50kg human body weighing sensor
OEM&ODM
5~40Days
30% advance payment, the rest payment before delivery
Carton
no Applicable
Weight measurement
2.0mv/v
Product Description:

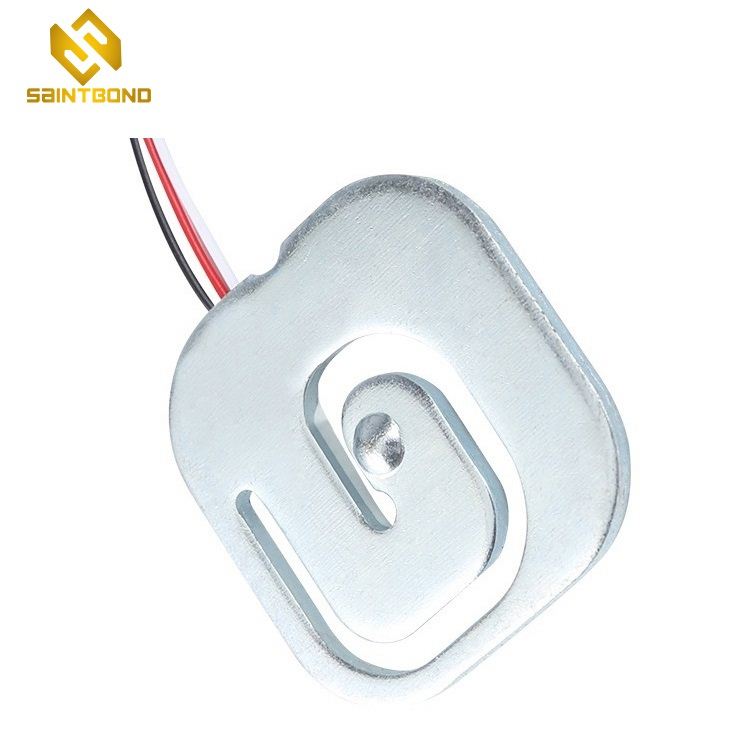

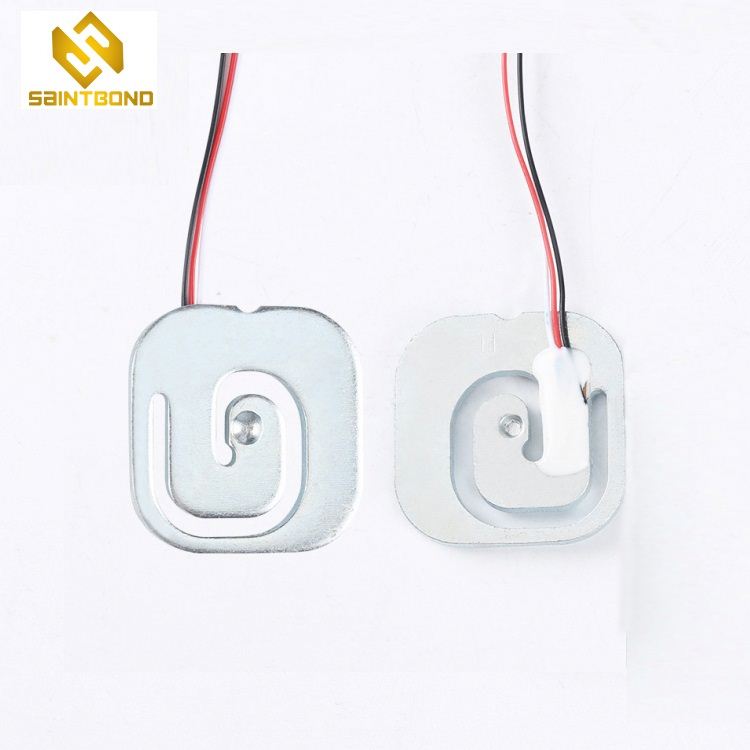

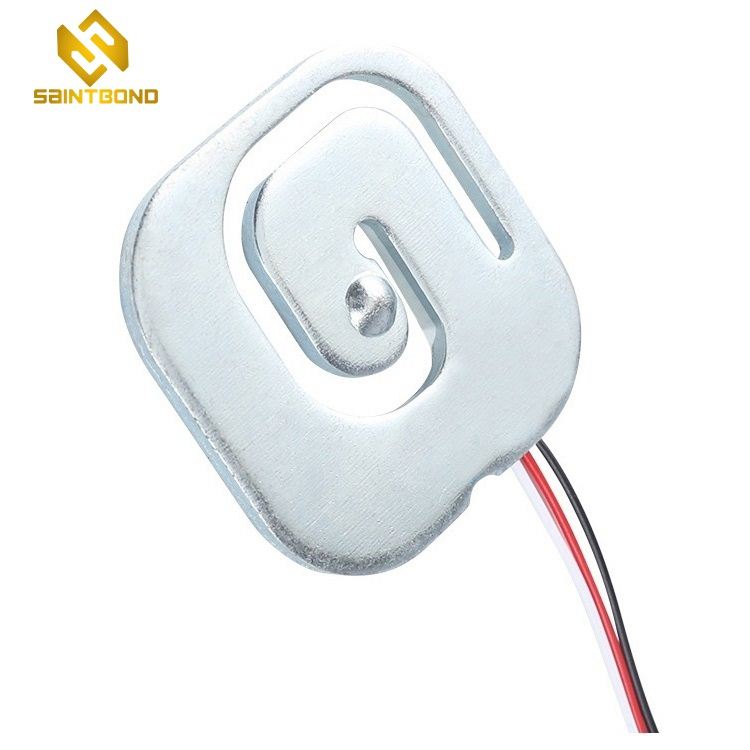

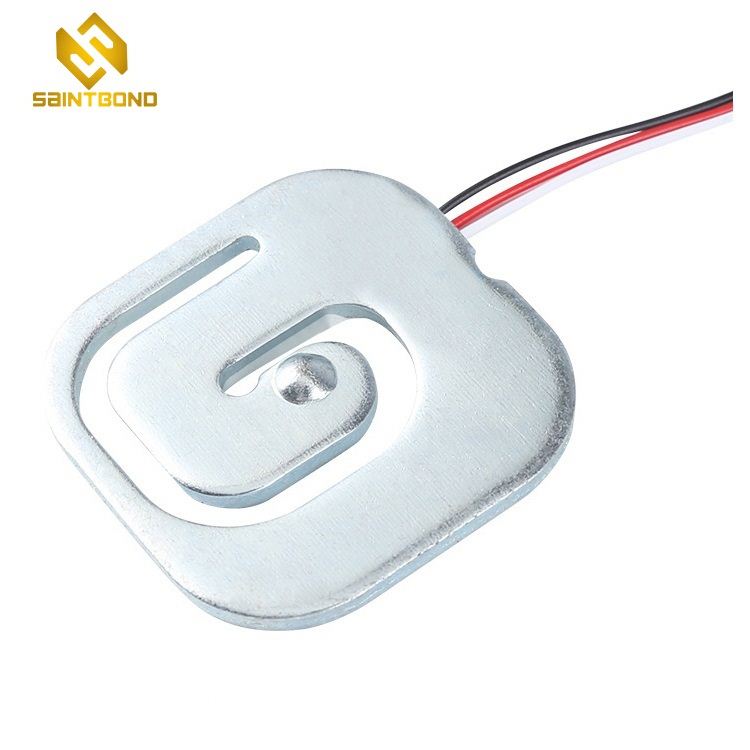

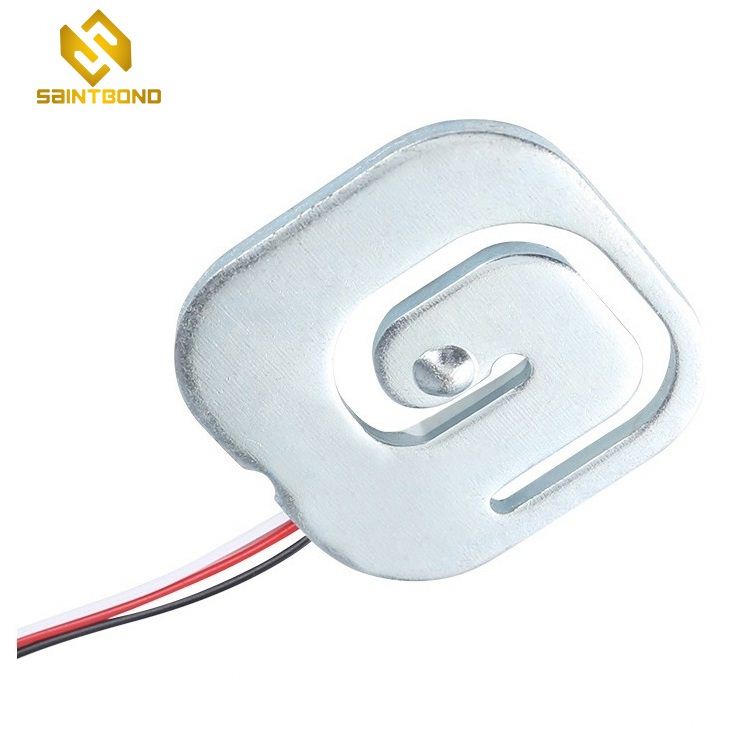

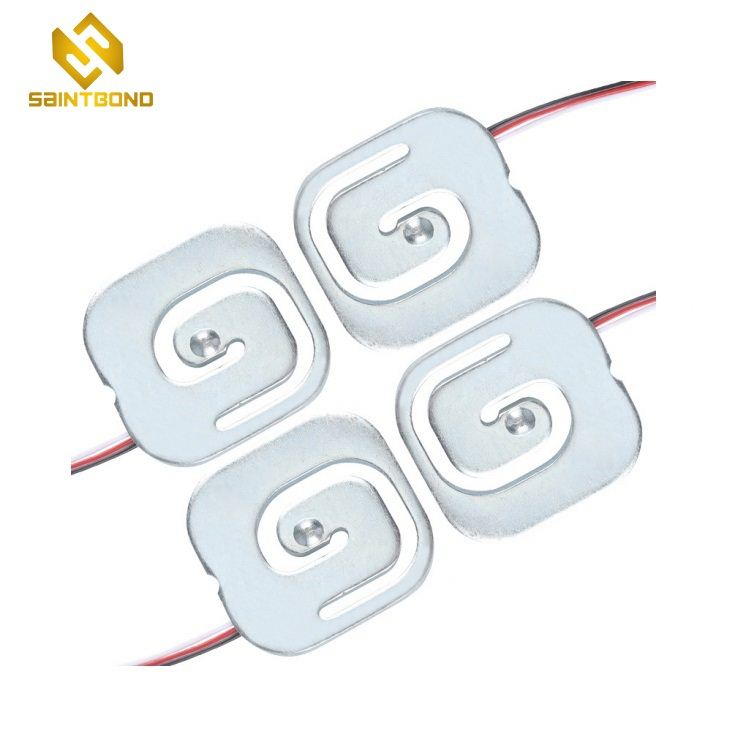

Mini load cell,very low profile,matched output.Aluminum construction with surface anodized.Mainly for low profile infant and adult medical scale,low profile platform scales,personal scale,airport baggage scale,postal scales etc.
Dimension:
Specification:
Rated Capacity: | 50Kg | Insulation resistance: | ≥2000MΩ |
Full Scale Output: | 1.0mV/V ± 0.15 | Temp. effect on span: | ±0.1%F.S/10℃ |
Non-linearity: | 0.05%FS | Temp. effect on zero: | ±0.05%F.S/10℃ |
Hysteresis: | ±0.05%F.S | Compensated temp. range: | -10~+40℃ |
Creep: | ±0.05%F.S/3min | Use temp. range: | -10~+40℃ |
Zero balance: | ±0.3%F.S | Excitation voltage: | 3~8V(DC) |
Input resistance: | 1000±10Ω | Safe overload: | 120%F.S |
Output resistance: | 1000±10Ω | Ultimate overload : | 150%F.S |
Application:
Mini106 50kg Body Load Cell Weighing Sensor Resistance Strain Half-bridge Total Weight Scales Sensors Pressure Measurement
| Product Name | Mini106 50kg Body Load Cell Weighing Sensor Resistance Strain Half-bridge Total Weight Scales Sensors Pressure Measurement |
| Features | Good quality and low price |
| Service | OEM&ODM |
| Custom Design | Welcome |
| Sample Lead Time | 5~40Days |
| Payment Terms | 30% advance payment, the rest payment before delivery |
| Market | all over the world |
| Form of sale | Factory supply |
Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they
will take photos and shoot video for you.
Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you
to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our
workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique
IDs will be created.It will save labor cost for you.
Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.
Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the
goods by your logo after getting your authorization letters.
Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the
market share.
Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.
Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance
to the standards.
Product Description:
Mini load cell,very low profile,matched output.Aluminum construction with surface anodized.Mainly for low profile infant and adult medical scale,low profile platform scales,personal scale,airport baggage scale,postal scales etc.
Dimension:
Specification:
Rated Capacity: | 50Kg | Insulation resistance: | ≥2000MΩ |
Full Scale Output: | 1.0mV/V ± 0.15 | Temp. effect on span: | ±0.1%F.S/10℃ |
Non-linearity: | 0.05%FS | Temp. effect on zero: | ±0.05%F.S/10℃ |
Hysteresis: | ±0.05%F.S | Compensated temp. range: | -10~+40℃ |
Creep: | ±0.05%F.S/3min | Use temp. range: | -10~+40℃ |
Zero balance: | ±0.3%F.S | Excitation voltage: | 3~8V(DC) |
Input resistance: | 1000±10Ω | Safe overload: | 120%F.S |
Output resistance: | 1000±10Ω | Ultimate overload : | 150%F.S |
Application:
Mini106 50kg Body Load Cell Weighing Sensor Resistance Strain Half-bridge Total Weight Scales Sensors Pressure Measurement
| Product Name | Mini106 50kg Body Load Cell Weighing Sensor Resistance Strain Half-bridge Total Weight Scales Sensors Pressure Measurement |
| Features | Good quality and low price |
| Service | OEM&ODM |
| Custom Design | Welcome |
| Sample Lead Time | 5~40Days |
| Payment Terms | 30% advance payment, the rest payment before delivery |
| Market | all over the world |
| Form of sale | Factory supply |
Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they
will take photos and shoot video for you.
Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you
to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our
workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique
IDs will be created.It will save labor cost for you.
Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.
Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the
goods by your logo after getting your authorization letters.
Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the
market share.
Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.
Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance
to the standards.
