1. Model: BSI Weighing indicator
2. Accuracy: Grade Ⅲ, n=3000
3. Sample Rate: 80 times / second
4. Load cell sensitivity:1.5~3mV/V or 4~20mA(Optional)
5. Scale interval:1/2/5/10/20/50 for option
6. Display:6 bits LED,6 state indicating signals
7. Interface:4PIN load cell interface
8. Power supply: AC 187~242V;49~51Hz
9. Operating temperature/humidity: -10~50°C;≤90%RH
10. transporting temperature: -20~55°C
11. Remote Controller Distance: >5m

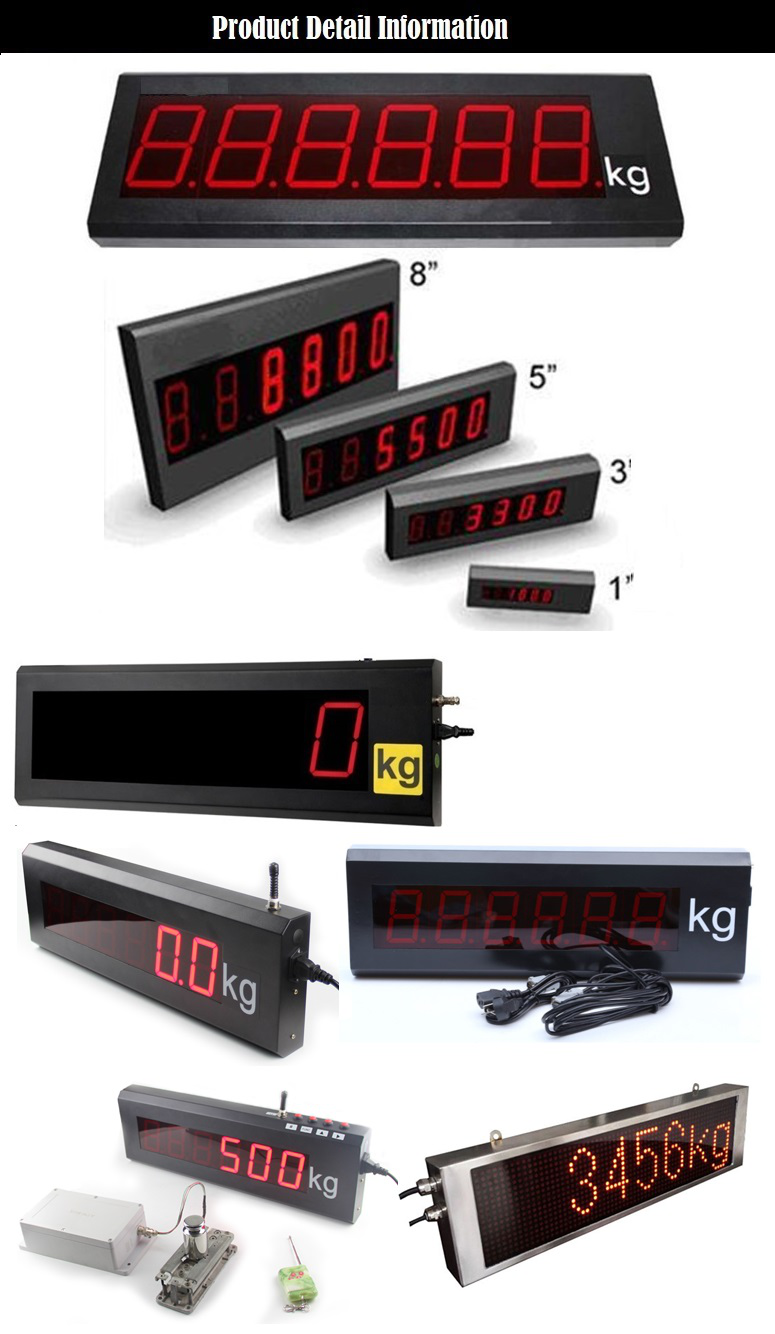

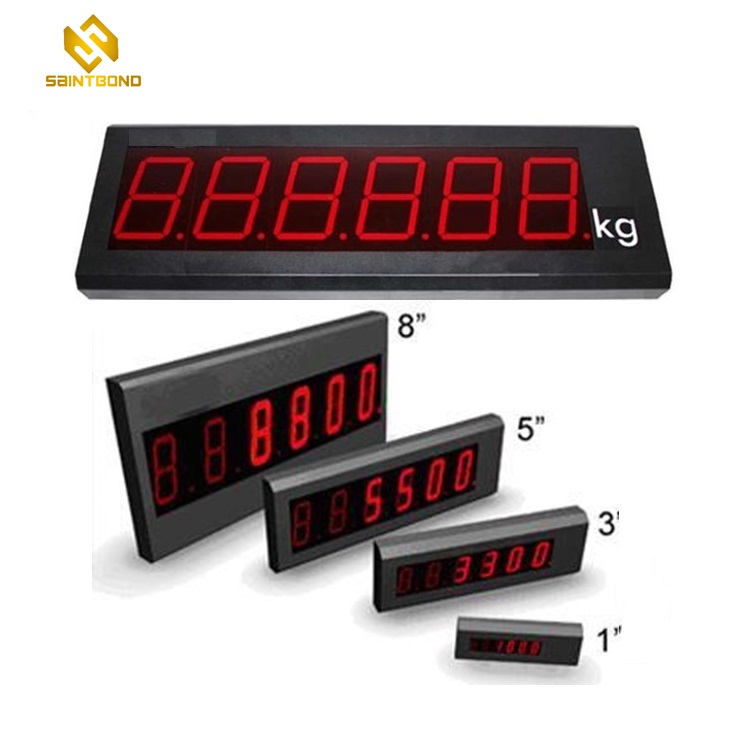

1" : 255×100mm
3" : 540×180mm word height:75mm
5" : 780×260mm word height:125mm
8" : 1000×500mm word height:200mm
[#] / A Press this button while open ,it will enter to calibrate mode;
[Func ] / B Keep pressing this button for 5 seconds more in weighing mode, it will come into operator setting mode;
[^] / C Tare function or Press this button to set number(0~9);
[> ]/ D Zero function or Press this button to select number.
Connecting load cell to indicator
PIN1: E- (Excitation-)
PIN2: S+ (Signal +)
PIN3: S- (Signal -)
PIN4: E+ (Excitation+)

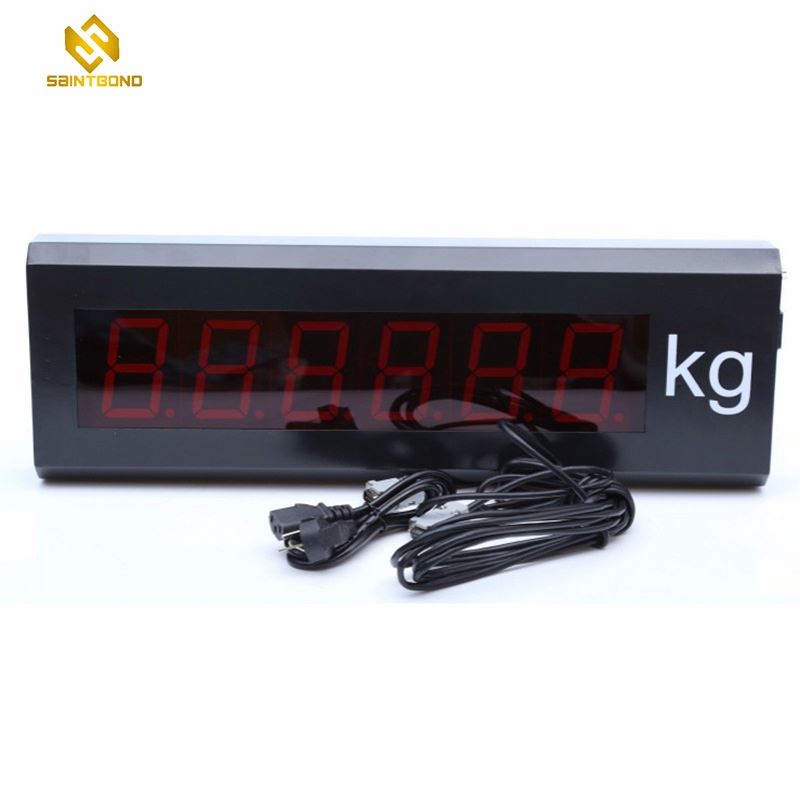

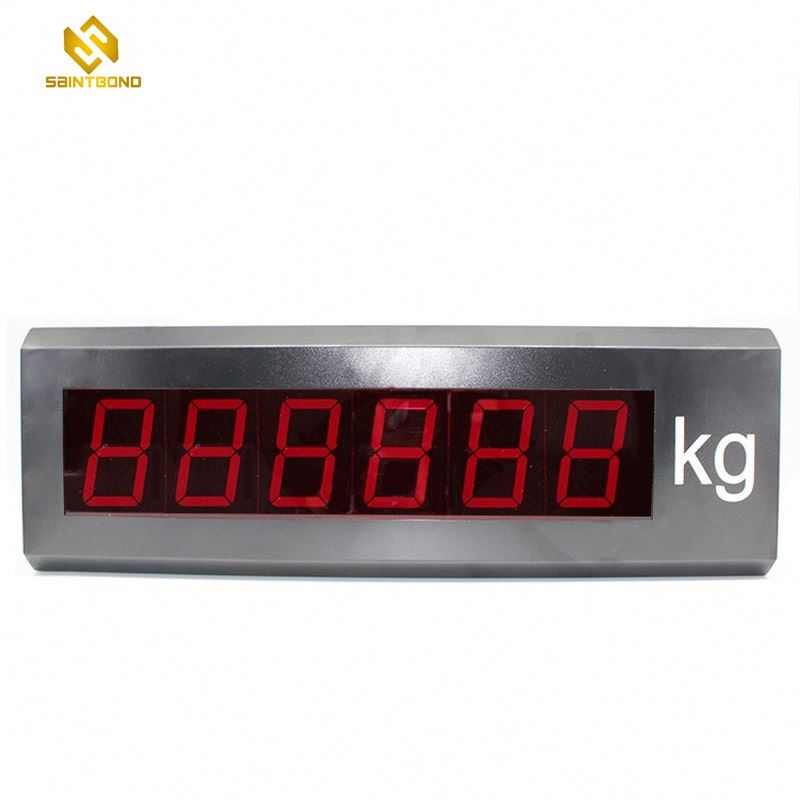

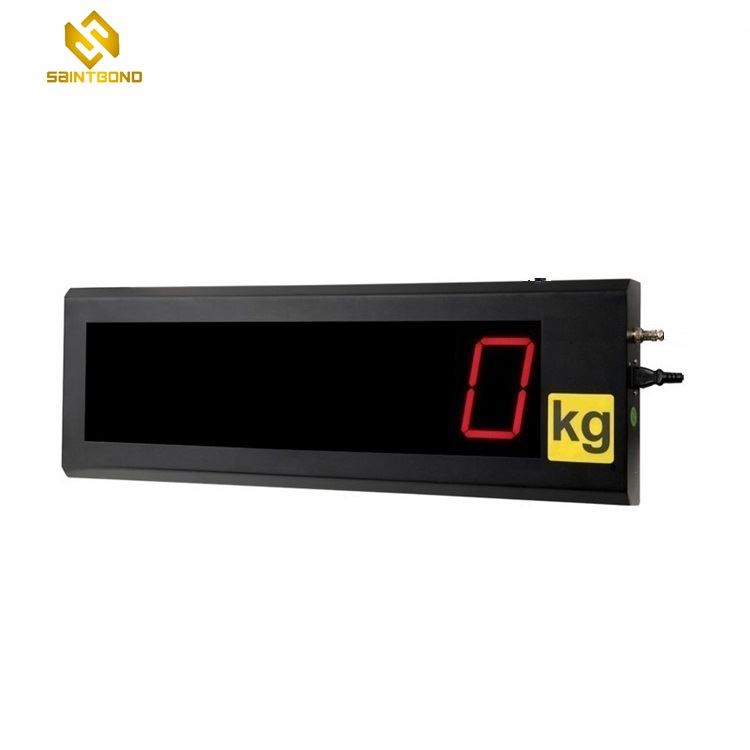

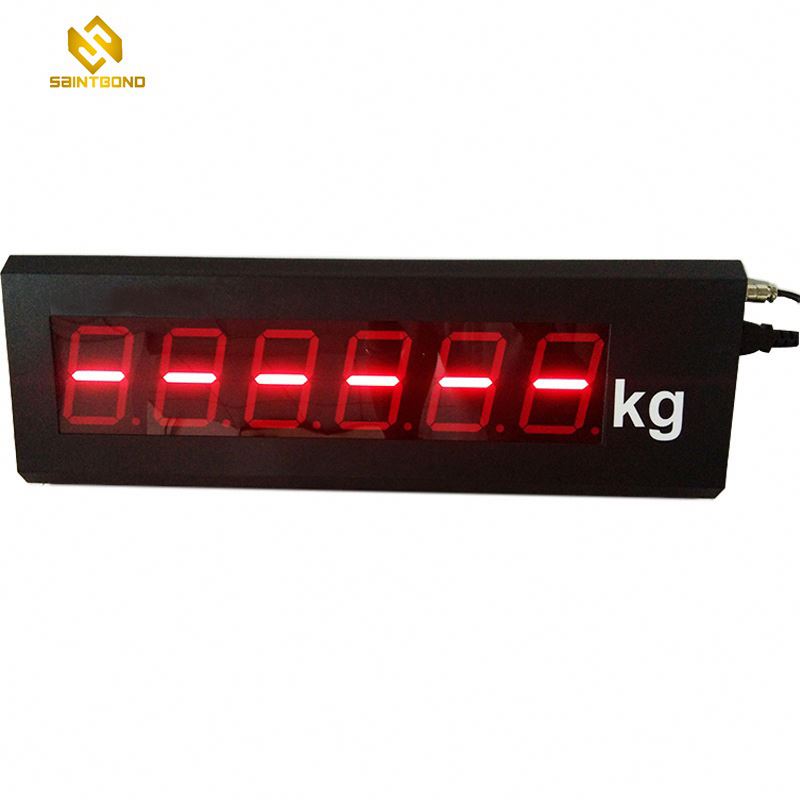

RD01 Bench Scale Platform Scale Large Screen Led Indicator For Truck Scale Weighbridge
|Product Name||RD01 Bench Scale Platform Scale Large Screen Led Indicator For Truck Scale Weighbridge|
|Features||Good quality and low price|
|Sample Lead Time||5~40Days|
|Payment Terms||30% advance payment, the rest payment before delivery|
|Market||all over the world|
|Form of sale||Factory supply|
