Zhejiang, China
SAINTBOND
Mini097
Weigh the weight of the weigher
Convert electrical signal to the force signal
Analog Sensor
LZ-FL5 Miniature Compression Load Cells
Stainless Steel / Alloy Steel
1SET
1.5±5%mV/V
0.5kg~5kg
truck scale, electronic scale and other weighing devices
-10~60℃
1.2V
C3
Stainless Steel

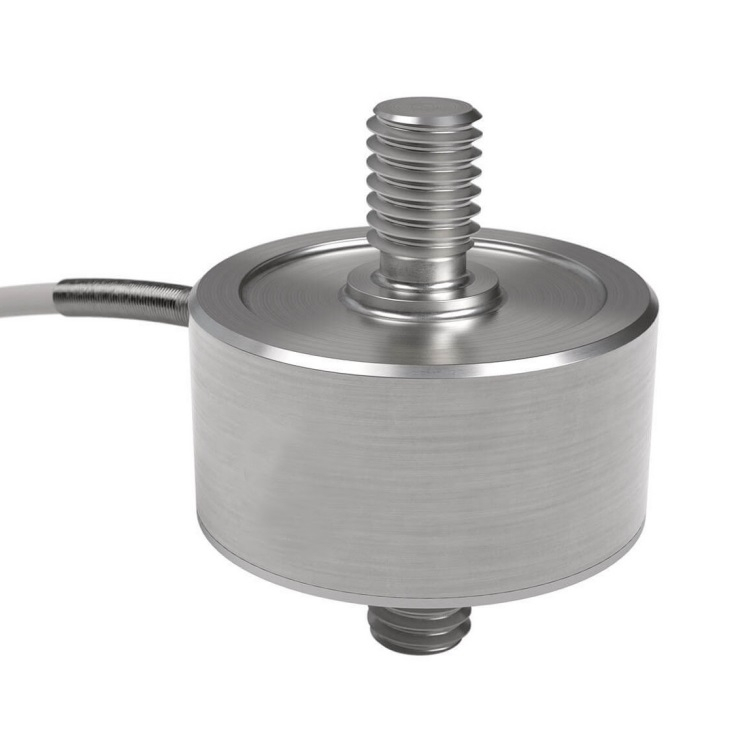

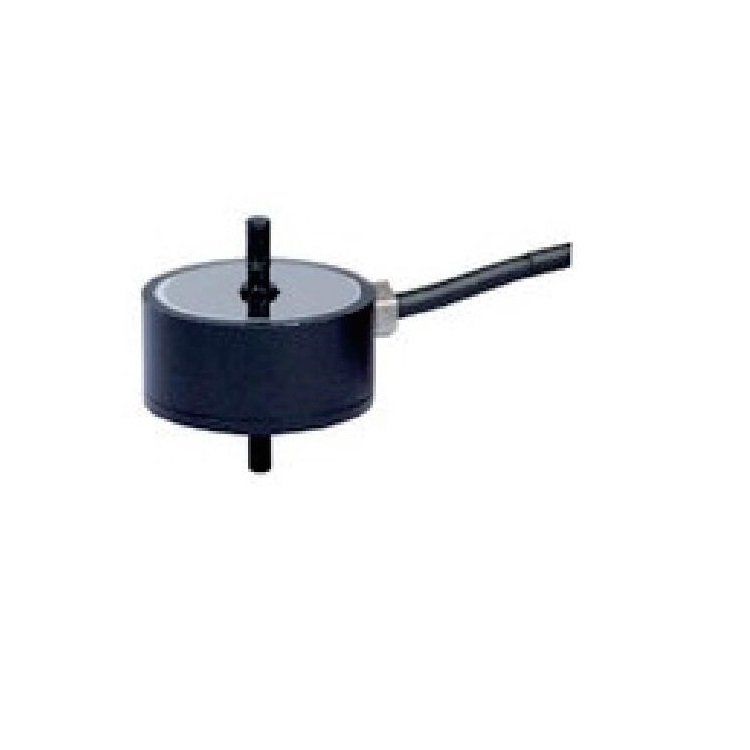

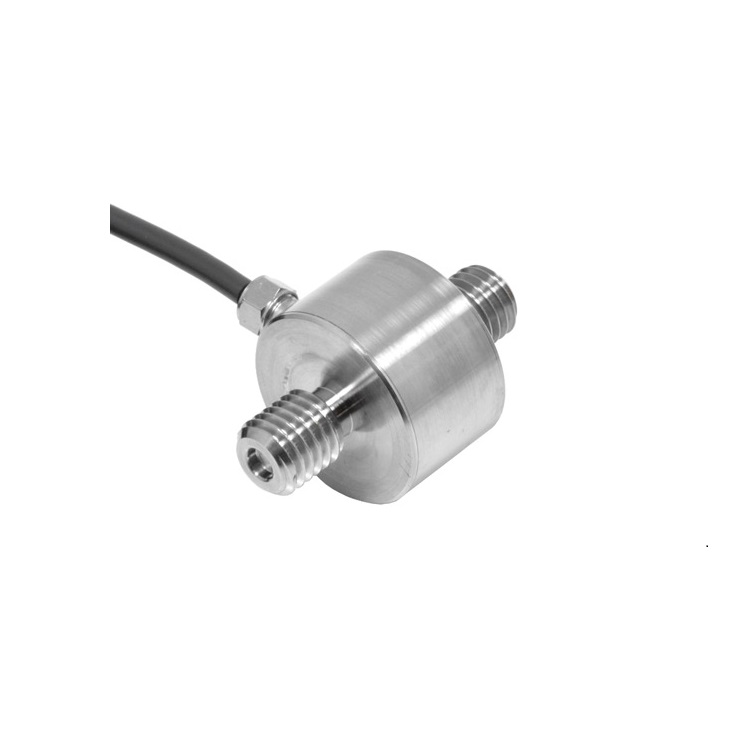

Tension Or Compression Mount Threaded Miniature Dual Stud Load Cells
Dimension:
Features:
Pull and press dual purpose, good output symmetry, small volume, easy installation. It is suitable for plugging force tester, film press, keyboard and button touch tester and automation equipment.
Capacity | 0.5kg~5kg | Output Impedance | 700±2Ω |
Rated output | 1.5±5%mV/V | Insulation | >5000MΩ/100VDC |
Non-linearity | ≤±0.5% F.S. | Recommended Excitation | 5~12VDC(10VDC) |
Hysteresis | 0.5 % F.S. | Excitation max | 15V |
Repeatability | 0.5 % F.S. | Compensated Temp Range | -10~60℃ |
Creep(30min) | ≤±0.3%F.S/30min | Operating Temp Range | -20~80℃ |
Temp Effect On Output | ≤±0.03%F.S/10℃ | Safe Load | 1.2 |
Temp Effect On Zero | ≤±0.03%F.S/10℃ | Ultimate Load Limit | 1.5 |
Input Impedance | 720±20Ω | Material | Stainless Steel |
FAQ:
Q: Could you offer more information about the products, and quote a best price ?
A: Yes, certainly, we will send our product catalogue and company introduction for your reference.
You can choose one or some model, I will advice suitable one for you, also with best price details.
Q: Are you manufacture or trading company ?
A: We are manufacture, also have own export right under our export company. Welcome to visit our factory, check our quality and service.
Q: How long is your delivery time ? What's your payment terms ?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Payment terms is TT, LC, Cash, also can be negotiation with us.
Q: Your price is a little bit higher than my target, can you offer a better price ?
A: Yes, price can be negotiation, we try our best to meet your target, let's find a win-win solution, we always keep long term cooperation relations with customers.
Tension Or Compression Mount Threaded Miniature Dual Stud Load Cells
Dimension:
Features:
Pull and press dual purpose, good output symmetry, small volume, easy installation. It is suitable for plugging force tester, film press, keyboard and button touch tester and automation equipment.
Capacity | 0.5kg~5kg | Output Impedance | 700±2Ω |
Rated output | 1.5±5%mV/V | Insulation | >5000MΩ/100VDC |
Non-linearity | ≤±0.5% F.S. | Recommended Excitation | 5~12VDC(10VDC) |
Hysteresis | 0.5 % F.S. | Excitation max | 15V |
Repeatability | 0.5 % F.S. | Compensated Temp Range | -10~60℃ |
Creep(30min) | ≤±0.3%F.S/30min | Operating Temp Range | -20~80℃ |
Temp Effect On Output | ≤±0.03%F.S/10℃ | Safe Load | 1.2 |
Temp Effect On Zero | ≤±0.03%F.S/10℃ | Ultimate Load Limit | 1.5 |
Input Impedance | 720±20Ω | Material | Stainless Steel |
