China
SAINTBOND
AS002C
100-240V
LED/LCDLED/LCD

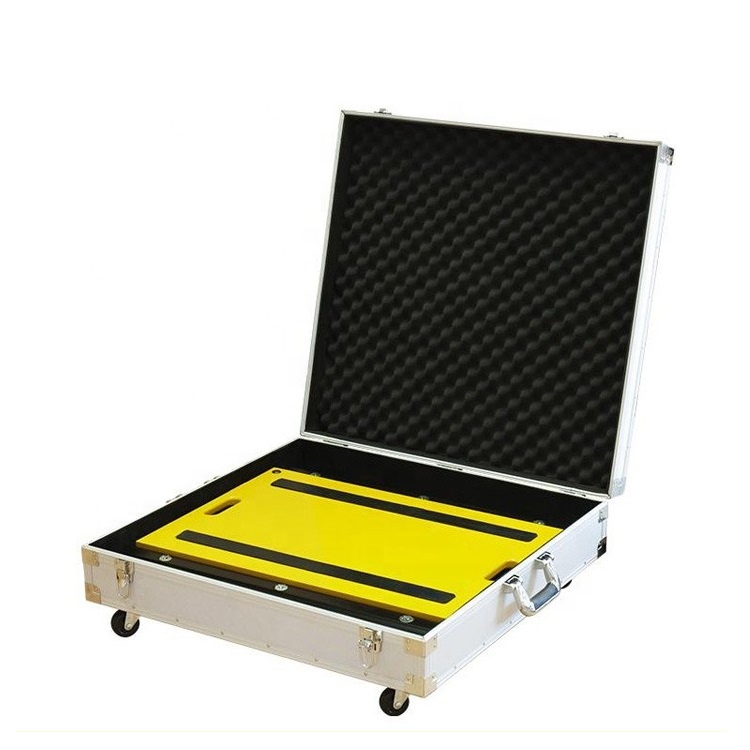

Portable Axle Weighing Pad
OIMLIII /GB/T11883-2002
Welcome
Factory supply
Weigh the weight of the product
High precision and stable performance
350x450~500x900mm
All over the world
OEM/ODM
30% advance payment, the rest payment before delivery

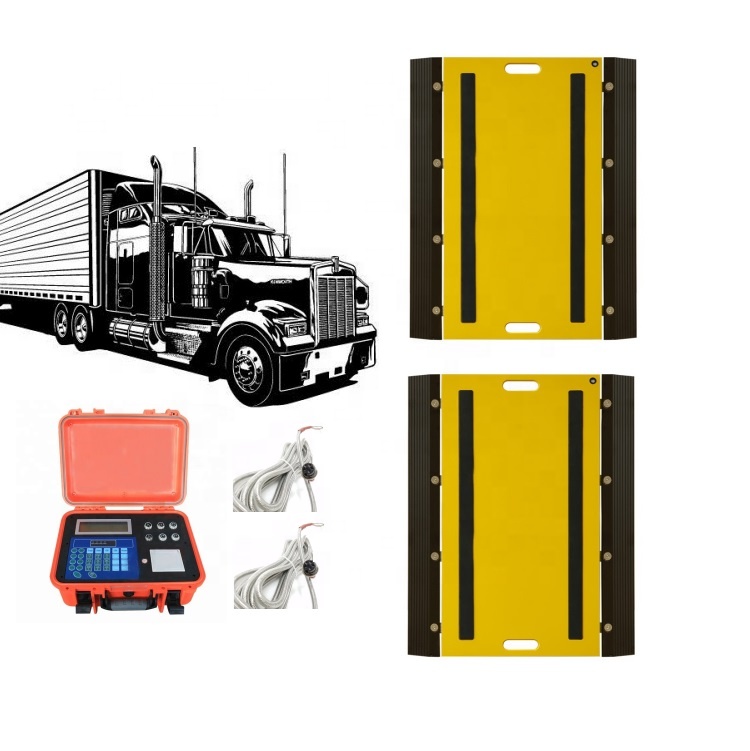

axle pad scales& ramps with wireless load-weighing technology
Aluminum-alloy; Ultra thin weigh pad design; Easily mounted / unmounted slope; Hermetically sealed, suits different environment;Works both dynamically and statically;Can be used to measure axle weight and whole vehicle weight when two or four weigh-pad connected together.
AS002 | 350×350×35 | 1000/2000/3000Kg | 4pcs LC348 LoadCell,10m Cable Capacity:500/1000/1500Kg | ||
| 400×500×56.5 | 3000/5000/6000/10000Kg | 4pcs LC348 LoadCell,10m Cable Capacity:1500/2500/3000/5000Kg | ||
| 450×700×56.5 | 10000/20000/30000Kg | 4pcs LC348 LoadCell,10m Cable Capacity:5000/10000/15000Kg | ||
| 500×900×56.5 | 20000/30000/40000Kg | 4pcs LC348 LoadCell,10m Cable Capacity:10000/15000/200000Kg | ||
Product Parameters | |||||
Rated load:1/2/3/5/6/10/20/30/40T | Compensated temp.range(℃): -10~+50 | ||||
Dynamic error (%F.S): 3 (5~10km/h) | Static error (%F.S):0.1~0.3 | ||||
Static comprehensive error(%F.S): 0.1~0.5 | Insulation resistance(MΩ): ≥5000(100VDC) | ||||
Rated output(mV/V): 1.0±0.1 | Use temp.range(℃): -30~+80 | ||||
Non-linearity(%F.S): 0.2 | Temp.effect on zero(F.S/10℃): 0.03 | ||||
Error on corners(%F.S): 0.2 | Temp.effect on span(F.S/10℃): 0.05 | ||||
Repeatariy(%F.S): 0.05 | Safe overload(%): 120 | ||||
Zero balance(%F.S): ±1 | Ultimate overload(%): 150 | ||||
Excitation voltage(VDC): 9~15 | Net weight(kg): 45 | ||||
Recommended voltage(V): 10 | Defend grade: IP66 |
FAQ:
Q: Could you offer more information about the products, and quote a best price ?
A: Yes, certainly, we will send our product catalogue and company introduction for your reference.
You can choose one or some model, I will advice suitable one for you, also with best price details.
Q: Are you manufacture or trading company ?
A: We are manufacture, also have own export right under our export company. Welcome to visit our factory, check our quality and service.
Q: How long is your delivery time ? What's your payment terms ?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Payment terms is TT, LC, Cash, also can be negotiation with us.
Q: Your price is a little bit higher than my target, can you offer a better price ?
A: Yes, price can be negotiation, we try our best to meet your target, let's find a win-win solution, we always keep long term cooperation relations with customers.
