Zhejiang, China
SAINTBOND

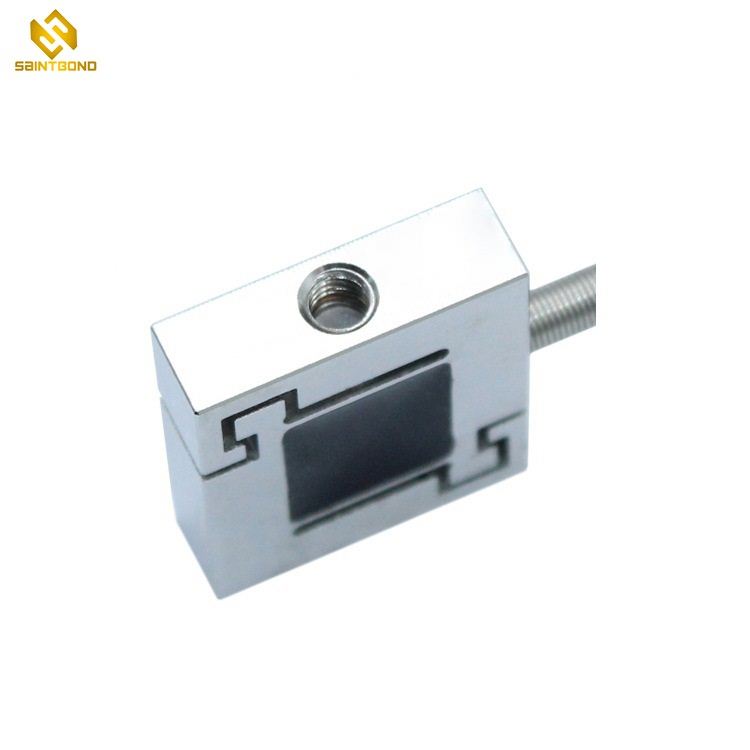

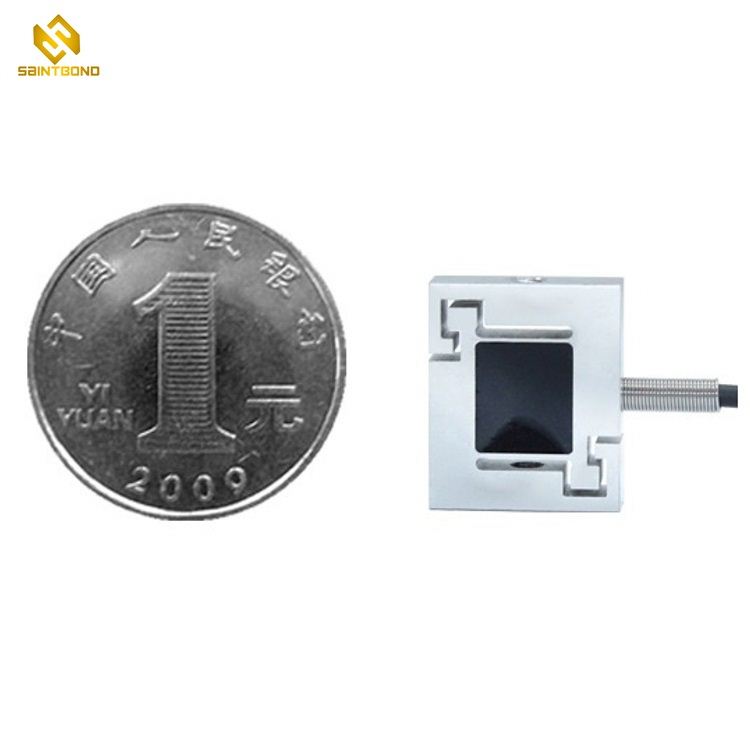

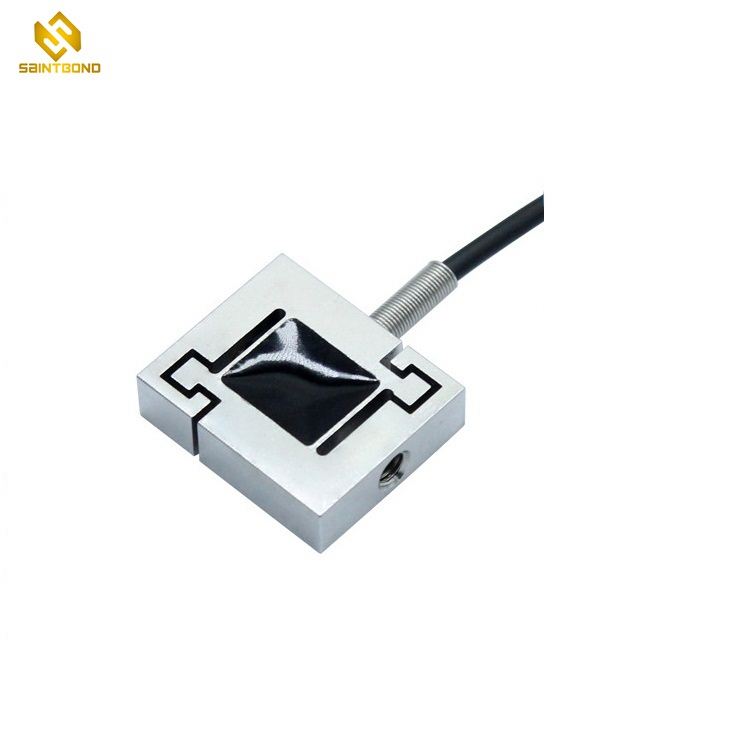

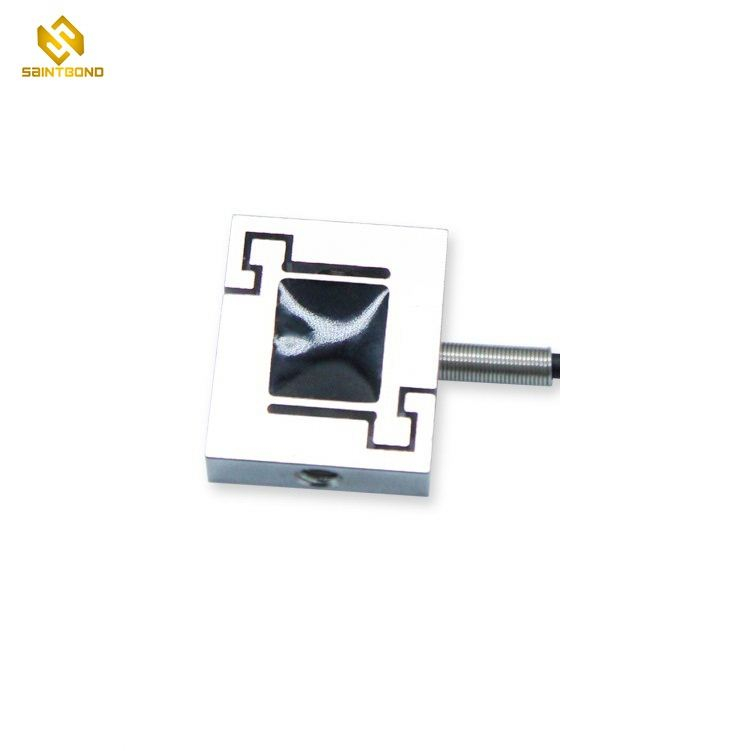

Mini032
PRESSURE SENSOR
mini load cell
Good quality and low price
Welcome
OEM&ODM
5~40Days
30% advance payment, the rest payment before delivery
Carton
Features:
Compact, easy to install
High measuring accuracy, is the preferred type of small range pull pressure sensor
Suitable for tension measurements, batching systems, industrial scales and package systems, etc
Dimension:
(1-50kg)
(100kg)
Specification:
Capacity: | 1/2/3/5/10/20/30/50/100kg | ||
Rated Output: | 1.0mV/V ±0.1% | Safe Temp. Range: | -10ºC to + 70ºC |
Zero Balance: | ±1% of rated output | Temp. Compensated: | -10ºC to + 40ºC |
Creep After 30 Minutes: | ±0.1% of rated output | Safe Overload: | 150% |
Nonlinearity: | ±0.1% of rated output | Input Impedance: | 387 ohm ± 20 ohm |
Hysteresis: | ±0.1% of rated output | Output Impedance: | 350 ohm ± 5 ohm |
Repeatability: | ±0.1% of rated output | Rated Excitation: | 10V DC/AC |
Temp. Effect On Output: | ≤0.02% of applied output/ºC | Maximum Excitation: | 15V DC/AC |
Temp. Effect On Zero: | ≤0.02% of applied output/ºC | ||
CALT mini S type load cell pull press sensor 1kg 3kg 5kg 10kg 20kg 30kg 50kg
| Product Name | CALT mini S type load cell pull press sensor 1kg 3kg 5kg 10kg 20kg 30kg 50kg |
| Features | Good quality and low price |
| Service | OEM&ODM |
| Custom Design | Welcome |
| Sample Lead Time | 5~40Days |
| Payment Terms | 30% advance payment, the rest payment before delivery |
| Market | all over the world |
| Form of sale | Factory supply |
Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they
will take photos and shoot video for you.
Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you
to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our
workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique
IDs will be created.It will save labor cost for you.
Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.
Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the
goods by your logo after getting your authorization letters.
Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the
market share.
Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.
Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance
to the standards.
Features:
Compact, easy to install
High measuring accuracy, is the preferred type of small range pull pressure sensor
Suitable for tension measurements, batching systems, industrial scales and package systems, etc
Dimension:
(1-50kg)
(100kg)
Specification:
Capacity: | 1/2/3/5/10/20/30/50/100kg | ||
Rated Output: | 1.0mV/V ±0.1% | Safe Temp. Range: | -10ºC to + 70ºC |
Zero Balance: | ±1% of rated output | Temp. Compensated: | -10ºC to + 40ºC |
Creep After 30 Minutes: | ±0.1% of rated output | Safe Overload: | 150% |
Nonlinearity: | ±0.1% of rated output | Input Impedance: | 387 ohm ± 20 ohm |
Hysteresis: | ±0.1% of rated output | Output Impedance: | 350 ohm ± 5 ohm |
Repeatability: | ±0.1% of rated output | Rated Excitation: | 10V DC/AC |
Temp. Effect On Output: | ≤0.02% of applied output/ºC | Maximum Excitation: | 15V DC/AC |
Temp. Effect On Zero: | ≤0.02% of applied output/ºC | ||
CALT mini S type load cell pull press sensor 1kg 3kg 5kg 10kg 20kg 30kg 50kg
| Product Name | CALT mini S type load cell pull press sensor 1kg 3kg 5kg 10kg 20kg 30kg 50kg |
| Features | Good quality and low price |
| Service | OEM&ODM |
| Custom Design | Welcome |
| Sample Lead Time | 5~40Days |
| Payment Terms | 30% advance payment, the rest payment before delivery |
| Market | all over the world |
| Form of sale | Factory supply |
Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they
will take photos and shoot video for you.
Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you
to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our
workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique
IDs will be created.It will save labor cost for you.
Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.
Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the
goods by your logo after getting your authorization letters.
Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the
market share.
Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.
Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance
to the standards.
