Zhejiang, China
SAINTBOND
LC5015
PRESSURE SENSOR
load cell
Good quality and low price
Welcome
OEM&ODM
5~40Days
30% advance payment, the rest payment before delivery
Carton

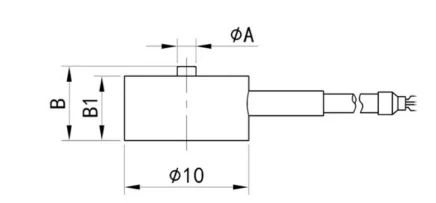

Dimension:mm
Capacity(N) | A | B | B1 |
50/100N | 1.5 | 3.5 | 3 |
200/300N | 2 | 3.5 | 3 |
500/1000N | 2.5 | 6 | 5.2 |
Features:

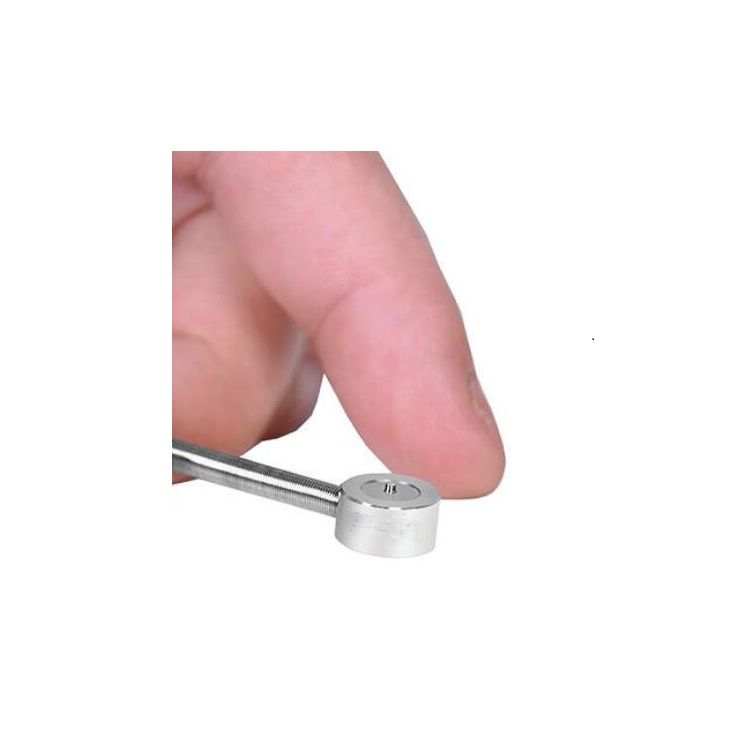

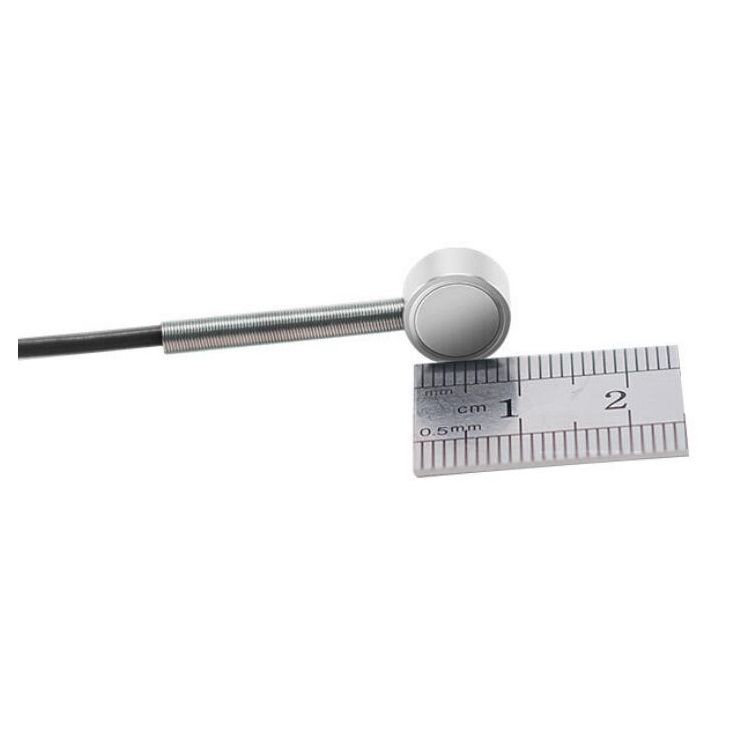

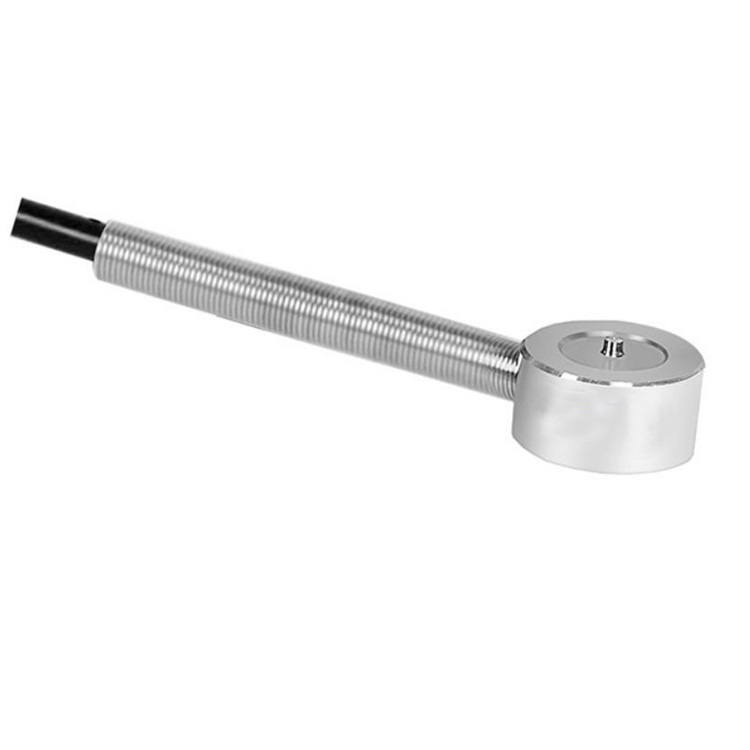

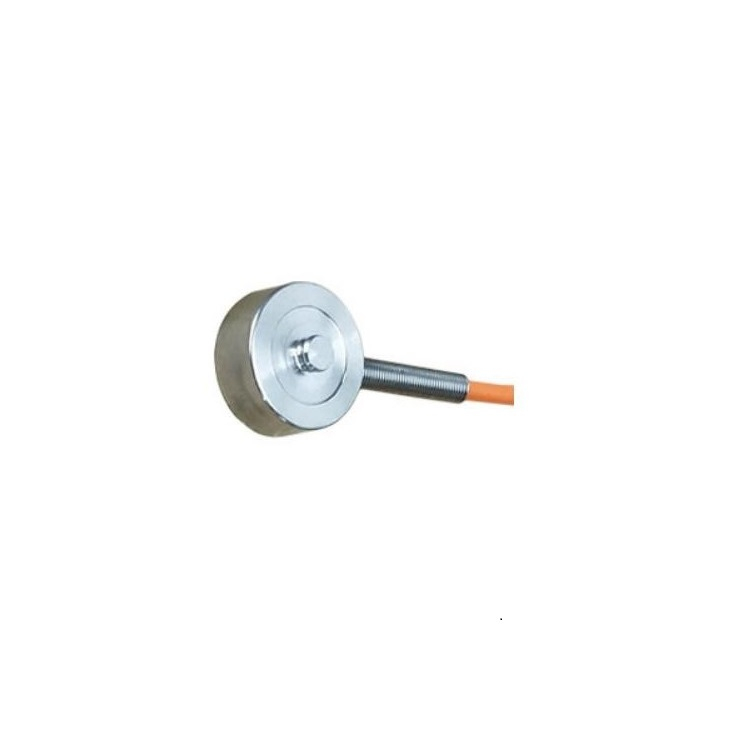

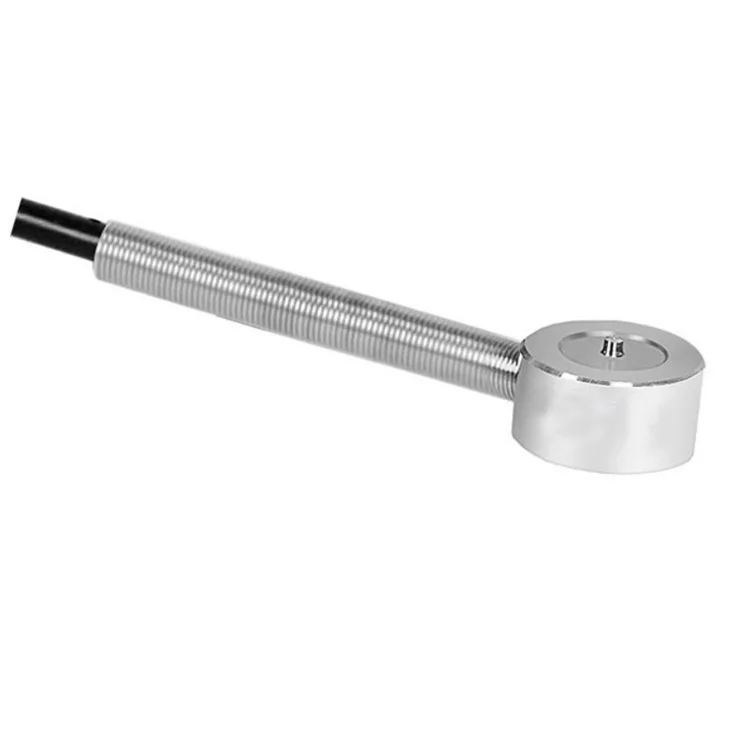

The series subminiature load cells Load buttons are offered for compression only applications where space is limited. The matching diameter is slightly convex for accurate load distribution. These sensors are manufactured from heat treated 17-4ph stainless steel, and the sensing element incorporates bonded foil strain gages of the highest quality. They are sealed for protection against most industrial environments. They are available in 50/100/200/500/100N capacities.
Technical Data:
Capacity | 50/100/200/500/100N | Material | Stainless Steel |
Rated output | 1.0 ±20% mV/V | Protection Class | IP65 |
Non-linearity | 0.5 % F.S. | Insulation | >5000MΩ/10VDC |
Hysteresis | 0.2 % F.S. | Recommended Excitation | 5~10V |
Repeatability | 0.2% F.S. | Excitation max | 15V |
Creep(30min) | 0.2 % F.S. | Compensated Temp Range | -10~60°C |
Temp Effect On Output | 0.05 % F.S./10°C | Operating Temp Range | -20~80°C |
Temp Effect On Zero | 0.05 % F.S./10°C | Safe Load | 1.2 |
Output Impedance | 750±30Ω | Ultimate Load Limit | 1.5 |
Input Impedance | 700±5Ω | Cable Length | ∅4 x 3m |

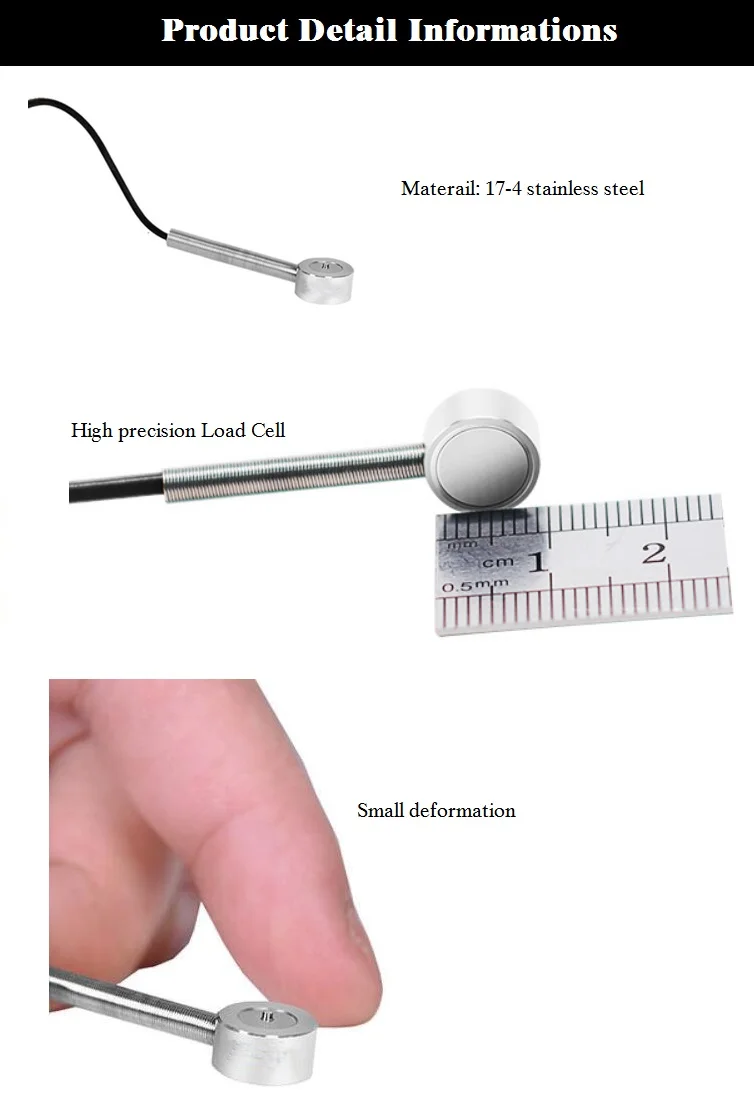

Product Detail Informations:
Compression Load Cell 50kg 100kg 150kg 200kg
| Product Name | Compression Load Cell 50kg 100kg 150kg 200kg |
| Features | Good quality and low price |
| Service | OEM&ODM |
| Custom Design | Welcome |
| Sample Lead Time | 5~40Days |
| Payment Terms | 30% advance payment, the rest payment before delivery |
| Market | all over the world |
| Form of sale | Factory supply |
Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they will take photos and shoot video for you.
Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique IDs will be created.It will save labor cost for you.
Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.
Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the goods by your logo after getting your authorization letters.
Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the market share.
Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.
Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance to the standards.
Dimension:mm
Capacity(N) | A | B | B1 |
50/100N | 1.5 | 3.5 | 3 |
200/300N | 2 | 3.5 | 3 |
500/1000N | 2.5 | 6 | 5.2 |
Features:
The series subminiature load cells Load buttons are offered for compression only applications where space is limited. The matching diameter is slightly convex for accurate load distribution. These sensors are manufactured from heat treated 17-4ph stainless steel, and the sensing element incorporates bonded foil strain gages of the highest quality. They are sealed for protection against most industrial environments. They are available in 50/100/200/500/100N capacities.
Technical Data:
Capacity | 50/100/200/500/100N | Material | Stainless Steel |
Rated output | 1.0 ±20% mV/V | Protection Class | IP65 |
Non-linearity | 0.5 % F.S. | Insulation | >5000MΩ/10VDC |
Hysteresis | 0.2 % F.S. | Recommended Excitation | 5~10V |
Repeatability | 0.2% F.S. | Excitation max | 15V |
Creep(30min) | 0.2 % F.S. | Compensated Temp Range | -10~60°C |
Temp Effect On Output | 0.05 % F.S./10°C | Operating Temp Range | -20~80°C |
Temp Effect On Zero | 0.05 % F.S./10°C | Safe Load | 1.2 |
Output Impedance | 750±30Ω | Ultimate Load Limit | 1.5 |
Input Impedance | 700±5Ω | Cable Length | ∅4 x 3m |
Product Detail Informations:
Compression Load Cell 50kg 100kg 150kg 200kg
| Product Name | Compression Load Cell 50kg 100kg 150kg 200kg |
| Features | Good quality and low price |
| Service | OEM&ODM |
| Custom Design | Welcome |
| Sample Lead Time | 5~40Days |
| Payment Terms | 30% advance payment, the rest payment before delivery |
| Market | all over the world |
| Form of sale | Factory supply |
Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they will take photos and shoot video for you.
Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique IDs will be created.It will save labor cost for you.
Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.
Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the goods by your logo after getting your authorization letters.
Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the market share.
Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.
Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance to the standards.
