Zhejiang, China
SAINTBOND
LC761
Weigh the weight of the weigher
Convert electrical signal to the force signal
Analog Sensor
LC761 SBT Load Cell
Stainless Steel / Alloy Steel
1SET
Length=L:5m
5/10/15/20t
-30~+70℃
(%F.S): 150
10~12V DC
C3
Alloy steel or stainless steel
For Agricultural Machinery Tipping Trailers Sensor Low-profile Beam Load Cell

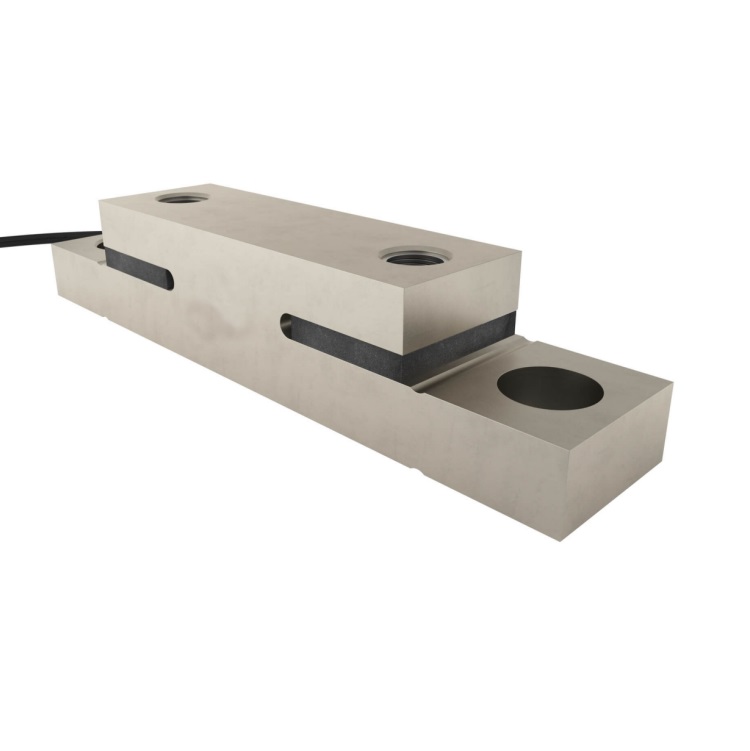

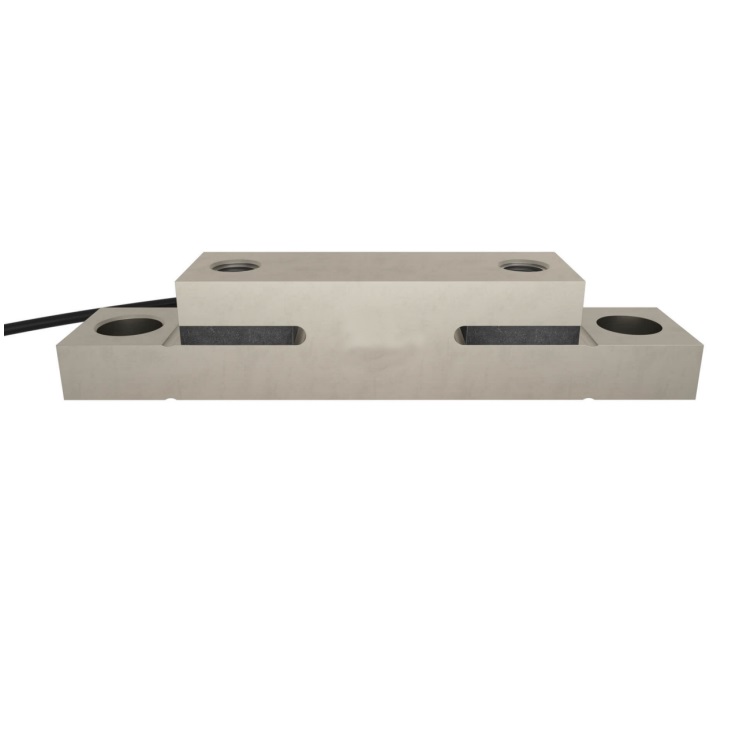

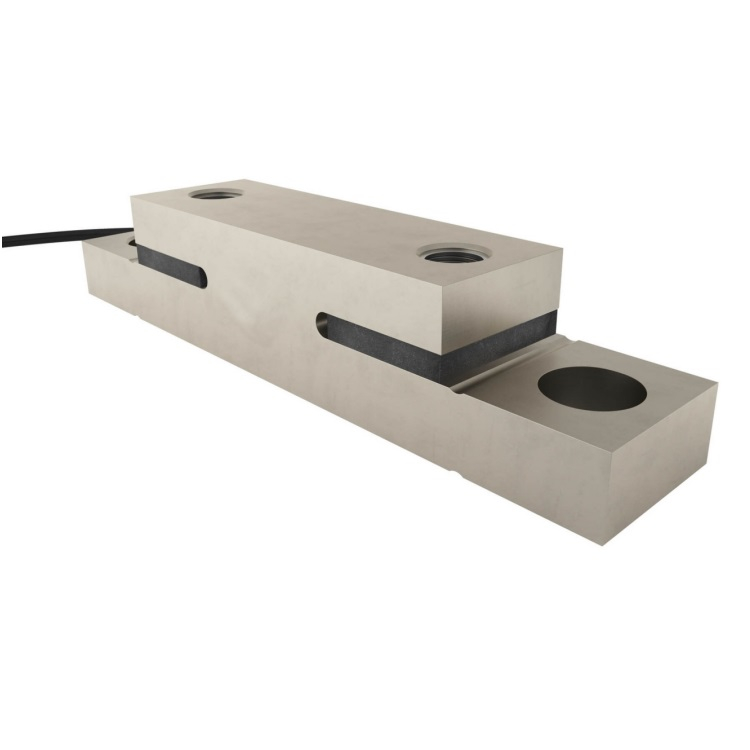

The LC761 is a high-accuracy, low-profile beam load cell designed for onboard vehicle weighing applications. Constructed from alloy steel and sealed with the most durable potting compound, it will withstand the harsh environments associated with all types of heavy-duty vehicles. The LC761 is particularly simple to mount under vehicle and trailer bodies. The overall size and strength of the LC761 ensures that is can withstand significant loads well beyond its rated capacity.
Dimension:
Product Description:
The pedal force sensor has the characteristics of compact structure, low height, high accuracy, good stability and easy installation, and is suitable for measuring the braking force of moving vehicles in the automobile testing industry.
Rated Load: | 5/10/15/20t | Operating Temp.Range: | -10~+70℃ |
Sensitivity: | (0.82±10%) m V/V | Max. Safe Over Load: | 150%F.S |
Combined Error: | ±0.05% F.S | Ultimate Over Load: | 200%F.S |
Creep Error(30min): | ±0.05% F.S | Recommend Excitation Vol.: | 10~12V DC |
Zero Balance: | ±1.0% F.S | Maximum Excitation Vol.: | 15V DC |
Temp. Effect On Zero: | ±0.05% F.S/10℃ | Sealing Class: | IP67 |
Temp. Effect On Span: | ±0.05% F.S/10℃ | Element Material: | Alloy/Stainless Steel |
Input Resistance: | 385±5Ω | Cable: | Length=L:5m |
Output Resistance: | 351±2Ω | Citation: | GB/T7551-2008/ OIML R60 |
Insulation Resistance: | ≥5000MΩ | Mode Of Connection: | Red(Input+),Green(Output+), Black(Input-),White(Output-) |
FAQ:
Q: Could you offer more information about the products, and quote a best price ?
A: Yes, certainly, we will send our product catalogue and company introduction for your reference.
You can choose one or some model, I will advice suitable one for you, also with best price details.
Q: Are you manufacture or trading company ?
A: We are manufacture, also have own export right under our export company. Welcome to visit our factory, check our quality and service.
Q: How long is your delivery time ? What's your payment terms ?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Payment terms is TT, LC, Cash, also can be negotiation with us.
Q: Your price is a little bit higher than my target, can you offer a better price ?
A: Yes, price can be negotiation, we try our best to meet your target, let's find a win-win solution, we always keep long term cooperation relations with customers.
For Agricultural Machinery Tipping Trailers Sensor Low-profile Beam Load Cell
The LC761 is a high-accuracy, low-profile beam load cell designed for onboard vehicle weighing applications. Constructed from alloy steel and sealed with the most durable potting compound, it will withstand the harsh environments associated with all types of heavy-duty vehicles. The LC761 is particularly simple to mount under vehicle and trailer bodies. The overall size and strength of the LC761 ensures that is can withstand significant loads well beyond its rated capacity.
Dimension:
Product Description:
The pedal force sensor has the characteristics of compact structure, low height, high accuracy, good stability and easy installation, and is suitable for measuring the braking force of moving vehicles in the automobile testing industry.
Rated Load: | 5/10/15/20t | Operating Temp.Range: | -10~+70℃ |
Sensitivity: | (0.82±10%) m V/V | Max. Safe Over Load: | 150%F.S |
Combined Error: | ±0.05% F.S | Ultimate Over Load: | 200%F.S |
Creep Error(30min): | ±0.05% F.S | Recommend Excitation Vol.: | 10~12V DC |
Zero Balance: | ±1.0% F.S | Maximum Excitation Vol.: | 15V DC |
Temp. Effect On Zero: | ±0.05% F.S/10℃ | Sealing Class: | IP67 |
Temp. Effect On Span: | ±0.05% F.S/10℃ | Element Material: | Alloy/Stainless Steel |
Input Resistance: | 385±5Ω | Cable: | Length=L:5m |
Output Resistance: | 351±2Ω | Citation: | GB/T7551-2008/ OIML R60 |
Insulation Resistance: | ≥5000MΩ | Mode Of Connection: | Red(Input+),Green(Output+), Black(Input-),White(Output-) |
FAQ:
Q: Could you offer more information about the products, and quote a best price ?
A: Yes, certainly, we will send our product catalogue and company introduction for your reference.
You can choose one or some model, I will advice suitable one for you, also with best price details.
Q: Are you manufacture or trading company ?
A: We are manufacture, also have own export right under our export company. Welcome to visit our factory, check our quality and service.
Q: How long is your delivery time ? What's your payment terms ?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Payment terms is TT, LC, Cash, also can be negotiation with us.
Q: Your price is a little bit higher than my target, can you offer a better price ?
A: Yes, price can be negotiation, we try our best to meet your target, let's find a win-win solution, we always keep long term cooperation relations with customers.
