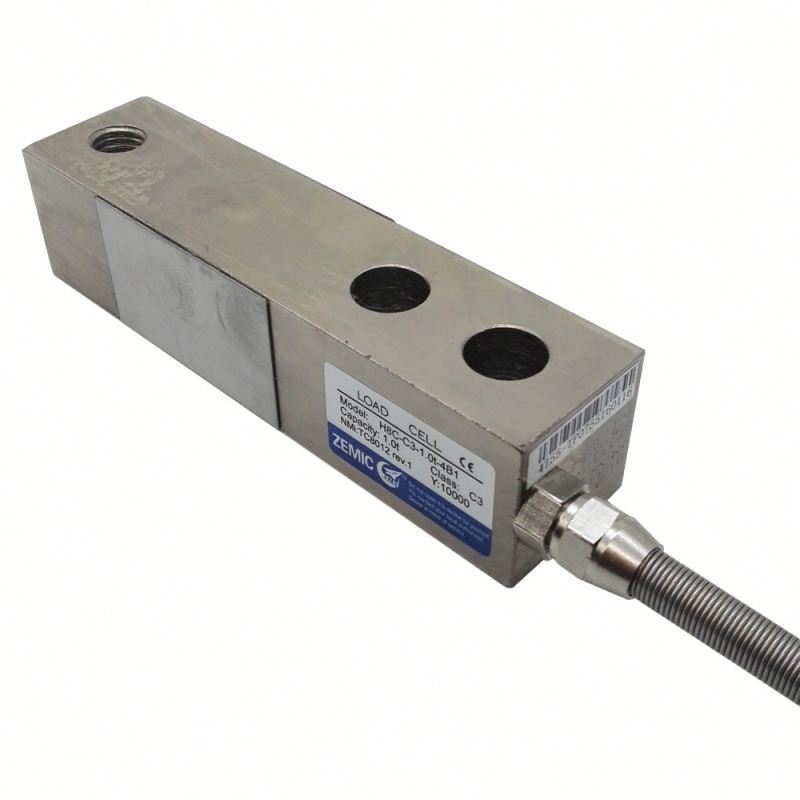

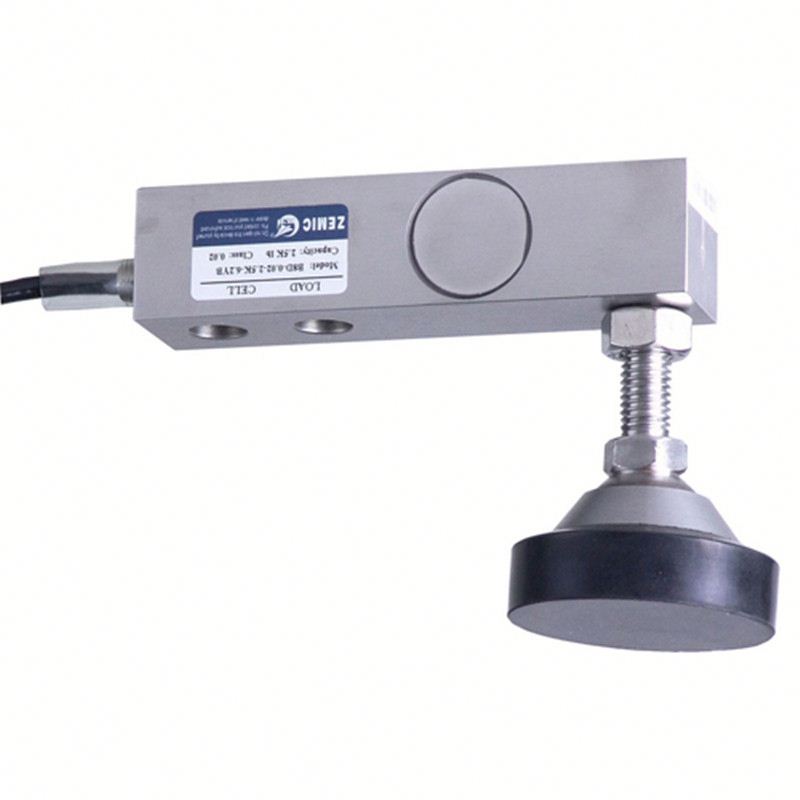

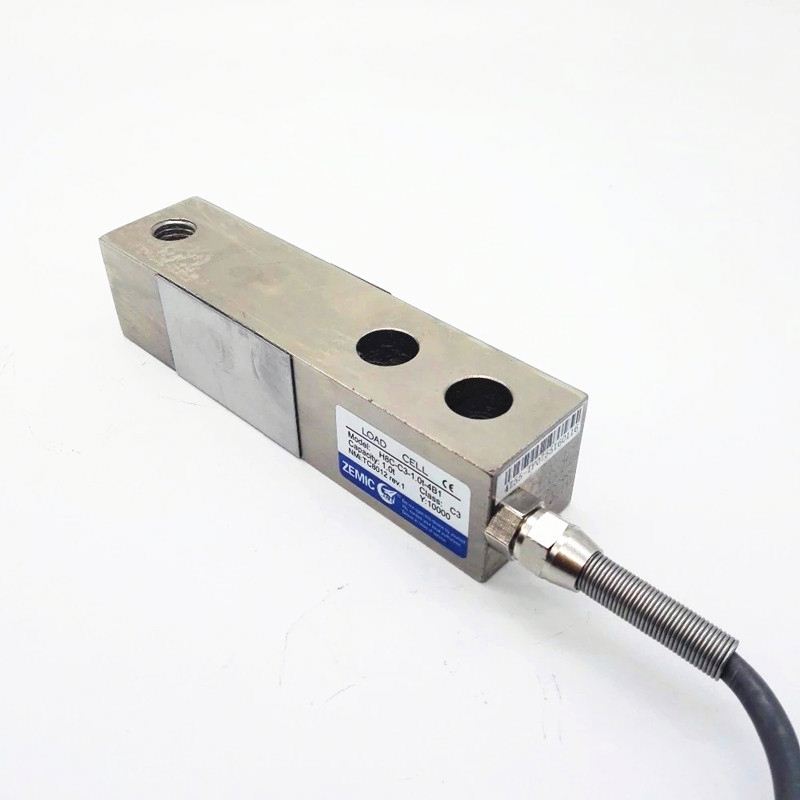

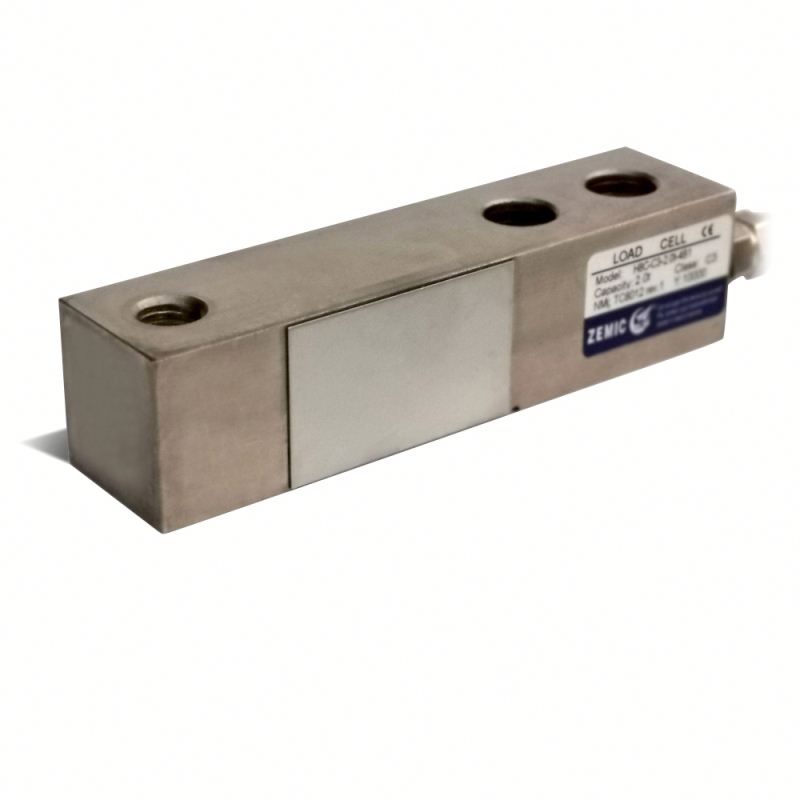

H8C ESML Zemic / Keli Load Cell Sensor





Products Specification:

• H8C load cells are available in the capacities 1Klb to 20Klb and 0.5t to 10t.

• Alloy steel,sealed by adhesive inside,oil-proof,waterproof and anti-corrosion, suitable for all kinds of environment.

• Single shear beam, easy for installation,suitable for electronic platform scales,hopper scales and other electronic weighing devices.

• Safe and anti-explosive product,can be used in atrocious environment and hazardous areas.

Features:

• Capacity:1Klb to 20Klb and 0.5t to 10t.

• High accuracy.

• Alloy steel construction.

• Low profile.

• OIML Certificate No.:R60/2000-CN-00.02

• Germany PTB Certificate No.:D09-03.19 2.Revision

• NTEP Certificate No.:CC 07-012

Outline Dimension mm(inch)





Specifications:

Capacity	t	0. 5/1/1.5/2/2.5/3/5/10
	Klb	1/1.5/2/2.5/3/4/5/5KSE/7.5/10/15/20
Accuracy class		C2	C3	C4	A5M	B10M
Approval			OIML R60 C3		III 5000 multiford	III L 10000  multiford
Maximum number of verification intervals	n max	2000	3000	4000	5000	10000
Minimum load cell verification interval	v min	Emax/5000	Emax /10000	Emax /14000	Emax/15000	Emax/10000
Combined error	(%FS)	≤±0.030	≤±0.020	≤±0.018	≤±0.026	≤±0.050
Creep	%FS/30min	≤±0.024	≤±0.016	≤±0.012	≤±0.017	≤±0.040
Temperature effect on sensitivity	(%FS/10℃)	≤±0.017	≤±0.011	≤±0.009	≤±0.013	≤±0.040
Temperature effect on zero	(%FS/10℃)	≤±0.023	≤±0.015	≤±0.010	≤±0.014	≤±0.020
Output sensitivity	(mv/v)	2.0 ±0.002			3.0±0.003
Input resistance	(Ω)	350±3.5
Output resistance	(Ω)	350±3.5
Insulation resistance	(MΩ)	≥ 5000(100VDC)
Zero balance	(%FS)	1
Temperature,compensated	(℃)	-10~+40
Temperature,allowed	(℃)	-35~+70
Excitation,Recommended	(V)	5~12(DC)
Excitation,Max	(V)	18(DC)
Safe overload	(%FS)	150
Ultimate overload	(%FS)	300

Note:Output sensitivity of S1 type is 2.0 ±0.002



H8C ESML zemic / keli load cell sensor

Product Name	H8C ESML zemic / keli load cell sensor
Features	Good quality and low price
Service	OEM&ODM
Custom Design	Welcome
Sample Lead Time	5~40Days
Payment Terms	30% advance payment, the rest payment before delivery
Market	all over the world
Form of sale	Factory supply



Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they
will take photos and shoot video for you.

Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you
to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our
workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique
IDs will be created.It will save labor cost for you.

Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.

Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the
goods by your logo after getting your authorization letters.

Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the
market share.

Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.

Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance
to the standards.
