SAINTBOND

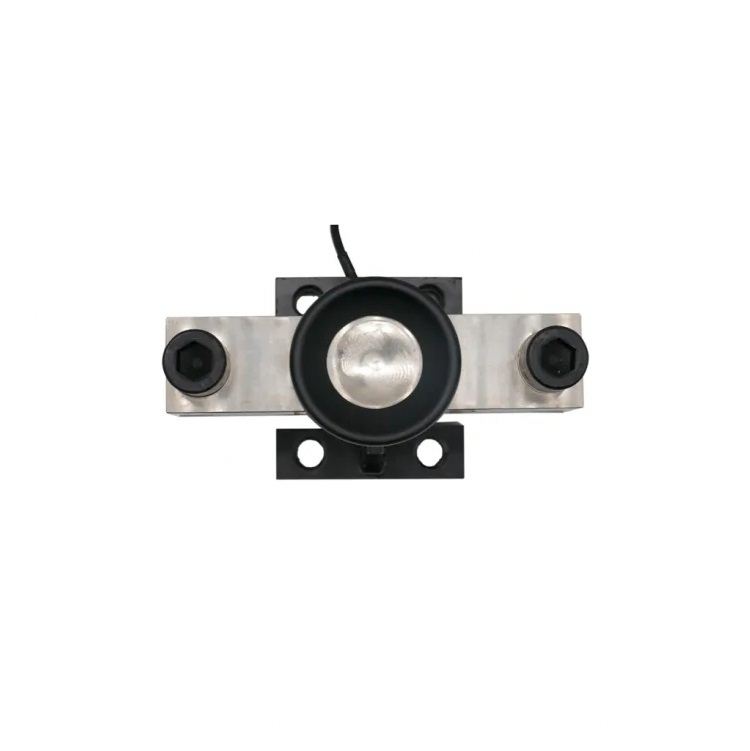

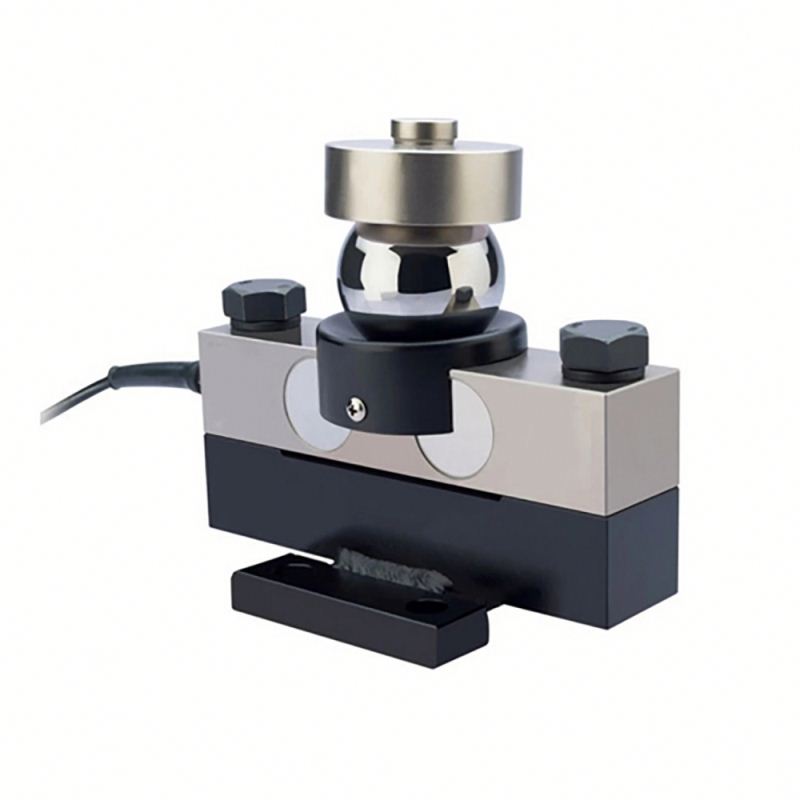

HM9B
PRESSURE SENSOR
Digital Sensor
load cell
Good quality and low price
Welcome
OEM&ODM
5~40Days
30% advance payment, the rest payment before delivery
Carton
Products Specification:
HM9B load cell are available in the capacities 10t to 50t. And the customized capacity is available by request;
Alloy steel construction, nickel plated , hermetically welded, oil-proof,waterproof and anti-corrosive gas and medium making it suitable for all kinds of environments;
Dual shear beam, Suitable for electronic truck scales, railway scales and other electronic weighing devices;
It is safety and anti-explosion product that can be used in atrocious weather and hazardous areas;
Features;
High accuracy;
Alloy steel construction;
Easy installation, reliable performance;
With OIML approval;
Dimension:
Technical Parameter:
Capacity | t | 10/20/25/30/40SE/40/50 | ||||
Accuracy | C1 | C2 | C3 | A5M | B10M | |
Approvals | OIML R60 C3 | |||||
Maximum number of | n max | 1000 | 2000 | 3000 | 5000 | 10000 |
verification intervals | ||||||
Minimum load cell | v min | Emax/3000 | Emax/5000 | Emax/7500 | Emax | Emax |
verification interval | /15000 | /10000 | ||||
Combined error | (%FS) | ≤±0.050 | ≤±0.030 | ≤±0.020 | ≤±0.026 | ≤±0.050 |
Creep | (%FS/30min) | ≤±0.038 | ≤±0.024 | ≤±0.016 | ≤±0.017 | ≤±0.040 |
Temp. effect on sensitivity | (%FS/10℃) | ≤±0.028 | ≤±0.017 | ≤±0.011 | ≤±0.013 | ≤±0.040 |
Temp.effect on zero | (%FS/10℃) | ≤±0.047 | ≤±0.023 | ≤±0.015 | ≤±0.014 | ≤±0.020 |
Output sensitivity | (mv/v) | 2.0±0.002 | 2.3±0.002 | 2.4±0.002 | 1.9±0.002 | 1.8±0.002 |
Input resistance | (Ω) | 700 ±7 | 775 ±5 | 750 ±7 | ||
Output resistance | (Ω) | 700 ±7 | ||||
Insulation resistance | (MΩ) | ≥ 5000(50VDC) | ||||
Zero balance | (%FS) | 1.5 | ||||
Temperature, compensated | (℃) | -10~+40 | ||||
Temp. ,allowed | (℃) | -35~+65 | ||||
Excitation, Recommended | (V) | 5~12(DC) | ||||
Excitation,Max | (V) | 18(DC) | ||||
Safe overload | (%FS) | 150 | ||||
Ultimate overload | (%FS) | 300 | ||||

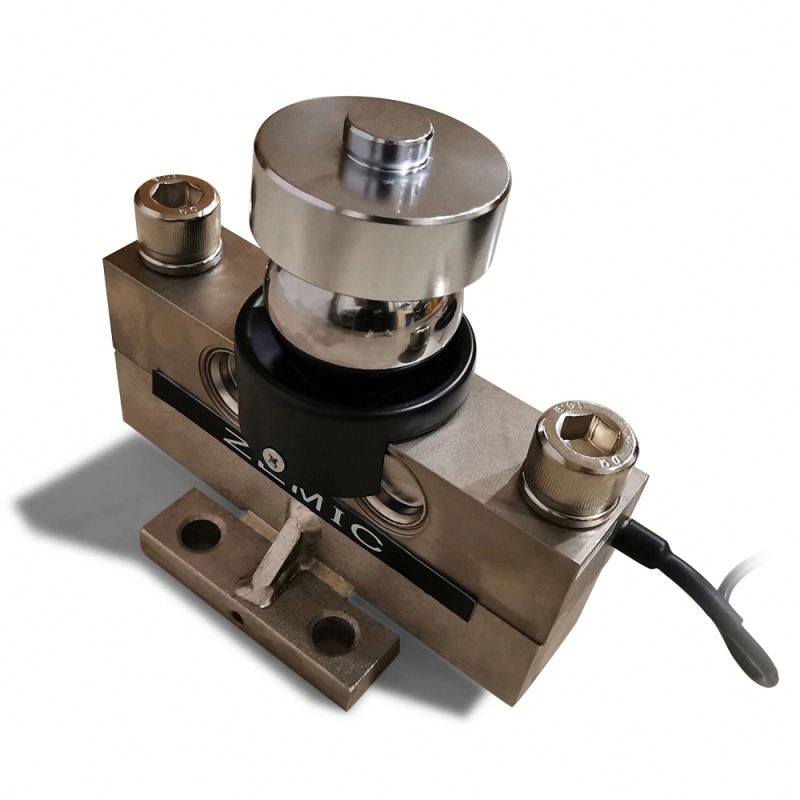

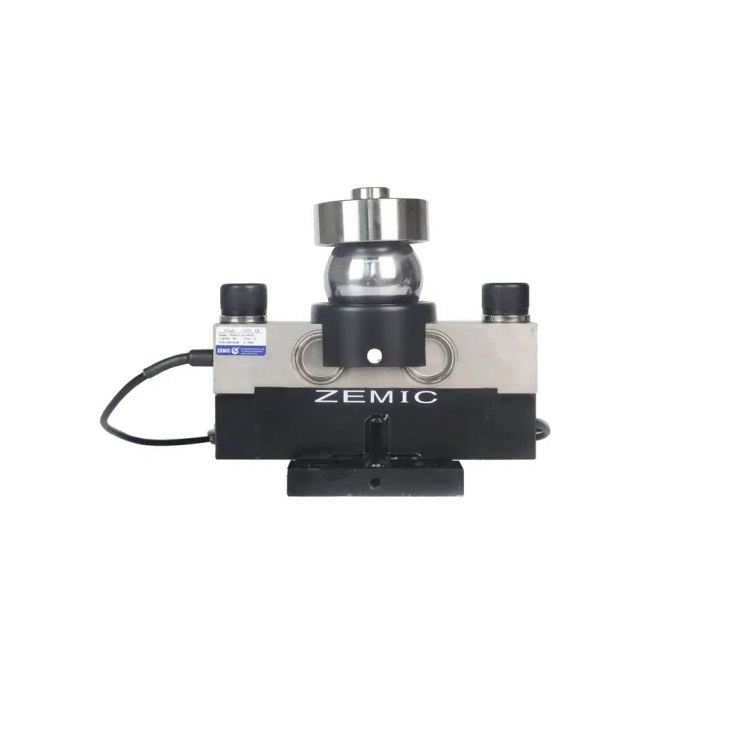

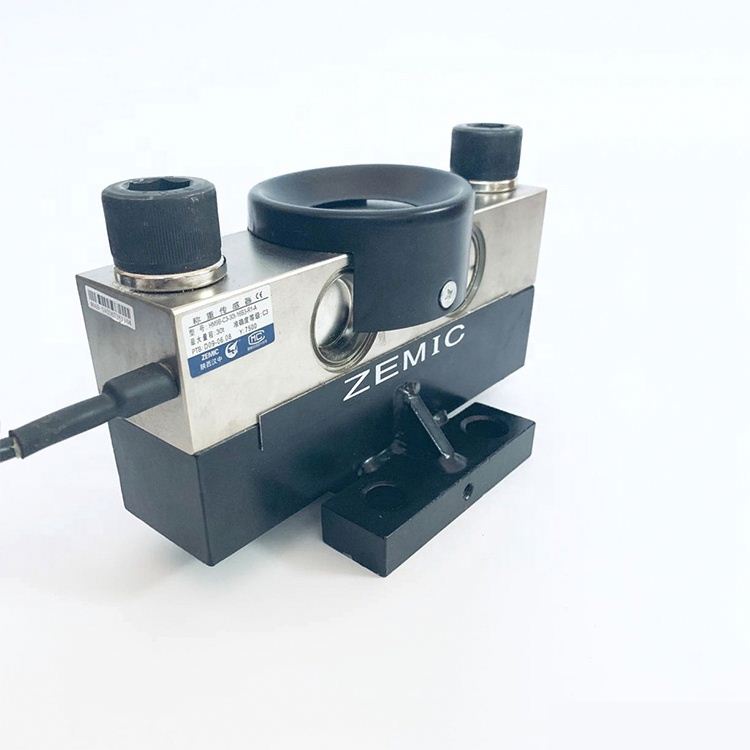

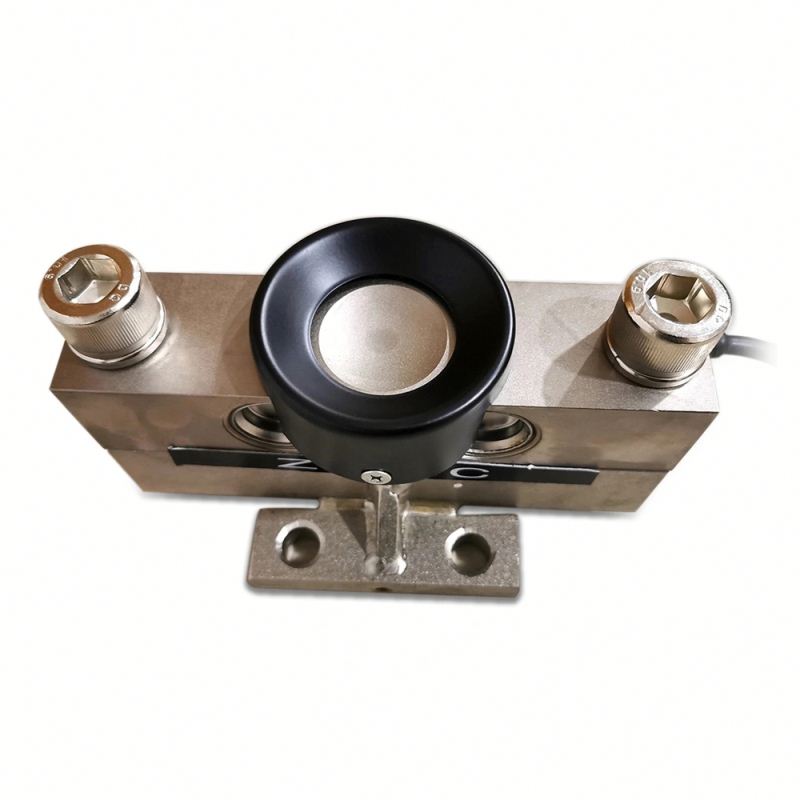

HM9B ZEMIC load cell 30T
| Product Name | HM9B ZEMIC load cell 30T |
| Features | Good quality and low price |
| Service | OEM&ODM |
| Custom Design | Welcome |
| Sample Lead Time | 5~40Days |
| Payment Terms | 30% advance payment, the rest payment before delivery |
| Market | all over the world |
| Form of sale | Factory supply |
Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they
will take photos and shoot video for you.
Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you
to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our
workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique
IDs will be created.It will save labor cost for you.
Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.
Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the
goods by your logo after getting your authorization letters.
Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the
market share.
Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.
Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance
to the standards.
