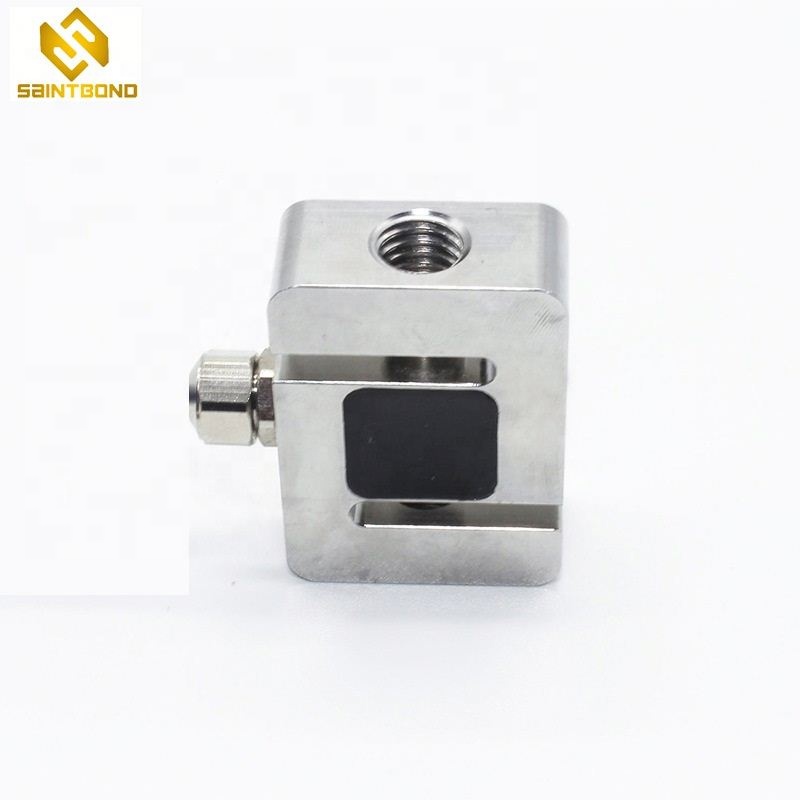

High Precision S Type Micro Tension Load Cell

Availability:
Quantity:

PDF Export

  • Zhejiang, China

  • SAINTBOND

  • Mini041-24

  • PRESSURE SENSOR

  • Resistance Sensor

  • Digital Sensor

  • Customized Size

  • S type micro tension load cell

  • Good quality and low price

  • Welcome

  • OEM&ODM

  • 5~40Days

  • 30% advance payment, the rest payment before delivery

  • Carton







Dimension:





Cap.

A

B

C

D

E

M

0-5N-30N

16

19.1

5

6.7

17

M3 Depth 3 mm

0-50N

16

19.1

6

7.5

17

M4 Depth 3 mm

Note:

1:Screws should not be screwed too deep and shall not exceed 4 millimeters. You should not touch the middle part of the sensor so as not to affect the measurement result.

When the

2:Sensor is installed, the two sides of the cover plate can not be contacted with the middle cylinder, so as to avoid measuring the result



Capacity

A

B

C

M

0-100N-500N

16

19.1

6

M4 Depth 3 mm

0-200N-2KN

26

40

12

M8 Depth 8 mm


Note: screws must not be screwed too deep when they are installed. You should not touch the middle part of the sensor so as not to affect the measurement result.

Description:

Ultra small installation size, width of only 5 mm, height of 19.1 mm; high speed dynamic response output, high accuracy; measuring force: internal thread tension or compression direction. Widely used in automatic force detection, typical applications: key detection.

Technical Data:


Capacity

0-5N~2000N

Material

Stainless Steel

Rated output

2.0 ±10%  mV/V

Output Impedance

350±3Ω

Non-linearity

0.05 % F.S.

Insulation

>5000MΩ/10VDC

Hysteresis

0.05 % F.S.

Recommended Excitation

2.5-5V

Repeatability

0.05 % F.S.

Excitation max

10V

Creep(30min)

0.05 % F.S.

Compensated Temp Range

-10~60

Temp Effect On Output

0.1 % F.S./ 10

Operating Temp Range

-20~80

Temp Effect On Zero

0.1 % F.S./ 10

Safe Load

1.2

Protection Class

IP 65

Ultimate Load Limit

1.5

Input Impedance

350±15Ω

Cable Length

2-3 x 3m

Wire Connection

Ex +: Red; Ex -Black;  Sig +: Green;  Sig -: White

(Pressure is positive, pulling is negative);





High precision S type micro tension load cell


Product Name High precision S type micro tension load cell
Features Good quality and low price
Service OEM&ODM
Custom Design Welcome
Sample Lead Time 5~40Days
Payment Terms 30% advance payment, the rest payment before delivery
Market all over the world
Form of sale Factory supply
