SAINTBOND
LC348-32
PRESSURE SENSOR
Convert electrical signal to the force signal
Analog SENSOR
10-12v
Analog SENSOR
-20~70℃(180℃ optional)
5-18V
Industrial Automation
Floor scale load cell
Good quality and low price
Welcome
OEM&ODM
5~40Days
30% advance payment, the rest payment before delivery
Carton
Dimensions Unit:mm:
Cap.Size | L | L1 | L2 | L3 | L4 | B/H | H1 | D1 | ΦD | M |
0.1~0.5t | 130 | 54 | 12.7 | 25.4 | 76.2 | 34 | 32 | 12.8 | 13.5 | M12 |
1~3t | 130 | 54 | 12.7 | 25.4 | 76.2 | 34 | 32 | 12.8 | 13.5 | M16 |
3~5t | 171.5 | 77 | 19.1 | 38.1 | 95.3 | 40 | 38 | 20 | 20 | M18x1.5 |
7.5~10t | 225.5 | 102 | 25.3 | 50.8 | 124 | 50.8 | 48.8 | 27 | 27 | M24 x2 |
Products Specification:

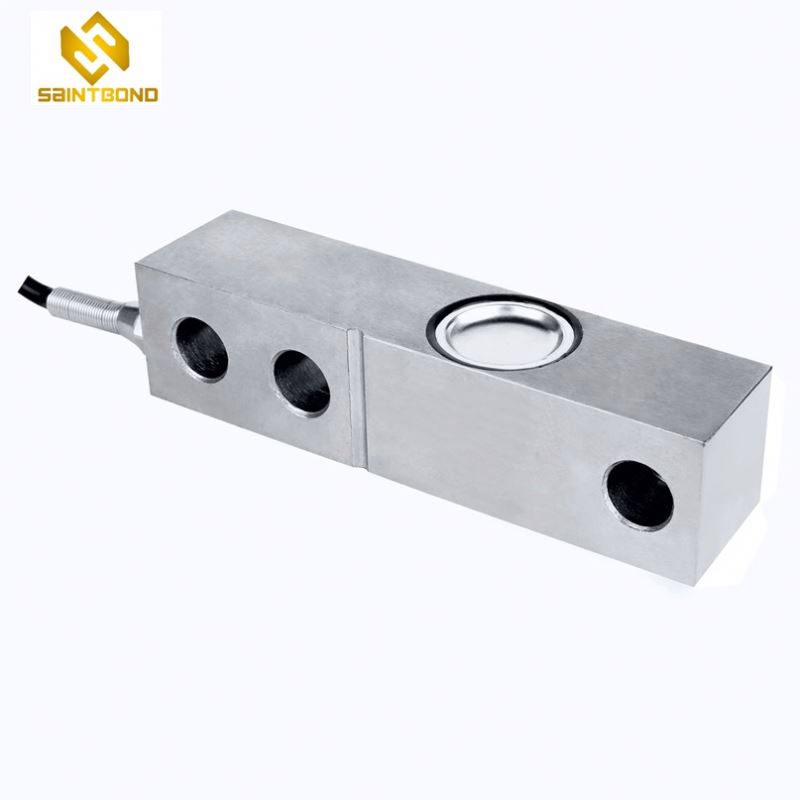

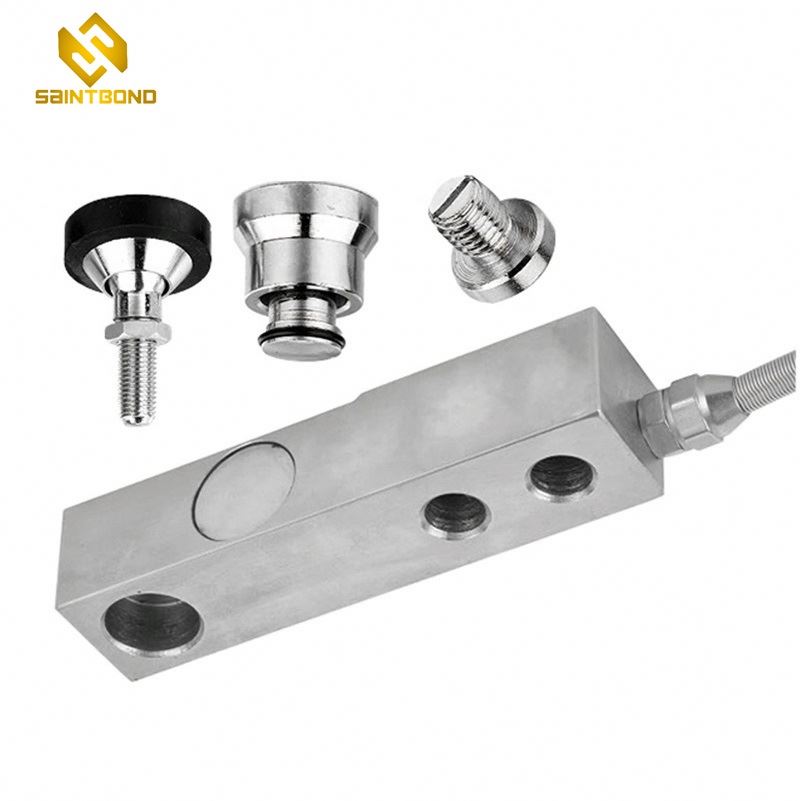

LC348 load cells are available in the capacities 0.1t to 10t.
Alloy steel, sealed by adhesive inside, oil-proof, waterproof and anti-corrosion, suitable for all kinds of environment.
Single shear beam, easy for installation, suitable for electronic platform scales, hopper scales and other electronic weighing devices.
Safe and anti-explosive product, can be used in atrocious environment and hazardous areas.
Technical Parameter:
Rated Load: | 0.1/0.2/0.3/0.5/1/2/3/5/7.5/10T | ||
Sensitivity: | (2.0±0.1%) m V/V, (3.0±0.1%) mV/V | Operating Temp. Range: | -30~+70℃ |
Combined Error: | ±0.02% F.S | Max. Safe Over Load: | 150%F.S |
Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 250%F.S |
Zero Balance: | ±1% F.S | Recommend Excitation: | 10~12V DC |
Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation: | 15V DC |
Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
Input Resistance: | 385±5Ω | Element Material: | A,SS: Alloy /Stainless Steel |
Output Resistance: | 352±2Ω | Cable: | Length=L:3m |
Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
Mode Of Connection: | Red(Input+),Black(Input-),Green(Output+),White(Output-) | ||
KELI OIML LC348 Low cost digital weighing alloy steel Load Cell Sensors ZEMIC floor scale load cell
| Product Name | KELI OIML LC348 Low cost digital weighing alloy steel Load Cell Sensors ZEMIC floor scale load cell |
| Features | Good quality and low price |
| Service | OEM&ODM |
| Custom Design | Welcome |
| Sample Lead Time | 5~40Days |
| Payment Terms | 30% advance payment, the rest payment before delivery |
| Market | all over the world |
| Form of sale | Factory supply |
Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they
will take photos and shoot video for you.
Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you
to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our
workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique
IDs will be created.It will save labor cost for you.
Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.
Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the
goods by your logo after getting your authorization letters.
Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the
market share.
Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.
Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance
to the standards.
Dimensions Unit:mm:
Cap.Size | L | L1 | L2 | L3 | L4 | B/H | H1 | D1 | ΦD | M |
0.1~0.5t | 130 | 54 | 12.7 | 25.4 | 76.2 | 34 | 32 | 12.8 | 13.5 | M12 |
1~3t | 130 | 54 | 12.7 | 25.4 | 76.2 | 34 | 32 | 12.8 | 13.5 | M16 |
3~5t | 171.5 | 77 | 19.1 | 38.1 | 95.3 | 40 | 38 | 20 | 20 | M18x1.5 |
7.5~10t | 225.5 | 102 | 25.3 | 50.8 | 124 | 50.8 | 48.8 | 27 | 27 | M24 x2 |
Products Specification:
LC348 load cells are available in the capacities 0.1t to 10t.
Alloy steel, sealed by adhesive inside, oil-proof, waterproof and anti-corrosion, suitable for all kinds of environment.
Single shear beam, easy for installation, suitable for electronic platform scales, hopper scales and other electronic weighing devices.
Safe and anti-explosive product, can be used in atrocious environment and hazardous areas.
Technical Parameter:
Rated Load: | 0.1/0.2/0.3/0.5/1/2/3/5/7.5/10T | ||
Sensitivity: | (2.0±0.1%) m V/V, (3.0±0.1%) mV/V | Operating Temp. Range: | -30~+70℃ |
Combined Error: | ±0.02% F.S | Max. Safe Over Load: | 150%F.S |
Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 250%F.S |
Zero Balance: | ±1% F.S | Recommend Excitation: | 10~12V DC |
Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation: | 15V DC |
Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
Input Resistance: | 385±5Ω | Element Material: | A,SS: Alloy /Stainless Steel |
Output Resistance: | 352±2Ω | Cable: | Length=L:3m |
Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
Mode Of Connection: | Red(Input+),Black(Input-),Green(Output+),White(Output-) | ||
KELI OIML LC348 Low cost digital weighing alloy steel Load Cell Sensors ZEMIC floor scale load cell
| Product Name | KELI OIML LC348 Low cost digital weighing alloy steel Load Cell Sensors ZEMIC floor scale load cell |
| Features | Good quality and low price |
| Service | OEM&ODM |
| Custom Design | Welcome |
| Sample Lead Time | 5~40Days |
| Payment Terms | 30% advance payment, the rest payment before delivery |
| Market | all over the world |
| Form of sale | Factory supply |
Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they
will take photos and shoot video for you.
Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you
to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our
workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique
IDs will be created.It will save labor cost for you.
Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.
Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the
goods by your logo after getting your authorization letters.
Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the
market share.
Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.
Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance
to the standards.
