SAINTBOND
LC205
PRESSURE SENSOR
Digital Sensor
prices of crane scale load cell
Good quality and low price
OEM&ODM
5~40Days
30% advance payment, the rest payment before delivery
Carton
Dimensions: Unit: mm
Cap./Size | A | B | C | D | E | F |
5t | 200.0 | 80.0 | 32.0 | 40.0 | 180.0 | 32.0 |
10t | 240.0 | 90.0 | 36.0 | 44.0 | 190.0 | 40.0 |
20t | 300.0 | 100.0 | 40.0 | 48.0 | 204.0 | 48.0 |
Product Characteristics:

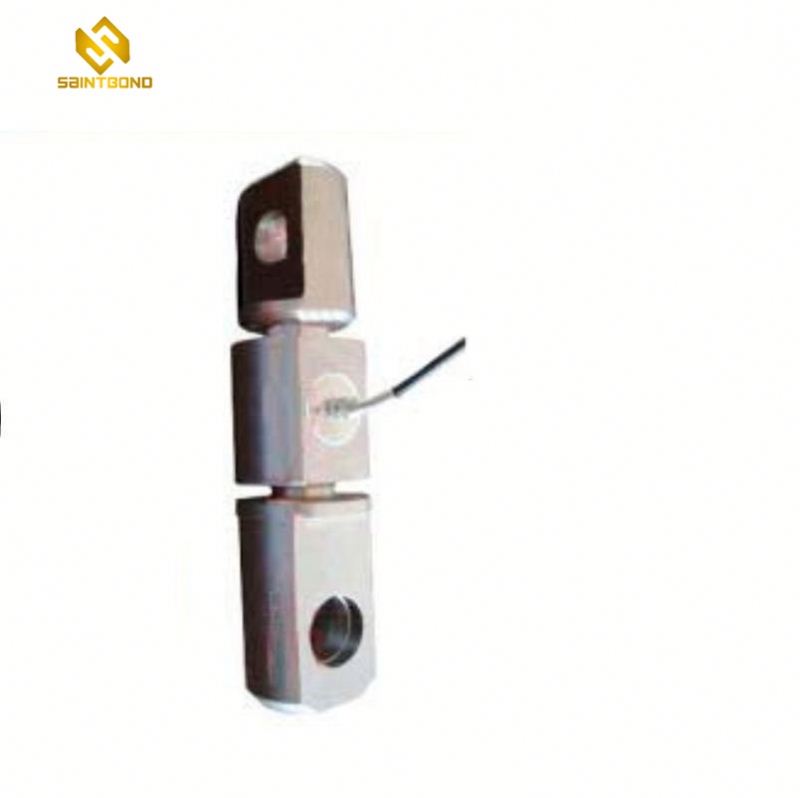

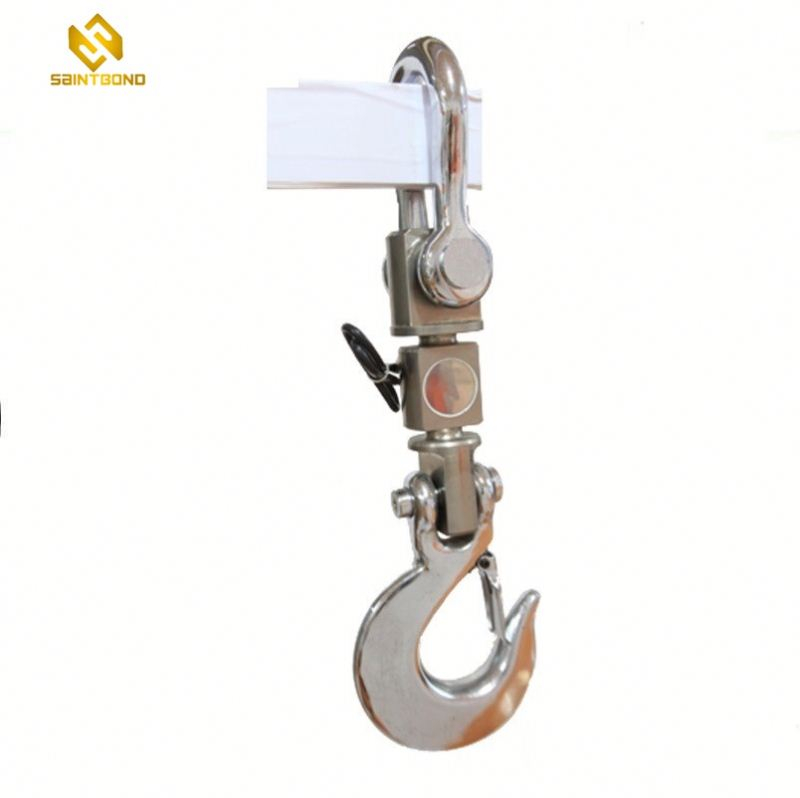

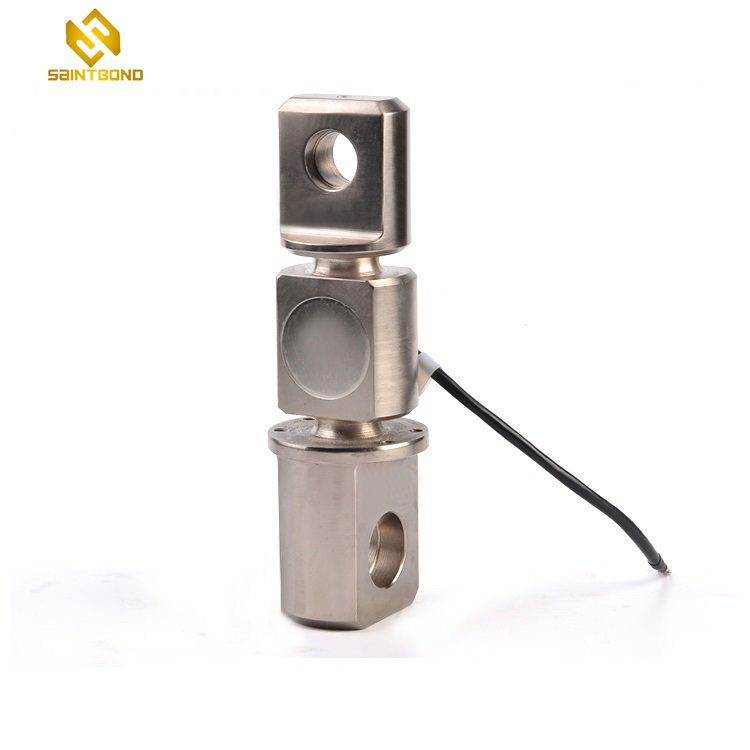

Tension link crane scale load cell LC204 series is special load cell for crane scale. Element material made of alloy steel or stainless steel according to customer’s requirement. We can produce the load cell with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, low profile scale beam load cells, high temperature load cell, anti-lighting load cell, High precision. The load cell with special hook and ring, easy installation.LC204 Weigh modules are used for tank weighing, hopper weighing, conveyor scales, scale conversion. Tension weigh modules are designed for use with suspended tanks, dosing hoppers and other devices that are suspended from a support structure.
Technical Parameter:
Rated Load: | 5/10/20t | Operating Temp. Range: | -30~+70°C |
Sensitivity: | (2.0±0.1%) m V/V | Maximum Safe Over Load: | 120%F.S |
Combined Error: | ±0.02% F.S | Ultimate Over Load: | 200%F.S |
Creep Error(30min): | ±0.02% F.S | Recommend Excitation: | 10~12V DC |
Zero Balance: | ±1% F.S | Maximum Excitation: | 15V DC |
Temp. Effect On Zero: | ±0.02% F.S/10°C | Sealing Class: | IP67/IP68 |
Temp. Effect On Span: | ±0.02% F.S/10°C | Element Material: | Alloy Steel, Stainless Steel |
Input Resistance: | 750±5Ω | Cable: | Length=L:0.5m |
Output Resistance: | 702±2Ω | Citation: | GB/T7551-2008/ OIML R60 |
Insulation Resistance: | ≥5000MΩ | Mode Of Connection: | Red(Input+),Green(Output+), Black(Input-),White(Output-) |
LC205 30ton Crane Scale Load Cell
| Product Name | LC205 30ton Crane Scale Load Cell |
| Features | Good quality and low price |
| Service | OEM&ODM |
| Custom Design | Welcome |
| Sample Lead Time | 5~40Days |
| Payment Terms | 30% advance payment, the rest payment before delivery |
| Market | all over the world |
| Form of sale | Factory supply |
Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they
will take photos and shoot video for you.
Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you
to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our
workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique
IDs will be created.It will save labor cost for you.
Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.
Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the
goods by your logo after getting your authorization letters.
Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the
market share.
Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.
Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance
to the standards.
