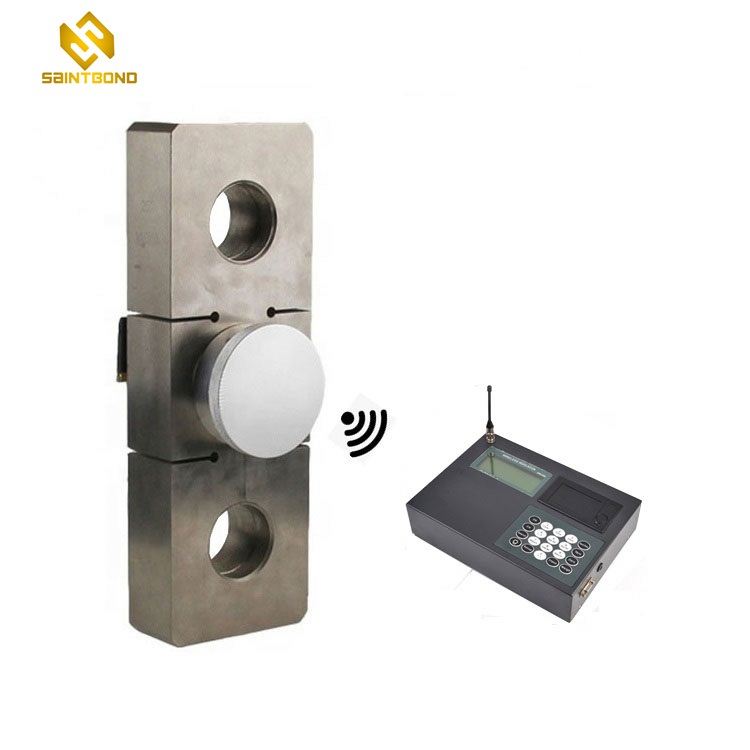

LC220W Wireless Crane Load Cell Weight Sensor Dynamometer





Building upon the ever popular and industry leading loadlink, GOLDSHINE once again sets the bar for the digital Dynamometer market. By adding industry leading wireless capabilities to GOLDSHINE'S advanced microprocessor based electronics,the load Link adds flexibility and increases safety, allowing the load to be monitored from up 500t meters away.

The GOLDSHINE Wireless system providing high integrity,error free transmission of data, and is unmatched in performance,capable of providing a license free transmission range of up to 500~800 meters. GOLDSHINE features a range of cost effective high accuracy load link load cells offering high safety factor and resolution, and a robust carry/storage case.

The standard range of the load link load cells is from 1tonnes to 500 tonnes and includes wireless load links that link to a hand held display (or a display with printer optional), load links with built in display and load links with analogue output.

Their rugged construction makes them ideal for lifting and weighing operations in the most extreme environments, including marine, offshore and onshore applications. Available with a wide variety of applications from testing and overhead weighing to bollard pulling and tug testing.

At China Industries we have over 10 years experience designing, manufacturing and supplying load cells of the highest quality. We can supply all your load cell requirements and offer expert load cell and applications advice.

View our load links range online today or contact our friendly team for specialist load cell and applications advice.

Available Options:

• Hazardous area Zone 1 and 2

• Built-in-display option

• Available with a range of displays to suit each application

• Environmentally sealed to IP67 or IP68

• Can be used singularly or in sets

Dimension:



Cap./t	H	W	L	L1	A
1~5t	76	34	230	160	38
7.5~10t	90	47	280	180	40
20~30t	125	55	370	230	53
40~60t	150	85	430	254	73
80~150t	220	115	580	340	98
200t	265	183	725	390	280
250t	300	200	800	425	305
300t	345	200	875	460	305
500t	570	200	930	510	305

Wireless Load Links Typical Specifications:

Rate Load:	1/5/10/20/30/50/80/100/150/200/250/300/500T
Battery Type:	18650 rechargeable batteries or polymer batteries (7.4v 2000 Mah)
Proof Load:	150% of rate load	Max. Safety Load:	125% F.S.
Ultimate Load:	400% F.S.	Battery Life:	≥40 hours
Power On Zero Range:	20% F.S.	Operating Temp.:	- 10℃ ~ + 40℃
Manual Zero Range:	4% F.S.	Stable Time:	≤10seconds;
Tare Range:	20% F.S.	Remote Controller Distance:	Min.15m
Operating Humidity:	≤85% RH under 20℃	System Range:	500~800m (In Open Area)
Overload Indication:	100% F.S. + 9e	Telemetry Frequency:	470mhz

Accessories / Related Products:



LC220W Wireless Crane Load Cell Weight Sensor Dynamometer

Product Name	LC220W Wireless Crane Load Cell Weight Sensor Dynamometer
Features	Good quality and low price
Service	OEM&ODM
Custom Design	Welcome
Sample Lead Time	5~40Days
Payment Terms	30% advance payment, the rest payment before delivery
Market	all over the world
Form of sale	Factory supply
