Zhejiang, China
SAINTBOND
Mini018
PRESSURE SENSOR
Analog SENSOR
micro load cell 500kg
Good quality and low price
Welcome
OEM&ODM
5~40Days
30% advance payment, the rest payment before delivery
Carton
Description:

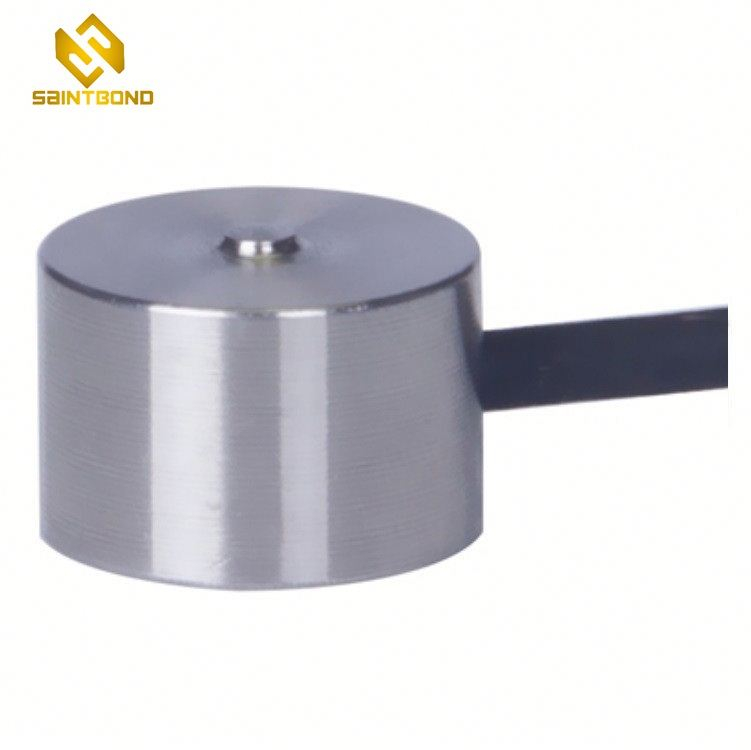

SensorWorld Miniature compression load cells are made of SensorWorld’s advanced strain gauge technology.These load cells are designed for applications in a space limited area.
The capacities of MiNi018 start from 5kg to 50kg.The measuring accuracy is 1%R.O.(R.O.=Rated Output).) Manufactured from high quality aluminum alloy/stainless steel of aviation standard.
MiNi018 load cells are mainly used for flat mounting weighing systems and force measuring in a narrow space.
Features:
Miniature Compression load cells
Capacity:5kg,...,50kg
Accuracy:1%R.O.
Super micro structure
Aluminum construction with surface anodized/stainless steel construction
Environment protection class:IP65
Applications:
Flat mounting weighing systems,
Force measuring in a narrow space.
Technical Data:
Model | MiNi018 | Excitation,Recommended | ≤6VDC |
Rated Capacity | 5/10/20/50 kg | Operating Temp. Range | -10-+40°C |
Accuracy Class | X | Safe Overload | 120%R.C. |
Rated Output | 2.0±0.5%mV/V | Insulation Resistance | ≥2000MΩ(50VDC) |
Zero Balance | ±0.1 mV/V | Cable,Length | ø2.2mm×2m |
Input Resistance | 350±10Ω | Hysteresis Error | ±1%R.O. |
Output Resistance | 350±10Ω | Creep in 2 Min. | ±1%R.O. |
Linearlty Error | ±1%R.O. | Temp.Effect on Output | ±1%R.O./10°C |
Repeatability Error | ±1%R.O. | Temp.Effect on Zero | ±1%R.O./10°C |
Mini018 Button compression micro load cell 500kg
| Product Name | Mini018 Button compression micro load cell 500kg |
| Features | Good quality and low price |
| Service | OEM&ODM |
| Custom Design | Welcome |
| Sample Lead Time | 5~40Days |
| Payment Terms | 30% advance payment, the rest payment before delivery |
| Market | all over the world |
| Form of sale | Factory supply |
Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they
will take photos and shoot video for you.
Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you
to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our
workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique
IDs will be created.It will save labor cost for you.
Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.
Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the
goods by your logo after getting your authorization letters.
Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the
market share.
Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.
Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance
to the standards.
