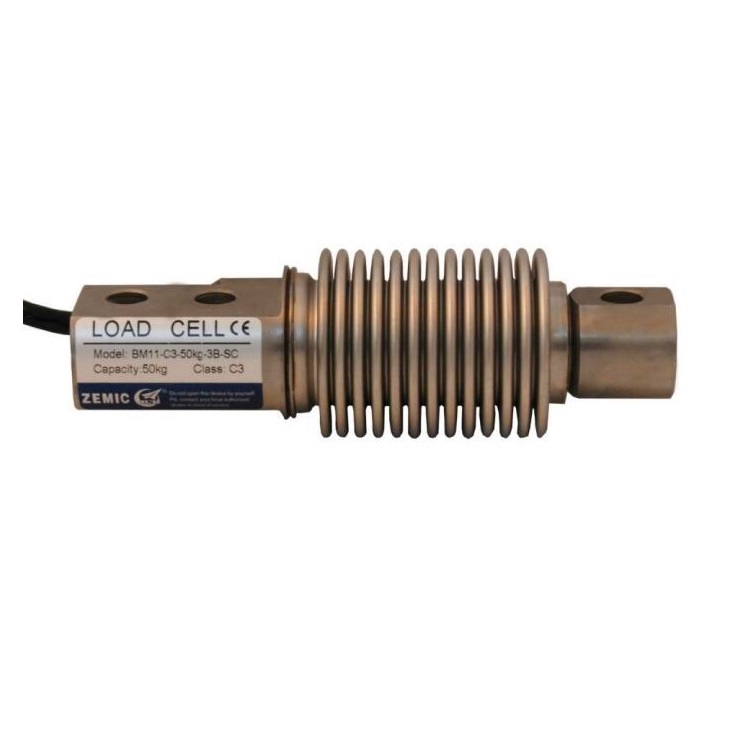

SAINTBOND KELI load cell for floor scales
BM11
Weigh the weight of the weigher
Convert electrical signal to the force signal
1.0/2.0/3.0mV/V
KELI load cell for floor scales
Aluminum
1SET
Good quality and low price
Welcome
OEM&ODM
5~40Days
30% advance payment, the rest payment before delivery
Carton,0.35x0.3x0.2cm
Dimension:in mm
Cap. | 5/10/20/30/50/100/150/200kg | 250/300/350/500kg |
d | 8.2(0.32) | 10.3(0.41) |
D | 23(0.91) | 24(0.94) |
H | 20(0.79) | 19(0.75) |
Short Description:
1.Stainless steel IP68 single ended bending beam;
2.Hermetically sealed;
3.Suitable for pallet, platform and small hopper scales;
4.High accuracy;
5.Current calibrated (sc-option);
Certificate:
6.Germany PTB Test certificate No.:D09-06.44
7.C of C no R60/2000-NL1-11.20
8.NTEP Certificate no. 07-020A1
Technical Parameter:
Rated Load: | 10/20/30/50/75/100/150/200/250/300/500kg | ||
Sensitivity: | (2.0±0.2%)mV/V | Operating Temp. Range: | -10~+70℃ |
Combined Error: | ±0.02% F.S | Maximum Safe Over Load: | 150%F.S |
Creep Error(30min): | ±0.03% F.S | Ultimate Over Load:: | 300%F.S |
Zero Balance: | ±1% F.S | Recommend Excitation Vol.: | 10~12V DC |
Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation Vol.: | 15V DC |
Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP68 |
Input Resistance: | 460±5Ω | Element Material: | Alloy /Stainless Steel |
Output Resistance: | 350±3.5Ω | Cable: | Length=L:3m |
Insulation Resistance: | ≥5000MΩ | Recommended Torque on fixation: | M8:25 M10:50 Nm |
BJ-11-220-5-500kg foot Stainless steel; Elastomer foot; Adjustable height; |
|
BM-11-401-5-500kg mount Stainless steel mount; Easy load cell access; Self aligning construction; Lift-off protection; Controlled horizontal movement; |
|
BM-11-402-5-500kg Mount BM-11-401 + Stay Rod; Stainless steel mount; Easy load cell access; Self aligning construction; Lift-off protection; Stabilized by stay rod; |
|
BM-11-400-10-200kg Tank mount Stainless steel mount; Easy load cell access; Lift-off protection; |
|
FAQ:
Q: Could you offer more information about the products, and quote a best price ?
A: Yes, certainly, we will send our product catalogue and company introduction for your reference.
You can choose one or some model, I will advice suitable one for you, also with best price details.
Q: Are you manufacture or trading company ?
A: We are manufacture, also have own export right under our export company. Welcome to visit our factory, check our quality and service.
Q: How long is your delivery time ? What's your payment terms ?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Payment terms is TT, LC, Cash, also can be negotiation with us.
Q: Your price is a little bit higher than my target, can you offer a better price ?
A: Yes, price can be negotiation, we try our best to meet your target, let's find a win-win solution, we always keep long term cooperation relations with customers.
