Availability: | |
---|---|
Quantity: | |
PDF Export | |
WI280II receive Indicator Wireless Features:
* Interval Value:1/2/5/10/20/50t;
* Display:192×64 dots display;6 status indicators(backlight);
* Power: Lithium Battery, use 48 hours for one Charging;
* Environment temperature: Scale body -10°C~50°C;Instrument 0°C~40°C;
* Maximum wireless transceiver distance:>300m(open area);
* Radio frequency:434MHz;
Features:

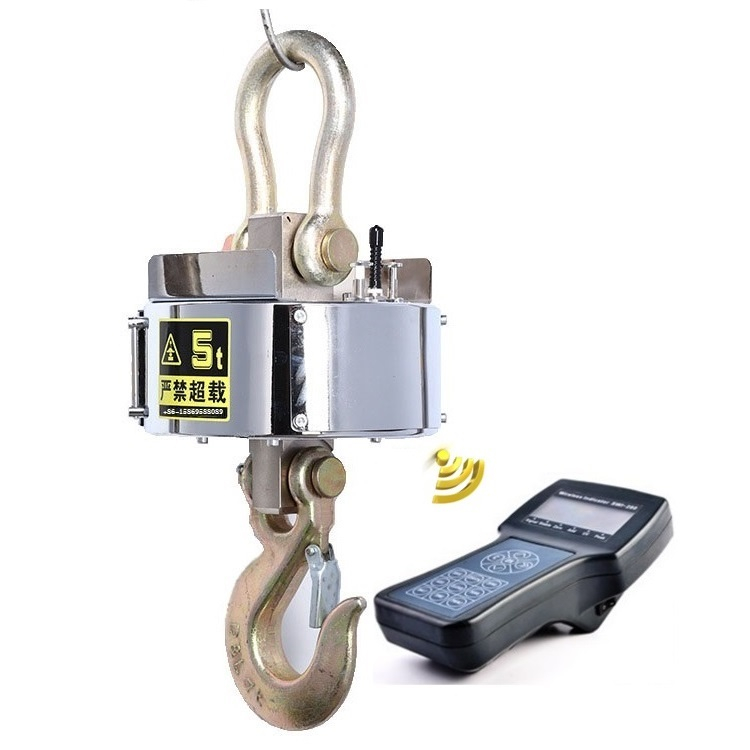

Wireless crane system / wireless crane scale CS-SW2 Multi-function operation: Tare; Zero;Auto zero tracking;Total;Hold; Overload warning and record, operate through remote controller, etc functions. User-friendly design: Steel housing scale body, high-tension shackle and hook; Weighing data save protection in case of power off;keyboard calibration, easy to operate; Power saving mode, turn off automatically after 1 hour with no operation;Gathering up to data records of 2000 weighing, records can be sorted, searched and printed;Micro-printer in indicator; RS232 optional. The wireless crane scale CS-SW2 with WI280 wireless indicator.
Wireless Remote Display:
* Dimension:1inch/3inch/5inch/8inch(Optional);
* Interface:RS232 mode / current loop mode;
Main Technical Data:
Capacity: | 2/3/5/10/1520/30/50t | Overload Indication: | 100% F.S. + 9e | |
Zero Range: | 4% F.S. | Max. Safety Load: | 125% F.S. | |
Tare Range: | 20% F.S. | Ultimate Load: | 400% F.S. | |
Stable Time: | ≤10 seconds | Battery Life: | ≥70 hours | |
Adapter: | DC9V/1000mA | Operating Humidity: | ≤85% RH under 20°C | |
Standard: | According to OIML class III | |||
Display: | 30mm (1.2'') 5digits LCD/LED | |||
Battery Type: | Fully sealed Lead-Acid battery, 6V/7Ah | |||
Remote Controller Distance: | ≤25m | |||
Battery Of Remote Controller: | UM-4 SIZE AAA,1.5Vx2 |
Dimension:
20 Ton Electronic Hanging Scale Digital Crane Scale with Printer
Product Name | 20 Ton Electronic Hanging Scale Digital Crane Scale with Printer |
Features | Good quality and low price |
Service | OEM&ODM |
Custom Design | Welcome |
Sample Lead Time | 5~40Days |
Payment Terms | 30% Advance payment, the rest payment before delivery |
Market | All over the world |
Form of sale | Factory supply |
Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they will take photos and shoot video for you.
Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique IDs will be created.It will save labor cost for you.
Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.
Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the goods by your logo after getting your authorization letters.
Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the market share.
Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.
Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance to the standards.
WI280II receive Indicator Wireless Features:
* Interval Value:1/2/5/10/20/50t;
* Display:192×64 dots display;6 status indicators(backlight);
* Power: Lithium Battery, use 48 hours for one Charging;
* Environment temperature: Scale body -10°C~50°C;Instrument 0°C~40°C;
* Maximum wireless transceiver distance:>300m(open area);
* Radio frequency:434MHz;
Features:
Wireless crane system / wireless crane scale CS-SW2 Multi-function operation: Tare; Zero;Auto zero tracking;Total;Hold; Overload warning and record, operate through remote controller, etc functions. User-friendly design: Steel housing scale body, high-tension shackle and hook; Weighing data save protection in case of power off;keyboard calibration, easy to operate; Power saving mode, turn off automatically after 1 hour with no operation;Gathering up to data records of 2000 weighing, records can be sorted, searched and printed;Micro-printer in indicator; RS232 optional. The wireless crane scale CS-SW2 with WI280 wireless indicator.
Wireless Remote Display:
* Dimension:1inch/3inch/5inch/8inch(Optional);
* Interface:RS232 mode / current loop mode;
Main Technical Data:
Capacity: | 2/3/5/10/1520/30/50t | Overload Indication: | 100% F.S. + 9e | |
Zero Range: | 4% F.S. | Max. Safety Load: | 125% F.S. | |
Tare Range: | 20% F.S. | Ultimate Load: | 400% F.S. | |
Stable Time: | ≤10 seconds | Battery Life: | ≥70 hours | |
Adapter: | DC9V/1000mA | Operating Humidity: | ≤85% RH under 20°C | |
Standard: | According to OIML class III | |||
Display: | 30mm (1.2'') 5digits LCD/LED | |||
Battery Type: | Fully sealed Lead-Acid battery, 6V/7Ah | |||
Remote Controller Distance: | ≤25m | |||
Battery Of Remote Controller: | UM-4 SIZE AAA,1.5Vx2 |
Dimension:
20 Ton Electronic Hanging Scale Digital Crane Scale with Printer
Product Name | 20 Ton Electronic Hanging Scale Digital Crane Scale with Printer |
Features | Good quality and low price |
Service | OEM&ODM |
Custom Design | Welcome |
Sample Lead Time | 5~40Days |
Payment Terms | 30% Advance payment, the rest payment before delivery |
Market | All over the world |
Form of sale | Factory supply |
Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they will take photos and shoot video for you.
Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique IDs will be created.It will save labor cost for you.
Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.
Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the goods by your logo after getting your authorization letters.
Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the market share.
Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.
Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance to the standards.
