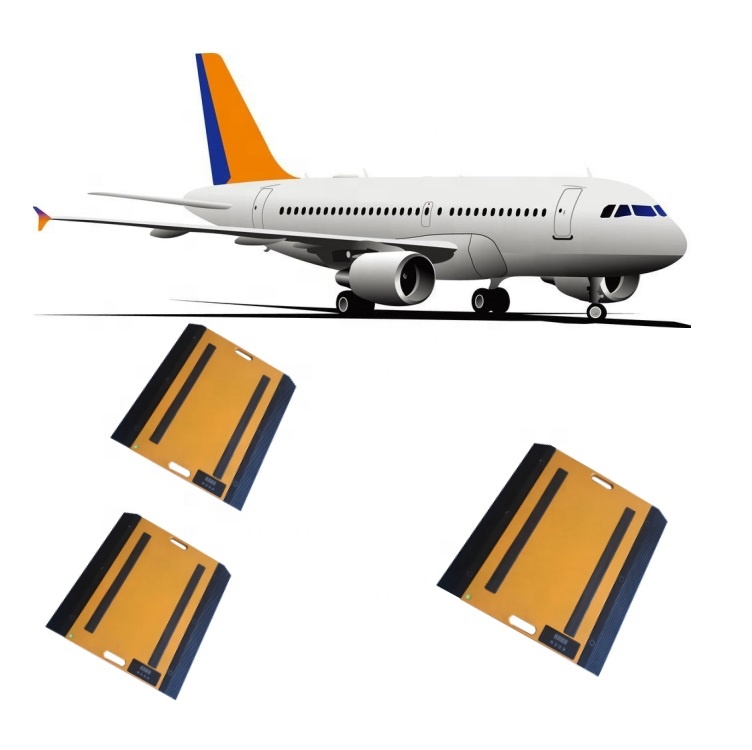

30 40 50 Ton Portable Axle Weighing Scales

30 40 50 ton portable axle weighing scales





Aluminum-alloy; Ultra thin weigh pad design; Easily mounted / unmounted slope; Hermetically sealed, suits different environment;Works both dynamically and statically;Can be used to measure axle weight and whole vehicle weight when two or four weigh-pad connected together.





AS002	350×350×35	1000/2000/3000Kg		4pcs LC348 LoadCell,10m Cable Capacity:500/1000/1500Kg
	400×500×56.5	3000/5000/6000/10000Kg		4pcs LC348 LoadCell,10m Cable Capacity:1500/2500/3000/5000Kg
	450×700×56.5	10000/20000/30000Kg		4pcs LC348 LoadCell,10m Cable Capacity:5000/10000/15000Kg
	500×900×56.5	20000/30000/40000Kg		4pcs LC348 LoadCell,10m Cable Capacity:10000/15000/200000Kg
Product Parameters
Rated load:1/2/3/5/6/10/20/30/40T			Compensated temp.range(℃): -10~+50
Dynamic error (%F.S): 3 (5~10km/h)			Static error (%F.S):0.1~0.3
Static comprehensive error(%F.S): 0.1~0.5			Insulation resistance(MΩ): ≥5000(100VDC)
Rated output(mV/V): 1.0±0.1			Use temp.range(℃): -30~+80
Non-linearity(%F.S): 0.2			Temp.effect on zero(F.S/10℃): 0.03
Error on corners(%F.S): 0.2			Temp.effect on span(F.S/10℃): 0.05
Repeatariy(%F.S): 0.05			Safe overload(%): 120
Zero balance(%F.S): ±1			Ultimate overload(%): 150
Excitation voltage(VDC): 9~15			Net weight(kg): 45
Recommended voltage(V): 10			Defend grade: IP66





FAQ:

Q: Could you offer more information about the products, and quote a best price ?
A: Yes, certainly, we will send our product catalogue and company introduction for your reference.

You can choose one or some model, I will advice suitable one for you, also with best price details.

Q: Are you manufacture or trading company ?
A: We are manufacture, also have own export right under our export company. Welcome to visit our factory, check our quality and service.

Q: How long is your delivery time ? What's your payment terms ?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Payment terms is TT, LC, Cash, also can be negotiation with us.

Q: Your price is a little bit higher than my target, can you offer a better price ?
A: Yes, price can be negotiation, we try our best to meet your target, let's find a win-win solution, we always keep long term cooperation relations with customers.
