Zhejiang, China
SAINTBOND
LC252-4
PRESSURE SENSOR
load cell
Good quality and low price
Welcome
OEM&ODM
5~40Days
30% advance payment, the rest payment before delivery
Carton
Product Description:

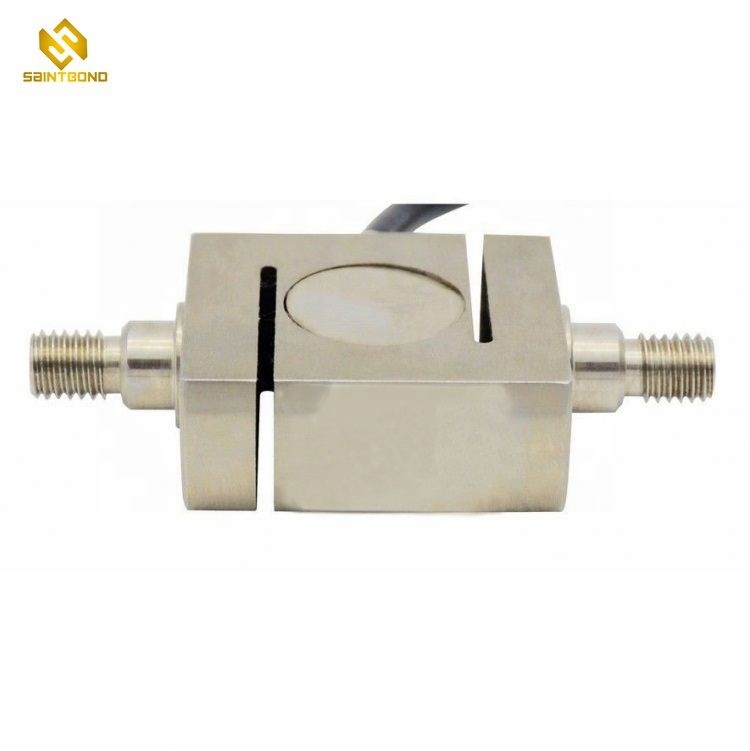

S beam load cell is known as s type load cell because of its feasured s beam structure,Rod end load cell LC252 is able to measure both tension force and compression force.The sensor can convert load or force acting on it into electronic signal which is proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the load cell.
Features:
Rod end load cell,s beam structure;
Strain gauge technology,analog output;
Tension and compression force measurement;
Widely used for testing machine,press force test,keyboard testing,auto equipment,production line,press machine.etc;
Applications:
Suspended tanks and hoppers, crane scales.
Dimension:
Technical Data:
Capacity | 50/100/150kg | Output Impedance | 350±5Ω |
Rated output | 2.0 ±10% mV/V | Insulation | >5000MΩ/10VDC |
Non-linearity | ±0.5 % F.S. | Recommended Excitation | 5-15V |
Hysteresis | ±0.5% F.S. | Excitation max | 10V |
Repeatability | ±0.3% F.S. | Compensated Temp Range | -10~60℃ |
Creep(30min) | ±0.3% F.S. | Operating Temp Range | -20~80℃ |
Temp Effect On Output | 0.02 % F.S./10℃ | Safe Load | 1.2of F.S |
Temp Effect On Zero | 0.04% F.S./10℃ | Ultimate Load Limit | 1.5of F.S |
Input Impedance | 380±30Ω | Material | Alloy/Stainless steel |
300kg alloy steel S type tension and compression force load cell sensor
| Product Name | 300kg alloy steel S type tension and compression force load cell sensor |
| Features | Good quality and low price |
| Service | OEM&ODM |
| Custom Design | Welcome |
| Sample Lead Time | 5~40Days |
| Payment Terms | 30% advance payment, the rest payment before delivery |
| Market | all over the world |
| Form of sale | Factory supply |
Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they
will take photos and shoot video for you.
Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you
to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our
workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique
IDs will be created.It will save labor cost for you.
Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.
Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the
goods by your logo after getting your authorization letters.
Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the
market share.
Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.
Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance
to the standards.
