SAINTBOND
LC772
Weigh the weight of the weigher
Convert electrical signal to the force signal
Analog SENSOR, 2.0mV/V
3ton 5ton safe hoist load limiter device pin load cell crane
Alloy Steel/Stainless Steel
1SET
good quality and low price
OEM&ODM
Welcome
Carton,0.35x0.3x0.2cm
5~40Days
30% advance payment, the rest payment before delivery
3ton 5ton safe hoist load limiter device pin load cell crane

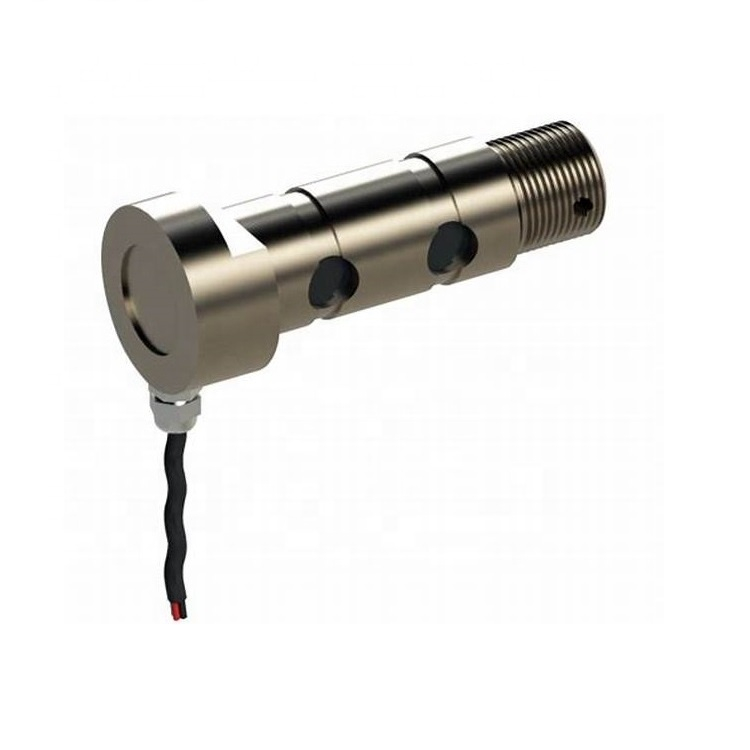

LC772 Load Pin is a high accuracy cylindrical shape stainless steel or alloy steel double shear beam load cell,applications in crane scale,conveyors,high capacity storage bins and mobile weighing. Production of desired sizes and capacity,Standart Output is mV/V , Option:4-20mA ,0-10V , RS485 output and Wireless Load Pin and force sensor measurement systems manufactured are renowned for measurement that achieves high accuracy, and is safe, reliable and stable.
Cap. | L | L1 | D | D1 | D2 | A | B | C | E | G | H |
2t | 99 | 62 | 35 | 25 | M22 | 24 | 13 | 6 | 14 | 10 | 23 |
3t | 113 | 75 | 40 | 30 | M27 | 24 | 13 | 6 | 27 | 10 | 24 |
5t | 127 | 85 | 50 | 35 | M30 | 24 | 16.5 | 7 | 28 | 10 | 28 |
7.5t | 134 | 98 | 50 | 41 | M30 | 16 | 20 | 8 | 32 | 10 | 30 |
Rated Load: | 1~200t | Operating Temp.Range: | -30~+70℃ |
Sensitivity: | (1.0±0.1%) m V/V | Maximum Safe Over Load: | 150%F.S |
Combined Error: | ±0.5% F.S | Ultimate Over Load: | 400%F.S |
Creep Error(30min): | ±0.05% F.S | Recommend Excitation Vol.: | 10~12V DC |
Zero Balance: | ±1% F.S | Maximum Excitation Vol.: | 15V DC |
Temp. Effect On Zero: | ±0.05% F.S/10℃ | Sealing Class: | IP67 |
Temp. Effect On Span: | ±0.05% F.S/10℃ | Element Material: | Alloy / Stainless Steel |
Input Resistance: | 400Ω±20Ω | Cable: | Length=L:5m~16m |
Output Resistance: | 350Ω±3Ω | Citation: | GB/T7551-2008/ OIML R60 |
Insulation Resistance: | ≥5000MΩ | Mode Of Connection: | Red(Input+),Green(Output+), Black(Input-),White(Output-) |
FAQ:
Q: Could you offer more information about the products, and quote a best price ?
A: Yes, certainly, we will send our product catalogue and company introduction for your reference.
You can choose one or some model, I will advice suitable one for you, also with best price details.
Q: Are you manufacture or trading company ?
A: We are manufacture, also have own export right under our export company. Welcome to visit our factory, check our quality and service.
Q: How long is your delivery time ? What's your payment terms ?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Payment terms is TT, LC, Cash, also can be negotiation with us.
Q: Your price is a little bit higher than my target, can you offer a better price ?
A: Yes, price can be negotiation, we try our best to meet your target, let's find a win-win solution, we always keep long term cooperation relations with customers.
