Zhejiang, China

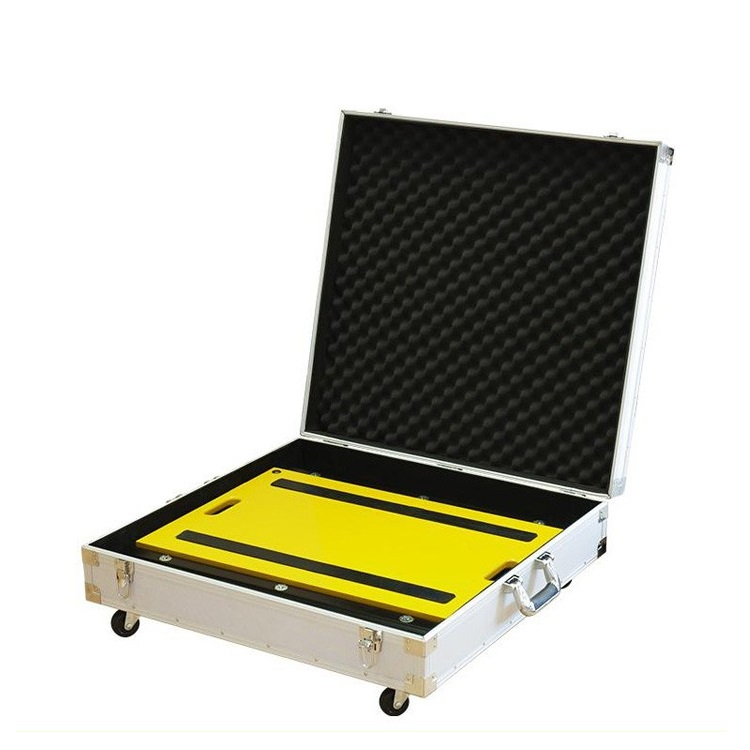

SAINTBOND Portable Axle Weigh Pad
AS002C(4Pcs) Portable Axle Weigh Pad
100-240V
LED/LCDLED/LCD

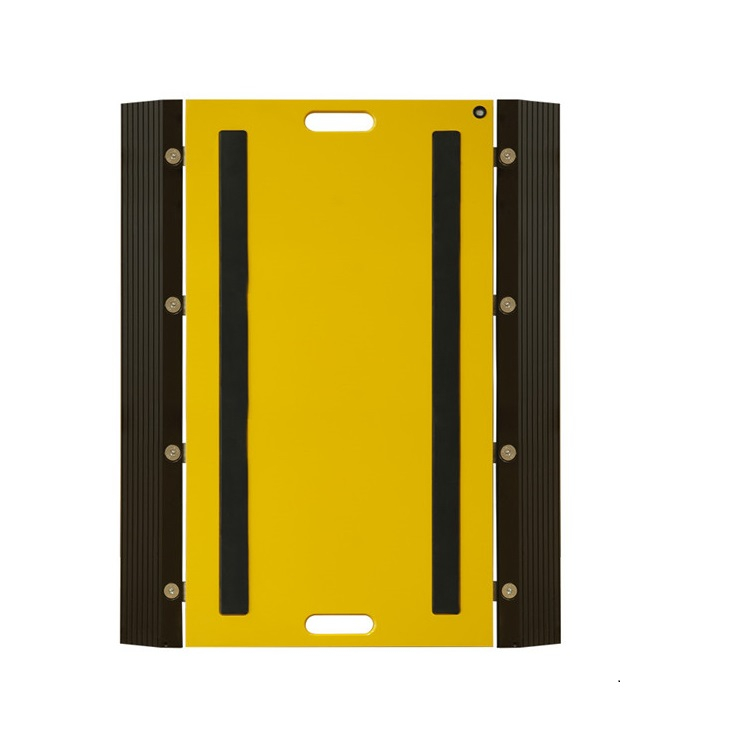

Portable Axle Weigh Pad
OIMLIII /GB/T11883-2002
Welcome
Factory supply
Weigh the weight of the product
High precision and stable performance
350x450~500x900mm
All over the world
OEM/ODM
30% advance payment, the rest payment before delivery

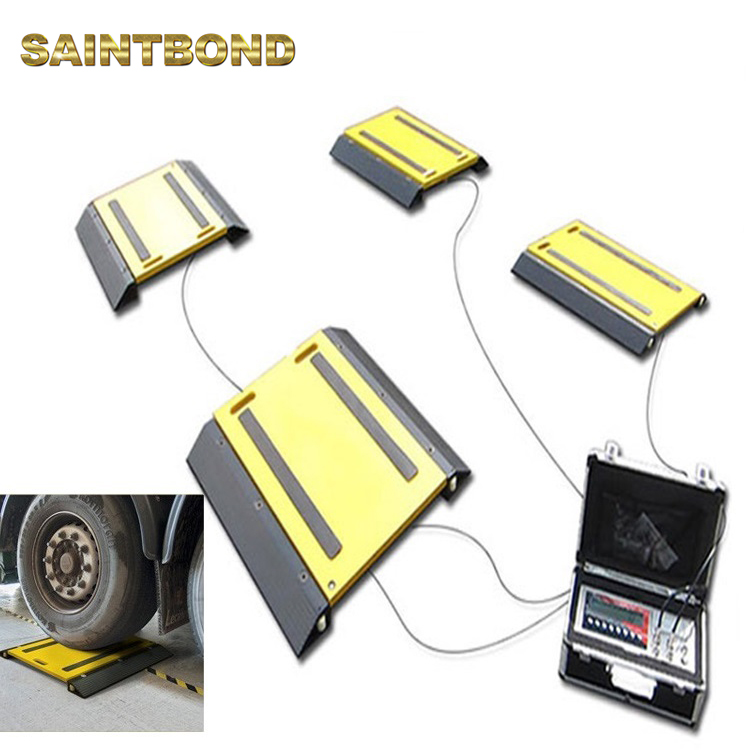

4PCS Dynamic Weighing Truck Scale Wheel & Weigher Vehicle Scales Portable Axle Weigh Pad

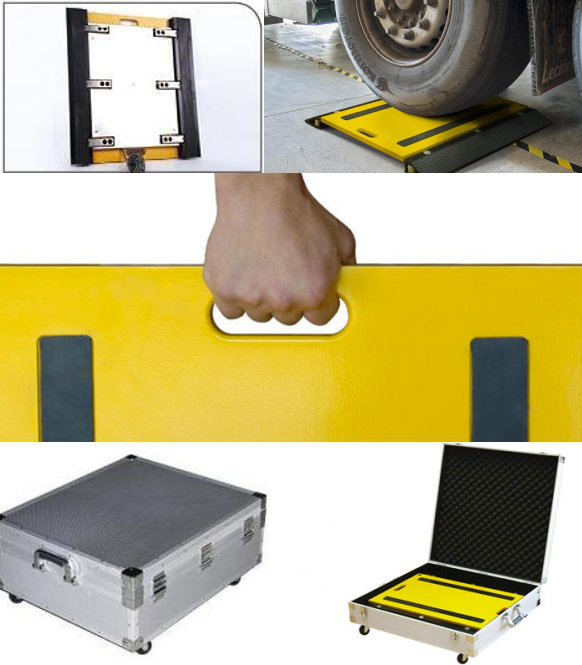

Aluminum-alloy; Ultra thin weigh pad design; Easily mounted / unmounted slope; Hermetically sealed, suits different environment;Works both dynamically and statically;Can be used to measure axle weight and whole vehicle weight when two or four weigh-pad connected together.
Product name | 4PCS Dynamic Weighing Truck Scale Wheel & Weigher Vehicle Scales Portable Axle Weigh Pad |
Model | AS002C(4Pcs) |
Brand | SAINTBOND |
Market | All over the world |
Materials | Aluminium/Alloy Steel |
Species | OIMLIII /GB/T11883-2002 |
Display type | LED/LCD |
Maximum weight | 160Ton |
Acurracy | 1~20kg |
Power supply | 100-240V |
Features | High precision and stable performance |
Advantage | OEM/ODM |
Sample Lead Time | 5~40Days |
Sample price | The price is different according to product capacity |
MOQ | 1 Set |
Custom Design | Welcome |
Payment Terms | 30% advance payment, the rest payment before delivery |
Form of sale | Factory supply |
Configuration Table:

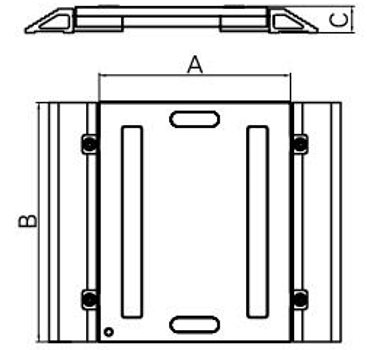

Model | Size(A×B×C) (mm) | Capacity (Double Pads for One Axel) | Description(Each Pad) | |
AS001 | 350×350×35 | 1000/2000/3000Kg | 4pcs LC348 LoadCell,10m Cable Capacity:500/1000/1500Kg | |
400×500×56.5 | 3000/5000/6000/10000Kg | 4pcs LC348 LoadCell,10m Cable Capacity:1500/2500/3000/5000Kg | ||
450×700×56.5 | 10000/20000/30000Kg | 6pcs LC348 LoadCell,10m Cable Capacity:5000/10000/15000Kg | ||
500×900×56.5 | 20000/30000/40000Kg | 8pcs LC348 LoadCell,10m Cable Capacity:10000/15000/200000Kg |
MWI02 Multichannel Weighing Indicator
1.The Aluminum aviation housing, multi window display
2.1~4 channel input, axle load, wheel weight, gross weight and percentage weight
3.The built-in printer, optional rechargeable battery
4.The RS232/RS485 communication interface
Type | Picture | Description | Housing | Display |
MWI02 |
| 1.Multichannel Weighing Indicator 2.Lead acid battery | Flight case | LCD |
