Zhejiang, China
SAINTBOND

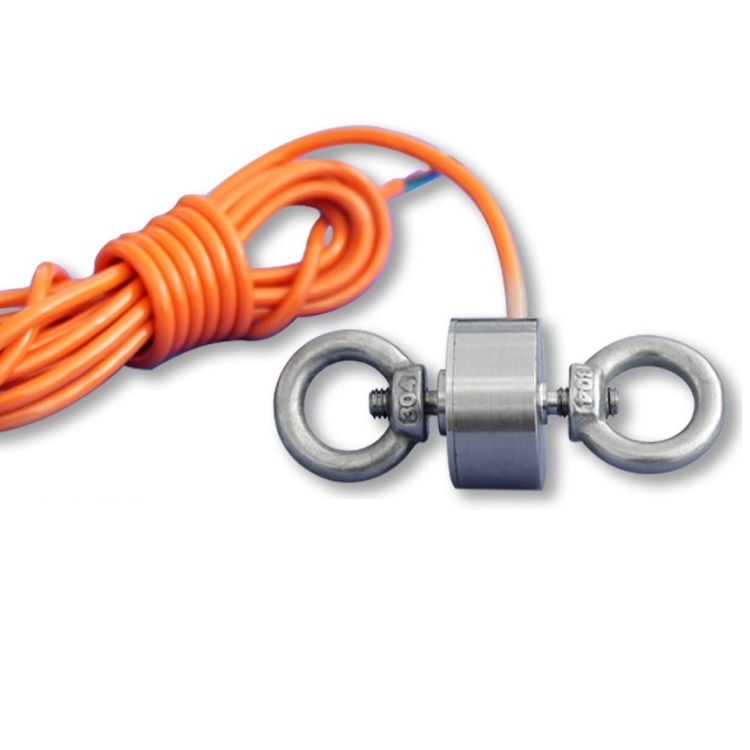

LC5416
PRESSURE SENSOR
load cell
Good quality and low price
Welcome
OEM&ODM
5~40Days
30% advance payment, the rest payment before delivery
Carton
Dimension:
Application:
It is suitable for testing machines, hook scales, welding machines, riveting machines, medical devices, tension and pressure testing instruments and automatic measurement and control fields.
Features:
It is small in volume, strong in stability, high in precision and strong in resistance to overload, and can be used to measure the two-way force of tension and pressure. It is mainly applied to tensile pressure tester, such as test machine, hook scale, plug and pull tester, rivet machine, welding machine, cold hot press machine, keyboard and button handle tester, as well as automation equipment field and test area.
Technical Data:
Capacity | 5kg~5t | Output Impedance | 700±2Ω |
Rated output | 1.0-2.0 mV/V | Insulation | >5000MΩ/10VDC |
Non-linearity | ≤±0.5% F.S. | Recommended Excitation | 5~12VDC(10VDC) |
Hysteresis | 0.5 % F.S. | Excitation max | 15V |
Repeatability | 0.5 % F.S. | Compensated Temp Range | -10~60℃ |
Creep(30min) | ≤±0.3%F.S/30min | Operating Temp Range | -20~80℃ |
Temp Effect On Output | ≤±0.03%F.S/10℃ | Safe Load | 1.2 |
Temp Effect On Zero | ≤±0.03%F.S/10℃ | Ultimate Load Limit | 1.5 |
Input Impedance | 720±20Ω | Material | Stainless Steel |
5kg 10kg 30kg S type tension and compression load cell sensor
| Product Name | 5kg 10kg 30kg S type tension and compression load cell sensor |
| Features | Good quality and low price |
| Service | OEM&ODM |
| Custom Design | Welcome |
| Sample Lead Time | 5~40Days |
| Payment Terms | 30% advance payment, the rest payment before delivery |
| Market | all over the world |
| Form of sale | Factory supply |
Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they will take photos and shoot video for you.
Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique IDs will be created.It will save labor cost for you.
Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.
Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the goods by your logo after getting your authorization letters.
Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the market share.
Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.
Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance to the standards.
Dimension:
Application:
It is suitable for testing machines, hook scales, welding machines, riveting machines, medical devices, tension and pressure testing instruments and automatic measurement and control fields.
Features:
It is small in volume, strong in stability, high in precision and strong in resistance to overload, and can be used to measure the two-way force of tension and pressure. It is mainly applied to tensile pressure tester, such as test machine, hook scale, plug and pull tester, rivet machine, welding machine, cold hot press machine, keyboard and button handle tester, as well as automation equipment field and test area.
Technical Data:
Capacity | 5kg~5t | Output Impedance | 700±2Ω |
Rated output | 1.0-2.0 mV/V | Insulation | >5000MΩ/10VDC |
Non-linearity | ≤±0.5% F.S. | Recommended Excitation | 5~12VDC(10VDC) |
Hysteresis | 0.5 % F.S. | Excitation max | 15V |
Repeatability | 0.5 % F.S. | Compensated Temp Range | -10~60℃ |
Creep(30min) | ≤±0.3%F.S/30min | Operating Temp Range | -20~80℃ |
Temp Effect On Output | ≤±0.03%F.S/10℃ | Safe Load | 1.2 |
Temp Effect On Zero | ≤±0.03%F.S/10℃ | Ultimate Load Limit | 1.5 |
Input Impedance | 720±20Ω | Material | Stainless Steel |
5kg 10kg 30kg S type tension and compression load cell sensor
| Product Name | 5kg 10kg 30kg S type tension and compression load cell sensor |
| Features | Good quality and low price |
| Service | OEM&ODM |
| Custom Design | Welcome |
| Sample Lead Time | 5~40Days |
| Payment Terms | 30% advance payment, the rest payment before delivery |
| Market | all over the world |
| Form of sale | Factory supply |
Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they will take photos and shoot video for you.
Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique IDs will be created.It will save labor cost for you.
Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.
Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the goods by your logo after getting your authorization letters.
Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the market share.
Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.
Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance to the standards.
