SAINTBOND
LC776
Weigh the weight of the weigher
Convert electrical signal to the force signal
Analog SENSOR, 2.0mV/V

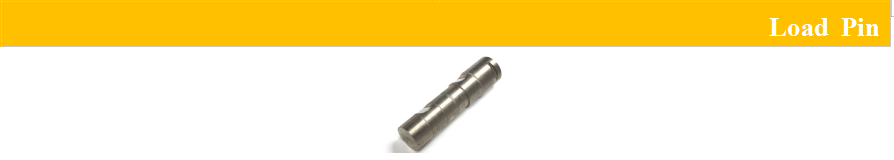

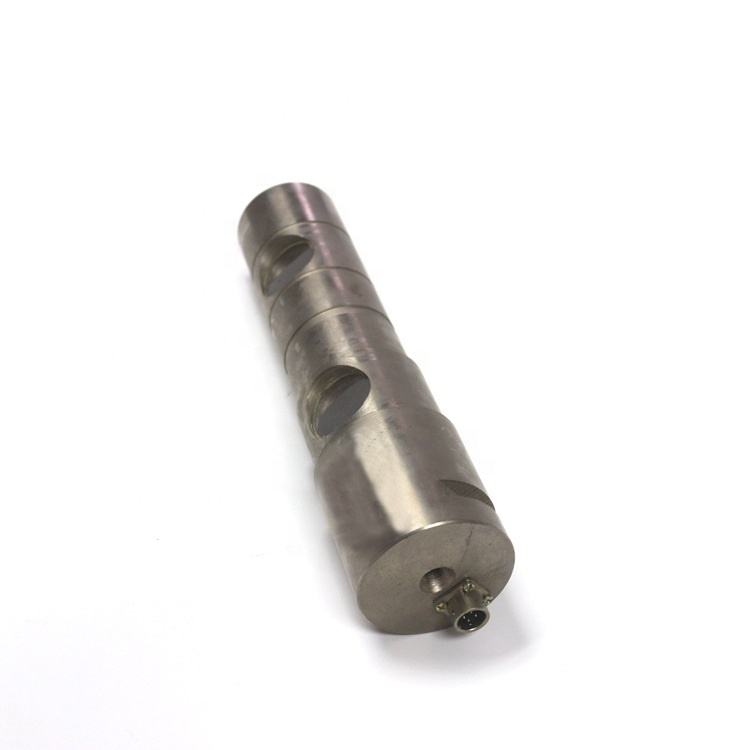

6 ton load cell shaft pin type for hoist names pancakes
Alloy Steel/Stainless Steel
1SET
good quality and low price
OEM&ODM
Welcome
Carton,0.35x0.3x0.2cm
5~40Days
30% advance payment, the rest payment before delivery
6 ton load cell shaft pin type for hoist names pancakes
Stainless steel material, high strength, good load tolerance, suitable for severe environment. Temperature compensation technique ensures the high accuracy in different environment. Custom design to meet different applications. Well sealed for most industrial environments. Used as replacement for exiting shafts. The protection class is IP67, it can be used in harsh environment. Used for crane load monitoring; Hydraulic cylinder force measuring; Anti-tilting at forklift trucks; Tool monitoring for CNC machines; Load measuring and monitoring at sailing boat; Overload protection for transmission parts in elevators, cranes, hoisting gears, winches, vehicles, forklifts and other construction machinery etc.

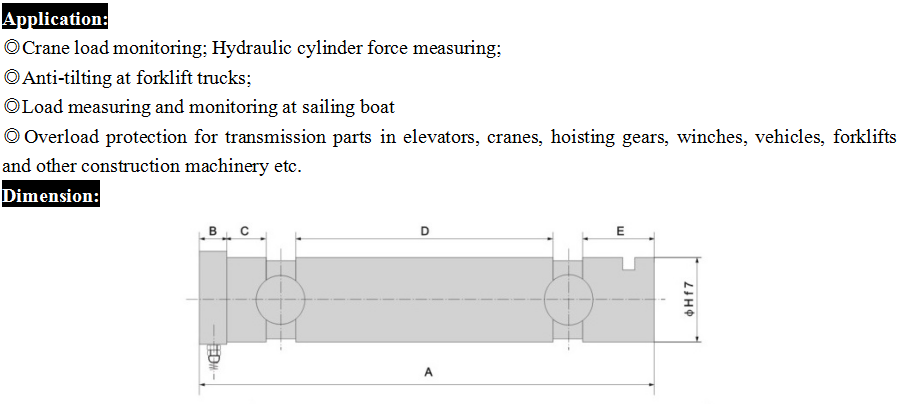

Cap. | A | B | C | D | E | H |
3t | 150 | 18 | 20 | 50 | 30 | 40 |
8t | 210 | 20 | 24 | 74 | 36 | 60 |
15t | 380 | 23 | 32 | 214 | 62 | 70 |
Rated Load: | 3/8/15t | Operating Temp.Range: | -30~+70℃ |
Sensitivity: | (1.0±0.1%) m V/V | Maximum Safe Over Load: | 150%F.S |
Combined Error: | ±0.5% F.S | Ultimate Over Load: | 400%F.S |
Creep Error(30min): | ±0.05% F.S | Recommend Excitation Vol.: | 10~12V DC |
Zero Balance: | ±1% F.S | Maximum Excitation Vol.: | 15V DC |
Temp. Effect On Zero: | ±0.05% F.S/10℃ | Sealing Class: | IP67 |
Temp. Effect On Span: | ±0.05% F.S/10℃ | Element Material: | Alloy / Stainless Steel |
Input Resistance: | 750Ω±20Ω | Cable: | Length=L:5m~16m |
Output Resistance: | 700Ω±3Ω | Citation: | GB/T7551-2008/ OIML R60 |
Insulation Resistance: | ≥5000MΩ | Mode Of Connection: | Red(Input+),Green(Output+), Black(Input-),White(Output-) |
