LC3995
Zhejiang, China
SAINTBOND

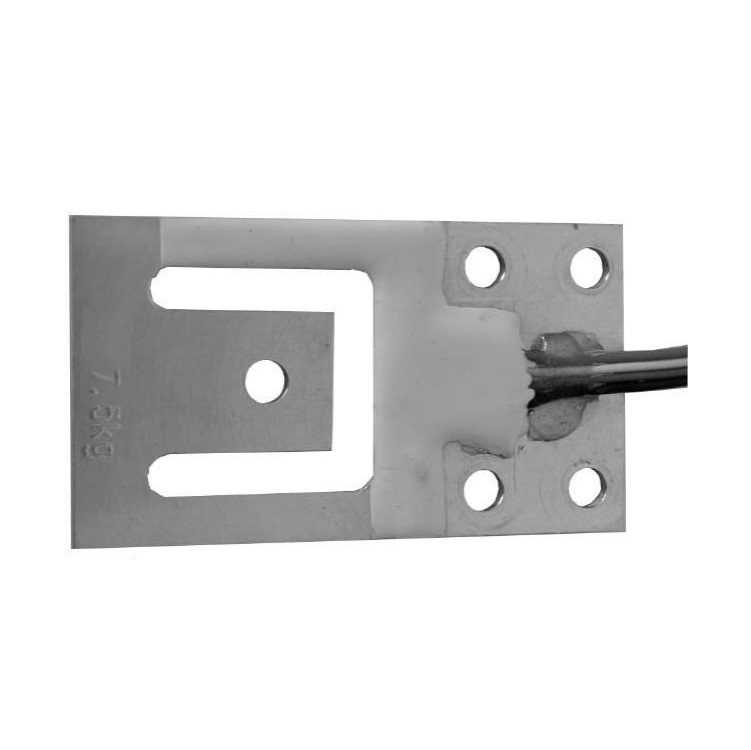

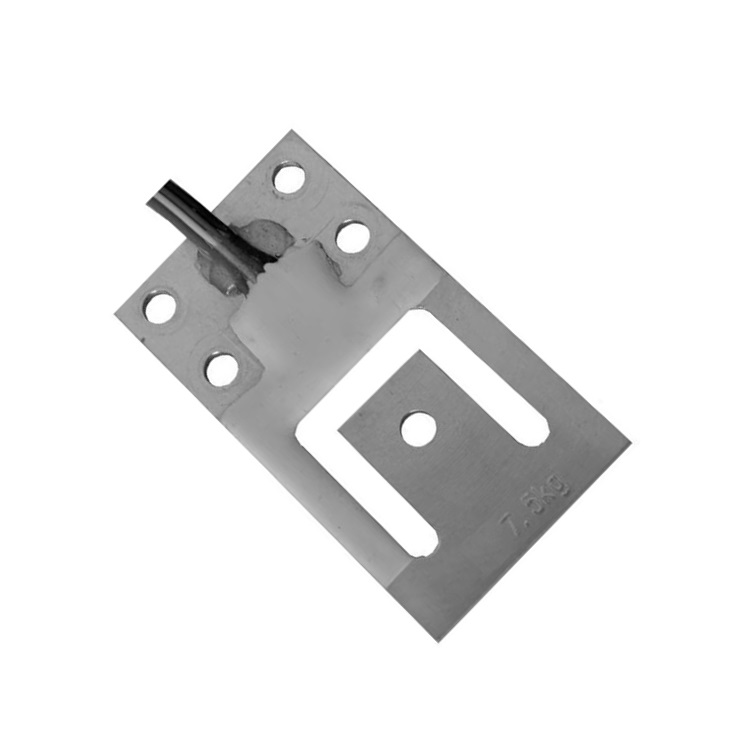

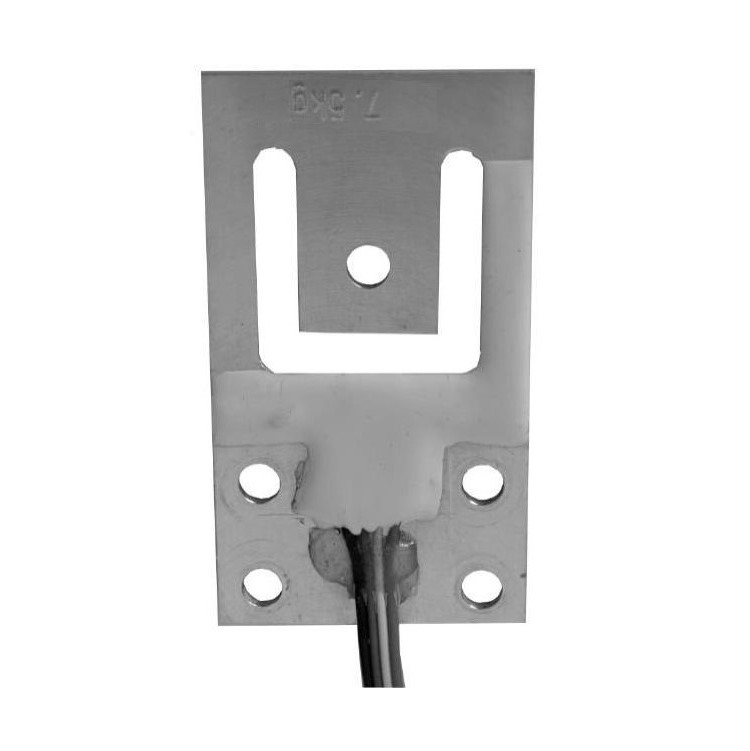

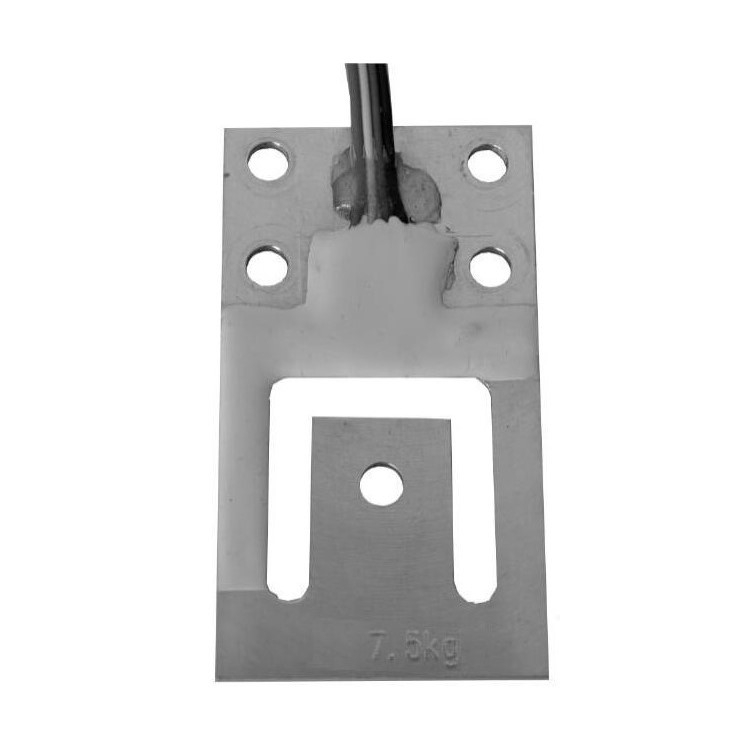

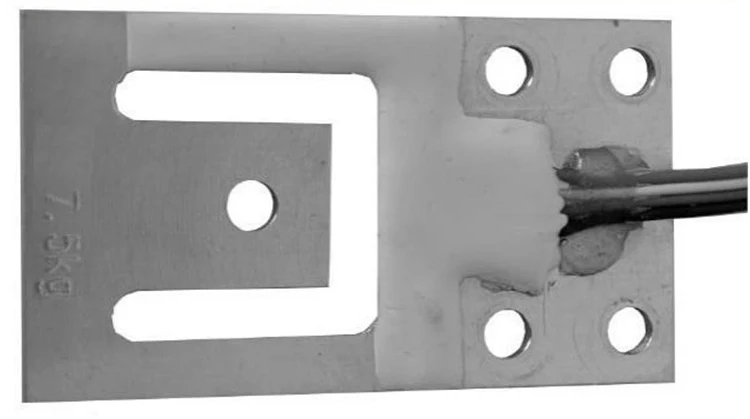

LC3995
PRESSURE SENSOR
load cell
Good quality and low price
Welcome
OEM&ODM
5~40Days
30% advance payment, the rest payment before delivery
Carton
Features:
* 4 conductor flat ribbon cable;
* Cable diameter: Ø1.2mm;
* Standard cable length: 1.0m;

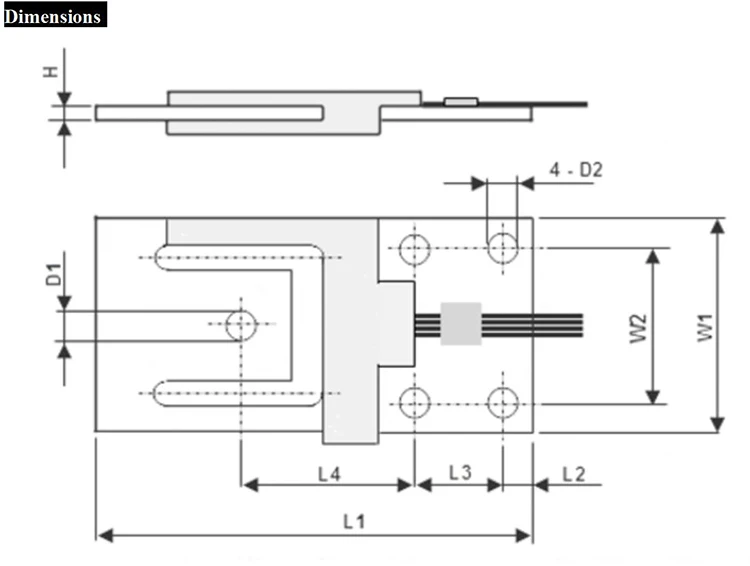

Cap. | L1 | L2 | L3 | L4 | W1 | W2 | H | D1 | D2 |
7.5kg | 70 | 4.9 | 14 | 28 | 39 | 27.8 | 2 | 5.1 | 5.1 |
Technical Parameter:
Accuracy class | OIML R60 C3 |
Output sensitivity ( = FS ) | 1.0 ± 0.1mV/V |
Maximum capacity ( Emax ) | 7.5kg |
Max. number of load cell intervals | 3000nLC |
Ratio of min. LC verification interval | 7500 Y = Emax/vmin |
Combined Error | ≤± 0.023%FS |
Minimum dead load | 0Of Emax |
Safe overload | 1.5of Emax |
Ultimate overload | 3of Emax |
Zero balance | < ± 5.0 %of FS |
Excitation, recommended voltage | 5 ~ 15V |
Excitation maximum | 18V |
Input resistance | 1080 ± 50Ω |
Output resistance | 1000 ± 10Ω |
Insulation resistance | ≥5000 ( at 50VDC )MΩ |
Compensated temperature | -10 ~+40°C |
Operating temperature | -20 ~ +50°C |
Storage temperature | -35 ~ +80°C |
Element material | Aluminum |
Ingress Protection (acc. to EN 60529) | IP65 |
Recommended torque on fixation | M4: 3Nm |
ATEX classification (optional) | None |
75kg 100kg 150kg 200kg 300kg Flat Thin Weight Sensor Load Cell 75 Kg 100 Kg 150 Kg 200 Kg 300 Kg
| Product Name | 75kg 100kg 150kg 200kg 300kg Flat Thin Weight Sensor Load Cell 75 Kg 100 Kg 150 Kg 200 Kg 300 Kg |
| Features | Good quality and low price |
| Service | OEM&ODM |
| Custom Design | Welcome |
| Sample Lead Time | 5~40Days |
| Payment Terms | 30% advance payment, the rest payment before delivery |
| Market | all over the world |
| Form of sale | Factory supply |
Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they will take photos and shoot video for you.
Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique IDs will be created.It will save labor cost for you.
Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.
Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the goods by your logo after getting your authorization letters.
Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the market share.
Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.
Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance to the standards.
Features:
* 4 conductor flat ribbon cable;
* Cable diameter: Ø1.2mm;
* Standard cable length: 1.0m;
Cap. | L1 | L2 | L3 | L4 | W1 | W2 | H | D1 | D2 |
7.5kg | 70 | 4.9 | 14 | 28 | 39 | 27.8 | 2 | 5.1 | 5.1 |
Technical Parameter:
Accuracy class | OIML R60 C3 |
Output sensitivity ( = FS ) | 1.0 ± 0.1mV/V |
Maximum capacity ( Emax ) | 7.5kg |
Max. number of load cell intervals | 3000nLC |
Ratio of min. LC verification interval | 7500 Y = Emax/vmin |
Combined Error | ≤± 0.023%FS |
Minimum dead load | 0Of Emax |
Safe overload | 1.5of Emax |
Ultimate overload | 3of Emax |
Zero balance | < ± 5.0 %of FS |
Excitation, recommended voltage | 5 ~ 15V |
Excitation maximum | 18V |
Input resistance | 1080 ± 50Ω |
Output resistance | 1000 ± 10Ω |
Insulation resistance | ≥5000 ( at 50VDC )MΩ |
Compensated temperature | -10 ~+40°C |
Operating temperature | -20 ~ +50°C |
Storage temperature | -35 ~ +80°C |
Element material | Aluminum |
Ingress Protection (acc. to EN 60529) | IP65 |
Recommended torque on fixation | M4: 3Nm |
ATEX classification (optional) | None |
75kg 100kg 150kg 200kg 300kg Flat Thin Weight Sensor Load Cell 75 Kg 100 Kg 150 Kg 200 Kg 300 Kg
| Product Name | 75kg 100kg 150kg 200kg 300kg Flat Thin Weight Sensor Load Cell 75 Kg 100 Kg 150 Kg 200 Kg 300 Kg |
| Features | Good quality and low price |
| Service | OEM&ODM |
| Custom Design | Welcome |
| Sample Lead Time | 5~40Days |
| Payment Terms | 30% advance payment, the rest payment before delivery |
| Market | all over the world |
| Form of sale | Factory supply |
Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they will take photos and shoot video for you.
Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique IDs will be created.It will save labor cost for you.
Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.
Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the goods by your logo after getting your authorization letters.
Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the market share.
Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.
Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance to the standards.
