Zhejiang, China

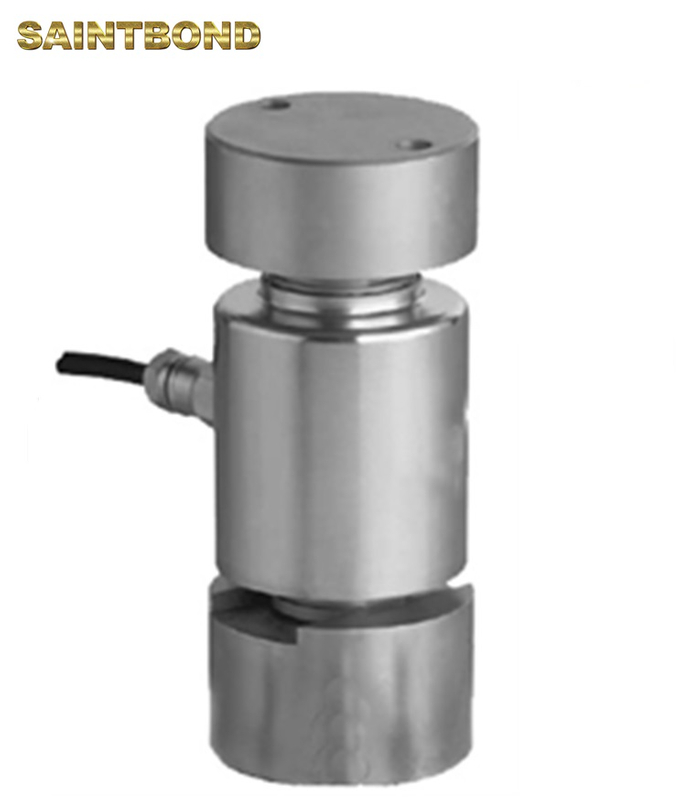

SAINTBOND digital load cell 50t
LC418M1D digital load cell 50t
Weighing
Resistance Sensor
Other
digital load cell 50t
7.5/15/22.5/30/40/50t
Alloy / Stainless Steel
15V DC
10~12V DC
IP67/IP68
Welcome
OEM&ODM
1pcs per type per capacity
OEM & ODM Manufacture
Alloy steel wireless weighing rocker pin digital load cell 50 ton
Technical Parameter:
Rated Load: | 7.5/15/22.5/30/40/50t | Insulation Resistance: | ≥5000MΩ |
Rated Output: | 1000000 | Operating Temp. Range: | -30~+70℃ |
Baudrate: | 9600 Baud | Maximum Safe Over Load: | 150%F.S |
Measuring Rate: | 80/sec | Ultimate Over Load: | 250%F.S |
Communication Mode: | RS485/4-wire | Recommend Excitation Vol.: | 10~12V DC |
Combined Error: | ±0.03% F.S | Maximum Excitation Vol.: | 15V DC |
Creep Error(30min): | ±0.02% F.S | Sealing Class: | IP67/IP68 |
Zero Balance: | ±1% F.S | Element Material: | Alloy/ Stainless Steel |
Temp. Effect On Zero: | ±0.017% F.S/10℃ | Cable: | Length=13~16m |
Temp. Effect On Span: | ±0.017% F.S/10℃ | Citation: | GB/T7551-2008/ OIML R60 |
Alloy steel wireless weighing rocker pin digital load cell 50 ton
Technical Parameter:
Rated Load: | 7.5/15/22.5/30/40/50t | Insulation Resistance: | ≥5000MΩ |
Rated Output: | 1000000 | Operating Temp. Range: | -30~+70℃ |
Baudrate: | 9600 Baud | Maximum Safe Over Load: | 150%F.S |
Measuring Rate: | 80/sec | Ultimate Over Load: | 250%F.S |
Communication Mode: | RS485/4-wire | Recommend Excitation Vol.: | 10~12V DC |
Combined Error: | ±0.03% F.S | Maximum Excitation Vol.: | 15V DC |
Creep Error(30min): | ±0.02% F.S | Sealing Class: | IP67/IP68 |
Zero Balance: | ±1% F.S | Element Material: | Alloy/ Stainless Steel |
Temp. Effect On Zero: | ±0.017% F.S/10℃ | Cable: | Length=13~16m |
Temp. Effect On Span: | ±0.017% F.S/10℃ | Citation: | GB/T7551-2008/ OIML R60 |
