Zhejiang, China
SAINTBOND
B8D
PRESSURE SENSOR
Analog SENSOR
platform scale sensors
Good quality and low price
Welcome
OEM&ODM
5~40Days
30% advance payment, the rest payment before delivery
Carton
Features:

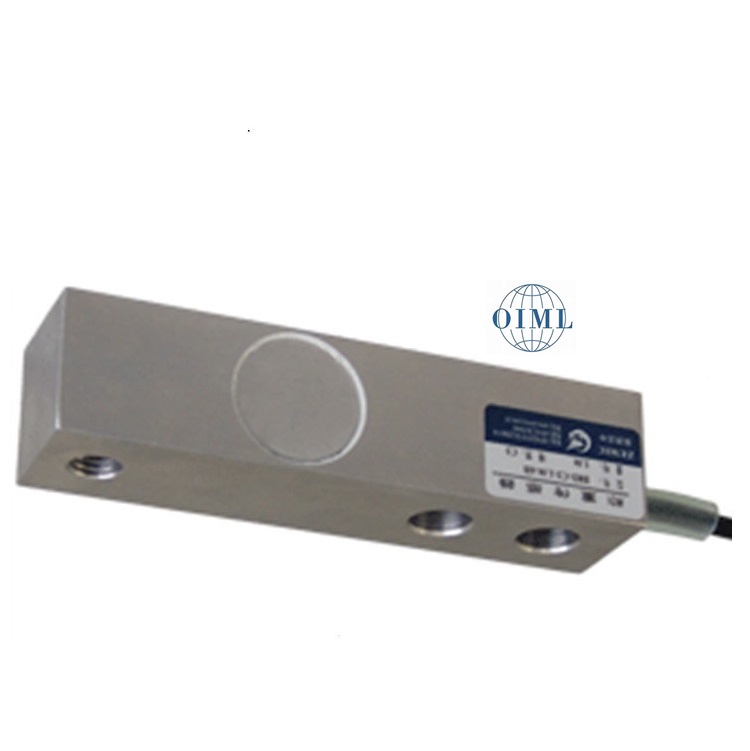

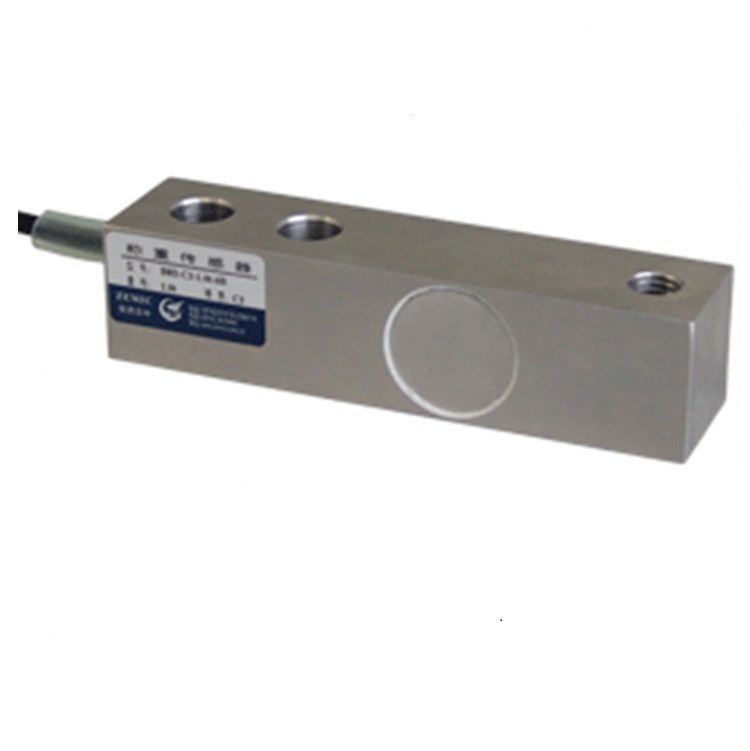

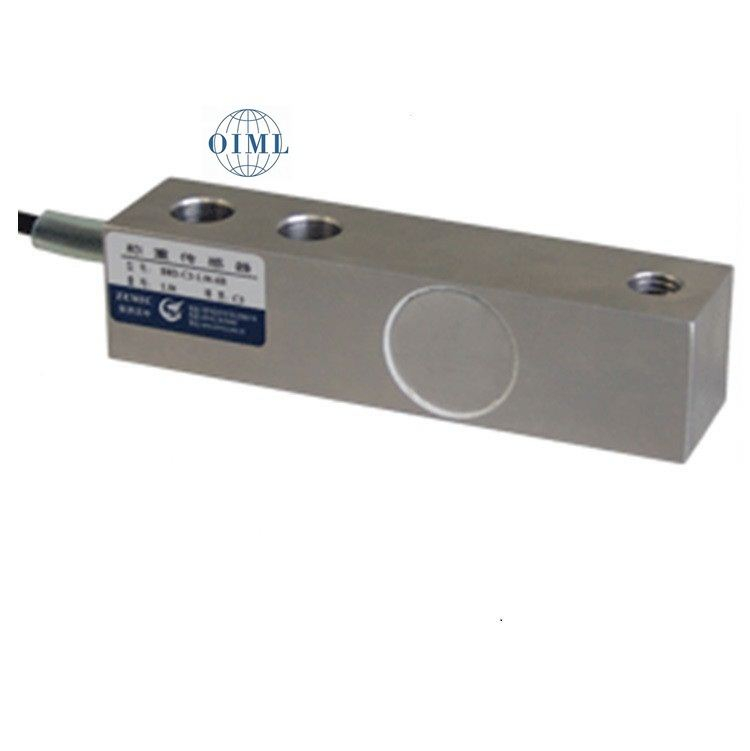

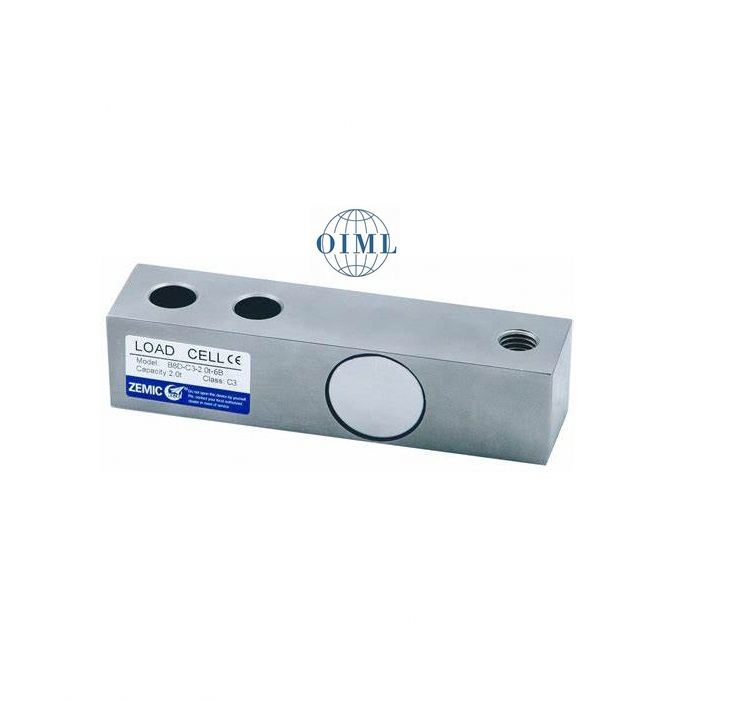

B8D load cells are available in the capacities 250lb to 20Klb and 0.5t to 5t.
Strainless steel construction,potted by adhesive inside. oil-proof,waterproof and anti-corrosive gas and medium making it suitable for all kinds of environments.
Single shear beam,easy for installation, suitable for electronic truck scales,automobile testing facilities,hopper scales and otherelectronic weighing devices.
Safe and anti-explosive product,can be used in atrocious environment and hazardous areas.
Important Features
Capacities:250lb to 20Klb and 0.25t to 5t.
High accuracy.
Strainless steel construction.
Low profile.
With OIML approval.

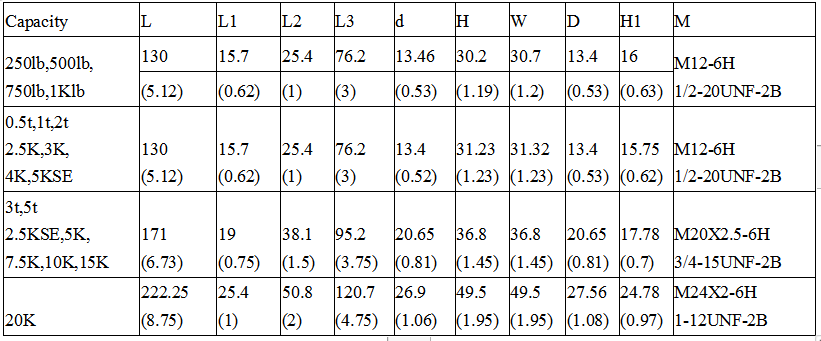

Outline Dimension mm(inch) :
Specifications:
Capacity | t | 0.1/0.15/0.2/0.25/0.3/0.4/0.5/0.75/1/1.5/2/3/5/7.5/10 | |||
lb | 250/500/750/1K/1.5K/2K/2.5K/2.5KLE/3K/4K/5K/5KSE/7.5K/10K/15K/20K | ||||
Accuracy |
| C2 | C3 | A5M | B10M |
Approval |
|
| OIML R60 C3 |
|
|
Maximum number of verification intervals | n max | 2000 | 3000 | 5000 | 10000 |
Minimum load cell verification interval | v min | Emax/5000 | Emax/10000 | Emax/15000 | Emax/10000 |
Combined error | (%FS) | ≤± 0.030 | ≤± 0.020 | ≤± 0.026 | ≤± 0.050 |
Creep | (%FS/30min) | ≤± 0.024 | ≤± 0.016 | ≤± 0.017 | ≤± 0.040 |
Temperature effect on sensitivity | (%FS/10℃) | ≤± 0.017 | ≤± 0.011 | ≤± 0.013 | ≤± 0.040 |
Temperature effect on zero | (%FS/10℃) | ≤± 0.023 | ≤± 0.015 | ≤± 0.014 | ≤± 0.020 |
Output sensitivity | (mv/v) | 3.0±0.008 | |||
Input resistance | (Ω) | 350±3.5 | |||
Output resistance | (Ω) | 350±3.5 | |||
Insulation resistance | (MΩ) | ≥ 5000(50VDC) | |||
Zero balance | (%FS) | 1 | |||
Temperature, compensated | (℃) | -10~+40 | |||
Temperature,allowed | (℃) | -35~+65 | |||
Excitation, Recommended | (V) | 5~12(DC) | |||
Excitation,Max | (V) | 18(DC) | |||
Safe overload | (%FS) | 150 | |||
Ultimate overload | (%FS) | 300 |
B8D Prices Of 50Kg 100Kg 200Kg 500Kg 2000Kg 3000Kg Electronic Platform Weight Scale Load Cell Sensor
Product Name | B8D Prices Of 50Kg 100Kg 200Kg 500Kg 2000Kg 3000Kg Electronic Platform Weight Scale Load Cell Sensor |
Features | Good quality and low price |
Service | OEM&ODM |
Custom Design | Welcome |
Sample Lead Time | 5~40Days |
Payment Terms | 30% advance payment, the rest payment before delivery |
Market | all over the world |
Form of sale | Factory supply |
Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they
will take photos and shoot video for you.
Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you
to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our
workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique
IDs will be created.It will save labor cost for you.
Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.
Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the
goods by your logo after getting your authorization letters.
Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the
market share.
Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.
Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance
to the standards.
