Zhejiang, China
SAINTBOND
CS-EW
DC 4V
LED
crane scales manufacturers
Good quality and low price
OEM&ODM
5~40Days
30% advance payment, the rest payment before delivery
Carton

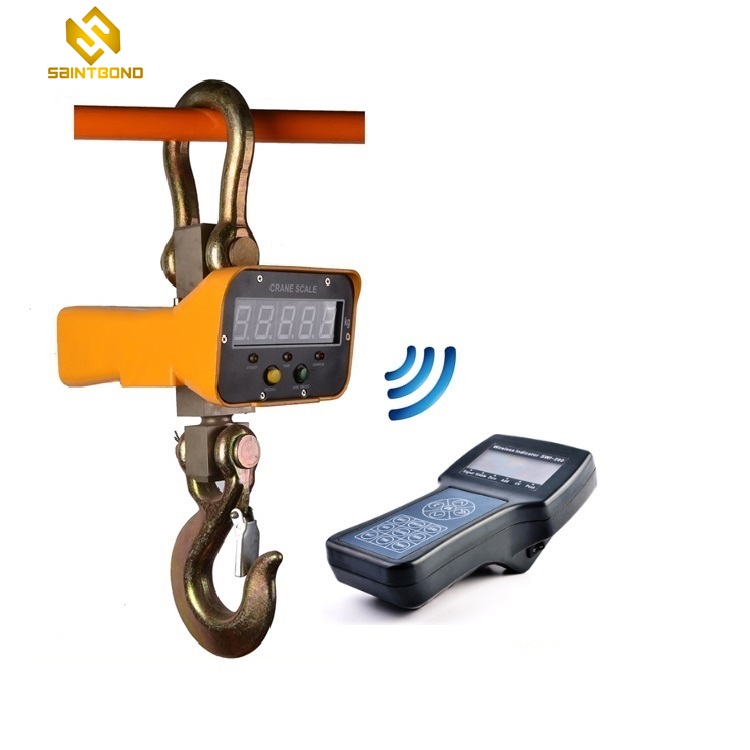

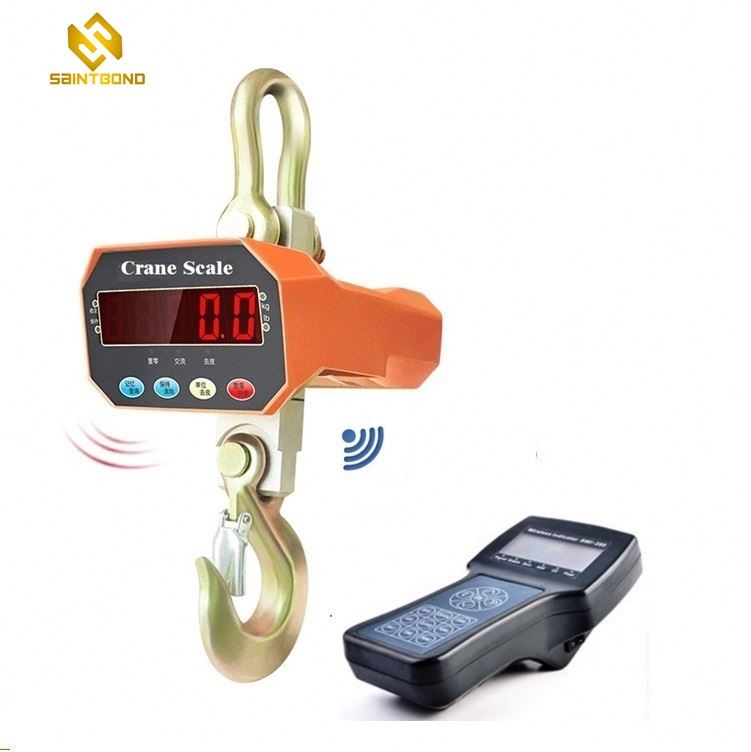

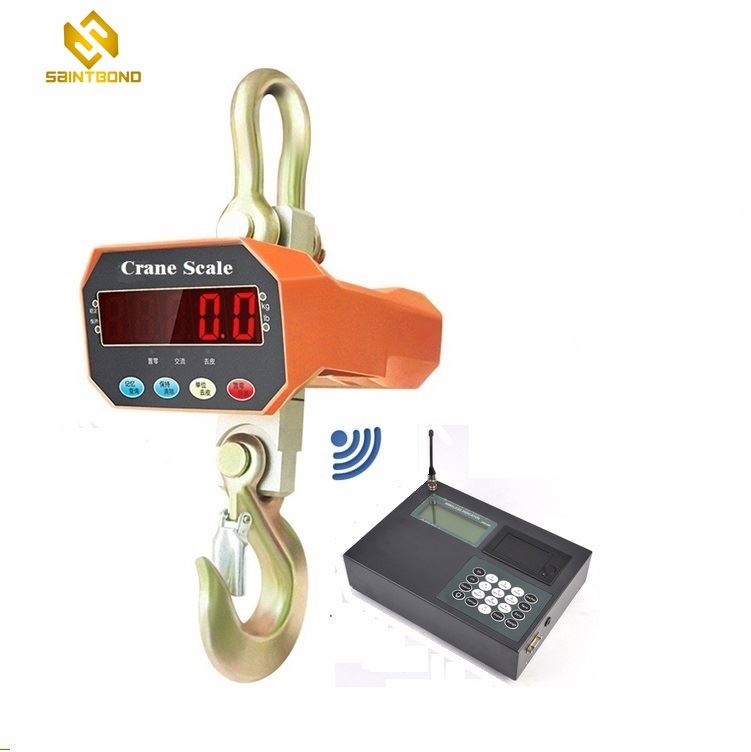

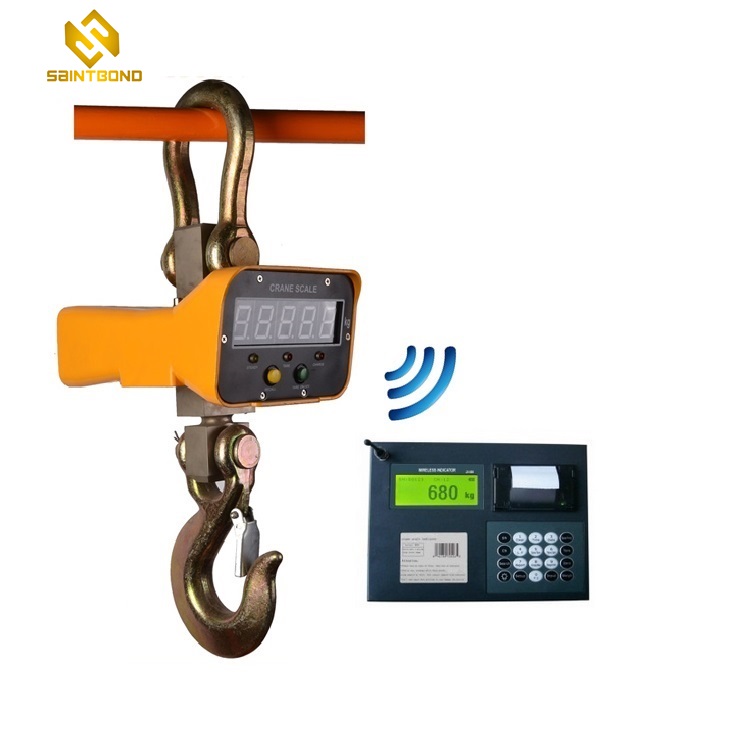

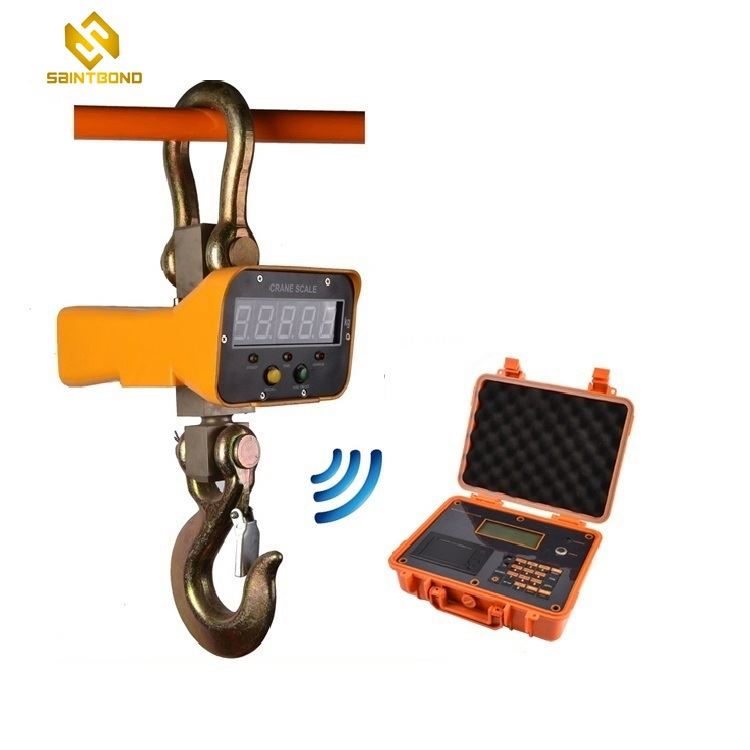

Wireless Features:
WI280 receive indicator:
Interval Value:1/2/5/10/20/50/100
Display:192×64 dots display;6 status indicators(back light)
Power: Lithium Battery, use 48 hours for one Charging
Environment temperature: Scale body -10℃~50℃;Instrument 0℃~40℃
Maximum wireless transceiver distance:>300m(open area)
Radio frequency:434MHz
Main Technical Data:
Capacity: | 1/2/3/5/10t | Overload Indication: | 100% F.S. + 9e | |
Zero Range: | 4% F.S. | Max. Safety Load: | 125% F.S. | |
Tare Range: | 20% F.S. | Ultimate Load: | 400% F.S. | |
Stable Time: | ≤10 seconds | Battery Life: | ≥70 hours | |
Adapter: | DC9V/1000mA | Operating Humidity: | ≤85% RH under 20℃ | |
Standard: | According to OIML class III | |||
Display: | 30mm (1.2'') 5digits LCD/LED | |||
Battery Type: | Fully sealed Lead-Acid battery, 6V/7Ah | |||
Remote Controller Distance: | ≤25m | |||
Battery Of Remote Controller: | UM-4 SIZE AAA,1.5Vx2 | |||
Specification:
Model | Max Cap.(Kg) | Min. Weigh (Kg) | Division (Kg) | Total Display Counts (N) |
CS-1-E1 | 1000 | 10 | 0.5 | 2000 |
CS-2-E1 | 2000 | 20 | 1 | 2000 |
CS-3-E1 | 3000 | 20 | 1 | 3000 |
CS-5-E1 | 5000 | 40 | 2 | 2500 |
CS-10-E1 | 10000 | 100 | 5 | 2000 |
CS-15-E1 | 15000 | 100 | 5 | 3000 |
CS-20-E1 | 20000 | 200 | 10 | 2000 |

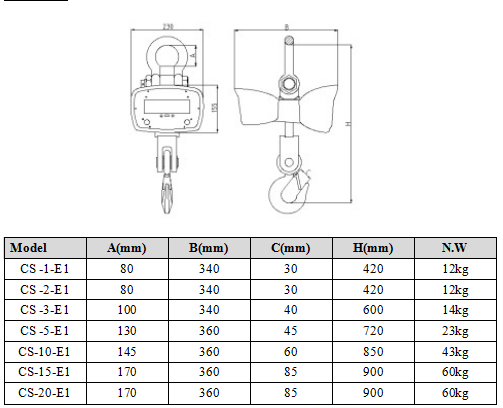

Dimension:

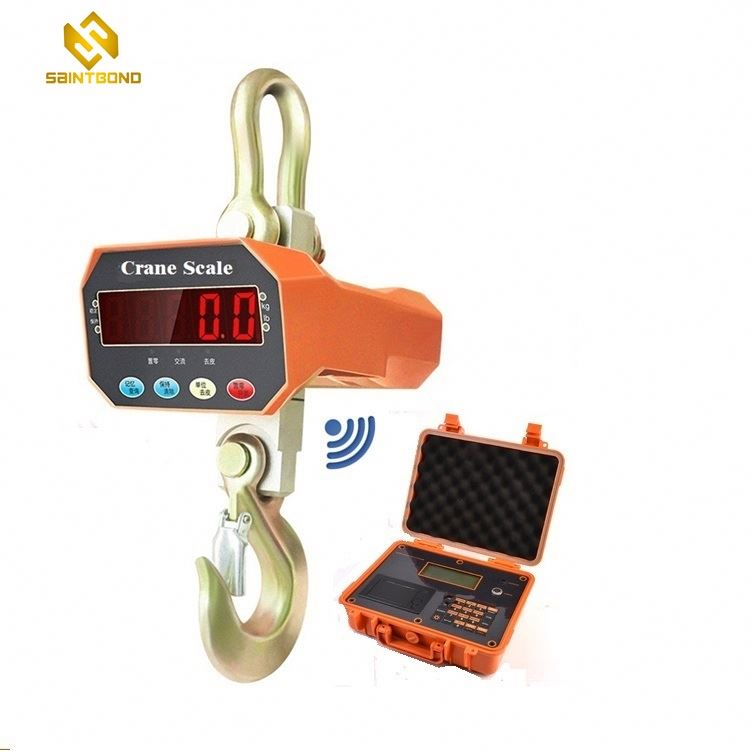

CS-EW Electronic OCS Hanging Scale Digital Crane Scale Wireless Weighing Scales with Large Screen
| Product Name | CS-EW Electronic OCS Hanging Scale Digital Crane Scale Wireless Weighing Scales with Large Screen |
| Features | Good quality and low price |
| Service | OEM&ODM |
| Custom Design | Welcome |
| Sample Lead Time | 5~40Days |
| Payment Terms | 30% advance payment, the rest payment before delivery |
| Market | all over the world |
| Form of sale | Factory supply |
Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they
will take photos and shoot video for you.
Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you
to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our
workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique
IDs will be created.It will save labor cost for you.
Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.
Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the
goods by your logo after getting your authorization letters.
Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the
market share.
Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.

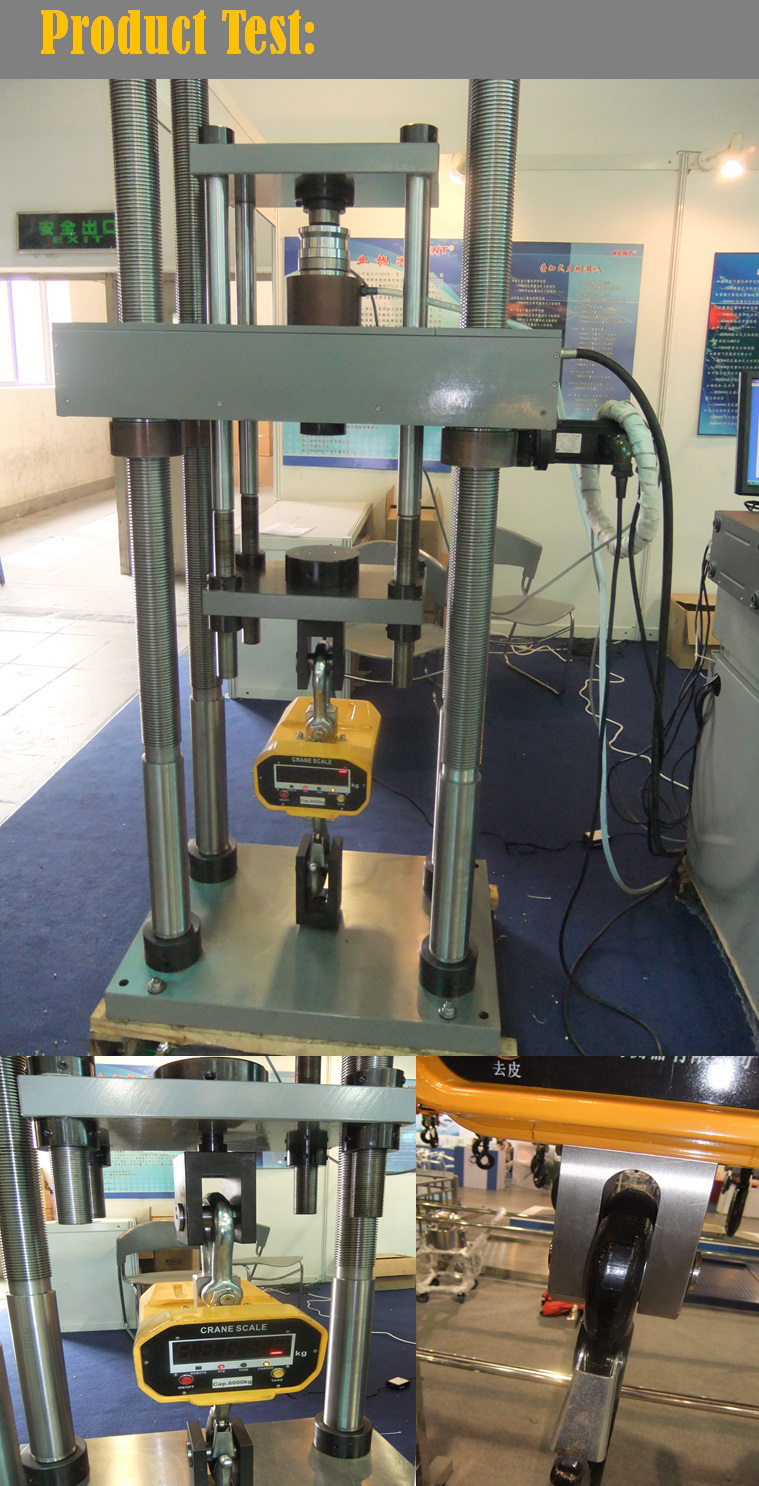

Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance
to the standards.
