Zhejiang, China
Saintbond
TSensor017
Weigh the weight of the weigher
Convert electrical signal to the force signal
0-10MV
Cable Pulley Sensor
Alloy / Stainless Steel
10N~200N
1.5mv/v
-10℃ to+40℃
5~12VDC/AC(10)
IP65
1PCS
-20℃ to+70℃
Factory supply

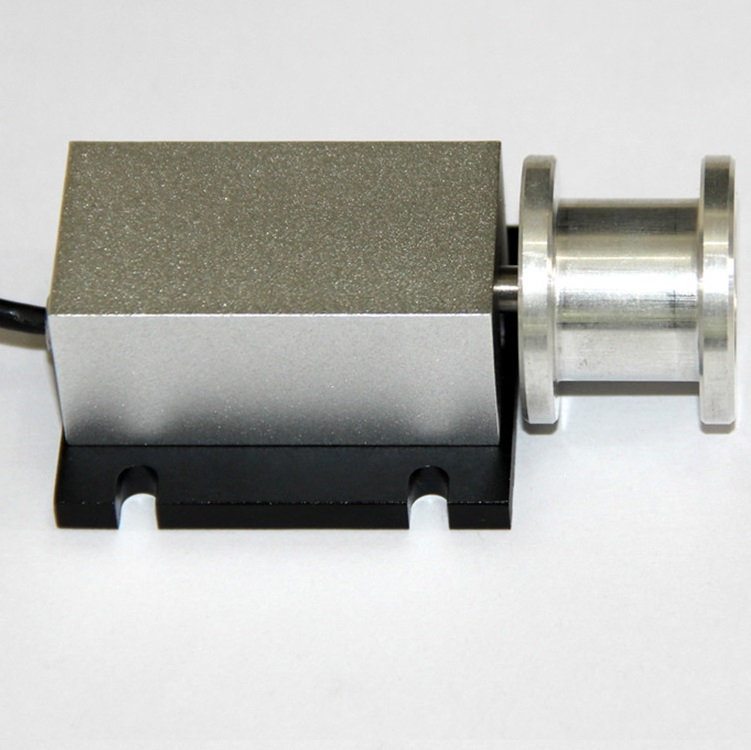

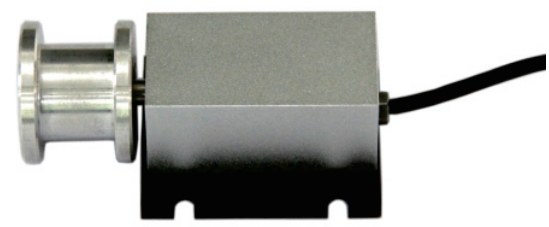

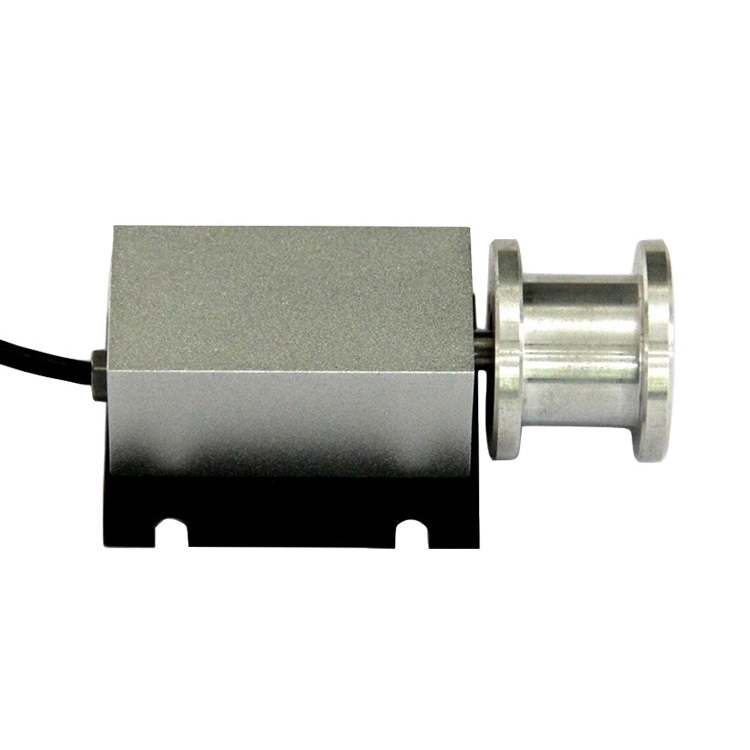

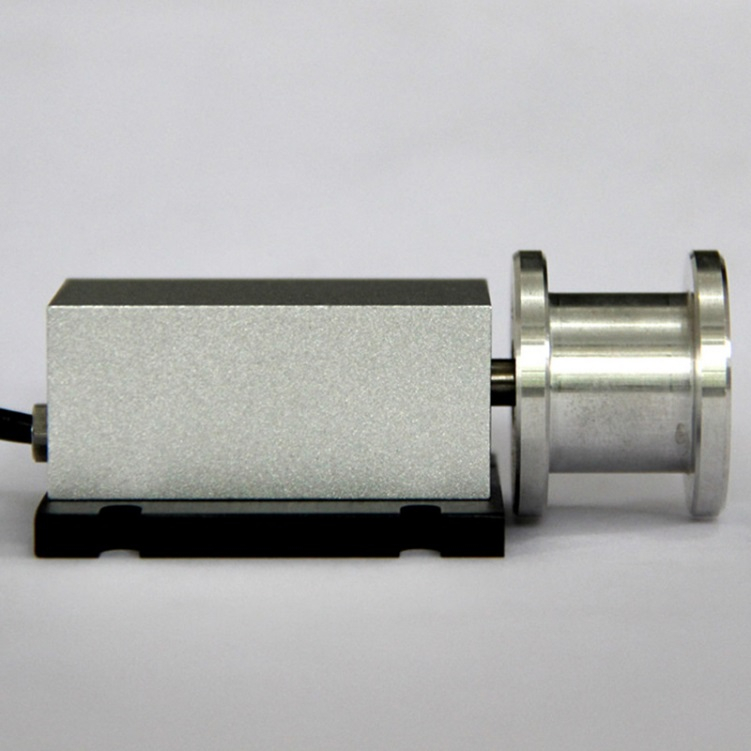

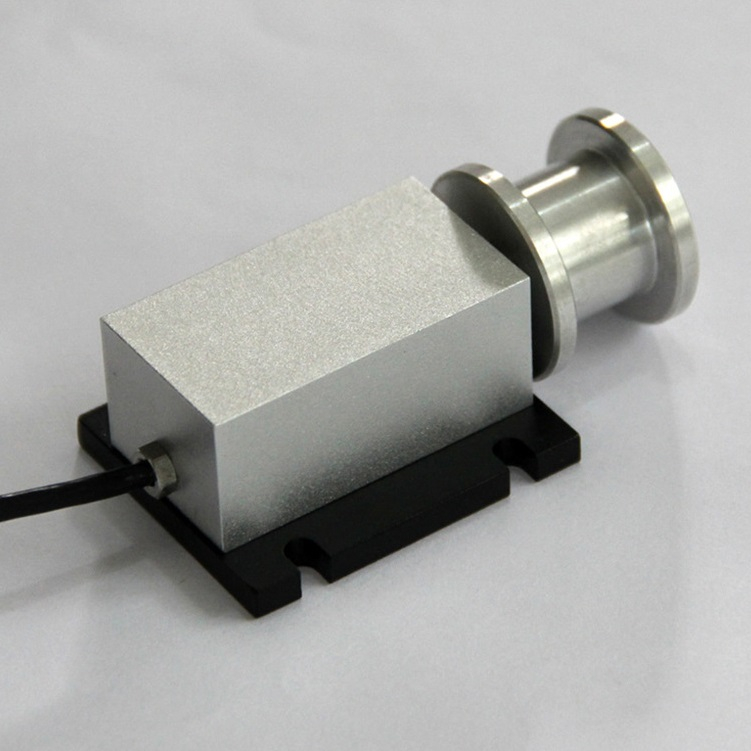

Cable Fiber Tension Weight Pulley Sensor
Product features:
It has the characteristics of high precision, high stability and easy installation. It is suitable for tension measurement of various optical fibers, yarns, chemical fibers, wires, wires, cables and tapes. It is widely used in electronic, chemical, textile, paper-making, machinery and industrial automation measurement and control fields.
Dimension: in mm
Capacity: | 10N~200N | ||
Rated Output: | 1.5mv/v | Temp.Compensated | -10℃ to+40℃ |
Zero Balance: | ≤1% of rated output | Safe Overload | 1.5 |
Creep After 30 Minutes: | ≤±0.1% of rated output | Input Impedance | 380Ω±10Ω |
Nonlinearity: | ≤±0.1 of rated output | Output Impedance | 350 Ω±3Ω |
Hysteresis: | ≤±0.1 of rated output | Insulation Resistance | ≥5000MΩ(50VDC) |
Repeatability: | ≤±0.1of rated output | Rated Excitation | 5~12VDC/AC(10) |
Temp. effect on output: | ≤0.03% of applied output/℃ | Max. Excitation | 15V DC/AC |
Temp. Effect on zero: | ≤0.03% of rated output/℃ | Protection Class | IP65 |
Safe temp. Range: | -20℃ to+70℃ | Load Cell Block | Alloy or Stainless Steel Shell |
FAQ:
Q: Could you offer more information about the products, and quote a best price ?
A: Yes, certainly, we will send our product catalogue and company introduction for your reference.
You can choose one or some model, I will advice suitable one for you, also with best price details.
Q: Are you manufacture or trading company ?
A: We are manufacture, also have own export right under our export company. Welcome to visit our factory, check our quality and service.
Q: How long is your delivery time ? What's your payment terms ?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Payment terms is TT, LC, Cash, also can be negotiation with us.
Q: Your price is a little bit higher than my target, can you offer a better price ?
A: Yes, price can be negotiation, we try our best to meet your target, let's find a win-win solution, we always keep long term cooperation relations with customers.
