China

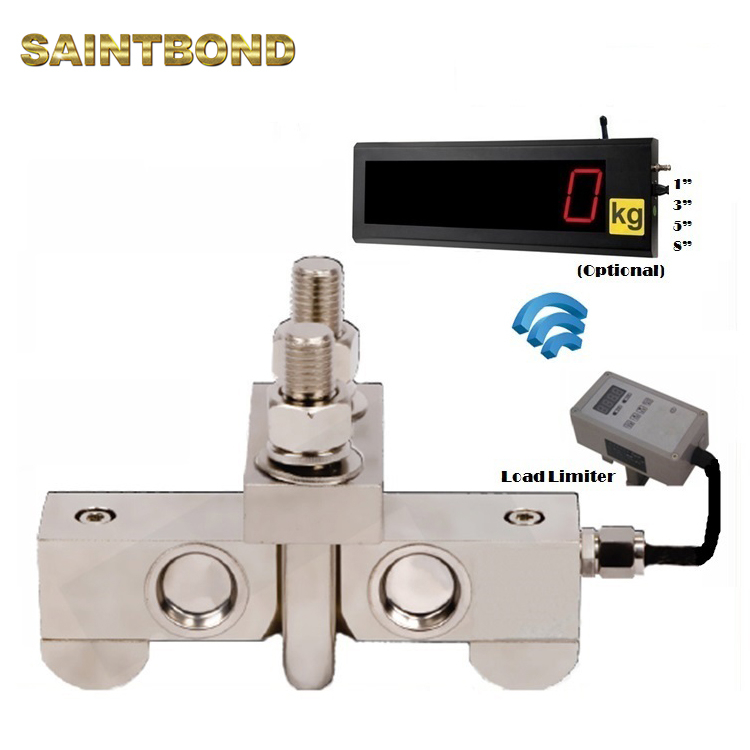

SAINTBOND Rope Clamp-on Load Cell
LC104W01 Rope Clamp-on Load Cell
Weighing industry
Resistance Sensor
Digital Sensor
Rope Clamp-on Load Cell
Alloy Steel, Stainless Steel
LED or LCD
Welcome
OEM&ODM
110V or 220v
China Factory Side Compression Tension Sensor,Wire Rope Clamp-on Load Cell

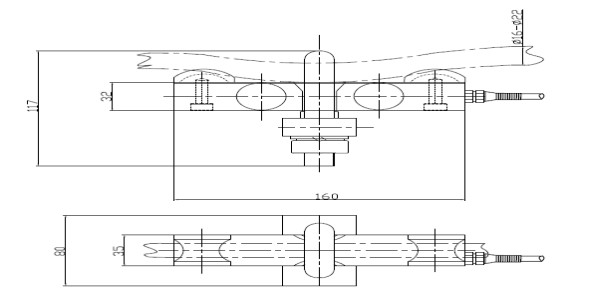

Steel Wire Tension | Steel Wire Diameter | L | H | B | b |
1t | 6-14 | 180 | 100 | 60 | 35 |
2t | 10-18 | 180 | 100 | 60 | 35 |
3t | 14-22 | 180 | 100 | 60 | 35 |
5t | 16-26 | 200 | 105 | 75 | 40 |
10t | 24-36 | 260 | 115 | 110 | 60 |
Wire Rope Size: | 10~40mm | Operating Temperature Range: | -30~+70℃ |
Sensitivity: | (1.0±0.1%) mV/V | Maximum Safe Over Load: | 150%F.S |
Combined Error: | ±0.1% F.S | Ultimate Over Load: | 300%F.S |
Creep Error(30min): | ±0.02% F.S | Recommend Excitation Vol.: | 10~12V DC |
Zero Balance: | ±1% F.S | Maximum Excitation Voltage: | 15V DC |
Temp. Effect On Zero: | ±0.02% F.S/10℃ | Sealing Class: | IP67 |
Temp. Effect On Span: | ±0.02% F.S/10℃ | Element Material: | Alloy Steel, Stainless Steel |
Input Resistance: | 385±5Ω | Cable: | Length=1m |
Output Resistance: | 352±2Ω | Citation: | GB/T7551-2008/ OIML R60 |
Insulation Resistance: | ≥5000MΩ | Mode Of Connection: | Red(Input+),Green(Output+), Black(Input-),White(Output-) |
Wireless Frequency: | 430~485MHz |
Wireless Distance: | Min:800m(In Open Area) |
A/D Conversion Rate: | ≥50times/seconds |
Operating Temp. Range: | -20~+80℃ |
Operating Humidity: | ≤85%RH under 20℃ |
Battery Life: | ≥50 hours |
Non-Linearity: | 0.01%F.S |
Stable Time: | ≤5 Seconds |
Citation: | GB/T7551-2008/ OIML R60 |
FAQ:
Q: Could you offer more information about the products, and quote a best price ?
A: Yes, certainly, we will send our product catalogue and company introduction for your reference.
You can choose one or some model, I will advice suitable one for you, also with best price details.
Q: Are you manufacture or trading company ?
A: We are manufacture, also have own export right under our export company. Welcome to visit our factory, check our quality and service.
Q: How long is your delivery time ? What's your payment terms ?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Payment terms is TT, LC, Cash, also can be negotiation with us.
Q: Your price is a little bit higher than my target, can you offer a better price ?
A: Yes, price can be negotiation, we try our best to meet your target, let's find a win-win solution, we always keep long term cooperation relations with customers.
