Zhejiang, China
SAINTBOND Vehicle Weigh Pads

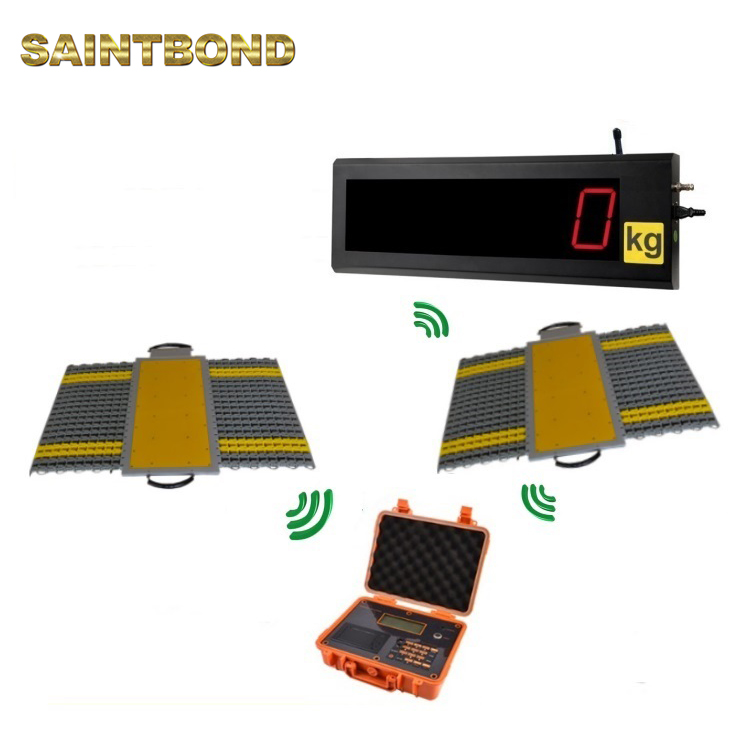

AS010W(2Pcs) Vehicle Weigh Pads
110V , 220V or according to customer's requirement
LED LCD
Vehicle Weigh Pads
Aluminum-alloy
Welcome
OEM&ODM
1pcs per type per capacity
25~45 DAYS
OEM & ODM Manufacture
45KG
China made 60 ton portable axle vehicle weigh pads
Wireless Specification | |
A/D Conversion Method | Σ-Δ 24bit |
Input Signal Range | –19.5mV~19.5mV |
Load Cell Excitation | DC 5V |
Max. Connection Number Of Load Cell | 1~4 |
Load Cell Connection Mode | 4 wire |
Operating Temperature | -10°C~40 °C |
Allowable Working Temperature | -40 °C ~70 ° C |
Wireless Transmission Frequency | 430MHz to 470MHz |
Wireless Transmission Distance | 800 meters (In Open Place) |
Weighing Pad Product Parameters | |
Rated Load:10/15/20T | Compensated temp.range(℃): -10~+50 |
Dynamic Error (%F.S): 3 (5~10km/h) | Static error (%F.S):0.1~0.3 |
Static Comprehensive Error(%F.S): 0.1~0.5 | Insulation resistance(MΩ): ≥5000(100VDC) |
Rated Output(Mv/V): 1.0±0.1 | Use temp.range(℃): -30~+80 |
Non-Linearity(%F.S): 0.2 | Temp.effect on zero(F.S/10℃): 0.03 |
Error On Corners(%F.S): 0.2 | Temp.effect on span(F.S/10℃): 0.05 |
Repeatariy(%F.S): 0.05 | Safe overload(%): 120 |
Zero Balance(%F.S): ±1 | Ultimate overload(%): 150 |
Excitation Voltage(VDC): 9~15 | Net weight(kg): 45 |
Recommended Voltage(V): 10 | Defend grade: IP66 |
Dynamic Comprehensive Error(%F.S): | 1.5 (1~5km/h) 3 (5~10km/h) |
China made 60 ton portable axle vehicle weigh pads
Wireless Specification | |
A/D Conversion Method | Σ-Δ 24bit |
Input Signal Range | –19.5mV~19.5mV |
Load Cell Excitation | DC 5V |
Max. Connection Number Of Load Cell | 1~4 |
Load Cell Connection Mode | 4 wire |
Operating Temperature | -10°C~40 °C |
Allowable Working Temperature | -40 °C ~70 ° C |
Wireless Transmission Frequency | 430MHz to 470MHz |
Wireless Transmission Distance | 800 meters (In Open Place) |
Weighing Pad Product Parameters | |
Rated Load:10/15/20T | Compensated temp.range(℃): -10~+50 |
Dynamic Error (%F.S): 3 (5~10km/h) | Static error (%F.S):0.1~0.3 |
Static Comprehensive Error(%F.S): 0.1~0.5 | Insulation resistance(MΩ): ≥5000(100VDC) |
Rated Output(Mv/V): 1.0±0.1 | Use temp.range(℃): -30~+80 |
Non-Linearity(%F.S): 0.2 | Temp.effect on zero(F.S/10℃): 0.03 |
Error On Corners(%F.S): 0.2 | Temp.effect on span(F.S/10℃): 0.05 |
Repeatariy(%F.S): 0.05 | Safe overload(%): 120 |
Zero Balance(%F.S): ±1 | Ultimate overload(%): 150 |
Excitation Voltage(VDC): 9~15 | Net weight(kg): 45 |
Recommended Voltage(V): 10 | Defend grade: IP66 |
Dynamic Comprehensive Error(%F.S): | 1.5 (1~5km/h) 3 (5~10km/h) |
