LC770
Weigh the weight of the weigher
Convert electrical signal to the force signal
Analog SENSOR, 2.0mV/V
custom load force sensing pin load cell sensor
Alloy Steel/Stainless Steel
1SET
good quality and low price
OEM&ODM
Welcome
Carton,0.35x0.3x0.2cm
5~40Days
30% advance payment, the rest payment before delivery
custom load force sensing pin load cell sensor

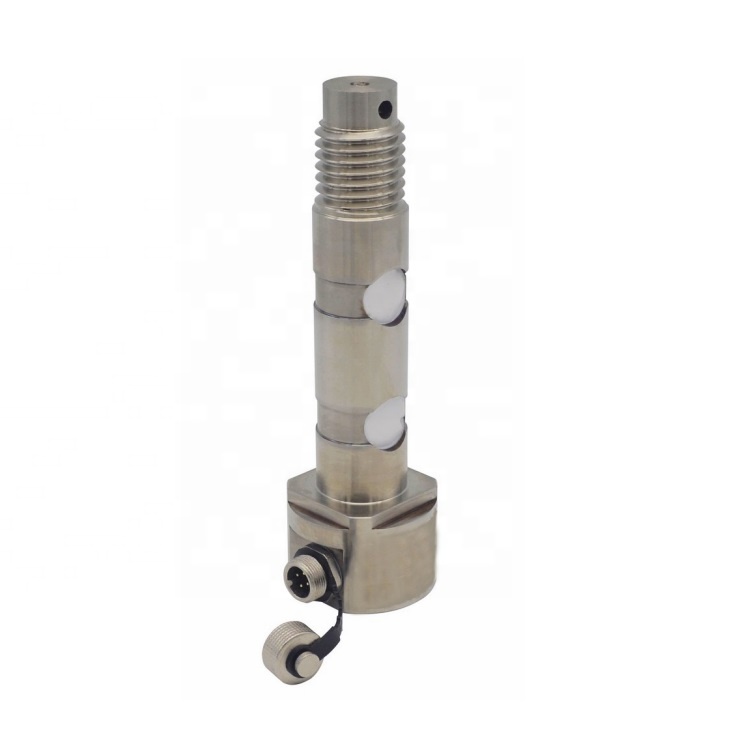

Load pin load cell LPG is made of stainless steel based on strain gauge technology,model LPG is available in 4t / 10t / 20t / 30t capacities with unamplified mV/V output from the wheatstone bridge.Pin type force sensors are widely used for overload protection in hoisting equipment,mooring devices, winches, coupling devices, construction machinery, etc.They are interchangeable with shaft pins,thus can be easily integrated into existing system and get the measurement done. Tailor-made service is available at we to meet requirements of different applications.
Cap. | A | B | C | D | E | F | G | H | J | K | L | M | d | P |
(Ton) | (mm) | |||||||||||||
4 | 5 | 10 | 22 | 30 | 22 | 36 | 5 | 4 | 33 | 34 | 143 | M26 | 19 | 42 |
10 | 7.5 | 15 | 32 | 45 | 32 | 51 | 8 | 4 | 41 | 42 | 192 | M42 | 25 | 52 |
20 | 10 | 20 | 46 | 55 | 46 | 73 | 11 | 6 | 54 | 55 | 266 | M52 | 42 | 63 |
30 | 12.5 | 25 | 63 | 70 | 65 | 105 | 15 | 6 | 74 | 76 | 358 | M68 | 62 | 88 |
Contact us for other capacity or design according to your requirement; |
Rated Load: | 4/10/20/30t | Operating Temp.Range: | -30~+70℃ |
Sensitivity: | (1.0±0.1%) m V/V | Maximum Safe Over Load: | 150%F.S |
Combined Error: | ±0.5% F.S | Ultimate Over Load: | 400%F.S |
Creep Error(30min): | ±0.05% F.S | Recommend Excitation Vol.: | 10~12V DC |
Zero Balance: | ±1% F.S | Maximum Excitation Vol.: | 15V DC |
Temp. Effect On Zero: | ±0.05% F.S/10℃ | Sealing Class: | IP67 |
Temp. Effect On Span: | ±0.05% F.S/10℃ | Element Material: | Alloy / Stainless Steel |
Input Resistance: | 400Ω±20Ω | Cable: | Length=L:5m~16m |
Output Resistance: | 350Ω±3Ω | Citation: | GB/T7551-2008/ OIML R60 |
Insulation Resistance: | ≥5000MΩ | Mode Of Connection: | Red(Input+),Green(Output+), Black(Input-),White(Output-) |
