Customize Size IRDW01 Wireless Scoreboard Indicator LED Digital Weight Scale Display


PDF Export

  • Zhejiang, China

  • SAINTBOND Scoreboard indicator

  • IRDW01 Scoreboard indicator

  • AC 187~242V

  • LED

  • Scoreboard indicator

  • Steel , Plastic

  • Welcome


  • 1pcs Per type

  • 10~15 DAYS

  • OEM & ODM Manufacture

  • Black

  • Dispaly

  • LCD(LED )Display

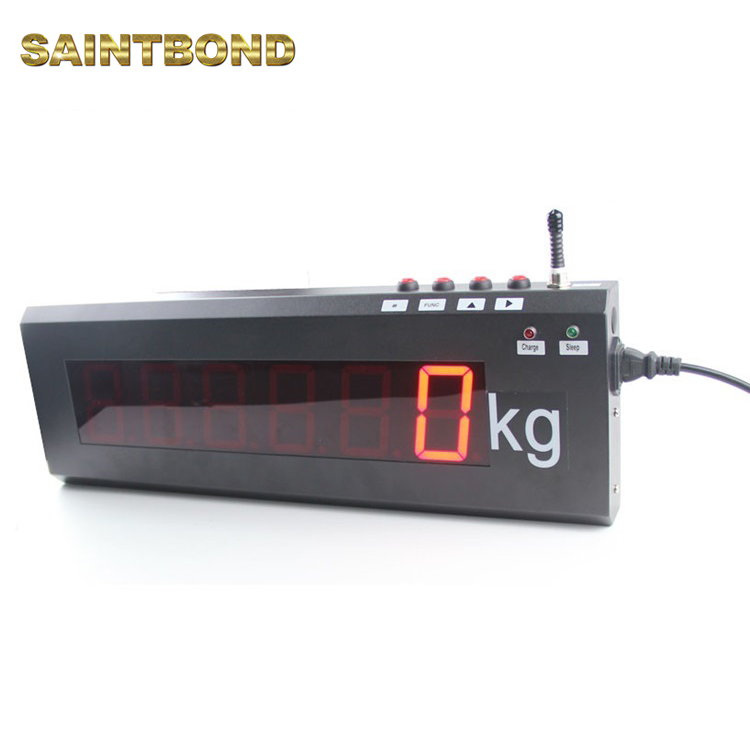

Customize size weight scale LED digital display scoreboard indicator


Main Specification:

1. Model:IRDW01 Wireless weighing indicator

2. Accuracy: Grade Ⅲ, n=3000

3. A/D Conversion Rate: ≥50times/seconds

4.. Battery Life: ≥50 hours

5. Scale interval:1/2/5/10/20/50 for option

6. Display:6 bits LED,6 state indicating signals

7. Interface:4PIN load cell interface

8. Power supply: AC 187~242V;49~51Hz

9. Operating temperature/humidity: -10~50℃;≤90%RH

10.Transporting temperature: -20~55℃

11. Wireless Distance: Min:800m(In Open Area)

12. Wireless Frequency: 430~485MHz

13. Stable Time: ≤5 Seconds

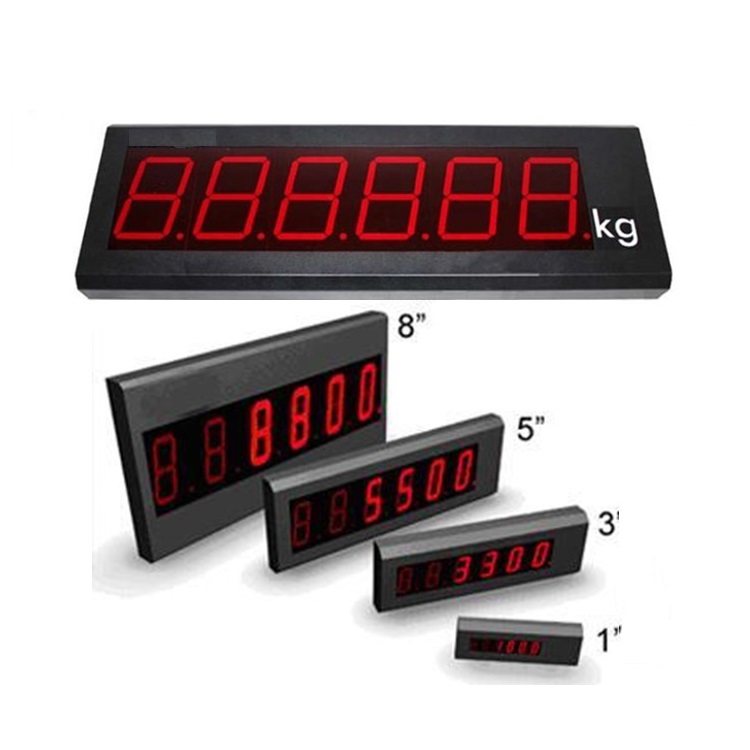

1" : 255×100mm

3" : 540×180mm       word height:75mm

5" : 780×260mm       word height:125mm

8" : 1000×500mm     word height:200mm

Key functions

[#] / A   Press this button while open ,it will enter to calibrate mode;

[Func ] / B  Keep pressing this button for 5 seconds more in weighing mode, it will come into operator setting mode;

[^] / C   Tare function or Press this button to set number(0~9);

[> ]/ D   Zero function or Press this button to select number.

Connecting load cell to indicator

                       PIN1: E-   (Excitation-)

                      PIN2: S+   (Signal +)

                       PIN3: S-    (Signal -)

                      PIN4: E+    (Excitation+)
