DYC 4400LB 2ton 2m 3m Self Loading Semi Electrical Pallet Stacker Electric Reach Stacker

Availability:

Quantity:


Inquire Add to Basket PDF Export

Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Energy & Mining, Food & Beverage Shops, Advertising Company, Construction works , semi electric stacker
After Warranty Service:
Video technical support, Online support, Spare parts
Local Service Location:
none
Showroom Location:
none
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
SAINTBOND
Power Souce:
DC MOTOR
Certification:
CE/ISO9001
Warranty:
1 Year
After-sales Service Provided:
Online support
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
1 Year
Core Components:
Motor, Bearing, Gear
Product name:
electric reach stacker
Features:
Good quality and low price
Custom Design:
OEM&ODM
Sample Lead Time:
5~40Days
Payment Terms:
30% advance payment, the rest payment before delivery

Product Description

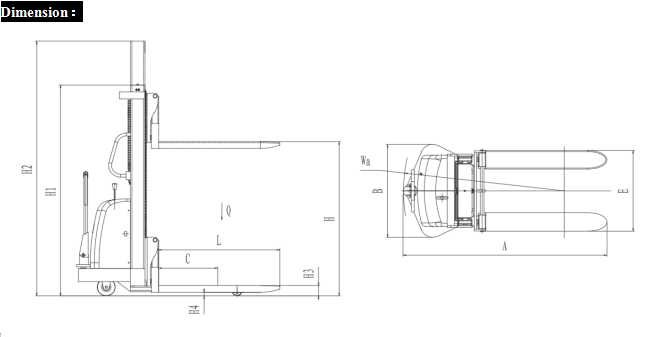

Parameter Table:

Type	Unit	DYC10	DYC15	DYC20
Capacity	Q(kg)	1000	1500	2000
Loading Center	C(mm)	450	450	450
Lifting Height	H(mm)	1600/2000/2500/3000/3500	1600/2000/2500/3000/3500	1600/2000/2500
Lowered height of Fork	H3(mm)	85	85	85
Fork Width	L(mm)	1000/1100	1000/1100	1000/1100
Fork Width	E(mm)	320~680	320~680	320~680
Turning Radius	Wa(mm)	1360	1360	1360
Max Extend Height	H2(mm)	2065/2535/3035/3535/4035	2065/2535/3035/3535/4035	2065/2535/3035
Max Lower Height	H1(mm)	2065/1580/1830/2080/2330	2065/1580/1830/2080/2330	2065/1580/1830
Overall Width	B(mm)	800/900	800/900	800/900
Overall Length	A(mm)	1680/1790	1680/1790	1680/1790
Min Ground Clearance	H4(mm)	30	30	30
Lifting Speed	m/s	0.08~0.15	0.08~0.15	0.08~0.15
Lowering Speed	m/s	0.08~0.15	0.08~0.15	0.08~0.15
Lifting Motor	v/kw	12/1.5	12/1.5	12/1.5
Battery	v/ah	12V/120AH	12V/120AH	12V/120AH
Charger	v/a	12V/15A	12V/15A	12V/15A
Net Weight	kg	380~460	380~460	380~460

DYC 4400LB 2ton 2m 3m self loading semi electrical pallet stacker electric reach stacker

Product Name	DYC 4400LB 2ton 2m 3m self loading semi electrical pallet stacker electric reach stacker
Features	Good quality and low price
Service	OEM&ODM
Custom Design	Welcome
Sample Lead Time	5~40Days
Payment Terms	30% advance payment, the rest payment before delivery
Market	all over the world
Form of sale	Factory supply

Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they
will take photos and shoot video for you.

Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you
to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our
workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique
IDs will be created.It will save labor cost for you.

Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.

Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the
goods by your logo after getting your authorization letters.

Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the
market share.

Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.

Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance
to the standards.
