Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Energy & Mining, Food & Beverage Shops, Advertising Company, Construction works
Video technical support
none
none
New
Zhejiang, China
SAINTBOND
DC MOTOR
CE
1 Year
Video technical support
Not Available
Provided
New Product 2020
1 Year
Motor, Pump
stacker factory
Good quality and low price
OEM&ODM
5~40Days
30% advance payment, the rest payment before delivery
Parameter Table:
Type | Unit | DYC10 | DYC15 | DYC20 |
Capacity | Q(kg) | 1000 | 1500 | 2000 |
Loading Center | C(mm) | 450 | 450 | 450 |
Lifting Height | H(mm) | 1600/2000/2500/3000/3500 | 1600/2000/2500/3000/3500 | 1600/2000/2500 |
Lowered height of Fork | H3(mm) | 85 | 85 | 85 |
Fork Width | L(mm) | 1000/1100 | 1000/1100 | 1000/1100 |
Fork Width | E(mm) | 320~680 | 320~680 | 320~680 |
Turning Radius | Wa(mm) | 1360 | 1360 | 1360 |
Max Extend Height | H2(mm) | 2065/2535/3035/3535/4035 | 2065/2535/3035/3535/4035 | 2065/2535/3035 |
Max Lower Height | H1(mm) | 2065/1580/1830/2080/2330 | 2065/1580/1830/2080/2330 | 2065/1580/1830 |
Overall Width | B(mm) | 800/900 | 800/900 | 800/900 |
Overall Length | A(mm) | 1680/1790 | 1680/1790 | 1680/1790 |
Min Ground Clearance | H4(mm) | 30 | 30 | 30 |
Lifting Speed | m/s | 0.08~0.15 | 0.08~0.15 | 0.08~0.15 |
Lowering Speed | m/s | 0.08~0.15 | 0.08~0.15 | 0.08~0.15 |
Lifting Motor | v/kw | 12/1.5 | 12/1.5 | 12/1.5 |
Battery | v/ah | 12V/120AH | 12V/120AH | 12V/120AH |
Charger | v/a | 12V/15A | 12V/15A | 12V/15A |
Net Weight | kg | 380~460 | 380~460 | 380~460 |

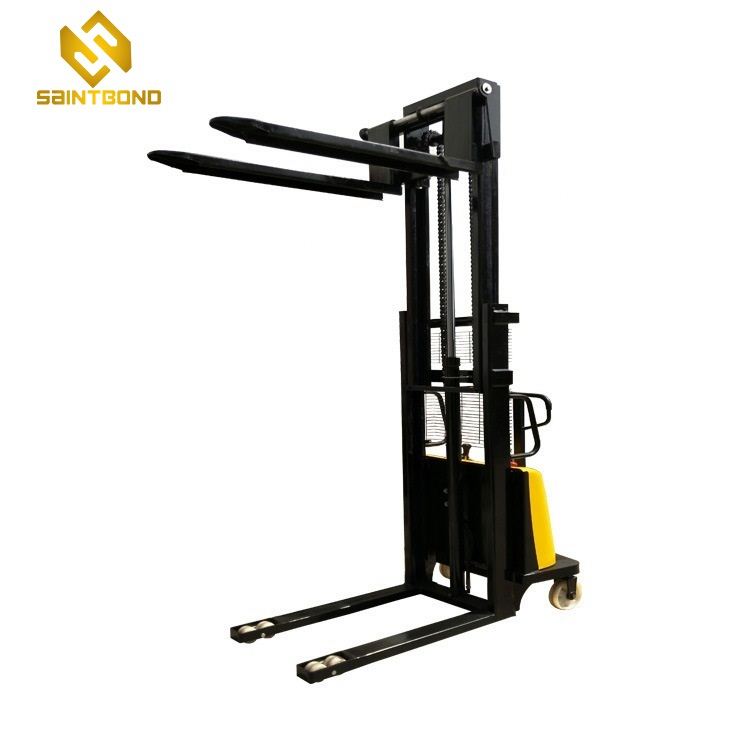

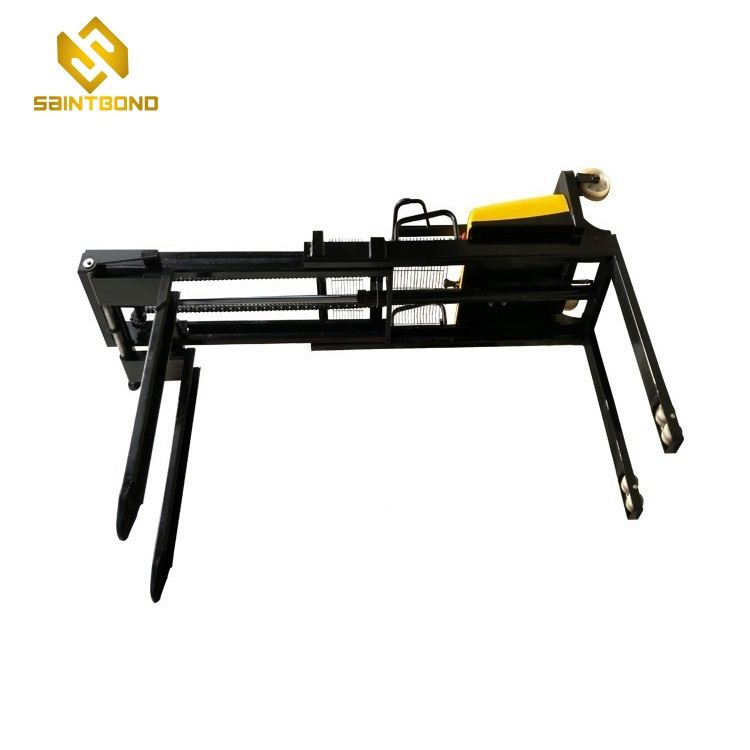

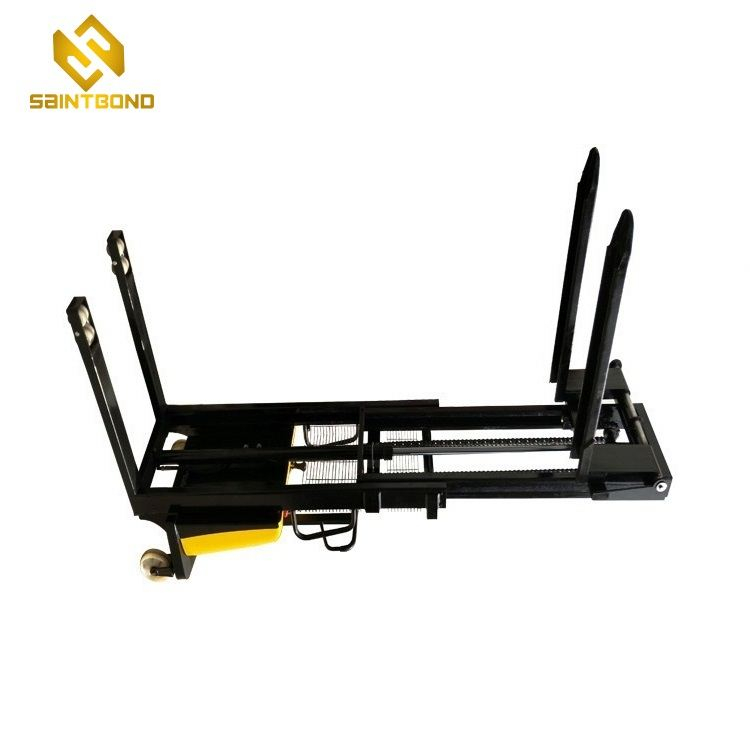

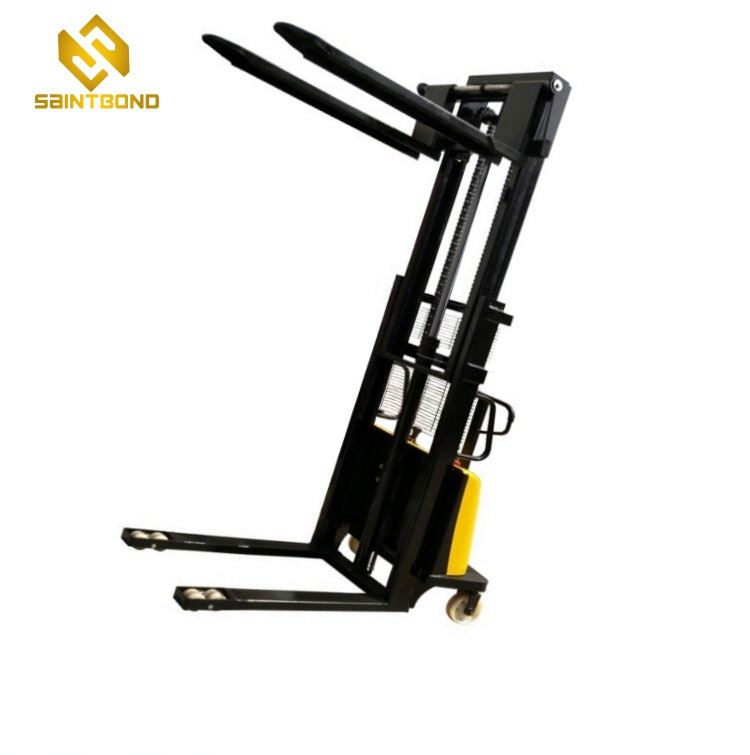

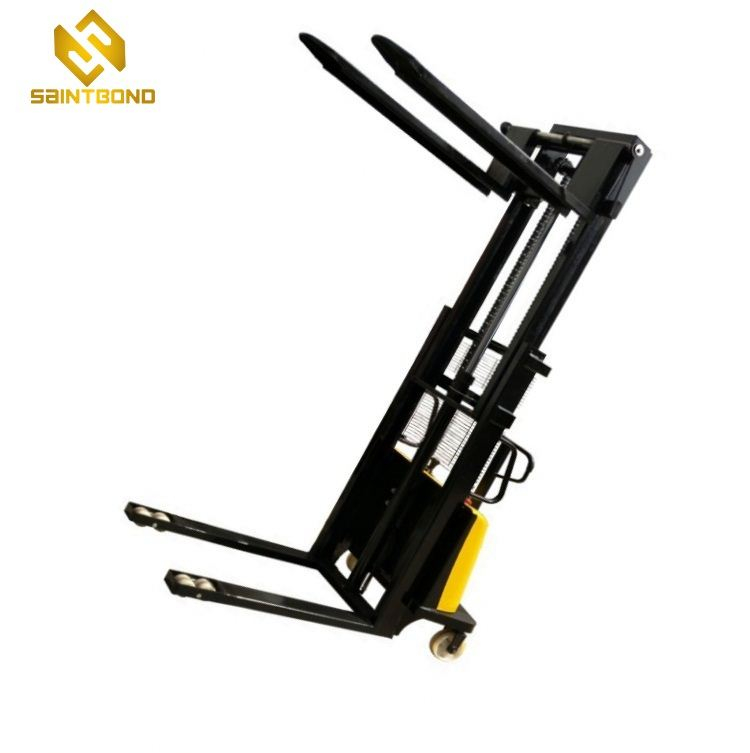

DYC high quality semi electric stacker pallet 1t 1.5t with 3m 4m lift height
| Product Name | DYC high quality semi electric stacker pallet 1t 1.5t with 3m 4m lift height |
| Features | Good quality and low price |
| Service | OEM&ODM |
| Custom Design | Welcome |
| Sample Lead Time | 5~40Days |
| Payment Terms | 30% advance payment, the rest payment before delivery |
| Market | all over the world |
| Form of sale | Factory supply |
Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they
will take photos and shoot video for you.
Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you
to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our
workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique
IDs will be created.It will save labor cost for you.
Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.
Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the
goods by your logo after getting your authorization letters.
Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the
market share.
Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.
Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance
to the standards.
Parameter Table:
Type | Unit | DYC10 | DYC15 | DYC20 |
Capacity | Q(kg) | 1000 | 1500 | 2000 |
Loading Center | C(mm) | 450 | 450 | 450 |
Lifting Height | H(mm) | 1600/2000/2500/3000/3500 | 1600/2000/2500/3000/3500 | 1600/2000/2500 |
Lowered height of Fork | H3(mm) | 85 | 85 | 85 |
Fork Width | L(mm) | 1000/1100 | 1000/1100 | 1000/1100 |
Fork Width | E(mm) | 320~680 | 320~680 | 320~680 |
Turning Radius | Wa(mm) | 1360 | 1360 | 1360 |
Max Extend Height | H2(mm) | 2065/2535/3035/3535/4035 | 2065/2535/3035/3535/4035 | 2065/2535/3035 |
Max Lower Height | H1(mm) | 2065/1580/1830/2080/2330 | 2065/1580/1830/2080/2330 | 2065/1580/1830 |
Overall Width | B(mm) | 800/900 | 800/900 | 800/900 |
Overall Length | A(mm) | 1680/1790 | 1680/1790 | 1680/1790 |
Min Ground Clearance | H4(mm) | 30 | 30 | 30 |
Lifting Speed | m/s | 0.08~0.15 | 0.08~0.15 | 0.08~0.15 |
Lowering Speed | m/s | 0.08~0.15 | 0.08~0.15 | 0.08~0.15 |
Lifting Motor | v/kw | 12/1.5 | 12/1.5 | 12/1.5 |
Battery | v/ah | 12V/120AH | 12V/120AH | 12V/120AH |
Charger | v/a | 12V/15A | 12V/15A | 12V/15A |
Net Weight | kg | 380~460 | 380~460 | 380~460 |
DYC high quality semi electric stacker pallet 1t 1.5t with 3m 4m lift height
| Product Name | DYC high quality semi electric stacker pallet 1t 1.5t with 3m 4m lift height |
| Features | Good quality and low price |
| Service | OEM&ODM |
| Custom Design | Welcome |
| Sample Lead Time | 5~40Days |
| Payment Terms | 30% advance payment, the rest payment before delivery |
| Market | all over the world |
| Form of sale | Factory supply |
Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they
will take photos and shoot video for you.
Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you
to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our
workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique
IDs will be created.It will save labor cost for you.
Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.
Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the
goods by your logo after getting your authorization letters.
Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the
market share.
Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.
Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance
to the standards.
