Product Description:
◎High Precision loadcell, Stainless Steel Platter;
◎Full Aluminum Alloy die cast base and mains;
◎Super Bright LCD display with backlight;
◎RS232 Interface,Below Balance hanger supplied as standard;
◎Round windshield for 0.01g, capacity up to 610g;
◎Full Capacity subtraction, Overload Protection;
◎Multi Weighing unit conversation g/mg/ct/oz;
◎Stabilization time 1 seconds;
◎Checking Weighing, Piece counting function;
◎CE approval;
Technical Parameter:

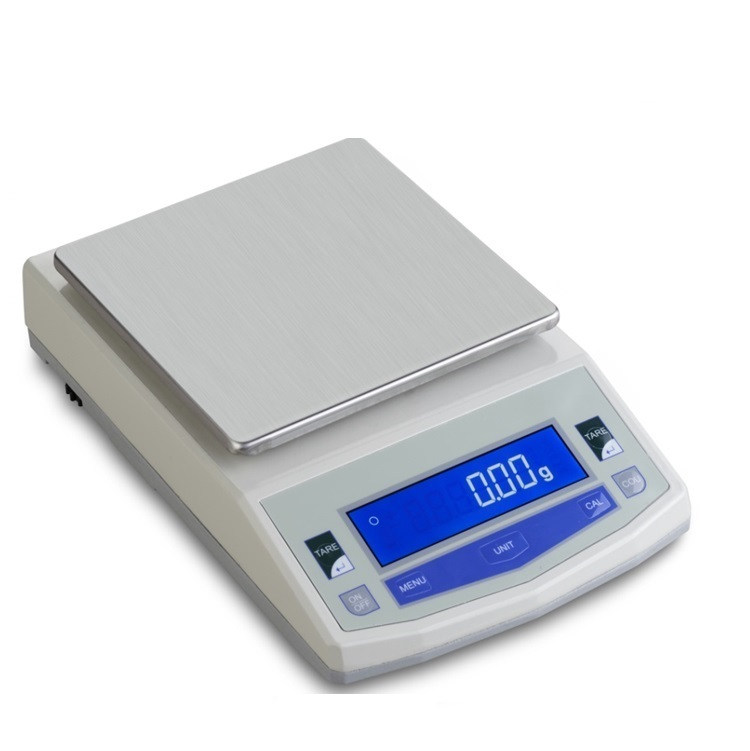

BAL0006 series Electronic Balance (0.01g/0.1g) | |||||
Capacity | 0–300g | 0–600g | 0-1000g | 0-2000g | 0-3000g |
Readability | 0.01g | ||||
Repeatability | ±0.01g | ±0.02g | |||
Linearity | ±0.01g | ±0.02g | |||
Pan Size | Φ125mm | 170x170mm | |||
Dimensions(LxWxH) | 280mmx180mmx170mm | ||||
Net Weight | 2200g | ||||
Power Supply | 110V/220-240V AC |
Capacity | 0-1000g | 0-2000g | 0-3000g | 0–5000g | 0-10000g |
Readability | 0.1g | ||||
Repeatability | ±0.1g | ||||
Linearity | ±0.1g | ||||
Output Interface | RS232 | ||||
Pan Size | Φ125mm | 170mmx170mm | |||
Dimensions(LxWxH) | 290mmx185mmx80mm | ||||
Net Weight | 2200g | ||||
Power Supply | 110V/220-240V AC |
