Zhejiang, China
SAINTBOND
CS-DApp
110-240V(AC)
LCD
wireless weight scale
Stainless steel
1pcs
High precision and stable performance
OEM&ODM
Welcome
5~40Days
30% advance payment, the rest payment before delivery
Carton,45x35x20cm

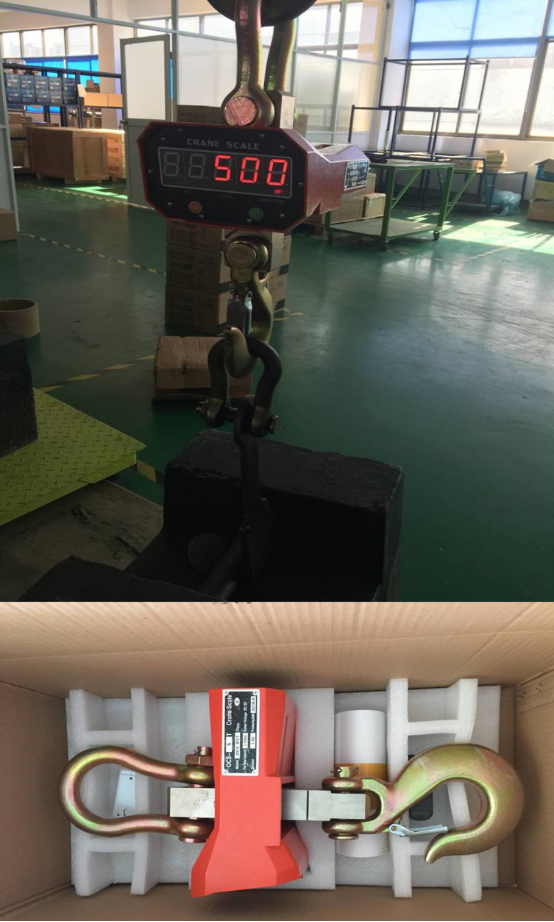

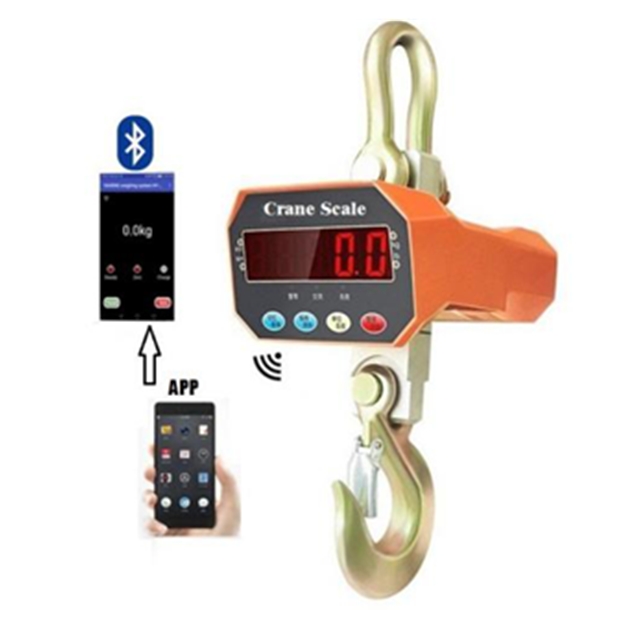

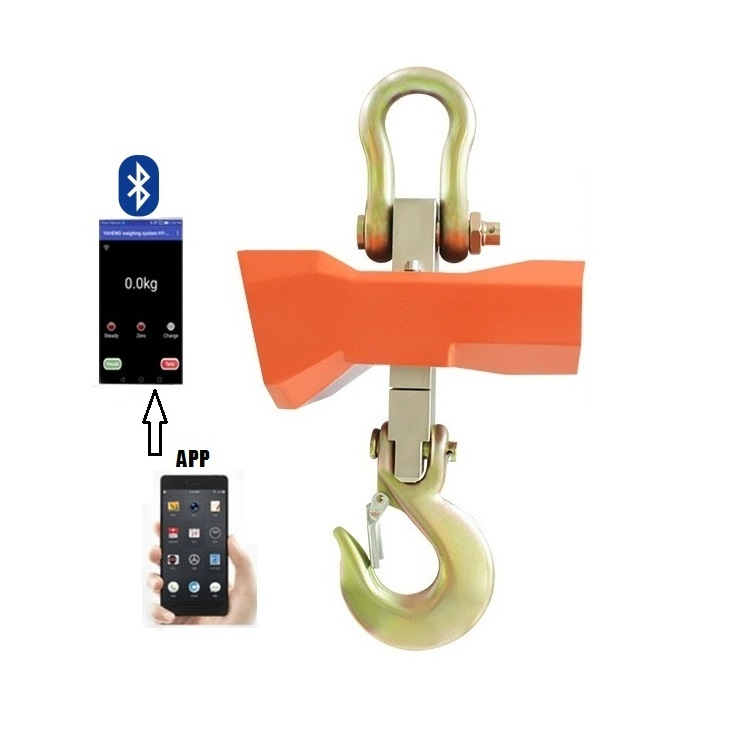

Electronic ocs 20t digital model weight Salt waterproof hot selling Wireless bluetooth crane scale
Product Description:
1.Accuracy class according to international standard three scales;
2.Battery charging time of about 70 hours working time;
3.Safe overload 150% F.S;
4.Destruction of overloading;
5.300% F.S;
6.Operating temperature -10 ~ 50℃;
7.Environment Humidity<90% R.H;
8.Monitor specifications 5 30mm (1.2 " ) LED high brightness displays;
9.Reading stabilization time<3S;
10.Remote distance<25M;
APP receive:
Wifi signal,,2.4Ghz, Android system mobile

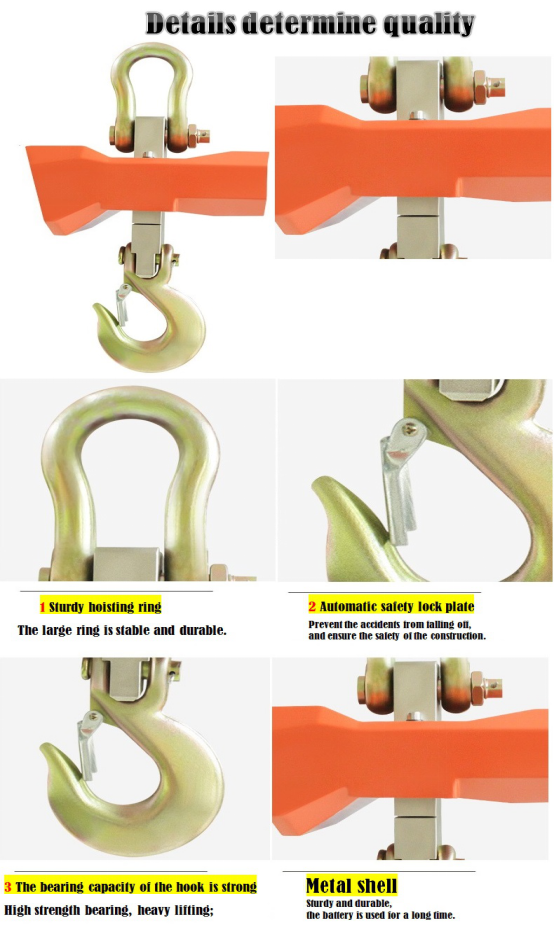

Type | Cap. | Length | The internal ring height | The internal ring width | Minimum opening of hook | Net Weight |
| (T) | A(mm) | B(mm) | C(mm) | D(mm) | (kg) |
CS-D | 1/2/3T | 475 | 108 | 55 | 37 | 10 |
CS-D | 5T | 550 | 143 | 80 | 34 | 14 |
CS-D | 10/15T | 610 | 143 | 90 | 42 | 21 |
Specification:
Model | Max Cap | Min. Weigh | Division | Total Display Counts |
(Kg) | (Kg) | (Kg) | (N) | |
CS-D-1 | 1000 | 10 | 0.5 | 2000 |
CS-D-2 | 2000 | 20 | 0.5 | 2000 |
CS-D-3 | 3000 | 20 | 1 | 3000 |
CS-D-5 | 5000 | 40 | 1 | 2500 |
CS-D-10 | 10000 | 100 | 2 | 2000 |
Chapter 1 APP Install:
1.Install APP-ATW-V3.0 software in your android mobile or Tablet PC.
2.Turn on APP-ATW sender, open WLAN in your mobile, you can find a new available networks;
3.Choose the wifi name for connect. The default net password is “1234567890”;
4.Run app software in your mobile;
Chapter 2 APP Applicate
1.etting parameter Click “…” to choose parameter setting, password is “9999”

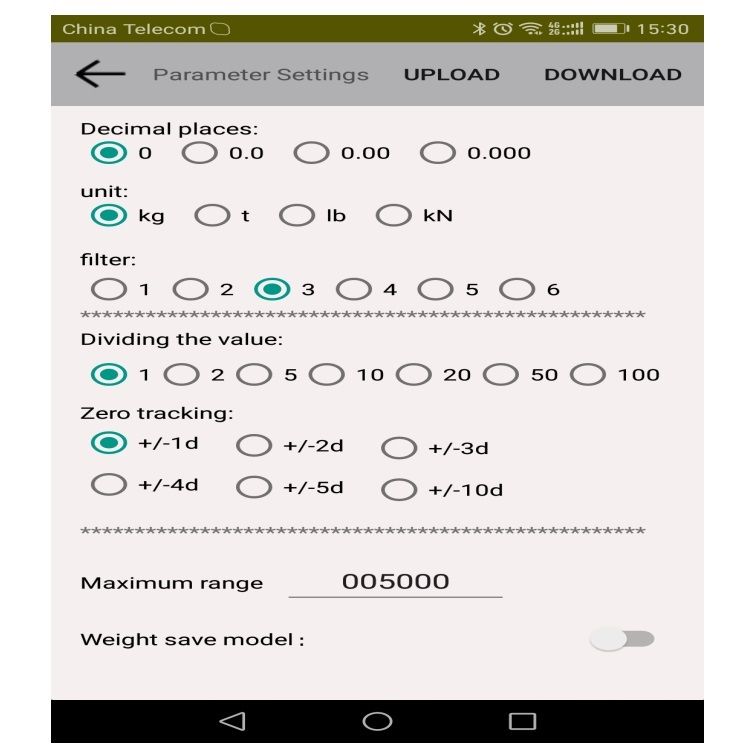

2.1-1 You can set decimal place/unit/filter/dividing value/zero tracking, and maximum range, when you changed, please click “UPLOAD” for send to app sender;
3.1-2 You can download all parameter from app sender;
4.1-3 If you active for Weight save model, you can save manually in the weighing;
5.1-4 If you have more wifi sender ,there are same wifi name ,You need set different wifi name for you wifi sender,chang the number,click “set”,if set successed, you need connect network to your new name again;
6.Calibration, Click “…” to choose calibration, password is “8888”;

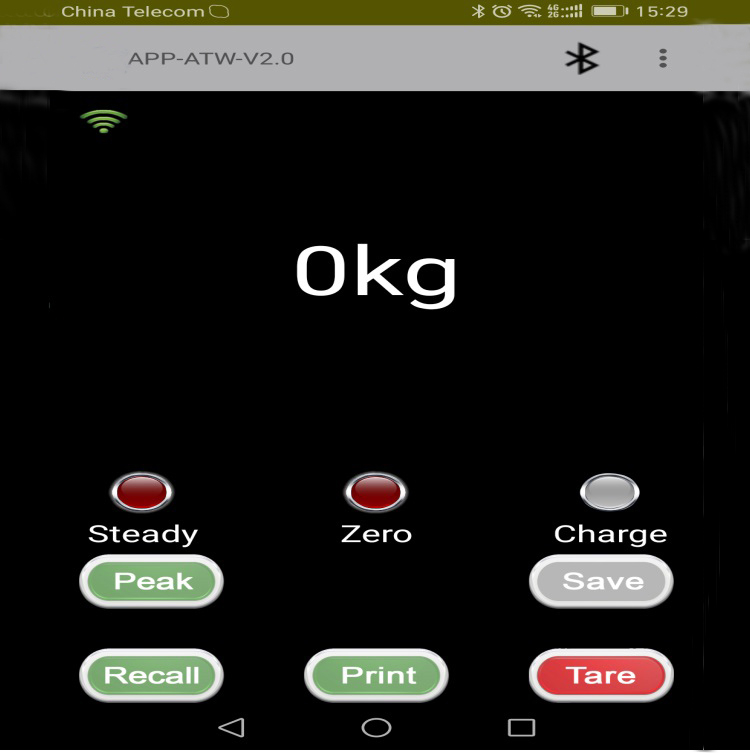

7.Peak show, click “Peak” for show peak value 2 seconds;
8.Save weight value;
The default state is automatic, or you can set the parameter setting for save manually;

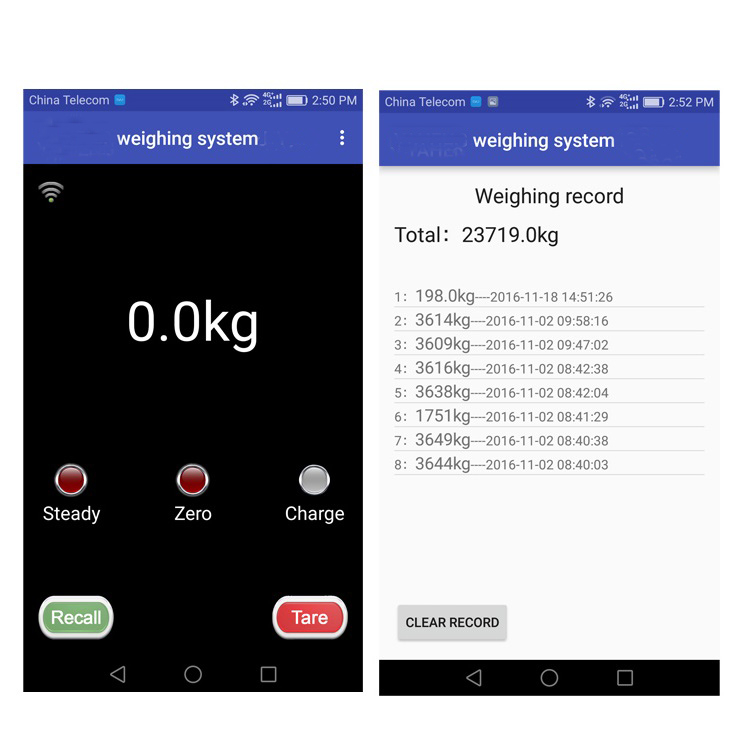

9.View record , click “Recall”,it will show the list as below;
10.You can click “Tare” for zero;
11.Click “Print” key for print current weight date;
Electronic ocs 20t digital model weight Salt waterproof hot selling Wireless bluetooth crane scale
Product Description:
1.Accuracy class according to international standard three scales;
2.Battery charging time of about 70 hours working time;
3.Safe overload 150% F.S;
4.Destruction of overloading;
5.300% F.S;
6.Operating temperature -10 ~ 50℃;
7.Environment Humidity<90% R.H;
8.Monitor specifications 5 30mm (1.2 " ) LED high brightness displays;
9.Reading stabilization time<3S;
10.Remote distance<25M;
APP receive:
Wifi signal,,2.4Ghz, Android system mobile
Type | Cap. | Length | The internal ring height | The internal ring width | Minimum opening of hook | Net Weight |
| (T) | A(mm) | B(mm) | C(mm) | D(mm) | (kg) |
CS-D | 1/2/3T | 475 | 108 | 55 | 37 | 10 |
CS-D | 5T | 550 | 143 | 80 | 34 | 14 |
CS-D | 10/15T | 610 | 143 | 90 | 42 | 21 |
Specification:
Model | Max Cap | Min. Weigh | Division | Total Display Counts |
(Kg) | (Kg) | (Kg) | (N) | |
CS-D-1 | 1000 | 10 | 0.5 | 2000 |
CS-D-2 | 2000 | 20 | 0.5 | 2000 |
CS-D-3 | 3000 | 20 | 1 | 3000 |
CS-D-5 | 5000 | 40 | 1 | 2500 |
CS-D-10 | 10000 | 100 | 2 | 2000 |
Chapter 1 APP Install:
1.Install APP-ATW-V3.0 software in your android mobile or Tablet PC.
2.Turn on APP-ATW sender, open WLAN in your mobile, you can find a new available networks;
3.Choose the wifi name for connect. The default net password is “1234567890”;
4.Run app software in your mobile;
Chapter 2 APP Applicate
1.etting parameter Click “…” to choose parameter setting, password is “9999”
2.1-1 You can set decimal place/unit/filter/dividing value/zero tracking, and maximum range, when you changed, please click “UPLOAD” for send to app sender;
3.1-2 You can download all parameter from app sender;
4.1-3 If you active for Weight save model, you can save manually in the weighing;
5.1-4 If you have more wifi sender ,there are same wifi name ,You need set different wifi name for you wifi sender,chang the number,click “set”,if set successed, you need connect network to your new name again;
6.Calibration, Click “…” to choose calibration, password is “8888”;
7.Peak show, click “Peak” for show peak value 2 seconds;
8.Save weight value;
The default state is automatic, or you can set the parameter setting for save manually;
9.View record , click “Recall”,it will show the list as below;
10.You can click “Tare” for zero;
11.Click “Print” key for print current weight date;
