Zhejiang, China
SAINTBOND cheap load cell
CS-SW7A cheap load cell
Weighing
Other
Digital Sensor
cheap load cell
2 Pcs
Welcome
OEM&ODM
OEM & ODM Manufacture
45 -50DAYS
15~30Days
15 years experience on Load Cell

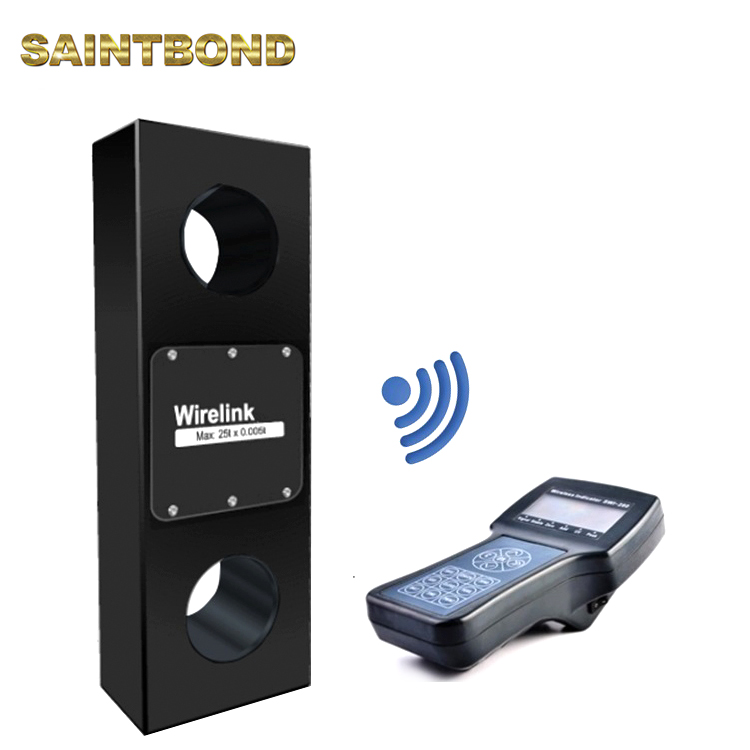

Good Quality New Function Type Wireless Digital Sensor Cheap Load Cell
Capacity | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) |
1t | 204 | 43 | 101 | 146 | 24.5 |
2.5t | 204 | 43 | 101 | 146 | 24.5 |
5t | 249 | 43 | 101 | 165 | 38 |
12t | 305 | 47 | 101 | 193 | 47.5 |
25t | 340 | 60 | 115 | 215 | 55 |
35t | 393 | 75 | 126 | 225 | 60 |
50t | 424 | 75 | 163 | 230 | 76 |
75t | 470 | 75 | 202 | 260 | 76 |
100t | 608 | 99 | 255 | 320 | 109 |
150t | 670 | 99 | 303 | 350 | 109 |
200t | 700 | 144 | 320 | 350 | 132 |
250t | 700 | 144 | 320 | 350 | 132 |
300t | 806 | 150 | 426 | 350 | 160 |
500t | 1000 | 200 | 570 | 600 | 200 |
Technical Parameter:
Rated Load: | 1/205/5/12/25/35/50/75/100/150/200/250/300/500T | ||
Sensitivity: | (2.0±0.01%) mV/V | Operating Temp. Range: | -30~+70℃ |
Combined Error: | ±0.02% F.S | Max. Safe Over Load: | 150%F.S |
Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 200%F.S |
Zero Balance: | ±1% F.S | Recommend Excitation: | 10~12 DC |
Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation: | 15V DC |
Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
Input Resistance: | 385±5Ω | Element Material: | Alloy/ Stainless Steel |
Output Resistance: | 351±2Ω | Cable: | Length=L:5m |
Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
Mode Of Connection: | Red(Input+),Black(Input-),Green(Output+),White(Output-) |
Good Quality New Function Type Wireless Digital Sensor Cheap Load Cell
Capacity | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) |
1t | 204 | 43 | 101 | 146 | 24.5 |
2.5t | 204 | 43 | 101 | 146 | 24.5 |
5t | 249 | 43 | 101 | 165 | 38 |
12t | 305 | 47 | 101 | 193 | 47.5 |
25t | 340 | 60 | 115 | 215 | 55 |
35t | 393 | 75 | 126 | 225 | 60 |
50t | 424 | 75 | 163 | 230 | 76 |
75t | 470 | 75 | 202 | 260 | 76 |
100t | 608 | 99 | 255 | 320 | 109 |
150t | 670 | 99 | 303 | 350 | 109 |
200t | 700 | 144 | 320 | 350 | 132 |
250t | 700 | 144 | 320 | 350 | 132 |
300t | 806 | 150 | 426 | 350 | 160 |
500t | 1000 | 200 | 570 | 600 | 200 |
Technical Parameter:
Rated Load: | 1/205/5/12/25/35/50/75/100/150/200/250/300/500T | ||
Sensitivity: | (2.0±0.01%) mV/V | Operating Temp. Range: | -30~+70℃ |
Combined Error: | ±0.02% F.S | Max. Safe Over Load: | 150%F.S |
Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 200%F.S |
Zero Balance: | ±1% F.S | Recommend Excitation: | 10~12 DC |
Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation: | 15V DC |
Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
Input Resistance: | 385±5Ω | Element Material: | Alloy/ Stainless Steel |
Output Resistance: | 351±2Ω | Cable: | Length=L:5m |
Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
Mode Of Connection: | Red(Input+),Black(Input-),Green(Output+),White(Output-) |
