Stainless Steel
Us Type
Bow
Other
Zhejiang, China
SAINTBOND 4.75t shackle
LS03W 4.75t shackle
4.75t shackle
0.5t~1200t
5-10V
2 Pcs
OEM&ODM
45 -50DAYS
15~30Days
15 years experience on Load Cell

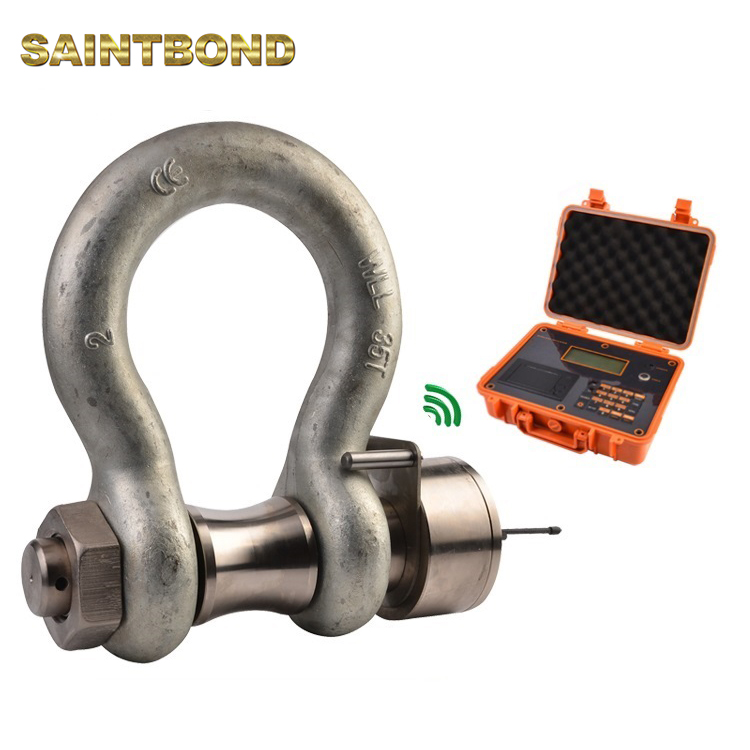

Heavy Duty D ring Shackle Bolts Load Cell 4.75t Shackle
Features:
•The shackle S6 grade:0.5t-1250t.
•S6 grade is structural alloy steel.
•The maximum testing load of 0.5t-150t shackle is 2 times of the working load,
the maximum testing load 200t of 500t shackle is 1.5 times of the working load.
•The maximum testing load of 800t-12500t shackle is 1.33 times of the working load, the minimum breaking load is 1.5 times of the working load.
•Monitors traction force and other force measurement
•Available in 7 standard ranges between 0.5t-1250t
•Alloy steel and Stainless steel construction
•Special execution for harsh environmental conditions (IP66)
•High reliability for strict safety requirements
•Simple installation for cost-saving solutions to measurement problems.
Wireless Load Links Typical Specifications:
Rate Load: | 0.5t-1250t | Overload Indication: | 100% F.S. + 9e |
Proof Load: | 150% of rate load | Max. Safety Load: | 125% F.S. |
Ultimate Load: | 400% F.S. | Battery Life: | ≥40 hours |
Power On Zero Range: | 20% F.S. | Operating Temp.: | - 10℃ ~ + 40℃ |
Manual Zero Range: | 4% F.S. | Operating Humidity: | ≤85% RH under 20℃ |
Tare Range: | 20% F.S. | Remote Controller Distance: | Min.15m |
Stable Time: | ≤10seconds; | Telemetry Frequency: | 470mhz |
System Range: | 500~800m (In Open Area) | ||
Battery Type: | 18650 rechargeable batteries or polymer batteries (7.4v 2000 Mah) | ||
Heavy Duty D ring Shackle Bolts Load Cell 4.75t Shackle
Features:
•The shackle S6 grade:0.5t-1250t.
•S6 grade is structural alloy steel.
•The maximum testing load of 0.5t-150t shackle is 2 times of the working load,
the maximum testing load 200t of 500t shackle is 1.5 times of the working load.
•The maximum testing load of 800t-12500t shackle is 1.33 times of the working load, the minimum breaking load is 1.5 times of the working load.
•Monitors traction force and other force measurement
•Available in 7 standard ranges between 0.5t-1250t
•Alloy steel and Stainless steel construction
•Special execution for harsh environmental conditions (IP66)
•High reliability for strict safety requirements
•Simple installation for cost-saving solutions to measurement problems.
Wireless Load Links Typical Specifications:
Rate Load: | 0.5t-1250t | Overload Indication: | 100% F.S. + 9e |
Proof Load: | 150% of rate load | Max. Safety Load: | 125% F.S. |
Ultimate Load: | 400% F.S. | Battery Life: | ≥40 hours |
Power On Zero Range: | 20% F.S. | Operating Temp.: | - 10℃ ~ + 40℃ |
Manual Zero Range: | 4% F.S. | Operating Humidity: | ≤85% RH under 20℃ |
Tare Range: | 20% F.S. | Remote Controller Distance: | Min.15m |
Stable Time: | ≤10seconds; | Telemetry Frequency: | 470mhz |
System Range: | 500~800m (In Open Area) | ||
Battery Type: | 18650 rechargeable batteries or polymer batteries (7.4v 2000 Mah) | ||
