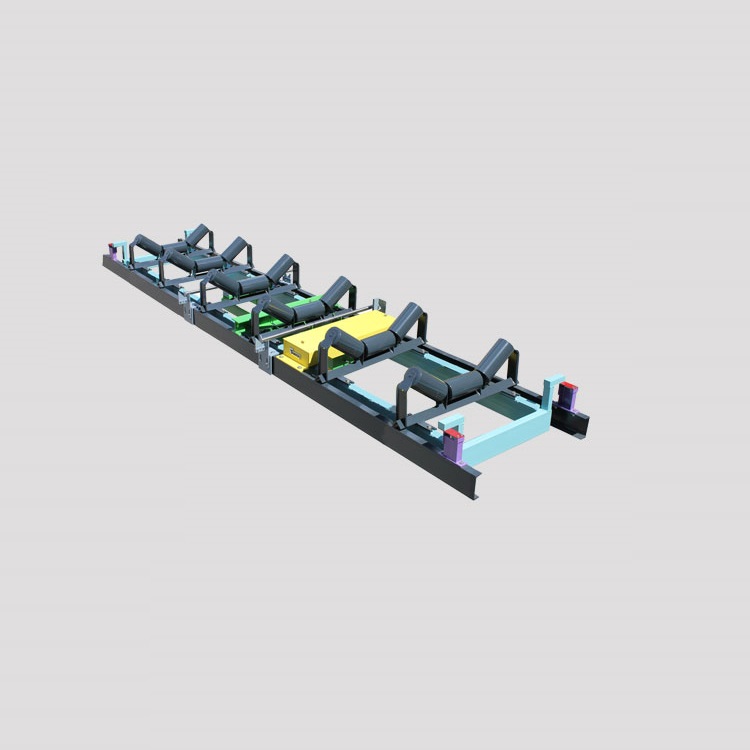

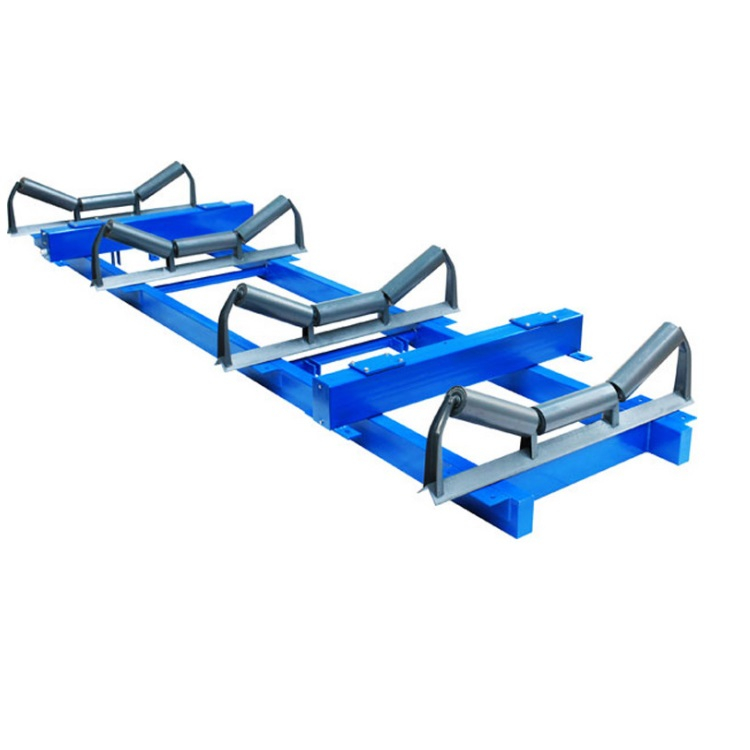

High Precision Electronic Dual Belt Idler Conveyor Scale For Gold Recovery Plant Belt Scale
ICS-17A | |
Conveyor Belt Scales |
Product Description:
Series ICS electronic conveyor belt scale is the ideal equipment used for continuous measurement of bulk materials on belt conveyors. It is made up of mechanical scale body, weighing sensor, digital pulse speed sensor, weighing instruments, weights etc; There are several structures for you to choose. Specific sizes can be as per customer’s requirements. This product has a simple structure, good weighing accuracy and stable performance. It is easy to operate and convenient to maintain. It can not only be used in conventional environment, but also in acid, alkali, salt and atmospheric corrosion environments. Series ICS electronic conveyor belt scales are widely used for the measurement in conveying processes of building materials, metallurgy, electric power, chemical, coal, mining, ports and other industries.
Features:
1.Leverage structure;
2.Two pull sensors connect the main and auxiliary scales;
3.The weight of the material passed to the sensor through the lever principle;
4.The use of non-friction rubber trunnion outside the support, high accuracy, corrosion resistance, shock resistance;
5.The main beam is rectangular steel pipe, high rigidity, light weight, reduce material accumulation and zero drift;
6.The high-precision resistance strain gage sensor is installed in the tensioned position to ensure stability and reduce nonlinear errors;
Scope of application
Typically used on main transport belts, the installed conveyor inclination should be ≤17°;
Technical Parameter:
Model | Weighing sensor (only) | Single idler (group) | Velocity sensors (only) | Pressure lever | Belt Scale Length | Inspection accuracy | Weighing range |
(m) | (%) | (t/h) | |||||
ICS-14A | 4 | 4 | 1 | Suspension type | 4.8 | 0.125 | 1-8000 |
ICS-14B | 4 | 3 | 1 | Suspension type | 3.6 | 0.125 | 1-8000 |
ICS-17A | 2 | 4 | 1 | Double lever | 4.8 | 0.25 | 1-8000 |
ICS-17B | 2 | 2 | 1 | Single lever | 2.4 | 0.25 | 1-8000 |
ICS-20A | 1 | 2 | 1 | Double lever | 2.4 | 0.5 | 1-8000 |
ICS-20B | 1 | 1 | 1 | Single lever | 2.4 | 0.5 | 1-8000 |
ICS-30A | 2 | 1 | 1 | Suspension type | 2.4 | 0.25 | 1-8000 |
ICS-30B | 1 | 1 | 1 | Suspension type | 2.4 | 0.25 | 1-8000 |
ICS-30-2TC-4C | 4 | 2 | 1 | Suspension type | 2.4 | 0.125 | 1-8000 |
Structural features:
1.Simple structure, less force transfer link, simple and convenient installation;
2.Unique rectangular lever, good rigidity, invisible change;
3.Non - friction rubber trunnion support, anti - corrosion, moisture, anti - vibration;
4.Anti-lateral force, anti-horizontal force, effectively reduce the impact of belt deviation and blanking offset on system accuracy;
5.Two weighing sensors are less affected by bias load, stable and high precision;
6.Model 17B double roller, the weighing area is 1/2 of that of 17A, which is suitable for belt conveyor with long feeding distance;
The following parameters are required for ordering belt scales:
The belt width B=________________________________________________________mm;
Maximum flow Q=_________________________________________________________t/h;
Belt conveyor speed v=______________________________________________________m/s;
Belt Conveyor Inclination =___________________________________________________0;
Belt conveyor length L=_____________________________________________________ m;
Name of conveying material:___________________________________________________;
Conveyor inner and outer frame dimensions:______________________________________m;
Roller spacing:_____________________________________________________________ m;
Working principle:
The weighing bridge is mounted on the conveying frame, and when the material passes, the measuring idler detects the weight of the material on the belt conveyor, and acts as a weighing sensor through a lever to produce a voltage signal which is directly proportional to the load of the belt. The speed sensor is connected directly to the large diameter speed measuring cylinder to provide a series of pulses, each pulse representing a belt moving unit, and the frequency of the pulse is proportional to the belt speed. The weighing instrument receives signals from weighing sensors and speed sensors, and obtains an instantaneous flow value and accumulated weight values through integral operation, and displays them respectively.
High Precision Electronic Dual Belt Idler Conveyor Scale For Gold Recovery Plant Belt Scale
ICS-17A | |
Conveyor Belt Scales |
Product Description:
Series ICS electronic conveyor belt scale is the ideal equipment used for continuous measurement of bulk materials on belt conveyors. It is made up of mechanical scale body, weighing sensor, digital pulse speed sensor, weighing instruments, weights etc; There are several structures for you to choose. Specific sizes can be as per customer’s requirements. This product has a simple structure, good weighing accuracy and stable performance. It is easy to operate and convenient to maintain. It can not only be used in conventional environment, but also in acid, alkali, salt and atmospheric corrosion environments. Series ICS electronic conveyor belt scales are widely used for the measurement in conveying processes of building materials, metallurgy, electric power, chemical, coal, mining, ports and other industries.
Features:
1.Leverage structure;
2.Two pull sensors connect the main and auxiliary scales;
3.The weight of the material passed to the sensor through the lever principle;
4.The use of non-friction rubber trunnion outside the support, high accuracy, corrosion resistance, shock resistance;
5.The main beam is rectangular steel pipe, high rigidity, light weight, reduce material accumulation and zero drift;
6.The high-precision resistance strain gage sensor is installed in the tensioned position to ensure stability and reduce nonlinear errors;
Scope of application
Typically used on main transport belts, the installed conveyor inclination should be ≤17°;
Technical Parameter:
Model | Weighing sensor (only) | Single idler (group) | Velocity sensors (only) | Pressure lever | Belt Scale Length | Inspection accuracy | Weighing range |
(m) | (%) | (t/h) | |||||
ICS-14A | 4 | 4 | 1 | Suspension type | 4.8 | 0.125 | 1-8000 |
ICS-14B | 4 | 3 | 1 | Suspension type | 3.6 | 0.125 | 1-8000 |
ICS-17A | 2 | 4 | 1 | Double lever | 4.8 | 0.25 | 1-8000 |
ICS-17B | 2 | 2 | 1 | Single lever | 2.4 | 0.25 | 1-8000 |
ICS-20A | 1 | 2 | 1 | Double lever | 2.4 | 0.5 | 1-8000 |
ICS-20B | 1 | 1 | 1 | Single lever | 2.4 | 0.5 | 1-8000 |
ICS-30A | 2 | 1 | 1 | Suspension type | 2.4 | 0.25 | 1-8000 |
ICS-30B | 1 | 1 | 1 | Suspension type | 2.4 | 0.25 | 1-8000 |
ICS-30-2TC-4C | 4 | 2 | 1 | Suspension type | 2.4 | 0.125 | 1-8000 |
Structural features:
1.Simple structure, less force transfer link, simple and convenient installation;
2.Unique rectangular lever, good rigidity, invisible change;
3.Non - friction rubber trunnion support, anti - corrosion, moisture, anti - vibration;
4.Anti-lateral force, anti-horizontal force, effectively reduce the impact of belt deviation and blanking offset on system accuracy;
5.Two weighing sensors are less affected by bias load, stable and high precision;
6.Model 17B double roller, the weighing area is 1/2 of that of 17A, which is suitable for belt conveyor with long feeding distance;
The following parameters are required for ordering belt scales:
The belt width B=________________________________________________________mm;
Maximum flow Q=_________________________________________________________t/h;
Belt conveyor speed v=______________________________________________________m/s;
Belt Conveyor Inclination =___________________________________________________0;
Belt conveyor length L=_____________________________________________________ m;
Name of conveying material:___________________________________________________;
Conveyor inner and outer frame dimensions:______________________________________m;
Roller spacing:_____________________________________________________________ m;
Working principle:
The weighing bridge is mounted on the conveying frame, and when the material passes, the measuring idler detects the weight of the material on the belt conveyor, and acts as a weighing sensor through a lever to produce a voltage signal which is directly proportional to the load of the belt. The speed sensor is connected directly to the large diameter speed measuring cylinder to provide a series of pulses, each pulse representing a belt moving unit, and the frequency of the pulse is proportional to the belt speed. The weighing instrument receives signals from weighing sensors and speed sensors, and obtains an instantaneous flow value and accumulated weight values through integral operation, and displays them respectively.
