SAINTBOND Overload Load Cell
LC703W01 Overload Load Cell
Weighing industry
Resistance Sensor
Digital Sensor
Overload Load Cell
LED or LCD
Alloy Steel, Stainless Steel
Welcome
OEM&ODM
110V or 220v
15V DC
1pcs

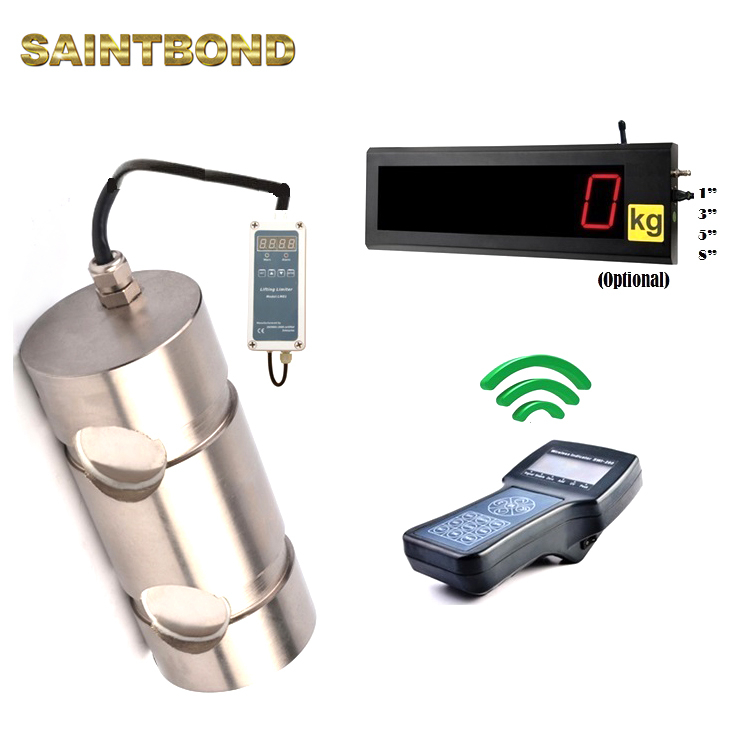

IP67 Safe Alloy Steel Wireless Load Pin Rope Pulling Sensor,Overload Load Cell
Cap./Size | φ1 | H1 | H2 | L1 | L2 | L3 | L4 | L5 | L6 |
2~5t | 35 | 11.5 | 16 | 105 | 20 | 12 | 12 | 35 | 6.3 |
10t | 50 | 20 | 22.5 | 152 | 30 | 18 | 18 | 48 | 10.5 |
20t | 65 | 22.5 | 28.5 | 190 | 32 | 20 | 25 | 65 | 10.5 |
40t | 85 | 22.5 | 28.5 | 256 | 36 | 35 | 28 | 89 | 12.5 |
70t | 100 | 34 | 35 | 328 | 40 | 50 | 32 | 120 | 15 |
Rated Load: | 2/5/10/20/40/70t | Operating Temperature Range: | -30~+70℃ |
Sensitivity: | (1.0±0.1%) m V/V | Maximum Safe Over Load: | 150%F.S |
Combined Error: | ±0.5% F.S | Ultimate Over Load: | 180%F.S |
Creep Error(30min): | ±0.05% F.S | Recommend Excitation Vol.: | 10~12V DC |
Zero Balance: | ±1% F.S | Maximum Excitation Voltage: | 15V DC |
Temp. Effect On Zero: | ±0.05% F.S/10℃ | Sealing Class: | IP67 |
Temp. Effect On Span: | ±0.05% F.S/10℃ | Element Material: | Alloy Steel,StainlessSteel |
Input Resistance: | 750±5Ω | Insulation Resistance: | ≥5000MΩ |
Output Resistance: | 702±3Ω | Citation: | GB/T7551-2008/OIMLR60 |
Cable: | Length=L:5m(2~5t);10m(10~20t);16m(30~70t) | ||
Mode Of Connection: | Red(Input+),Black(Input-),Green(Output+),White(Output-) |
Wireless Frequency: | 430~485MHz |
Wireless Distance: | Min:800m(In Open Area) |
A/D Conversion Rate: | ≥50times/seconds |
Operating Temp. Range: | -20~+80℃ |
Operating Humidity: | ≤85%RH under 20℃ |
Battery Life: | ≥50 hours |
Non-Linearity: | 0.01%F.S |
Stable Time: | ≤5 Seconds |
Citation: | GB/T7551-2008/ OIML R60 |
IP67 Safe Alloy Steel Wireless Load Pin Rope Pulling Sensor,Overload Load Cell
Cap./Size | φ1 | H1 | H2 | L1 | L2 | L3 | L4 | L5 | L6 |
2~5t | 35 | 11.5 | 16 | 105 | 20 | 12 | 12 | 35 | 6.3 |
10t | 50 | 20 | 22.5 | 152 | 30 | 18 | 18 | 48 | 10.5 |
20t | 65 | 22.5 | 28.5 | 190 | 32 | 20 | 25 | 65 | 10.5 |
40t | 85 | 22.5 | 28.5 | 256 | 36 | 35 | 28 | 89 | 12.5 |
70t | 100 | 34 | 35 | 328 | 40 | 50 | 32 | 120 | 15 |
Rated Load: | 2/5/10/20/40/70t | Operating Temperature Range: | -30~+70℃ |
Sensitivity: | (1.0±0.1%) m V/V | Maximum Safe Over Load: | 150%F.S |
Combined Error: | ±0.5% F.S | Ultimate Over Load: | 180%F.S |
Creep Error(30min): | ±0.05% F.S | Recommend Excitation Vol.: | 10~12V DC |
Zero Balance: | ±1% F.S | Maximum Excitation Voltage: | 15V DC |
Temp. Effect On Zero: | ±0.05% F.S/10℃ | Sealing Class: | IP67 |
Temp. Effect On Span: | ±0.05% F.S/10℃ | Element Material: | Alloy Steel,StainlessSteel |
Input Resistance: | 750±5Ω | Insulation Resistance: | ≥5000MΩ |
Output Resistance: | 702±3Ω | Citation: | GB/T7551-2008/OIMLR60 |
Cable: | Length=L:5m(2~5t);10m(10~20t);16m(30~70t) | ||
Mode Of Connection: | Red(Input+),Black(Input-),Green(Output+),White(Output-) |
Wireless Frequency: | 430~485MHz |
Wireless Distance: | Min:800m(In Open Area) |
A/D Conversion Rate: | ≥50times/seconds |
Operating Temp. Range: | -20~+80℃ |
Operating Humidity: | ≤85%RH under 20℃ |
Battery Life: | ≥50 hours |
Non-Linearity: | 0.01%F.S |
Stable Time: | ≤5 Seconds |
Citation: | GB/T7551-2008/ OIML R60 |
