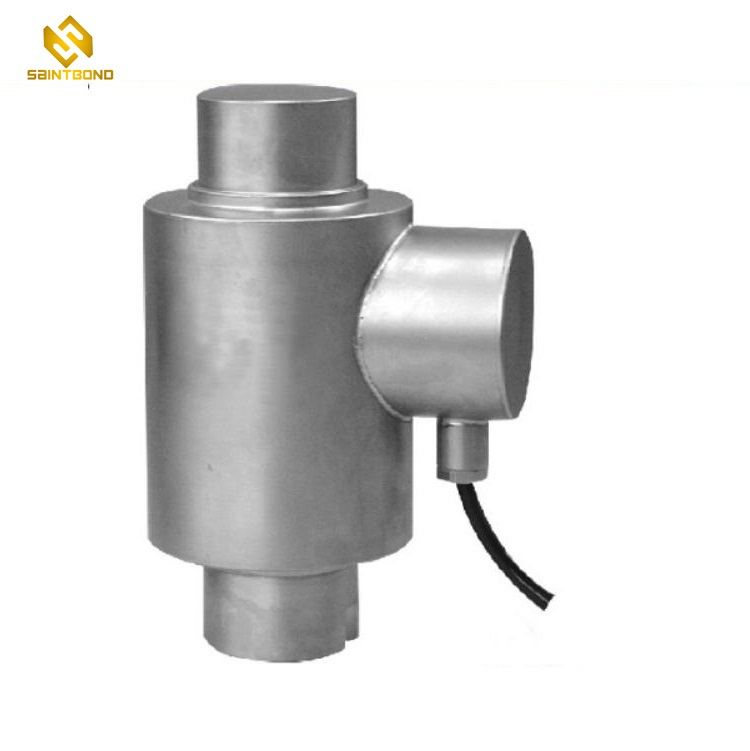

LC410 Column Type Compression Vehicle Weight Sensor 40ton Load Cell 40t

Availability:
Quantity:
Inquire Add to Basket

PDF Export

  • Zhejiang, China

  • SAINTBOND

  • LC410

  • PRESSURE SENSOR

  • Analog SENSOR

  • load cell 40t

  • Good quality and low price

  • OEM&ODM

  • 5~40Days

  • 30% advance payment, the rest payment before delivery

  • Carton

  • truck scale/ weighbridge scale







Product Characteristics:

  • LC410 load cells are available in the capacities 10t to 100t .

  • Alloy Steel/Stainless steel construction, hermetically welded, oil-proof,

  • waterproof and anti-corrosive gas and medium making it lightning protected in all kinds of environments.

  • Column structure, anti-reversal design, good self-aligning ability, suitable for platform scales, automobile testing facilities, hopper scales  and other electronic weighing devices.

Technical Parameter:

Rated Load:

10/30/40/50/60/100t

Operating Temp. Range:

-30~+70°C

Sensitivity:

(2.0±0.1%) mV/V

Maximum Safe Over Load:

150%F.S

Combined Error:

±0.03% F.S

Ultimate Over Load:

200%F.S

Creep Error(30min):

±0.03% F.S

Recommend Excitation Vol.:

10~12V DC

Zero Balance:

±1% F.S

Max. Excitation Voltage:

15V DC

Temp. Effect On Zero:

±0.02% F.S/10°C

Sealing Class:

IP67/ IP68

Temp. Effect On Span:

±0.02% F.S/10°C

Element Material:

Alloy Steel, Stainless steel

Input Resistance:

750±5Ω

Cable:

Length=16m(10/40t),20m(60/100t)

Output Resistance:

703±2Ω

Citation:

GB/T7551-2008/ OIML R60

Insulation Resistance:

≥5000MΩ

Mode Of Connection:

Red(Input+),Black(Input-),Green(Output+),White(Output-)t-)





LC410 Column Type Compression Vehicle Weight Sensor 40ton Load Cell 40t


Product Name LC410 Column Type Compression Vehicle Weight Sensor 40ton Load Cell 40t
Features Good quality and low price
Service OEM&ODM
Custom Design Welcome
Sample Lead Time 5~40Days
Payment Terms 30% advance payment, the rest payment before delivery
Market all over the world
Form of sale Factory supply




Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they
will take photos and shoot video for you.


Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you
to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our
workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique
IDs will be created.It will save labor cost for you.


Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.


Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the
goods by your logo after getting your authorization letters.


Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the
market share.


Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.


Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance
to the standards.
