Zhejiang, China
SAINTBOND
LC511
PRESSURE SENSOR
Digital Sensor

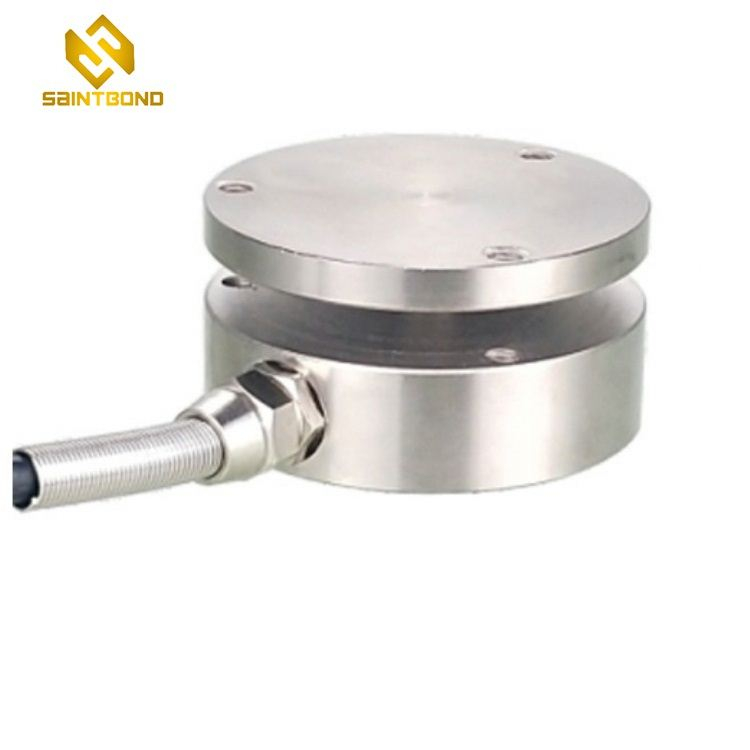

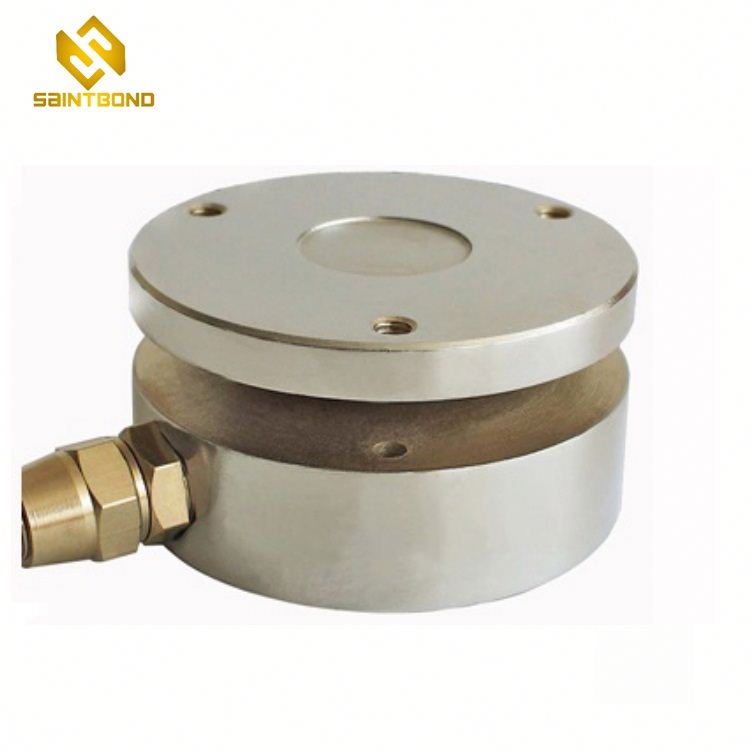

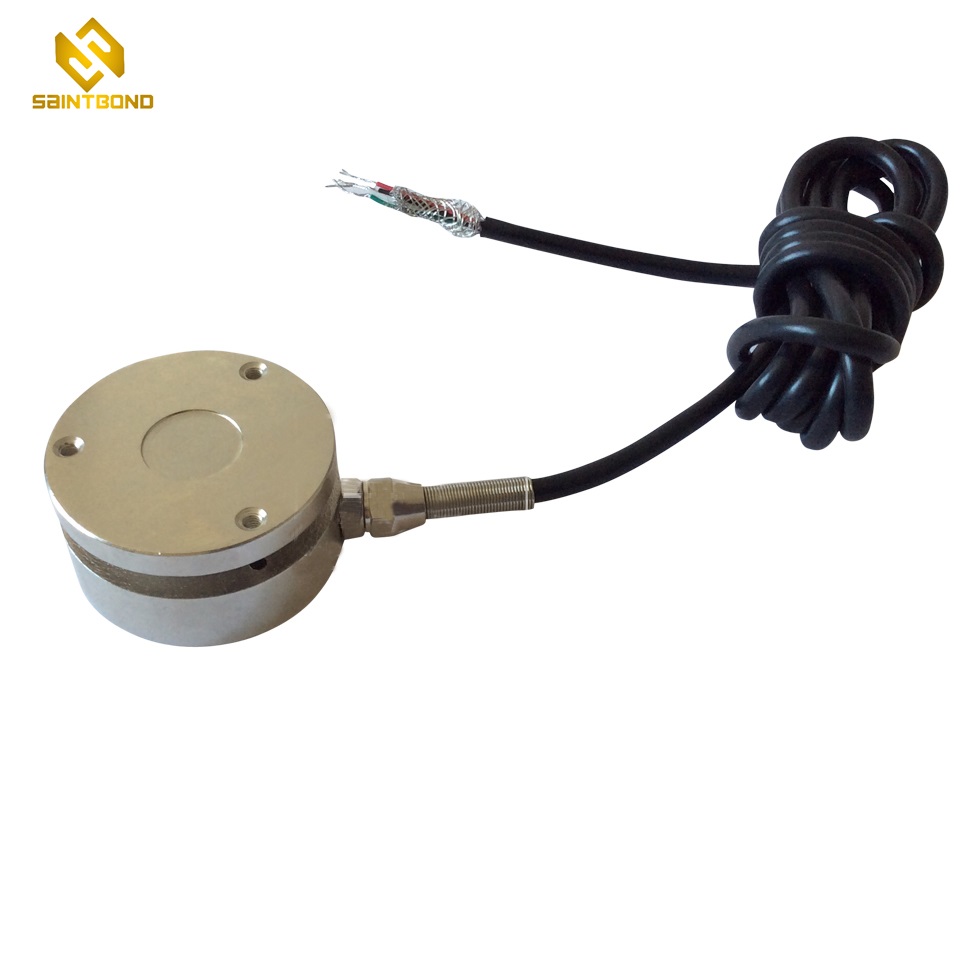

Low profile disk type loadcell
Good quality and low price
OEM&ODM
5~40Days
30% advance payment, the rest payment before delivery
Carton
vehical testing, railroad track scales hopper scales
Features & Applications:
The sensor adopts the flat diaphragm pressure sensing diaphragm, shell and diaphragm integrated structure, small size, stable and reliable performance;
Industrial automation measurement and control system is suitable for various kinds of weighing and force measurement;
Weighing, instantaneous measurement, impact force, high-speed response sensor, pressure measurement use;

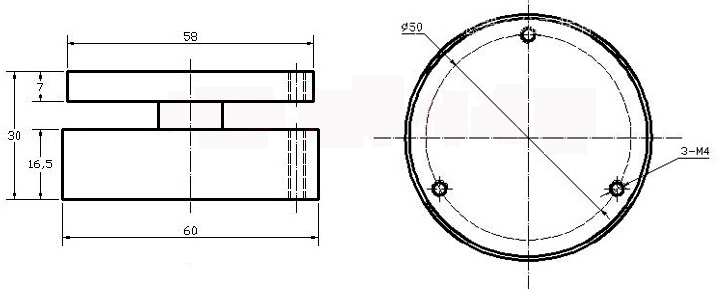

Dimension:
Technical Parameter:
Capacity: | 10kg~3000kg |
Rated output: | 1.0~2.0±0.05mV/V |
Non-linearity: | ≤±0.3%F·S |
Hysteresis: | ≤±0.3%F·S |
Repeatability: | ≤±0.3%F·S |
Creep(30min): | ≤±0.1%F·S |
Zero balance: | ≤±1%F·S |
Temperature effect on zero: | ≤±0.1%F·S/10℃ |
Temperature effect on output: | ≤±0.1%F·S/10℃ |
Operation temperature range: | -20℃~+80℃ |
Input impedance: | 350±50Ω |
Output impedance: | 350±5Ω |
Safe overload: | ≤150%F·S |
Insulation: | ≥2000MΩ(50VDC) |
Recommended excitation: | 10V-15V |
Protection Class: | IP67 |
LC511 Low Profile Disk Typ Load Cell/Wheel Shaped Load Cell Weight Sensor 0.5-2000kn
| Product Name | LC511 Low Profile Disk Typ Load Cell/Wheel Shaped Load Cell Weight Sensor 0.5-2000kn |
| Features | Good quality and low price |
| Service | OEM&ODM |
| Custom Design | Welcome |
| Sample Lead Time | 5~40Days |
| Payment Terms | 30% advance payment, the rest payment before delivery |
| Market | all over the world |
| Form of sale | Factory supply |
Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they
will take photos and shoot video for you.
Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you
to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our
workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique
IDs will be created.It will save labor cost for you.
Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.
Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the
goods by your logo after getting your authorization letters.
Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the
market share.
Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.
Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance
to the standards.
Features & Applications:
The sensor adopts the flat diaphragm pressure sensing diaphragm, shell and diaphragm integrated structure, small size, stable and reliable performance;
Industrial automation measurement and control system is suitable for various kinds of weighing and force measurement;
Weighing, instantaneous measurement, impact force, high-speed response sensor, pressure measurement use;
Dimension:
Technical Parameter:
Capacity: | 10kg~3000kg |
Rated output: | 1.0~2.0±0.05mV/V |
Non-linearity: | ≤±0.3%F·S |
Hysteresis: | ≤±0.3%F·S |
Repeatability: | ≤±0.3%F·S |
Creep(30min): | ≤±0.1%F·S |
Zero balance: | ≤±1%F·S |
Temperature effect on zero: | ≤±0.1%F·S/10℃ |
Temperature effect on output: | ≤±0.1%F·S/10℃ |
Operation temperature range: | -20℃~+80℃ |
Input impedance: | 350±50Ω |
Output impedance: | 350±5Ω |
Safe overload: | ≤150%F·S |
Insulation: | ≥2000MΩ(50VDC) |
Recommended excitation: | 10V-15V |
Protection Class: | IP67 |
LC511 Low Profile Disk Typ Load Cell/Wheel Shaped Load Cell Weight Sensor 0.5-2000kn
| Product Name | LC511 Low Profile Disk Typ Load Cell/Wheel Shaped Load Cell Weight Sensor 0.5-2000kn |
| Features | Good quality and low price |
| Service | OEM&ODM |
| Custom Design | Welcome |
| Sample Lead Time | 5~40Days |
| Payment Terms | 30% advance payment, the rest payment before delivery |
| Market | all over the world |
| Form of sale | Factory supply |
Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they
will take photos and shoot video for you.
Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you
to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our
workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique
IDs will be created.It will save labor cost for you.
Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.
Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the
goods by your logo after getting your authorization letters.
Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the
market share.
Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.
Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance
to the standards.
