SAINTBOND

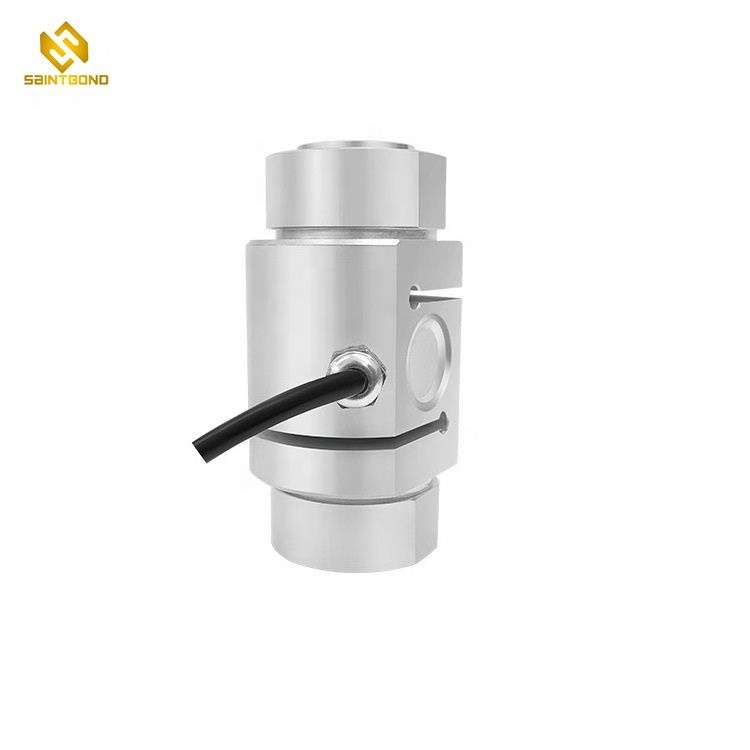

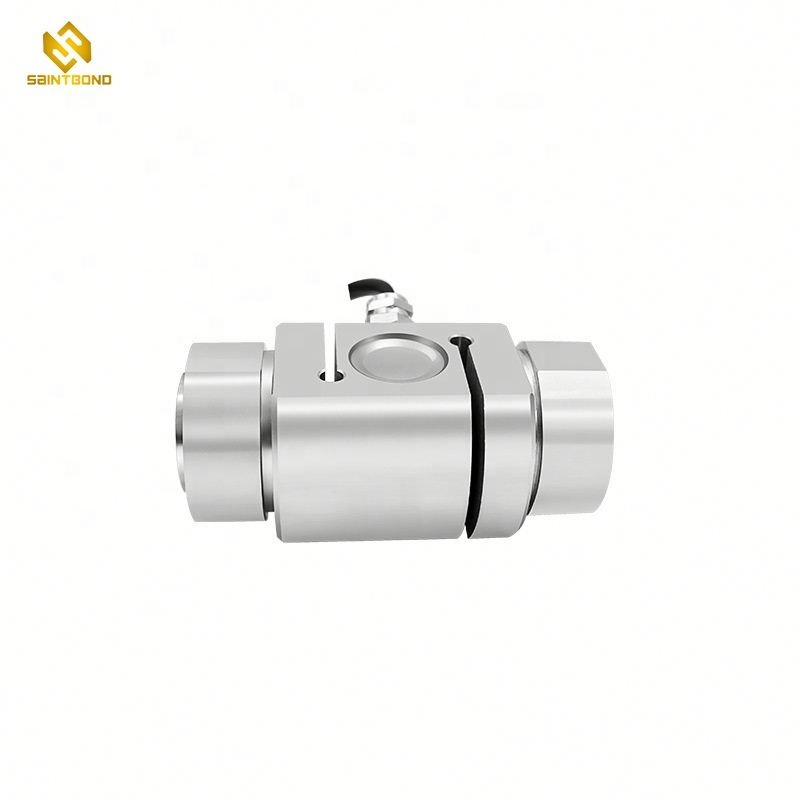

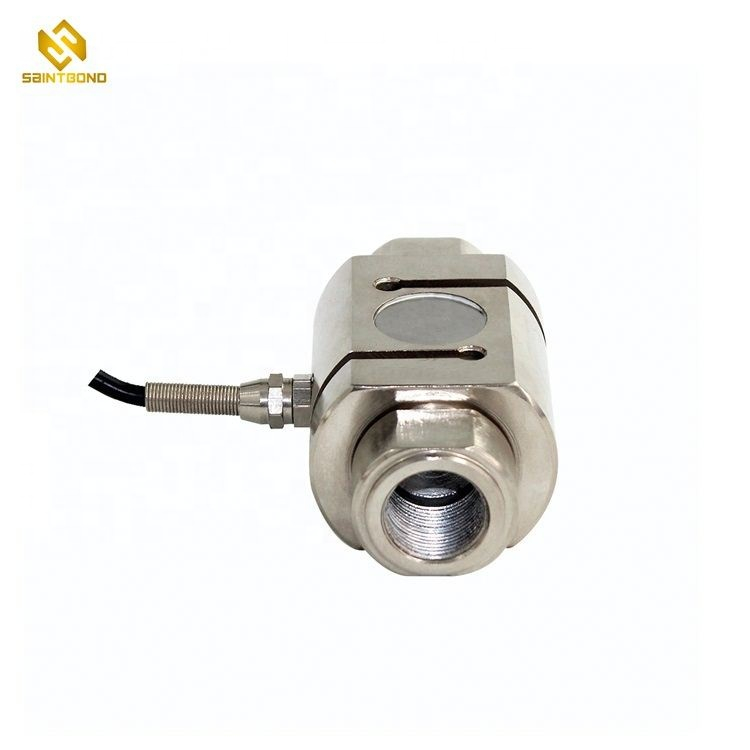

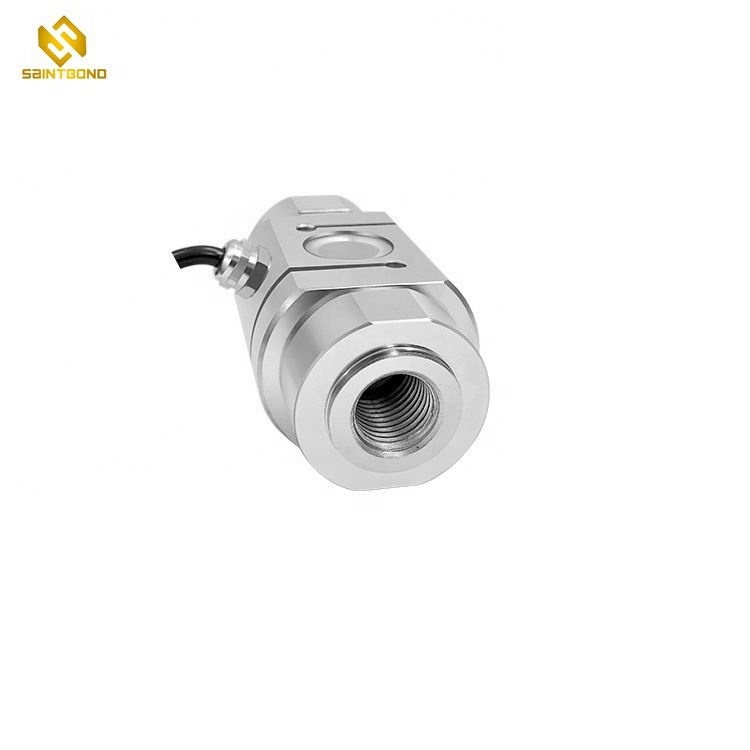

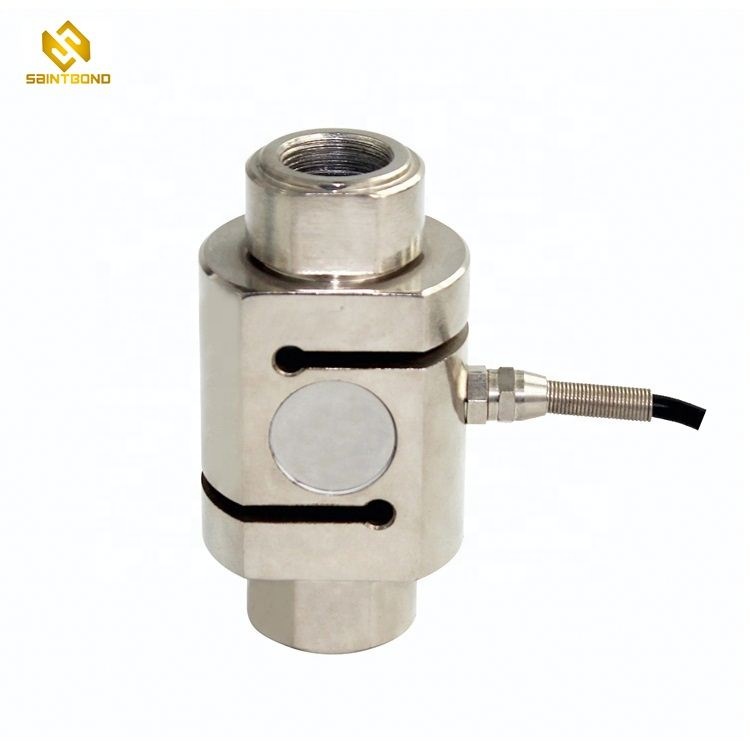

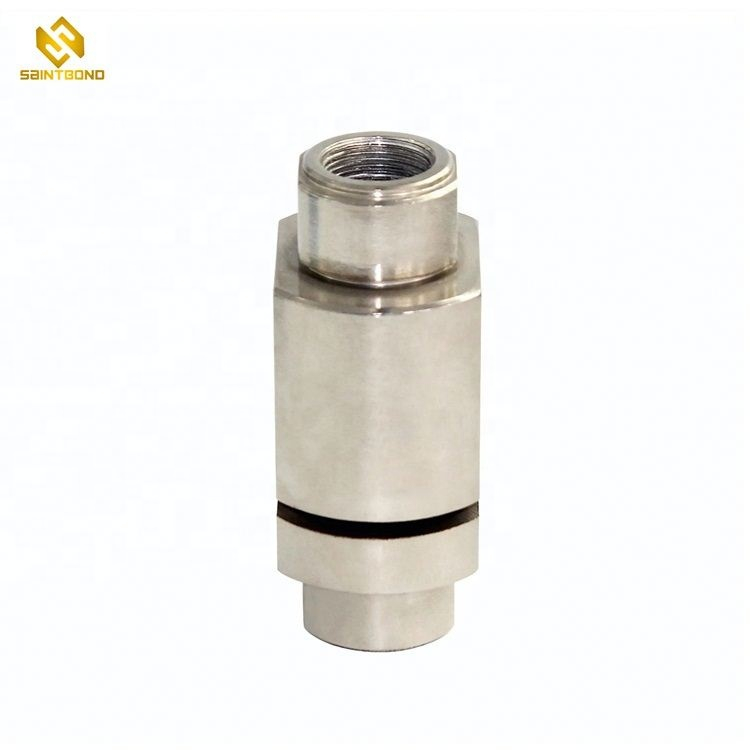

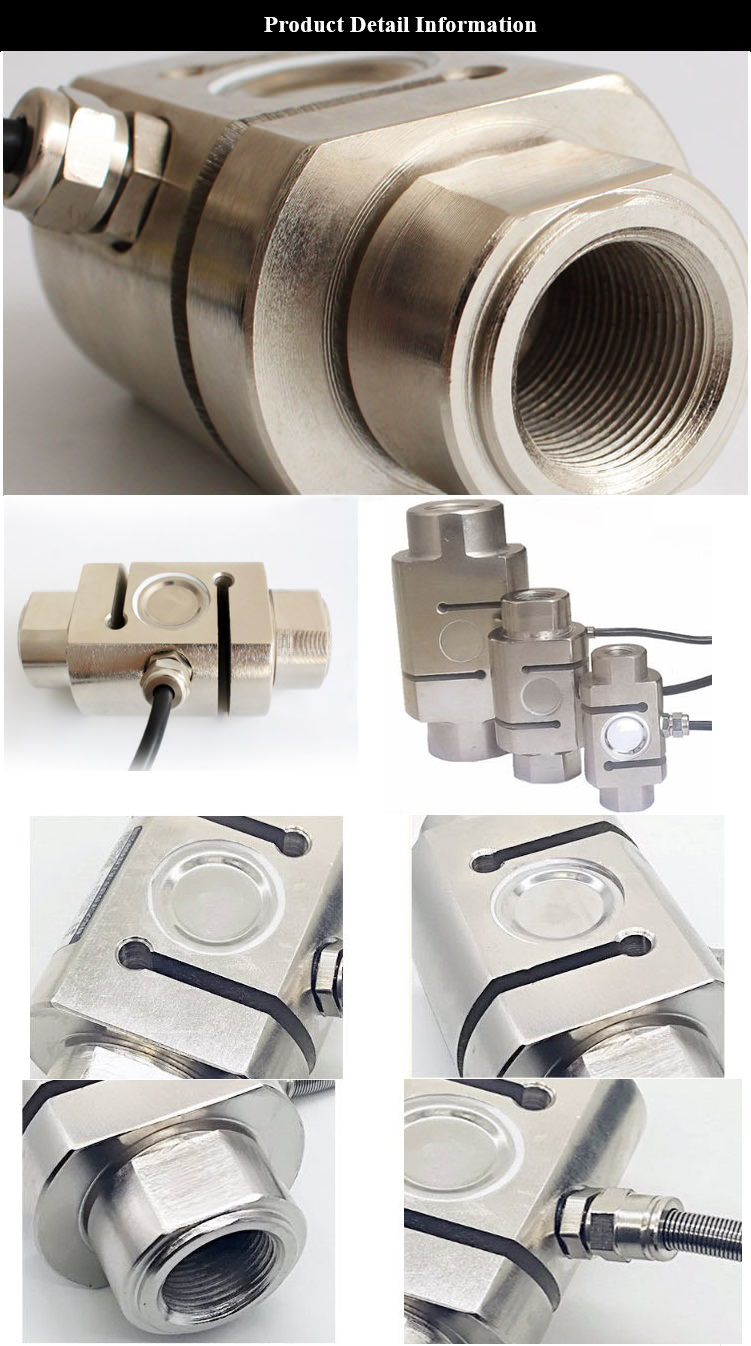

LC435-8
PRESSURE SENSOR
Load cells
Good quality and low price
Welcome
OEM&ODM
5~40Days
30% advance payment, the rest payment before delivery
Carton
Features:
Pull pressure sensor;
Sensor elastic body made of alloy steel or stainless steel;
Adhesive sealed, surface plating;
Waterproof, anti-corrosion;
Protection grade reaches IP66;

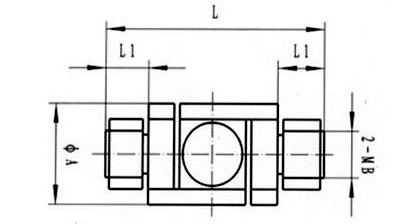

Dimension:
Capacity | L | L1 | A | B |
(Ton) | (mm) | (mm) | (mm) | (mm) |
0.1~0.5 | 93 | 17 | Φ48 | M16 or M16×1.5 |
1 | 93 | 17 | Φ52 | M16 or M16×1.5 |
2~3 | 112 | 22 | Φ63 | M24 |
5 | 130 | 24 | Φ68 | M24 |
10 | 138 | 30 | Φ70 | M30 |
20 | 150 | 36 | Φ95 | M36 |
30 | 184 | 45 | Φ120 | M45 |
50~80 | 280 | 60 | Φ165 | M60 |
Specification:
Capacity: | 0.1/0.5/1/2/3/5/10/20/30/50/60/70/80t | ||
Rated Output: | 2.0mV/V ±0.1% | Safe Temp. Range: | -10ºC to + 70ºC |
Zero Balance: | ±1% of rated output | ||
Creep after 30 minutes: | ±0.05% of rated output | Temp. Compensated: | -10ºC to + 40ºC |
Nonlinearity: | ±0.05% of rated output | Safe Overload: | 150% |
Hysteresis: | ±0.05% of rated output | Input Impedance: | 387 ohm ± 20 ohm |
Repeatability: | ±0.05% of rated output | Output Impedance: | 350 ohm ± 5 ohm |
Temp. effect on output: | ≤0.02% of applied output/ºC | Rated Excitation: | 10V DC/AC |
Temp. effect on zero: | ≤0.02% of applied output/ºC | Maximum Excitation: | 15V DC/AC |
Load cells calt 3 ton capacity LC435-3T
| Product Name | Load cells calt 3 ton capacity LC435-3T |
| Features | Good quality and low price |
| Service | OEM&ODM |
| Custom Design | Welcome |
| Sample Lead Time | 5~40Days |
| Payment Terms | 30% advance payment, the rest payment before delivery |
| Market | all over the world |
| Form of sale | Factory supply |
Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they
will take photos and shoot video for you.
Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you
to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our
workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique
IDs will be created.It will save labor cost for you.
Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.
Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the
goods by your logo after getting your authorization letters.
Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the
market share.
Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.
Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance
to the standards.
