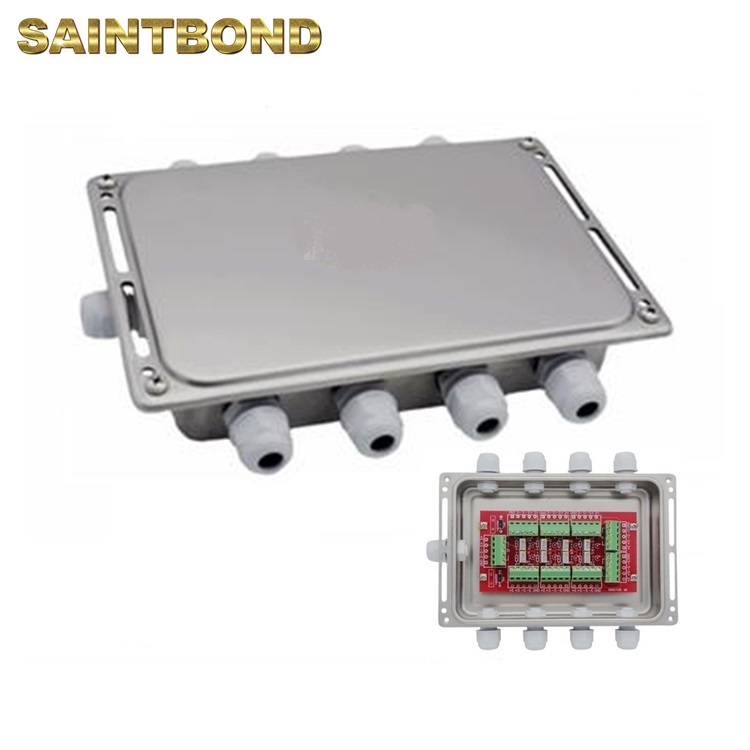

SAINTBOND summing Junction box
BJ-8-SS(S) summing Junction box
IP68
Junction Box
205*134*38mm
Summing Junction box
18 V
705g
Stainless Steel
Welcome
OEM&ODM
10~25 DAYS
OEM & ODM Manufacture
Low power 8pcs electrical junction boxes/load cells summing box

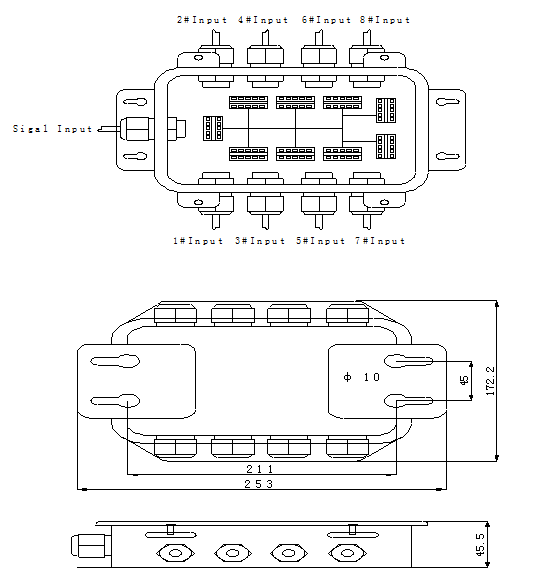

Technical parameter:
Type | BJSS-8A |
Adjustment Method: | Signal Output adjustment |
Gross Weight: | 705Kg |
Maximum Allowable Voltage: | 18 V |
Material: | Stainless Steel |
Dimension: | 205×134×38mm |
Normal Operating Temperature: | -10---+50【-40---212】℃【F】 |
Storage Temperature: | -20---+60【-40---212】℃【F】 |
Gland Suitable For Cable Diameter: | PG 3---6.5mm |
Protection Class: | IP68 |
Product Characteristics:
Stainless steel, durable, good anti- Interference
With special Waterproof gland
Compensation is adjusted by High stability Import multi-turn potentiometer
Cover with waterproof rubber gasket, waterproof, dustproof, suitable for harsh environmental conditions place
The total signal for 8pcs load cells
Cable tandem for 8pcs load cells
Prevent the damage of lightning and surge damage to load cell
Partial load performance signal conditioning for weighing scale.
