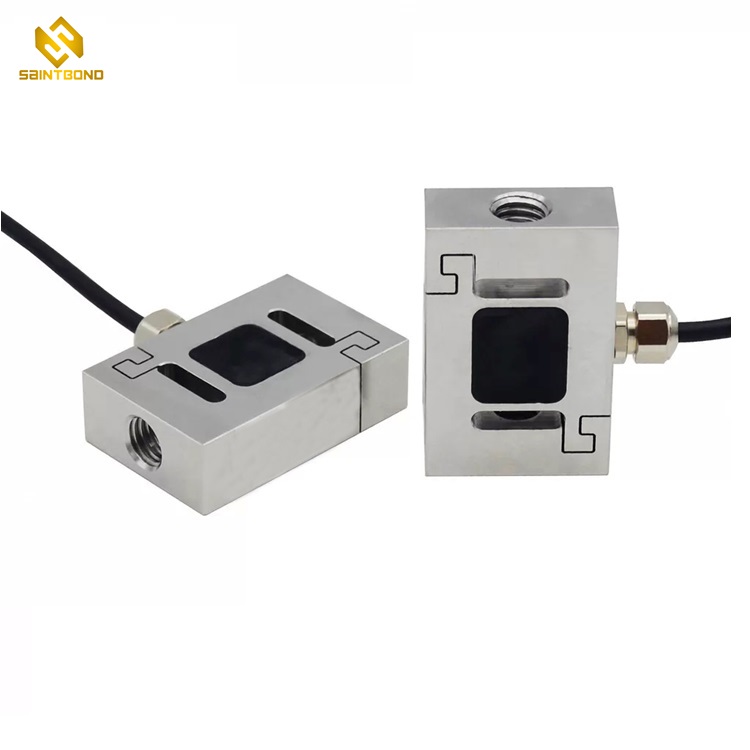

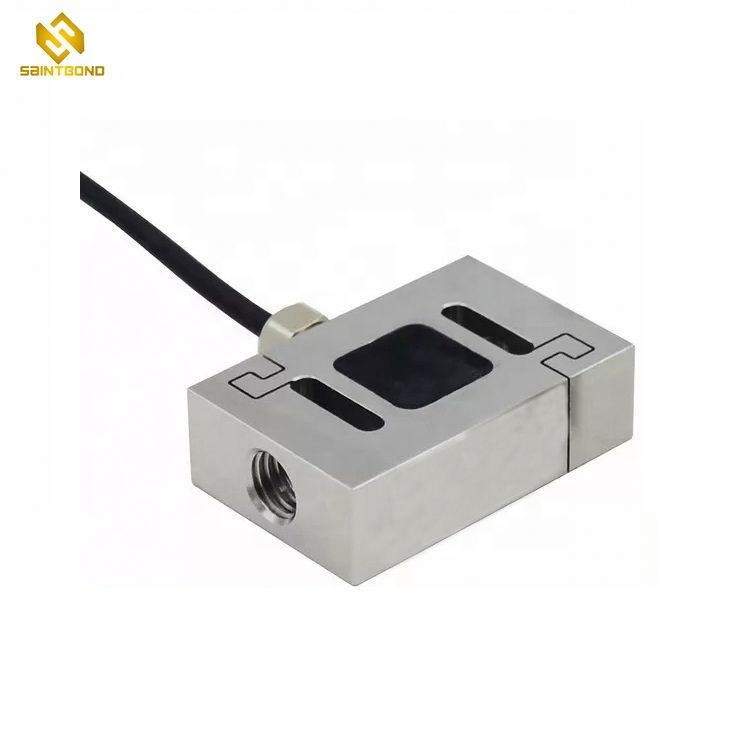

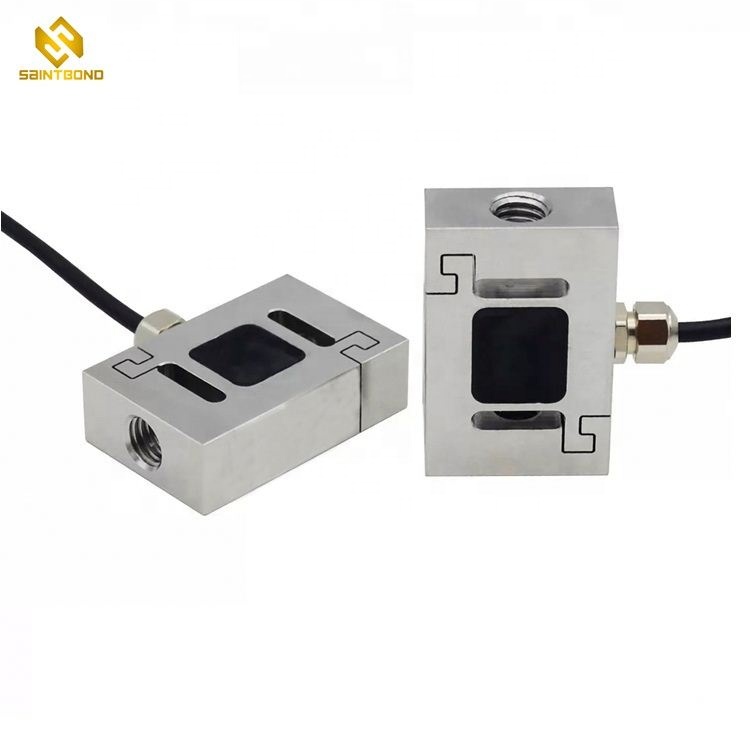

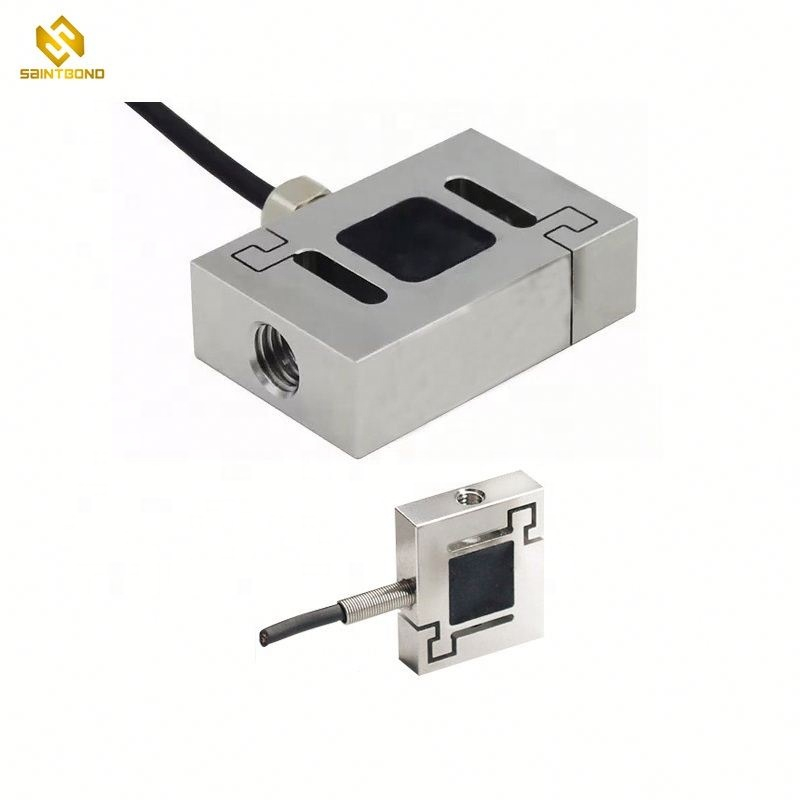

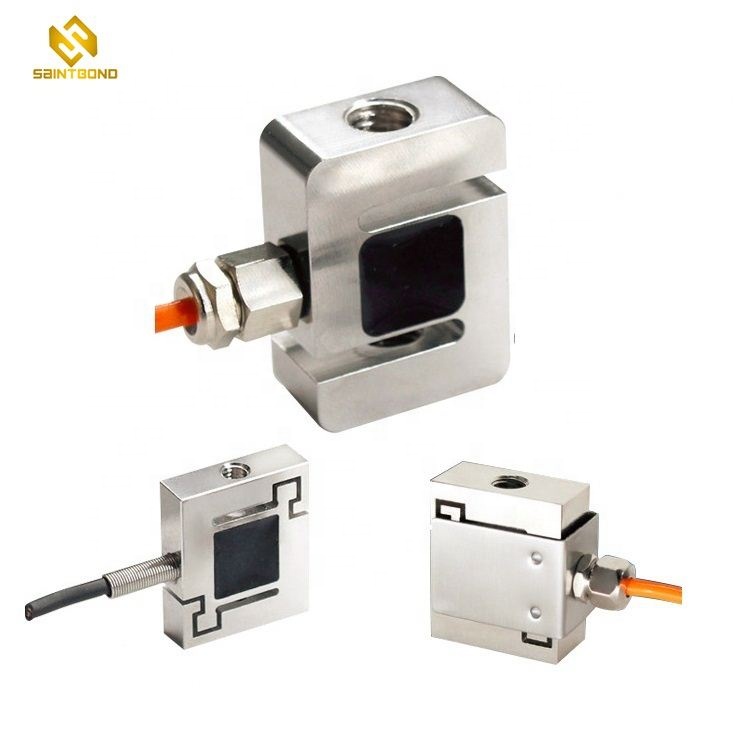

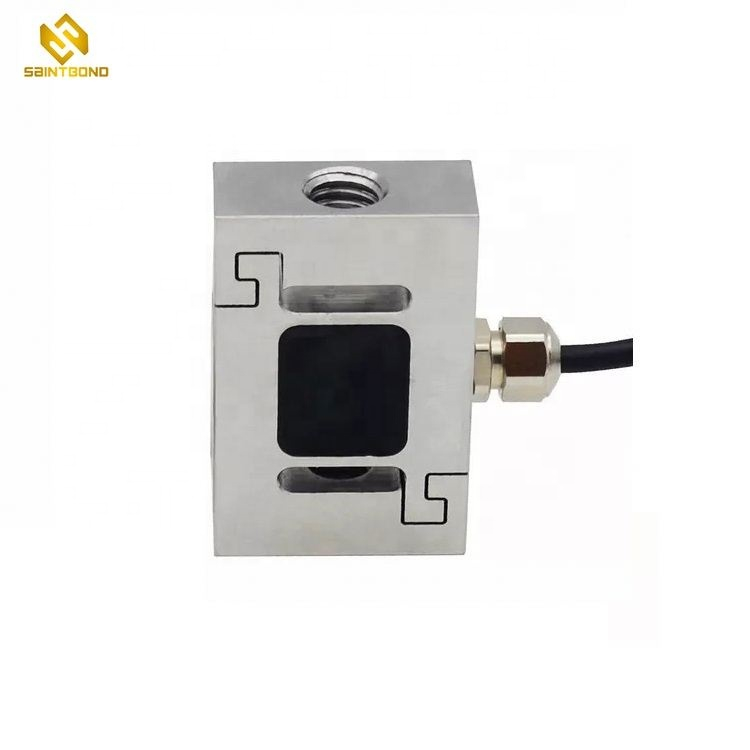

Mini041 S Shape Load Cell/S Type Load Cell 50kg/tension And Compression Load Cell





Dimension:



Cap.	A	B	C	D	E	M
0-5N-30N	16	19.1	5	6.7	17	M3 Depth 3 mm
0-50N	16	19.1	6	7.5	17	M4 Depth 3 mm

Note:

1:Screws should not be screwed too deep and shall not exceed 4 millimeters. You should not touch the middle part of the sensor so as not to affect the measurement result.

When the

2:Sensor is installed, the two sides of the cover plate can not be contacted with the middle cylinder, so as to avoid measuring the result



Capacity	A	B	C	M
0-100N-500N	16	19.1	6	M4 Depth 3 mm
0-200N-2KN	26	40	12	M8 Depth 8 mm

Note: screws must not be screwed too deep when they are installed. You should not touch the middle part of the sensor so as not to affect the measurement result.

Description:

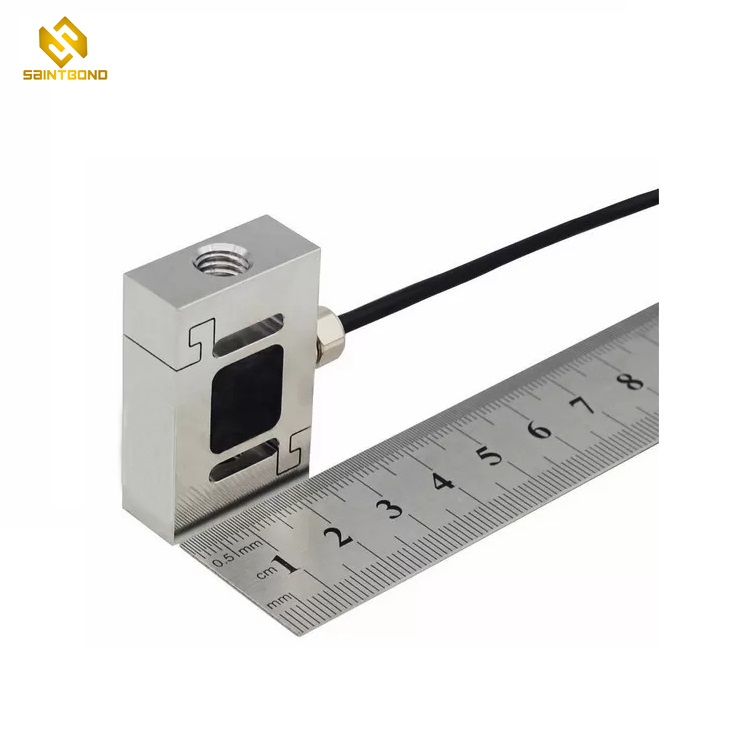

Ultra small installation size, width of only 5 mm, height of 19.1 mm; high speed dynamic response output, high accuracy; measuring force: internal thread tension or compression direction. Widely used in automatic force detection, typical applications: key detection.

Technical Data:

Capacity	0-5N~2000N	Material	Stainless Steel
Rated output	2.0 ±10%  mV/V	Output Impedance	350±3Ω
Non-linearity	0.05 % F.S.	Insulation	>5000MΩ/10VDC
Hysteresis	0.05 % F.S.	Recommended Excitation	2.5-5V
Repeatability	0.05 % F.S.	Excitation max	10V
Creep(30min)	0.05 % F.S.	Compensated Temp Range	-10~60℃
Temp Effect On Output	0.1 % F.S./ 10℃	Operating Temp Range	-20~80℃
Temp Effect On Zero	0.1 % F.S./ 10℃	Safe Load	1.2
Protection Class	IP 65	Ultimate Load Limit	1.5
Input Impedance	350±15Ω	Cable Length	∅2-3 x 3m
Wire Connection	Ex +: Red; Ex -Black;  Sig +: Green;  Sig -: White (Pressure is positive, pulling is negative);



Mini041 S shape load cell/S type load cell 50kg/tension and compression load cell

Product Name	Mini041 S shape load cell/S type load cell 50kg/tension and compression load cell
Features	Good quality and low price
Service	OEM&ODM
Custom Design	Welcome
Sample Lead Time	5~40Days
Payment Terms	30% advance payment, the rest payment before delivery
Market	all over the world
Form of sale	Factory supply
