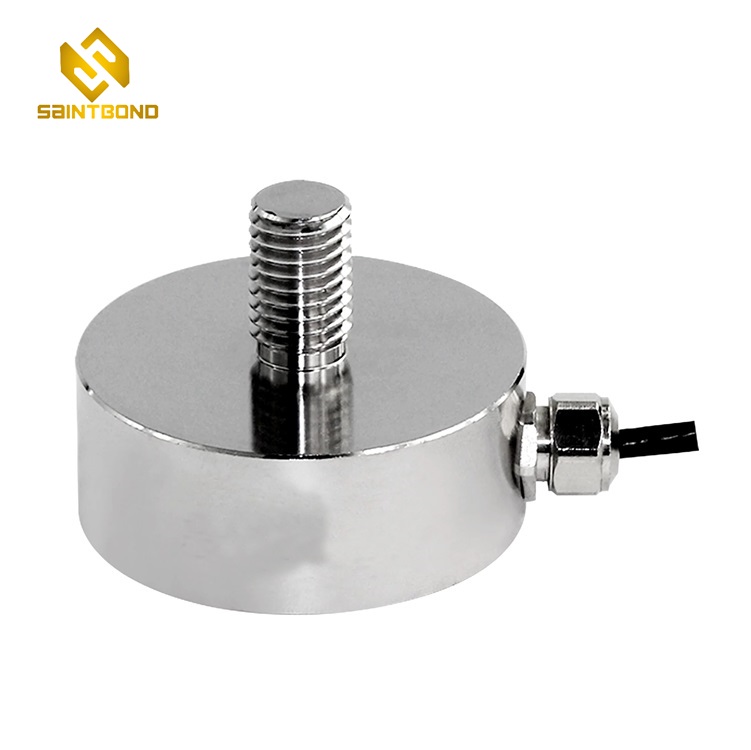

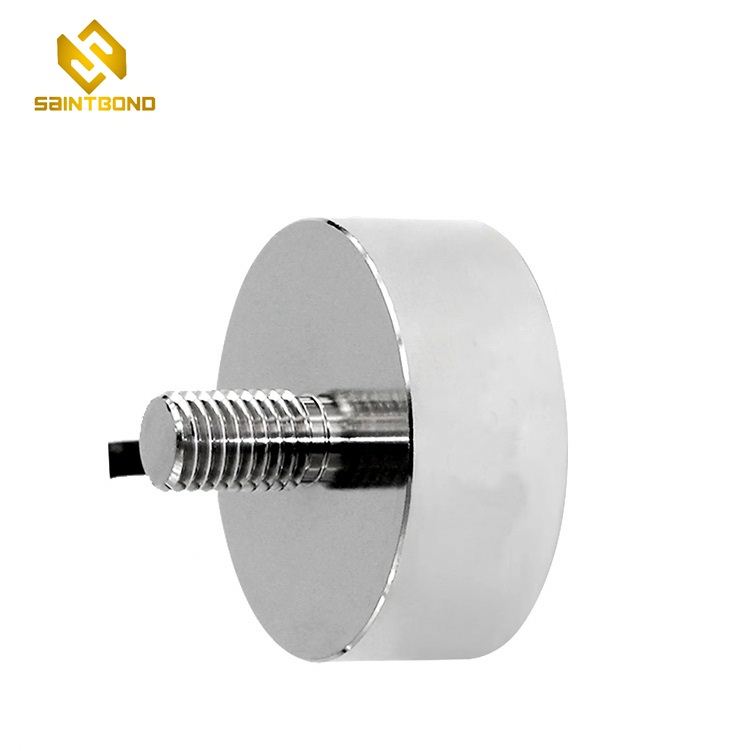

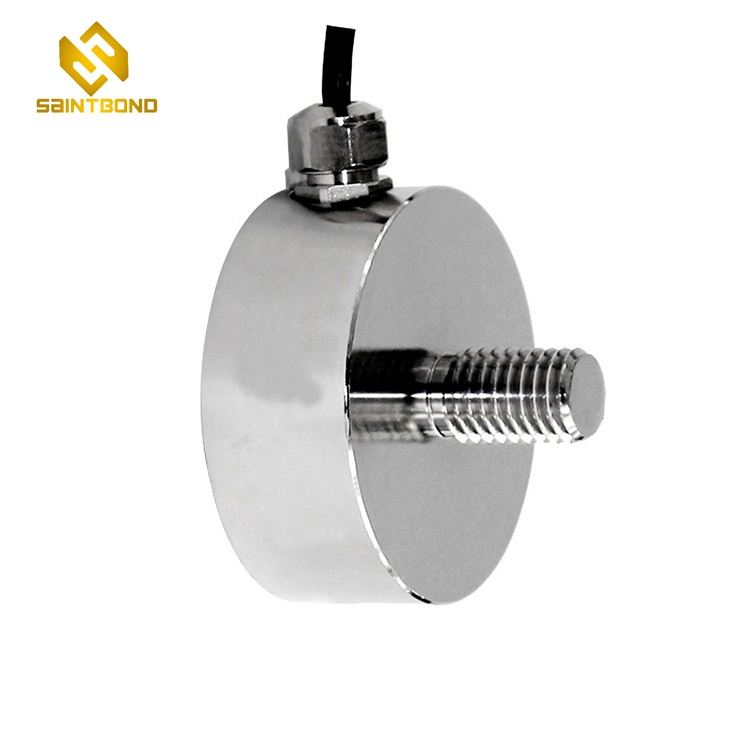

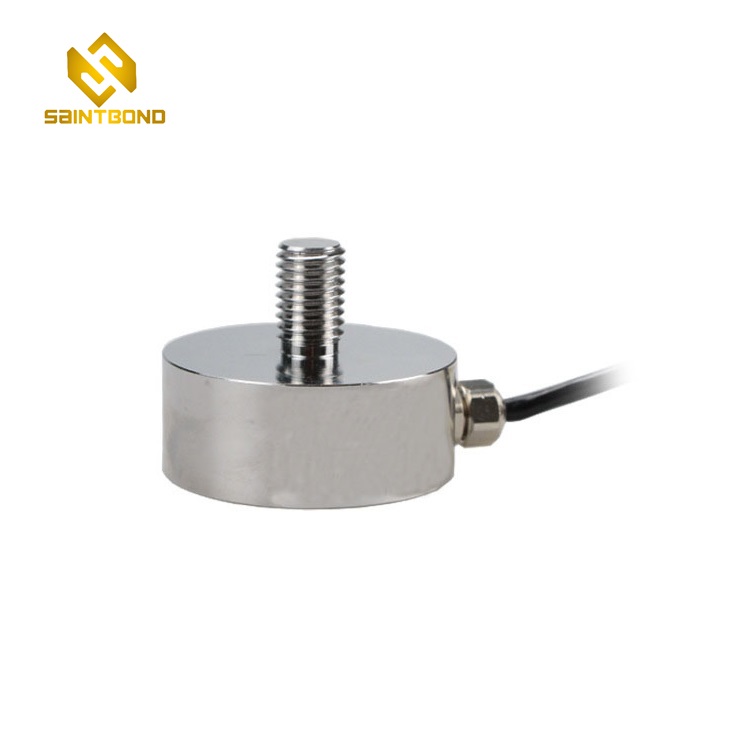

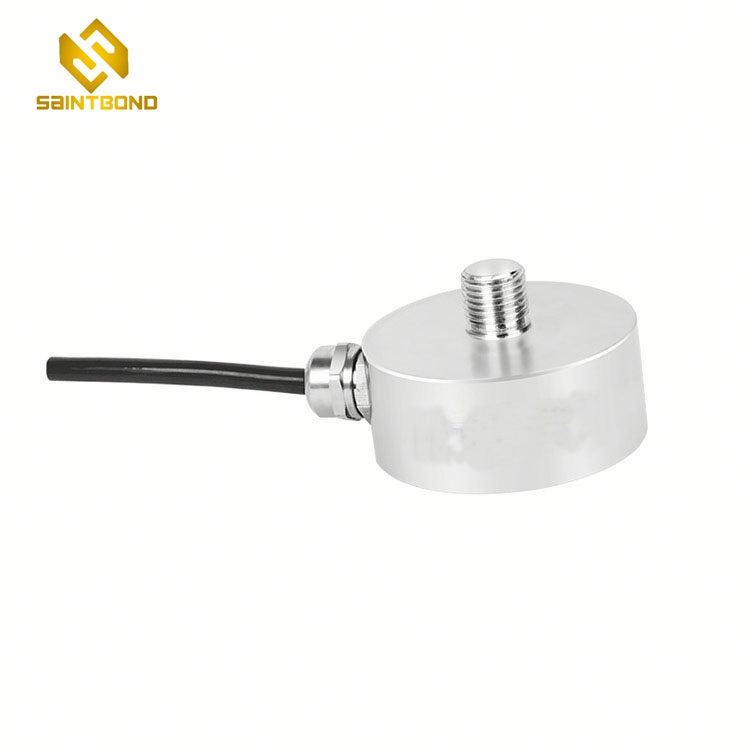

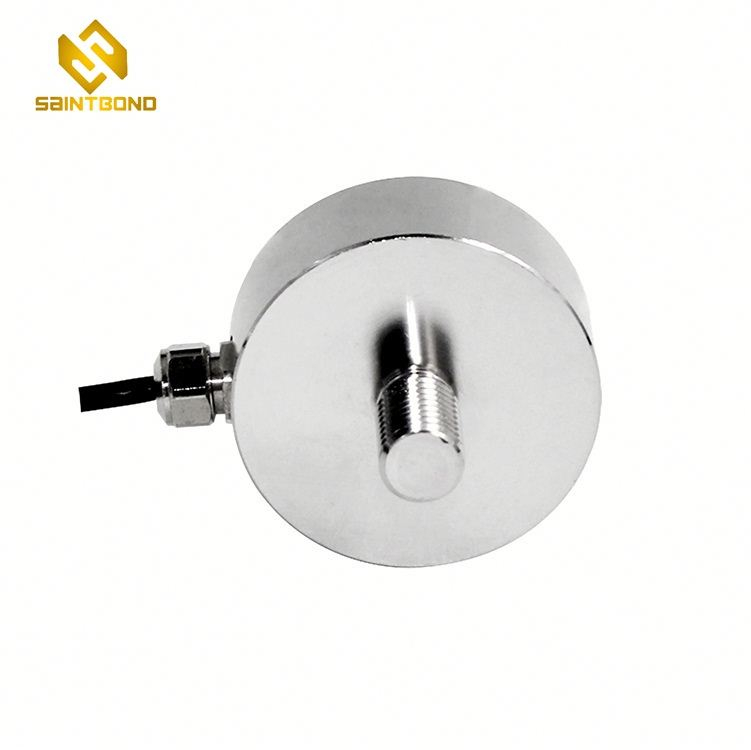

Mini099 Rod End Load Cell (Tension Or Compression)

Availability:
Quantity:

PDF Export

  • Zhejiang, China

  • SAINTBOND

  • Mini099

  • PRESSURE SENSOR

  • Analog SENSOR

  • rod end load cell

  • Good quality and low price

  • Welcome

  • OEM&ODM

  • 5~40Days

  • 30% advance payment, the rest payment before delivery

  • Carton

  • Auto Press,Robotics,Medical







Features:

  • Stainless Steel;

  • Low profile and compact structure;

  • It is suitable for a variety of small space force measurement, thread force monitoring;

  • Widely used in measurement control in industrial, research and development fields.

  • They are available 50/100/200/500kg capacities.

Technical Data:

Capacity

50/100/200/500kg

Material

Stainless Steel

Rated output

1.5 ±10% mV/V

Protection Class

IP65

Non-linearity

0.5 % F.S.

Insulation

>5000MΩ/10VDC

Hysteresis

0.2 % F.S.

Recommended Excitation

5~10V

Repeatability

0.2% F.S.

Excitation max

15V

Creep(30min)

0.2 % F.S.

Compensated Temp Range

-10~60°C

Temp Effect On Output

0.05 % F.S./10°C

Operating Temp Range

-20~80°C

Temp Effect On Zero

0.05 % F.S./10°C

Safe Load

1.2

Output Impedance

750±30Ω

Ultimate Load Limit

1.5

Input Impedance

700±5Ω

Cable Length

∅4 x 3m







Mini099 Rod End Load Cell (Tension or Compression)


Product Name Mini099 Rod End Load Cell (Tension or Compression)
Features Good quality and low price
Service OEM&ODM
Custom Design Welcome
Sample Lead Time 5~40Days
Payment Terms 30% advance payment, the rest payment before delivery
Market all over the world
Form of sale Factory supply




Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they
will take photos and shoot video for you.


Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you
to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our
workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique
IDs will be created.It will save labor cost for you.


Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.


Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the
goods by your logo after getting your authorization letters.


Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the
market share.


Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.


Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance
to the standards.
