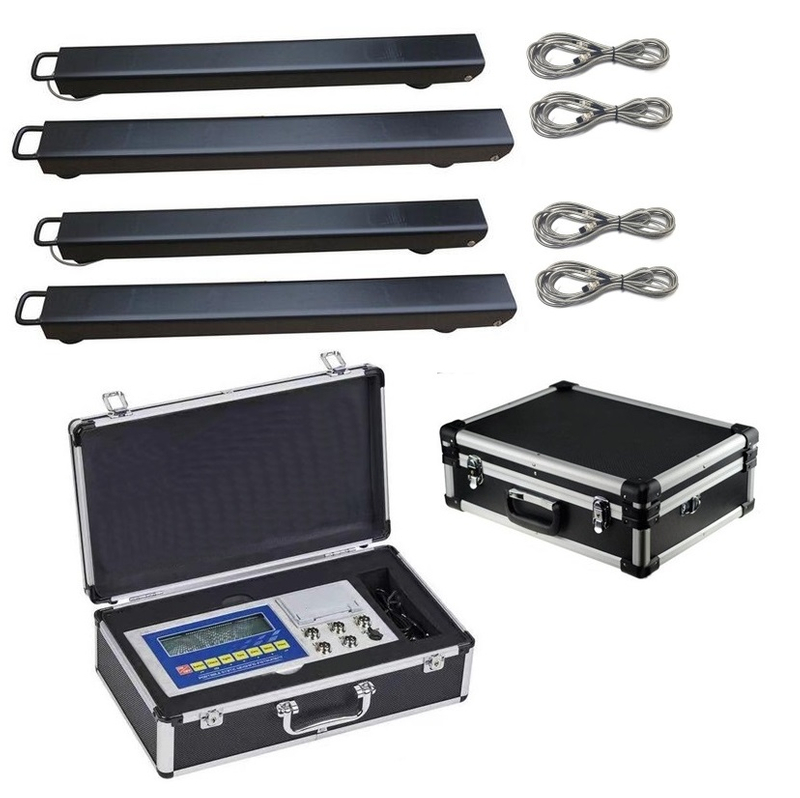

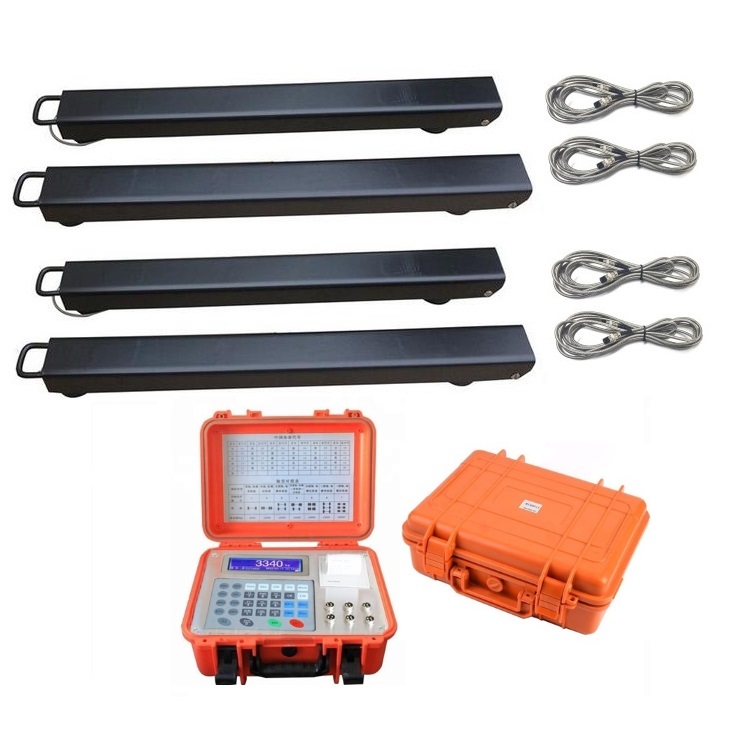

Multiple Sizes Capacities Multichannel Weigh Beam Useful in A Variety of Applications

Availability:
Quantity:

PDF Export


Description:

With Weigh bar, weights can be measured directly on a load platform Or in the warehouse. The weigh bars are connected by a cable. This Allows for the correct distance between them to be chosen, up to a Maximum of 3 meters. This permits wide loads to be weighed. This Scale does not require that you bring the pallet to the scale, it can be Taken to the pallet that needs to be weighed. Weigh things easily and with total control. The floor scale is powered by either a 110-230v main Adaptor or internal rechargeable battery.


Features and Characteristics:

Cost-effective;

Multiple sizes and capacities;

Useful in a variety of applications;



 Specification:

Item No.

Size

Max. Cap.

Division

Height

Net.Weight

(m×m)

(Ton)

(Kg)

(mm)

(kg)

PBS01--0.5/1/2/2.5t-0808

0.10×0.8

0.5/1/2/2.5t

0.5/1/1

100

24.2

PBS01--0.5/1/2/2.5t-1010

0.10×1.0

0.5/1/2/2.5t

0.5/1/1

100

28.3

PBS01--0.5/1/2/2.5t-1212

0.10×1.2

0.5/1/2/2.5t

0.5/1/1

100

32.4

PBS01--0.5/1/2/2.5t-1515

0.10×1.5

0.5/1/2/2.5t

0.5/1/1

100

38.5


6.1 Normal Printing format

Single Weigh Beam

Double Weigh Beam

Three Weigh Beam

Four Weigh Beam

Weighing Report

Weighing Report

Weighing Report

Weighing Report

NO. : 0575

NO. : 0575

NO. : 0575

NO. : 0575

Date: 2013-11-02

Date: 2013-11-02

Date: 2013-11-02

Date: 2013-11-02

Time: 09:59:04

Time: 09:59:04

Time: 09:59:04

Time: 09:59:04

Vehicle:

Vehicle:

Vehicle:

Vehicle:

Cargo:34

Cargo:34

Cargo:34

Cargo:34

LFW: 429.0kg

LFW:429.0kg

FW:

429.0kg

LFW: 429.0kg

----------------

RFW:413.5kg

LRW:

319.0kg

RFW: 413.5kg

Net: 429.0kg

Axle1:842.5kg

RRW:

293.0kg

Axle1: 842.5kg

Tare:0.0kg

----------------

Axle2:

612.0kg

LRW: 319.0kg

Gross: 429.0kg

Net:842.5kg

----------------

RRW: 293.0kg

Operator:

Tare:0.0kg

Net: 1041.0kg

Axle2: 612.0kg


Gross:  842.5kg

Tare:0.0kg

-------------------


Operator:

Gross: 1041.0kg

Net: 1454.5kg



Operator:

Tare:0.0kg




Gross: 1454.5kg




Operator:
