Zhejiang, China
Saintbond
TSensor010
Weigh the weight of the weigher
Convert electrical signal to the force signal
0-10MV
Online Tension Measuring steel wire rope pull Sensors Systems
Alloy / Stainless Steel
Customizable
Good quality and low price
0.35x0.3x0.2cm
5~40Days
Welcome
1PCS
All over the world
Factory supply

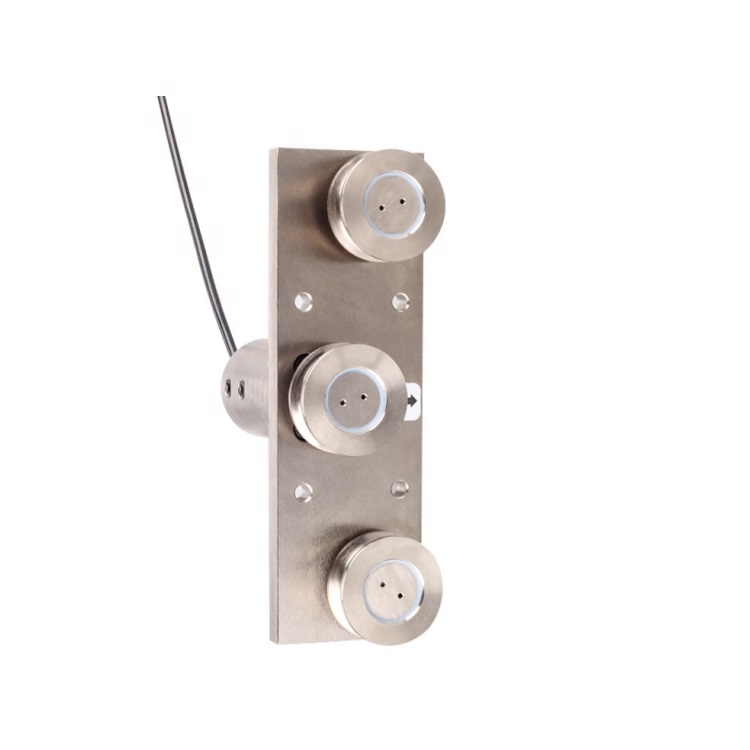

Online Tension Measuring steel wire rope pull Sensors Systems
TSensor tension sensor, optional roller material, aluminum alloy, plastics, ceramics, etc., has high measurement accuracy and good stability. It can be used for on-line measurement of tension of cable, fiber and similar process materials.
Capacity: | 100/200/300/500/1000Kg | ||
Rated Output: | 1.5mv/v±1% | Temp.Compensated | -10℃ to+40℃ |
Zero Balance: | ±1% of rated output | Safe Overload | 1.5 |
Creep After 30 Minutes: | ±0.03% of rated output | Input Impedance | 387 Ω±20Ω |
Nonlinearity: | ±0.3% of rated output | Output Impedance | 350 Ω±5Ω |
Hysteresis: | ±0.03% of rated output | Insulation Resistance | ≥5000MΩ(50VDC) |
Repeatability: | ±0.3% of rated output | Rated Excitation | 5V DC/AC |
Temp. effect on output: | ≤0.03% of applied output/℃ | Max. Excitation | 10V DC/AC |
Temp. Effect on zero: | ≤0.03% of rated output/℃ | Protection Class | IP65 |
Safe temp. Range: | -20℃ to+70℃ | Construction | 3-6m |
FAQ:
Q: Could you offer more information about the products, and quote a best price ?
A: Yes, certainly, we will send our product catalogue and company introduction for your reference.
You can choose one or some model, I will advice suitable one for you, also with best price details.
Q: Are you manufacture or trading company ?
A: We are manufacture, also have own export right under our export company. Welcome to visit our factory, check our quality and service.
Q: How long is your delivery time ? What's your payment terms ?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Payment terms is TT, LC, Cash, also can be negotiation with us.
Q: Your price is a little bit higher than my target, can you offer a better price ?
A: Yes, price can be negotiation, we try our best to meet your target, let's find a win-win solution, we always keep long term cooperation relations with customers.
Online Tension Measuring steel wire rope pull Sensors Systems
TSensor tension sensor, optional roller material, aluminum alloy, plastics, ceramics, etc., has high measurement accuracy and good stability. It can be used for on-line measurement of tension of cable, fiber and similar process materials.
Capacity: | 100/200/300/500/1000Kg | ||
Rated Output: | 1.5mv/v±1% | Temp.Compensated | -10℃ to+40℃ |
Zero Balance: | ±1% of rated output | Safe Overload | 1.5 |
Creep After 30 Minutes: | ±0.03% of rated output | Input Impedance | 387 Ω±20Ω |
Nonlinearity: | ±0.3% of rated output | Output Impedance | 350 Ω±5Ω |
Hysteresis: | ±0.03% of rated output | Insulation Resistance | ≥5000MΩ(50VDC) |
Repeatability: | ±0.3% of rated output | Rated Excitation | 5V DC/AC |
Temp. effect on output: | ≤0.03% of applied output/℃ | Max. Excitation | 10V DC/AC |
Temp. Effect on zero: | ≤0.03% of rated output/℃ | Protection Class | IP65 |
Safe temp. Range: | -20℃ to+70℃ | Construction | 3-6m |
FAQ:
Q: Could you offer more information about the products, and quote a best price ?
A: Yes, certainly, we will send our product catalogue and company introduction for your reference.
You can choose one or some model, I will advice suitable one for you, also with best price details.
Q: Are you manufacture or trading company ?
A: We are manufacture, also have own export right under our export company. Welcome to visit our factory, check our quality and service.
Q: How long is your delivery time ? What's your payment terms ?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Payment terms is TT, LC, Cash, also can be negotiation with us.
Q: Your price is a little bit higher than my target, can you offer a better price ?
A: Yes, price can be negotiation, we try our best to meet your target, let's find a win-win solution, we always keep long term cooperation relations with customers.
