Zhejiang, China
SAINTBOND
Mini0102
Weigh the weight of the weigher
Convert electrical signal to the force signal
2.0mV/V
Planar beam load cell 300kg 150kg 75kg 30kg sensor
Aluminum
1SET
Good quality and low price
OEM&ODM
Welcome
5~40Days
30% advance payment, the rest payment before delivery
Carton,0.35x0.3x0.2cm

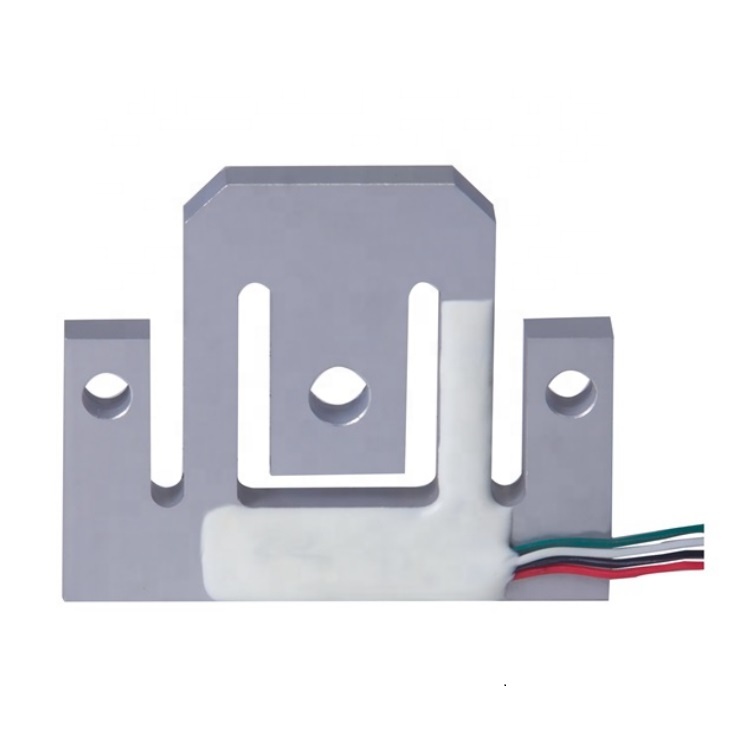

Planar beam load cell 300kg 150kg 75kg 30kg sensor
Planar beam load cell,very low profile,matched output.Aluminum construction with surface anodized.Mainly for low profile infant and adult medical scale,low profile platform scales,personal scale,airport baggage scale,postal scales etc.
The Mini102 Planar beam load cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. They are designed for those who need to produce equipment with minimal overall height. They are usually implemented in sets of three or four per scale.
Advantages of Mini102 Planar beam load cells:Most planar beams are not corner-adjusted. Using 3 or 4 Planar beam load cells is an alternative to a single point load cell configuration with the additional benefit of a practical unlimited platform size.Model Mini102 load cells are designed to this “Planar beam”type and manufactured from high quality aluminum alloy of aviation standard. LAA-W7 load cells can be used to measure loads range from 75kg to 300kg with the measuring accuracy of 0.05% R.O.( R.O.=Rated Output)
Mini102 load cells are mainly used for retail scales, medical scales,personal scales,bathroom scales,airport baggage scales,postal scales and any weighing environment where space is a limiting factor.
Rated Capacity: | 75/150/300Kg | Insulation resistance: | ≥2000MΩ |
Full Scale Output: | 0.8mV/V ± 0.15 | Temp. effect on span: | ±0.1%F.S/10℃ |
Non-linearity: | 0.05%FS | Temp. effect on zero: | ±0.05%F.S/10℃ |
Hysteresis: | ±0.05%F.S | Compensated temp. range: | -10~+40℃ |
Creep: | ±0.05%F.S/3min | Use temp. range: | -10~+40℃ |
Zero balance: | ±0.3%F.S | Excitation voltage: | 5~10V(DC) |
Input resistance: | 1000±10Ω | Safe overload: | 120%F.S |
Output resistance: | 1000±10Ω | Ultimate overload : | 150%F.S |
FAQ:
Q: Could you offer more information about the products, and quote a best price ?
A: Yes, certainly, we will send our product catalogue and company introduction for your reference.
You can choose one or some model, I will advice suitable one for you, also with best price details.
Q: Are you manufacture or trading company ?
A: We are manufacture, also have own export right under our export company. Welcome to visit our factory, check our quality and service.
Q: How long is your delivery time ? What's your payment terms ?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Payment terms is TT, LC, Cash, also can be negotiation with us.
Q: Your price is a little bit higher than my target, can you offer a better price ?
A: Yes, price can be negotiation, we try our best to meet your target, let's find a win-win solution, we always keep long term cooperation relations with customers.
Planar beam load cell 300kg 150kg 75kg 30kg sensor
Planar beam load cell,very low profile,matched output.Aluminum construction with surface anodized.Mainly for low profile infant and adult medical scale,low profile platform scales,personal scale,airport baggage scale,postal scales etc.
The Mini102 Planar beam load cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. They are designed for those who need to produce equipment with minimal overall height. They are usually implemented in sets of three or four per scale.
Advantages of Mini102 Planar beam load cells:Most planar beams are not corner-adjusted. Using 3 or 4 Planar beam load cells is an alternative to a single point load cell configuration with the additional benefit of a practical unlimited platform size.Model Mini102 load cells are designed to this “Planar beam”type and manufactured from high quality aluminum alloy of aviation standard. LAA-W7 load cells can be used to measure loads range from 75kg to 300kg with the measuring accuracy of 0.05% R.O.( R.O.=Rated Output)
Mini102 load cells are mainly used for retail scales, medical scales,personal scales,bathroom scales,airport baggage scales,postal scales and any weighing environment where space is a limiting factor.
Rated Capacity: | 75/150/300Kg | Insulation resistance: | ≥2000MΩ |
Full Scale Output: | 0.8mV/V ± 0.15 | Temp. effect on span: | ±0.1%F.S/10℃ |
Non-linearity: | 0.05%FS | Temp. effect on zero: | ±0.05%F.S/10℃ |
Hysteresis: | ±0.05%F.S | Compensated temp. range: | -10~+40℃ |
Creep: | ±0.05%F.S/3min | Use temp. range: | -10~+40℃ |
Zero balance: | ±0.3%F.S | Excitation voltage: | 5~10V(DC) |
Input resistance: | 1000±10Ω | Safe overload: | 120%F.S |
Output resistance: | 1000±10Ω | Ultimate overload : | 150%F.S |
FAQ:
Q: Could you offer more information about the products, and quote a best price ?
A: Yes, certainly, we will send our product catalogue and company introduction for your reference.
You can choose one or some model, I will advice suitable one for you, also with best price details.
Q: Are you manufacture or trading company ?
A: We are manufacture, also have own export right under our export company. Welcome to visit our factory, check our quality and service.
Q: How long is your delivery time ? What's your payment terms ?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Payment terms is TT, LC, Cash, also can be negotiation with us.
Q: Your price is a little bit higher than my target, can you offer a better price ?
A: Yes, price can be negotiation, we try our best to meet your target, let's find a win-win solution, we always keep long term cooperation relations with customers.
